620-900-0630Y datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 620-900-0630Y

620-900-0630Y: DescriptionRF UHF Connector, Female, Cable Mount, Crimp Terminal, Jack; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric Compare View All

620-900-0630Y Overview

RF UHF Connector, Female, Cable Mount, Crimp Terminal, Jack

620-900-0630Y Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	APPLICABLE CABLES: RG-174; RG-188A; RG-316
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF UHF CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.2 dB
insulator material	TEFLON
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	62
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	2.5 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

MINI-UHF 50 Ohm 0-2.5 GHz:

MATERIALS:

Connector Body: Brass per ASTM B16 1/2 HD

Center Contact Male: Brass per ASTM B16 1/2 HD

Center Contact Female: Brass, Phosphor Bronze or

Beryllium Copper

Insulators: Teflon or Delrin

Crimp Ferrule: Annealed Copper Alloy

Finish:

Center Contact Male: Gold per MIL-G-45204

Center Contact Female: Gold per MIL-G-45204

Connector Body: Nickel per QQ-N-290

Mating Characteristics:

Mating: 3/8”-24 Threaded Coupling

Cable Retention:

Connectors For RG- 58,141,142,223 - 40 lbs. Minimum

Connectors For RG-174,188,316 - 20 lbs. Minimum

Specifications

ELECTRICAL

Impedance: 50 Ohm

Frequency Range: 0 to 2.5GHz

Voltage Rating: 335 Volts RMS Maximum

Voltage Standing Wave Ratio: 1.25 Maximum

Dielectric Withstanding Voltage: 1,000 Volts RMS Maximum

Contact Resistance:

Center Contact = 1.5 Milliohms Maximum

Outer Contact = 1.0 Milliohms Maximum

RF Leakage: -55 dB Minimum @ 2.5GHz

Insertion Loss: .2 dB Maximum @2.5GHz

Insertion Resistance: 5,000 Megohms Minimum

ENVIRONMENTAL

Temperature Range: -55ºC to 85ºC

Vibration: MIL-STD-202, Method 204, Test Condition B.

Salt Spray: MIL-STD-202, Method 101, Test Condition B.

Durability: 500 Matings

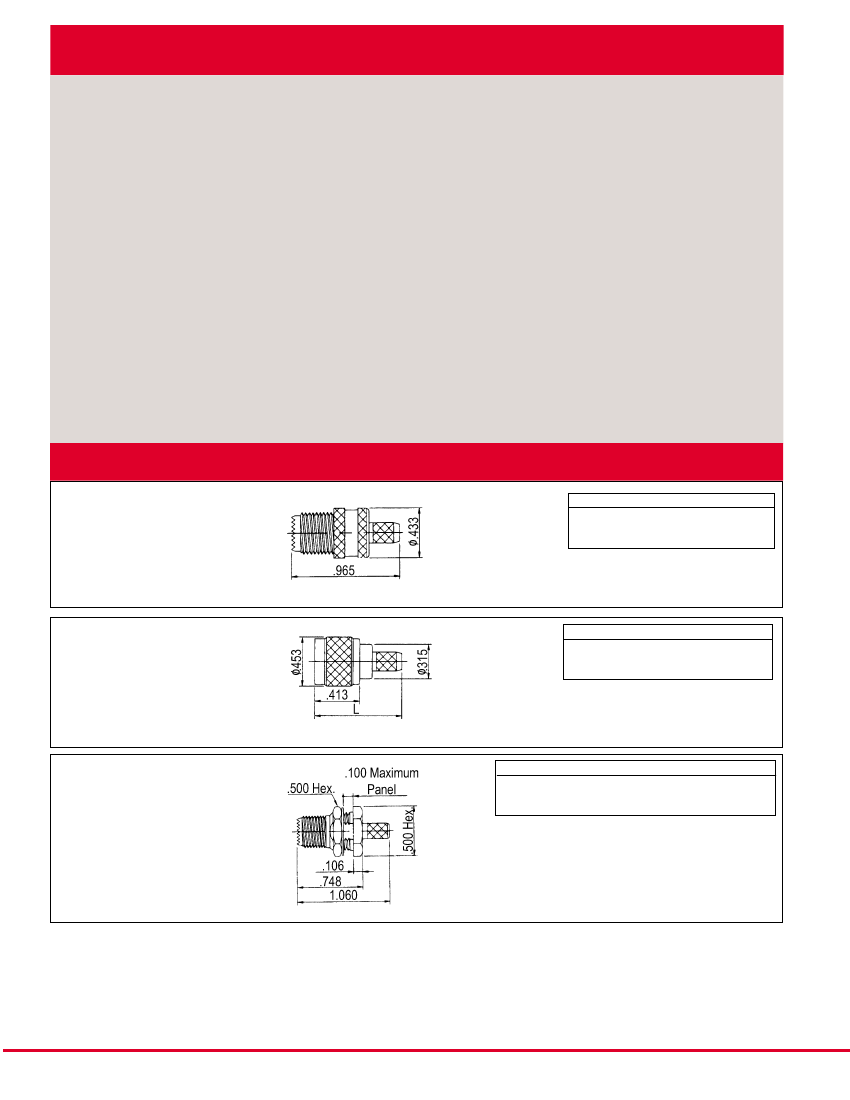

MINI-UHF:

Straight

Jack Crimp

Flexible Cable Crimp Attachment

Part Number

621-900-1160Y

621-900-0630Y

Cable

RG-58,58A,141A

RG-174,188A,316

• See page 116 for cable assembly procedures: CM-03

Straight

Plug Crimp

Part Number

620-900-1160Y

620-900-0630Y

Cable

RG-58,58A,141A

RG-174,188A,316

• See page 116 for cable assembly procedures: CM-03

Straight

Bulkhead

Jack, Crimp

Part Number

621-930-1160Y

621-930-1165Y

Cable

Mounting Hole

RG-58,58A,141A

No. 030

RG-59,62A,210

No. 030

• See page 116 for cable assembly procedures: CM-03

• see page 83 for mounting hole layout.

Note: Dimensions shown in inches.

Winchester/Retconn

RF/70

400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950• Internet: http://www.litton-wed.com

620-900-0630Y Related Products

	620-900-0630Y	621-900-1160Y	621-900-0630Y	620-900-1160Y
Description	RF UHF Connector, Female, Cable Mount, Crimp Terminal, Jack	RF UHF Connector, Male, Cable Mount, Crimp Terminal, Plug	RF UHF Connector, Female, Cable Mount, Crimp Terminal, Jack	RF UHF Connector, Male, Cable Mount, Crimp Terminal, Plug
Reach Compliance Code	unknown	unknow	unknown	unknown
Other features	APPLICABLE CABLES: RG-174; RG-188A; RG-316	APPLICABLE CABLES: RG-58; RG-58A; RG-141A	APPLICABLE CABLES: RG-174; RG-188A; RG-316	APPLICABLE CABLES: RG-58; RG-58A; RG-141A
Body/casing type	JACK	PLUG	JACK	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF UHF CONNECTOR	RF UHF CONNECTOR	RF UHF CONNECTOR	RF UHF CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	MALE	FEMALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insertion loss	0.2 dB	0.2 dB	0.2 dB	0.2 dB
insulator material	TEFLON	TEFLON	TEFLON	TEFLON
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	62	62	62	62
Installation method	STRAIGHT	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE
Installation type	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	2.5 GHz	2.5 GHz	2.5 GHz	2.5 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
voltage standing wave ratio	1.25	1.25	1.25	1.25
Base Number Matches	1	1	1	1
