TSSH-125-01-T-DV-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> TSSH-125-01-T-DV-TR

TSSH-125-01-T-DV-TR: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size946KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TSSH-125-01-T-DV-TR Overview

Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, ROHS COMPLIANT

TSSH-125-01-T-DV-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	TAPE & REEL PACKAGING
body width	0.35 inch
subject depth	0.35 inch
body length	2.7 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	TSSH
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	6.5024 mm
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
Evacuation force-minimum value	6.672 N
Base Number Matches	1

Preview

Download Datasheet

View All

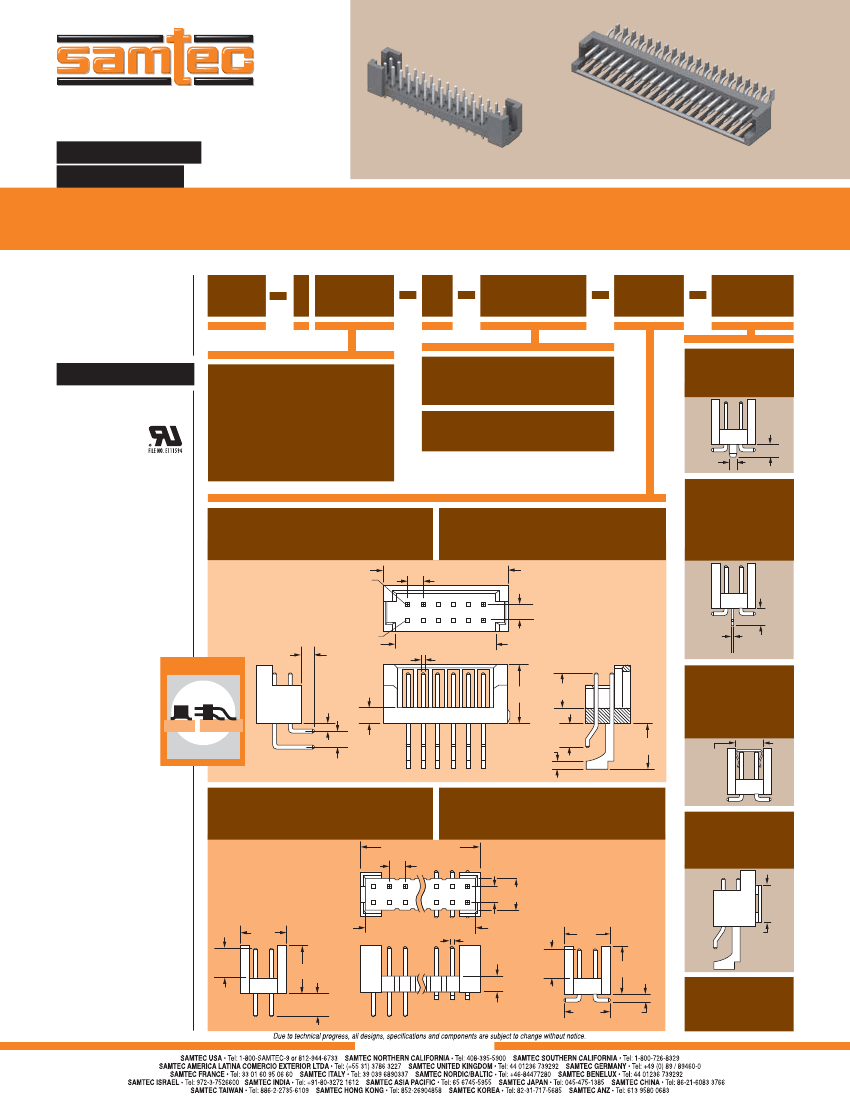

F-213

TSSH–115–01–L–D

(2,54 mm) .100"

TSSH SERIES

TSSH–120–01–L–DH

SHROUDED .025" SQ POST HEADERS

Mates with:

SSW, SSQ, SSM, SMSD

Important Note:

This Series will only mate

with SSW, SSQ, SSM &

SMSD Series

TSSH

NO. PINS

PER ROW

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

SPECIFICATIONS

For complete speciﬁcations

and recommended PCB layouts

see www.samtec.com?TSSH

Insulator Material:

Black Liquid Crystal

Polymer

Terminal Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Operating Temp Range:

-55°C to +105°C with Tin;

-55°C to +125°C with Gold

RoHS Compliant:

Yes

05, 10, 15, 20,

25, 30, 34

(–D–RA, –DH)

–L

= 10µ" (0,25 µm) Gold on post,

Matte Tin on tail

–A

= Alignment Pin (N/A

with -LC)

(3,17)

.125

05, 10, 15, 20,

25, 30, 35, 36

(–D, –DV)

–T

= Matte Tin

Note:

Other Gold plating options available.

Contact Samtec.

(1,58)

.062

–LC

–D–RA

= Double Row Right Angle Pin

Through-hole

–DH

= Double Row Horizontal Pin

Surface Mount

= Locking Clip

(–DV only)

(N/A with -A)

(Manual placement

required)

Processing:

Lead–Free Solderable:

Yes

SMT Lead Coplanarity (–DV):

(0,10 mm) .004" max (05-10)

(0,15 mm) .006" max (15-20)

(0,20 mm) .008" max (25-36)

SMT Lead Coplanarity (–DH):

(0,15 mm) .006" max

(No. of positions + 2) x (2,54) .100

(2,54) .100

(2,54)

.100

APPLICATIONS

SSM TSSH

(2,29)

.090

(No. of positions x

(2,54) .100) + (1,02) .040

(0,64) .025 SQ

(5,84)

.230

(1,42)

.056

(0,25)

.010

(3,43)

.135

(1,52)

.060

(9,65)

.380

–M

= Metal Pick

& Place Pad

(–DV only)

(N/A with -T plating)

(7,62)

.300

(5,71)

.225

(4,16)

.164

HORIZONTAL

(2,54)

.100

(3,94)

.155

(1,27)

.050

–D–RA

(2,54)

.100

–DH

–D

= Double Row Vertical Pin

Through-hole

No. of positions x

(2,54) .100 + (5,08) .200

(2,54) .100

(2,54) (6,35)

.100 .250

–DV

= Double Row Vertical Pin

Surface Mount

–P

= Plastic Pick

& Place Pad

(–DH only) 5 pos. min

(8,89)

.350

(6,10)

.240

No. of positions x

(2,54) .100 + (1,27) .050

(0,64) .025 SQ

(6,10)

.240

(2,54)

.100

(8,89)

.350

(8,89)

.350

(8,89)

.350

(2,69)

.106

(6,86)

.270

(8,26)

.325

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

–D

(10,03)

.395

(1,91)

.075

–DV

= Tape & Reel

5 to 25 positions

(–DH & –DV only)

–TR

WWW.SAMTEC.COM
