ASP-1810M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ASP-1810M

ASP-1810M: DescriptionMobile Station Antenna, 806MHz Min, 960MHz Max, 2.15dB Gain; CategoryWireless rf/communication Radio frequency and microwave; File Size321KB，1 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

ASP-1810M Overview

Mobile Station Antenna, 806MHz Min, 960MHz Max, 2.15dB Gain

ASP-1810M Parametric

Parameter Name	Attribute value
Maker	CommScope Inc
Reach Compliance Code	unknown
application	TRUNKING MOBILE
bandwidth	154 MHz
Characteristic impedance	50 Ω
Gain	2.15 dB
Omnidirectional	YES
Maximum operating frequency	960 MHz
Minimum operating frequency	806 MHz
polarization	LINEAR VERTICAL
RF/Microwave Device Types	MOBILE STATION ANTENNA
Maximum transmission power	100 W
Maximum voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

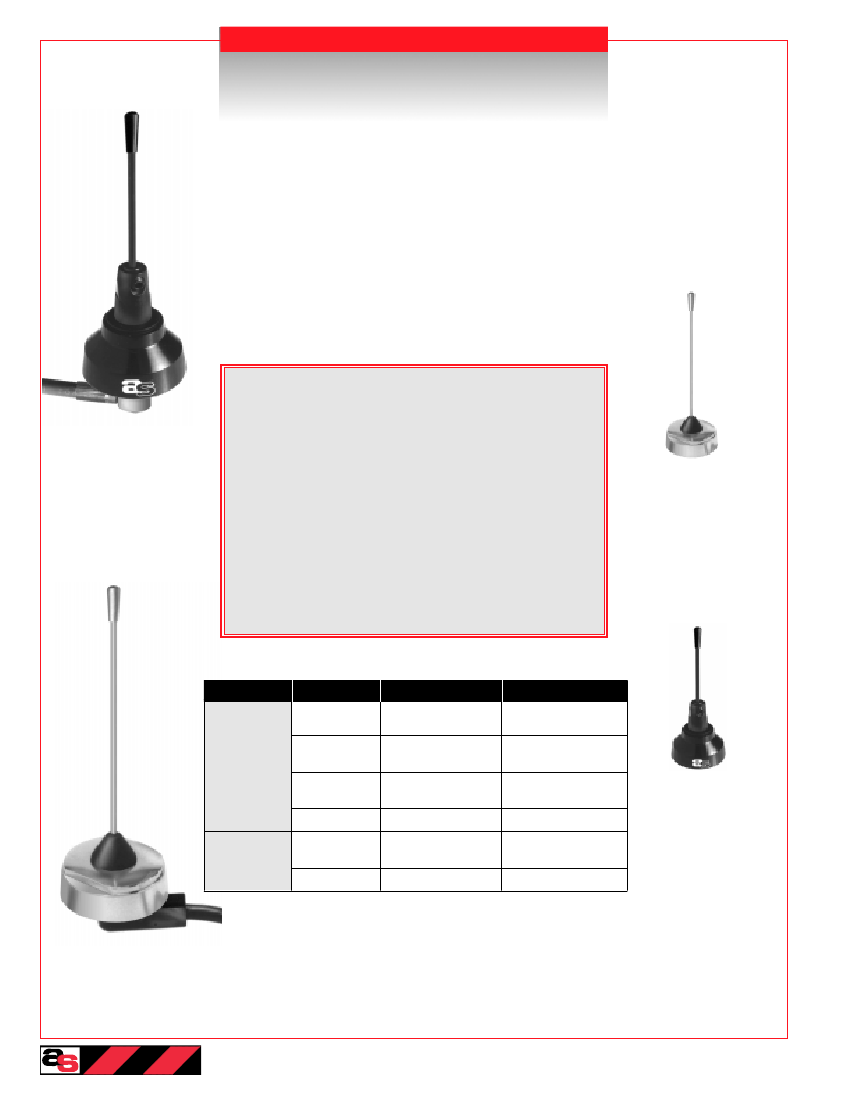

TRUNKING MOBILE ANTENNAS

High Quality, Quarter-wave Antennas

Models

ASP-1810 Series

ASP-1815

ASPR1910

ASPR1915

Building Block

universal mount allows later system performance

upgrade by simple replacement with higher gain antenna

Low Profile

small 1/4 wavelength design for localized urban

areas where higher gain may not be required

Weatherproof

antenna may be removed for car washes without

fear of water seepage

Broadband

covers entire specified frequency range without tuning

Rooftop Mount

Antenna

Mounting

Options

ASP-1810

Quarter-wavelength antenna

with exclusive A/S male-female

contact mount for noise-free

duplex operation. Black

DURA-COAT

with 17 ft

(5.2 m) PRO-FLEX

PLUS

cable and connector as ordered.

Electrical

Power

Gain

Frequency Range

VSWR

Impedance

Pattern

Mechanical

Whip Material

Base and Fittings

Cable

Connector

Overall Length

Specifications

100 watts maximum

Unity (2 dBi)

See table below

1.5:1

50 ohms

Omnidirectional when roof mounted; ground

plane required

Stainless steel, black or chrome finish

Aluminum, plated steel and brass

See table below

Approximately 4 inches (10 cm)

(ASP-1810 Series)

3 inches (7.6 cm)

(ASPR1910)

ASPR1915

"Chrome-Dome" same as

ASPR1910 except that no

mount or cable is included.

Direct replacement for

Motorola TAD-type mount

or low profile mount

installations.

Available Model Configurations

Frequency

Model

ASP-1810M

ASP-1810N

806-960 MHz

ASP-1810T

ASP-1815

806-894 MHz

ASPR1910

ASPR1915

Cable

17 ft (5.2 m)

PRO-FLEX PLUS

17ft (5.2 m)

PRO-FLEX PLUS

17 ft (5.2 m)

PRO-FLEX PLUS

None

17 ft (5.2 m)

RG-58/U

None

Connector

Mini-UHF crimp

N male

TNC male crimp

None

ASP-1815

Same as ASP-1810 except

that no mount or cable is

included. Fits on A/S male-

female contact mount for

noise-free duplex operation.

ASPR1910

3/4 inch hole rooftop mount,

"Chrome-Dome" direct

replacement for Motorola

TAD-type antennas with

17 ft (5.2 m) RG-58/U.

®Stripes of Quality

w w w . a n t e n n a . c o m

ASP-1810M Related Products

	ASP-1810M	ASP-1810N	ASP-1810T	ASP-1815	ASPR1910
Description	Mobile Station Antenna, 806MHz Min, 960MHz Max, 2.15dB Gain	Mobile Station Antenna, 806MHz Min, 960MHz Max, 2.15dB Gain	Mobile Station Antenna, 806MHz Min, 960MHz Max, 2.15dB Gain	Mobile Station Antenna, 806MHz Min, 960MHz Max, 2.15dB Gain	Mobile Station Antenna, 806MHz Min, 896MHz Max, 2dB Gain
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
application	TRUNKING MOBILE	TRUNKING MOBILE	TRUNKING MOBILE	TRUNKING MOBILE	TRUNKING MOBILE
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Gain	2.15 dB	2.15 dB	2.15 dB	2.15 dB	2 dB
Omnidirectional	YES	YES	YES	YES	YES
Maximum operating frequency	960 MHz	960 MHz	960 MHz	960 MHz	896 MHz
Minimum operating frequency	806 MHz	806 MHz	806 MHz	806 MHz	806 MHz
polarization	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL
RF/Microwave Device Types	MOBILE STATION ANTENNA	MOBILE STATION ANTENNA	MOBILE STATION ANTENNA	MOBILE STATION ANTENNA	MOBILE STATION ANTENNA
Maximum transmission power	100 W	100 W	100 W	100 W	100 W
Maximum voltage standing wave ratio	1.5	1.5	1.5	1.5	1.5
Maker	CommScope Inc	-	CommScope Inc	CommScope Inc	CommScope Inc
bandwidth	154 MHz	154 MHz	154 MHz	154 MHz	-
Base Number Matches	1	1	1	-	-
