8
7
6
5
4
REV
B
C
D
E
3
DESCRIPTION
2
REVISIONS
DATE
1
APPROVED
D.PARHAM
D.PARHAM
D. PARHAM
D. PARHAM
07/18/07
02/06/08
05/07/08
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
ECN2917: UPDATED PICTORIALLY. UPDATED NOTE FORMAT AND CONTENT.
ECN3191: ADDED 20, 30, 40, 60, 80 & 90 FT LENGTHS
ECN3320: ADDED PACKAGED ON A SPOOL NOTE. UPDATED FORMAT.
ECN3552: ADDED RED & BLK CABLES. MODIFIED PACKAGING NOTE.
D
D
"P1"
2X SNAGLESS BOOT
LENGTH
"P2"
C
POSITION 1
2X SHIELDED RJ45 PLUG
POSITION 1
C
NOTES:
MATERIAL:
PLUG HOUSING: POLYCARBONATE, CLEAR, UL94V-0
CONTACTS: PHOSPHOR BRONZE
CABLE JACKET: LSZH COLOR: SEE SHEET 2
PLUG SHIELDING: BRASS
SNAGLESS BOOT: LSZH THERMOPLASTIC, BLACK
FINISH:
CONTACTS: 50
µ
INCHES GOLD IN CONTACT AREA
OVER 100
µ
INCHES NICKEL PLATE OVERALL.
PLUG SHIELDING: NICKEL PLATED
CABLE CHARACTERISTICS:
SHIELDING: ALUMINUM/POLYESTER AND BRAIDED TINNED COPPER
CONDUCTORS: FOUR TWISTED PAIR, 26 AWG (7X34) STRANDED COPPER
MISCELLANEOUS:
ASSEMBLY WIRED PER 568B SEQUENCE
PLUG CONFORMS TO TIA-1096
OPERATING TEMPERATURE RANGE: -20°C TO +60°C
CABLES TO BE TESTED FOR CONTINUITY
CABLES INDIVIDUALLY PACKAGED IN A POLYBAG
B
B
RoHS Compliant
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES [mm]
OVERALL CABLE LENGTH TOLERANCE:
≤12 [305] = +1 [25] / -0
>12 [305] ≤60 [1524] = +2[51] / -0
>60 [1524] ≤120 [3048] = +4 / -0
>120 [3048] ≤300 [7620] = +6 / -0
>300 [7620] = +5% / -0%
ALL OTHER DIMENSIONAL TOLERANCES:
.X = .3
.XX = .15
PROJECTION
APPROVALS
DRAWN BY
DATE
12/07/2006
12/07/2006
12/11/2006
CATEGORY
D.PARHAM
CHECKED BY
A
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
C.McCORMICK
APPROVED BY
D.GALLAGHER
TELECOM/MODULAR
PRODUCT DESCRIPTION
A
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
COLOR VARIATIONS
MAY OCCUR
CATEGORY 5e PATCH CORD, LSZH
SIZE
A
43321
2
FSCM NO.
DWG. NO.
TRD855DSZ
1
REV.
SHEET 1 OF 2
SCALE: NONE
CAD FILE:
TRD855DSZ.SLDDRW
E
8
7
6
5
4
3
8
7
6
5
4
REV
B
C
D
E
3
DESCRIPTION
2
REVISIONS
DATE
1
APPROVED
D.PARHAM
D.PARHAM
D. PARHAM
D. PARHAM
07/18/07
02/06/08
05/07/08
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
ECN2917: UPDATED PICTORIALLY. UPDATED NOTE FORMAT AND CONTENT.
ECN3191: ADDED 20, 30, 40, 60, 80 & 90 FT LENGTHS
ECN3320: ADDED PACKAGED ON A SPOOL NOTE. UPDATED FORMAT.
ECN3552: ADDED RED & BLK CABLES. MODIFIED PACKAGING NOTE.
D
D
C
C
B
B
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES [mm]
APPROVALS
DRAWN BY
DATE
12/07/2006
12/07/2006
12/11/2006
CATEGORY
A
OVERALL CABLE LENGTH TOLERANCE:
≤12 [305] = +1 [25] / -0
>12 [305] ≤60 [1524] = +2 [51] / -0
>60 [1524] ≤120 [3048] = +4 [102] / -0
>120 [3048] ≤300 [7620] = +6 [152] / -0
>300 [7620] = +5% / -0%
ALL OTHER DIMENSIONAL TOLERANCES:
.X = .3
.XX = .15
PROJECTION
D.PARHAM
CHECKED BY
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
C.McCORMICK
APPROVED BY
D.GALLAGHER
TELECOM/MODULAR
PRODUCT DESCRIPTION
A
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
COLOR VARIATIONS
MAY OCCUR
CATEGORY 5e PATCH CORD, LSZH
SIZE
A
43321
2
FSCM NO.
DWG. NO.
TRD855DSZ
1
REV.

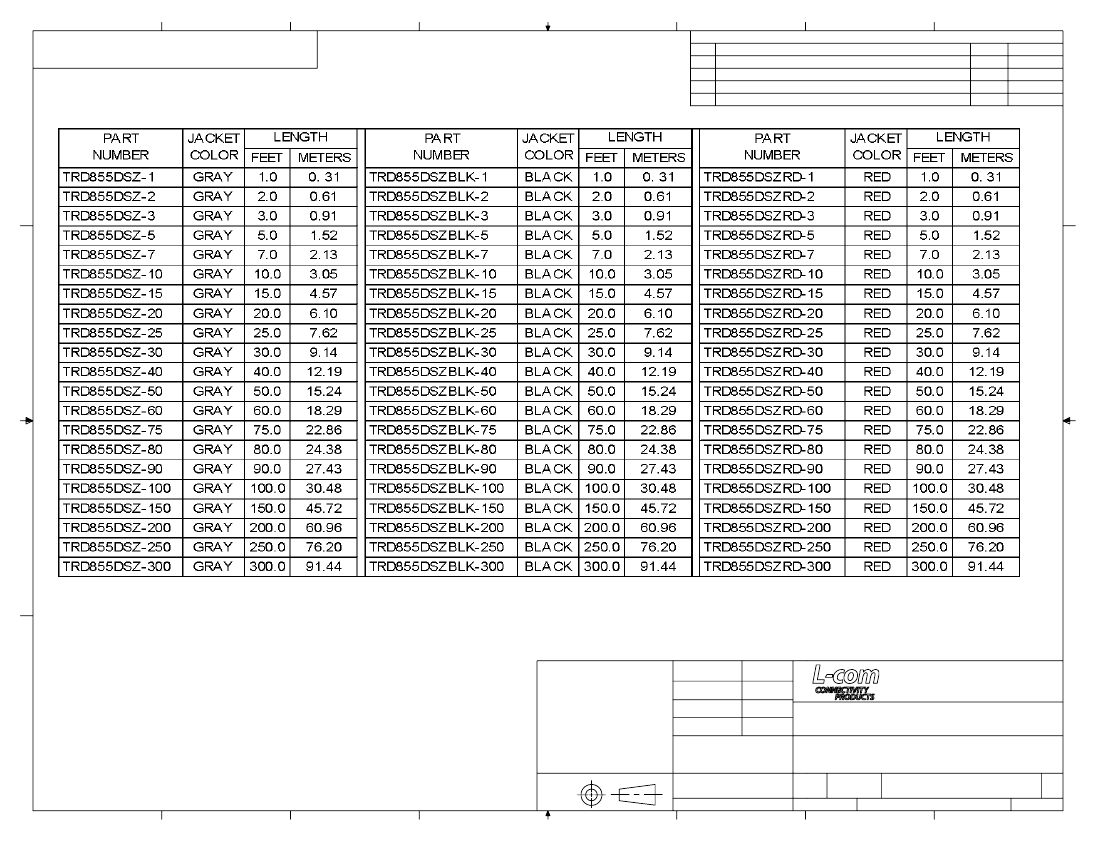

SHEET 2 OF 2
SCALE: NONE
CAD FILE:
TRD855DSZ.SLDDRW
E
8
7
6
5
4
3
