SMP802: DescriptionPiano Dip Switch, 2 Switches, SPST, Off-on, Vertical, 0.1A, 50VDC, Solder Terminal, Surface Mount-straight; CategoryMechanical and electronic products switch; File Size41KB，1 Pages; ManufacturerKnitter-switch; Websitehttp://www.knitter-switch.com/

Download Datasheet Parametric Compare View All

SMP802 Overview

Piano Dip Switch, 2 Switches, SPST, Off-on, Vertical, 0.1A, 50VDC, Solder Terminal, Surface Mount-straight

SMP802 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Actuator length	0.043 inch
Actuator material	POLYAMIDE
Actuator type	PIANO
Other features	ROHS COMPLIANT
body width	6.8072 mm
body height	4.3434 mm
Body length or diameter	6.604 mm
center contact material	BERYLLIUM COPPER
Center contact plating	GOLD OVER NICKEL
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	0.1A@50VDC
Contact function	OFF-ON
Contact resistance	0.05 mΩ
Maximum contact voltage (DC)	50 V
Dielectric withstand voltage	500VAC V
Electrical life	500 Cycle(s)
End contact material	BERYLLIUM COPPER
End contact plating	GOLD OVER NICKEL
Insulation resistance	1000000000 Ω
insulator material	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	SMP800
Installation features	SURFACE MOUNT-STRAIGHT
Number of switching segments	2
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
surface mount	NO
Switch action	VERTICAL
switch function	SPST
Switch type	PIANO DIP SWITCH
Terminal surface	GOLD/NICKEL
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

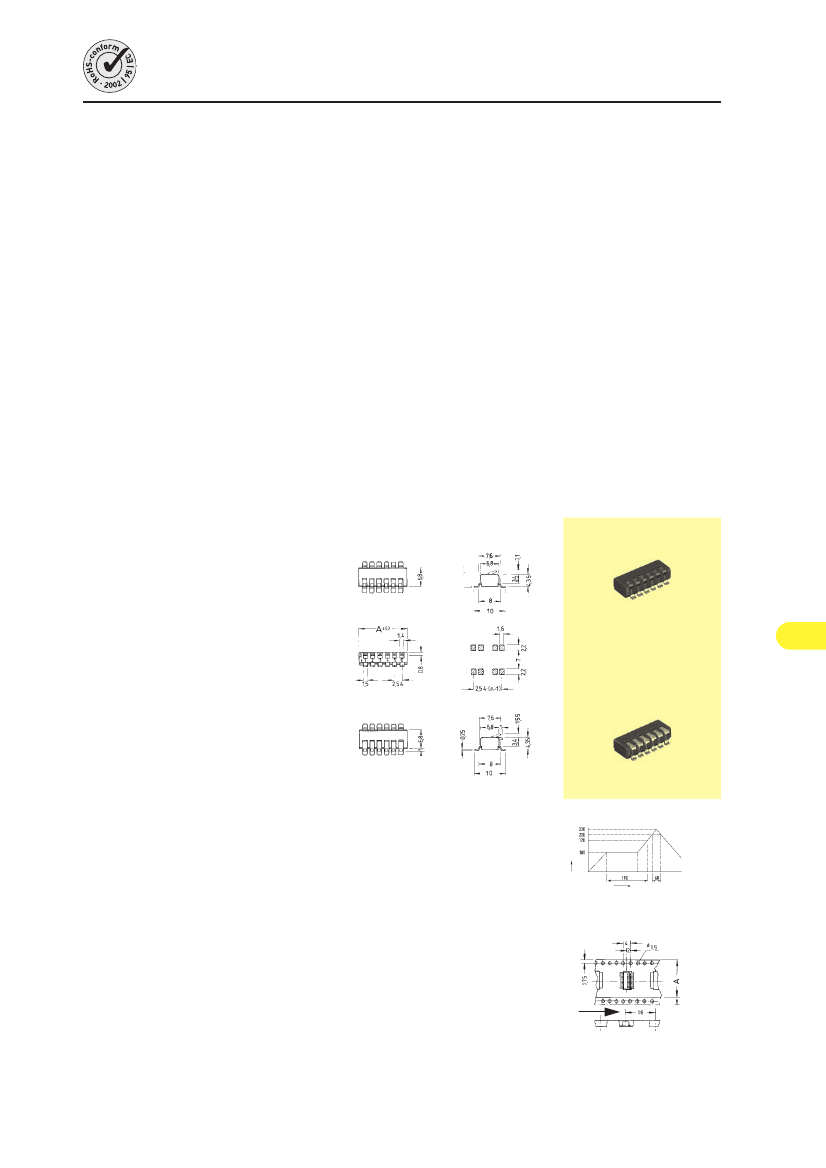

Dual-in-line Switches

Specifications:

Contact rating:

Contact resistance:

Insulation resistance:

Capacity:

Dielectric strength:

Operating temperature:

Mechanical life:

Shock resistance:

Vibration:

Contacts:

Terminals:

Material:

Construction:

Mounting:

Slide position:

Models:

Series SMP 700

Type

SMP 702

SMP 704

SMP 706

SMP 708

SMP 710

Series SMP 800

Type

SMP 802

SMP 804

SMP 806

SMP 808

SMP 810

Poles

2

4

6

8

10

Length (A)

6,6 mm

11,7 mm

16,8 mm

21,9 mm

27,0 mm

Poles

2

4

6

8

10

Length (A)

6,6 mm

11,7 mm

16,8 mm

21,9 mm

27,0 mm

50 V DC, 100 mA

< 50 mΩ

> 1000 MΩ at 100 V DC

< 5 pF between 2 poles

500 V, 50 Hz for the duration of 1 minute

– 20° to + 80° C

minimum 500 operations per pole

contact interruption < 10 µsec with triple shock in all 6 directions

shock conditions 20 G, 11 msec duration (sine half wave)

contact interruption < 10 µsec at vibration test in accordance with

MIL-STD-202 D, method 204, condition C

copper beryllium, gold-plated over nickel

nickel silver, gold-plated over nickel

case: PPS; lever: PA

case sealed; series 700: lever recessed, sealed with protective tape

on pc-board – SMD

OFF

for SMT

5

Packaging:

sticks or tapes

for order on tape: additional to type number: T

example of order: SMP 704 T

Stick

70 pieces; L 510 mm

40 pieces; L 510 mm

28 pieces; L 510 mm

20 pieces; L 510 mm

16 pieces; L 510 mm

Tape

Reel

1000 pieces;

370 mm

1000 pieces;

370 mm

1000 pieces;

370 mm

1000 pieces;

370 mm

1000 pieces;

370 mm

Tape width(A)

24,0 mm

32,0 mm

44,0 mm

temperature °C

Soldering conditions:

reflow-soldering – max.: 40 sec, 200°C

peak temperature: 230° C / max. 90 sec

time/sec

Models

SMP 702 / SMP 802

SMP 704 / SMP 804

SMP 706 / SMP 806

SMP 708 / SMP 808

SMP 710 / SMP 810

8-/10-

poles

127
