B-15/13-1250TDPM-SST-60 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> B-15/13-1250TDPM-SST-60

B-15/13-1250TDPM-SST-60: DescriptionTransceiver, 1500nm Min, 1600nm Max, 1250Mbps(Tx), 1250Mbps(Rx), ST Connector, Through Hole Mount, ROHS COMPLIANT PACKAGE-20; CategoryWireless rf/communication Optical fiber; File Size1MB，6 Pages; ManufacturerSource Photonics

Download Datasheet Parametric Compare View All

B-15/13-1250TDPM-SST-60 Overview

Transceiver, 1500nm Min, 1600nm Max, 1250Mbps(Tx), 1250Mbps(Rx), ST Connector, Through Hole Mount, ROHS COMPLIANT PACKAGE-20

B-15/13-1250TDPM-SST-60 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	IT ALSO OPERATES WAVELENGTH FROM 1260NM TO 1360NM

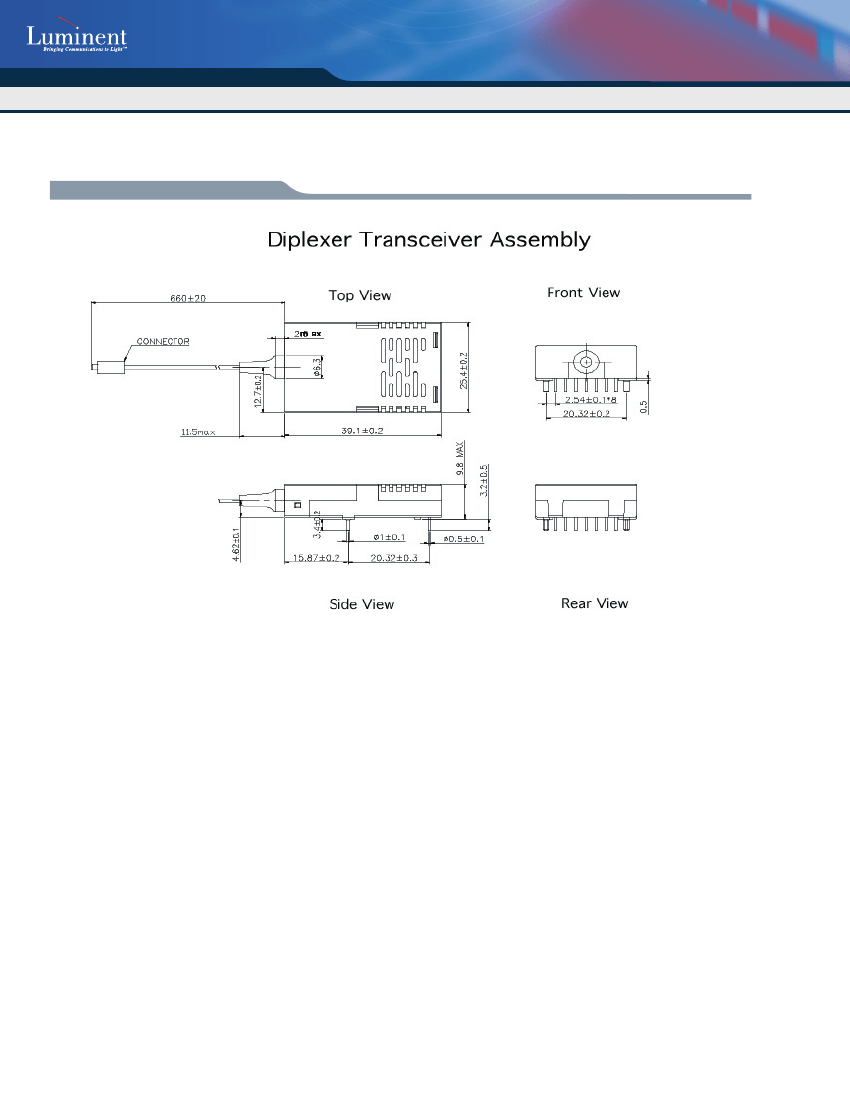

body width	25.4 mm
body height	9.8 mm
Body length or diameter	39.1 mm
Communication standards	GBE, GR-468
Connection Type	ST CONNECTOR
Data rate (receive)	1250 Mbps
Data rate (send)	1250 Mbps
Fiber optic equipment types	TRANSCEIVER
Fiber type	SMF
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum operating wavelength	1600 nm
Minimum operating wavelength	1500 nm
Nominal operating wavelength	1550 nm
Nominal optical power output	0.199 mW
minimum return loss	14 dB
Sensitivity	-22 dBm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

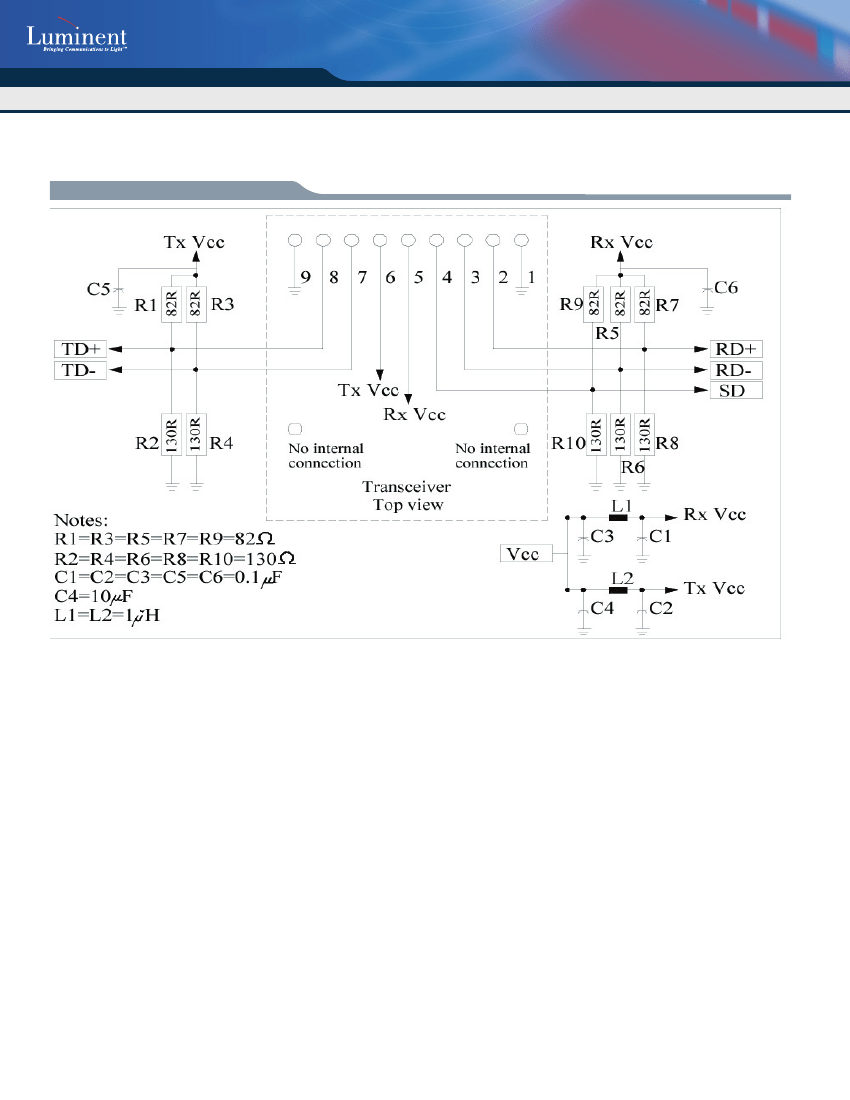

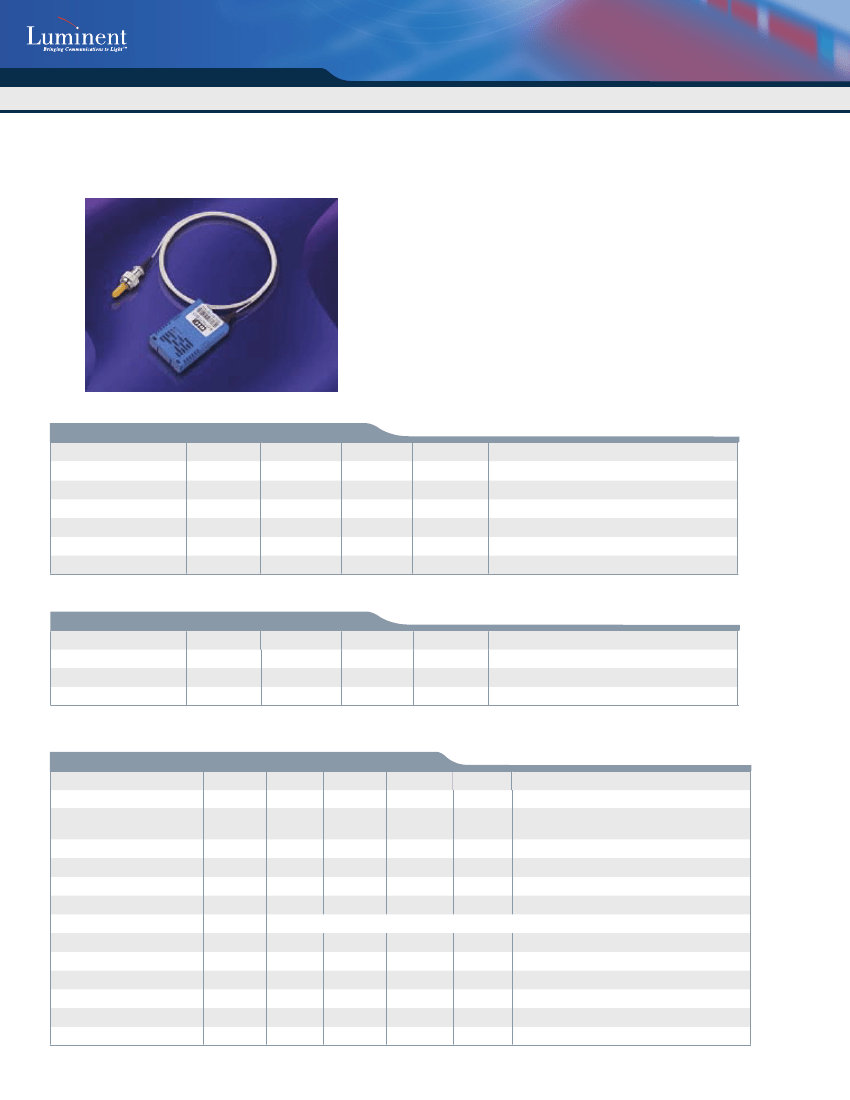

1.25 Gbps Bi-directional Single Fiber Transceiver

B-15/13-1250-TDPM-Sxx-60

Features

• Coaxial single mode single fiber package with optional

SC/FC/ST/MU connector

• Wavelength Tx 1550 nm/ Rx 1310nm

• Compliant with IEEE 802.3z Gigabit Ethernet

• Single +5V Power Supply

• PECL Differential Inputs and Outputs

• Wave Solderable and Aqueous washable

• Class 1 Laser Int. Safety Standad IEC 825 Compliant

• Uncooled laser diode with MQW structure

• Complies with Telcordia (Bellcore) GR-468-CORE

• Temperature Range: 0 to 70ºC

• Optical Isolation >30 dB

• Cross Talk < -33 dB

• Optical Return Loss > 14dB

Absolute Maximum Rating

Parameter

Power Supply Voltage

Input Voltage

Output Current

Soldering Temperature

Operating Temperature

Storage Temperature

out

Symbol

Min.

GND

-40

Max.

260

Unit

ºC

Note

10 seconds on leads only

opr

stg

Recommended Operating Condition

Parameter

Power Supply Voltage

Operating Temperature

Data Rate

Symbol

opr

Min.

4.75

Typ.

1250

Max.

5.25

Unit

ºC

Mbps

Transmitter Specifications, (0ºC<T

opr

<70ºC, 4.75V<V

<5.25V)

Parameter

Optical

Optical Transmit Power

Output center Wavelength

Output Spectrum Width

Side Mode Suppression Ratio

Extinction Ratio

Output Eye

Optical Rise Time

Optical Fall Time

Optical Isolation

Optical Return Loss

Relative Intensity Noise

Total Jitter

Symbol

Min

Typical

Max

Unit

Notes

Output power is coupled into a 9/125 µm single

mode fiber

-20dB width

=5mW

Δλ

-10

1500

1550

-4

1600

0.26

-120

0.27

dBm

dB/Hz

Compliant with IEEE 802.3z

20% to 80% Values

Tx:1550 nm/ Rx:1310 nm

RIN

Measured with 2

-1

B-15/13-1250TDPM-SST-60 Related Products

	B-15/13-1250TDPM-SST-60	B-15/13-1250TDPM-SFC-60	B-15/13-1250TDPM-SMU-60	B-15/13-1250TDPM-SSC-60
Description	Transceiver, 1500nm Min, 1600nm Max, 1250Mbps(Tx), 1250Mbps(Rx), ST Connector, Through Hole Mount, ROHS COMPLIANT PACKAGE-20	Transceiver, 1500nm Min, 1600nm Max, 1250Mbps(Tx), 1250Mbps(Rx), FC Connector, Through Hole Mount, ROHS COMPLIANT PACKAGE-20	Transceiver, 1500nm Min, 1600nm Max, 1250Mbps(Tx), 1250Mbps(Rx), MU Connector, Through Hole Mount, ROHS COMPLIANT PACKAGE-20	Transceiver, 1500nm Min, 1600nm Max, 1250Mbps(Tx), 1250Mbps(Rx), SC Connector, Through Hole Mount, ROHS COMPLIANT PACKAGE-20
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	IT ALSO OPERATES WAVELENGTH FROM 1260NM TO 1360NM	IT ALSO OPERATES WAVELENGTH FROM 1260NM TO 1360NM	IT ALSO OPERATES WAVELENGTH FROM 1260NM TO 1360NM	IT ALSO OPERATES WAVELENGTH FROM 1260NM TO 1360NM
body width	25.4 mm	25.4 mm	25.4 mm	25.4 mm
body height	9.8 mm	9.8 mm	9.8 mm	9.8 mm
Body length or diameter	39.1 mm	39.1 mm	39.1 mm	39.1 mm
Communication standards	GBE, GR-468	GBE, GR-468	GBE, GR-468	GBE, GR-468
Connection Type	ST CONNECTOR	FC CONNECTOR	MU CONNECTOR	SC CONNECTOR
Data rate (receive)	1250 Mbps	1250 Mbps	1250 Mbps	1250 Mbps
Data rate (send)	1250 Mbps	1250 Mbps	1250 Mbps	1250 Mbps
Fiber optic equipment types	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER
Fiber type	SMF	SMF	SMF	SMF
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Maximum operating wavelength	1600 nm	1600 nm	1600 nm	1600 nm
Minimum operating wavelength	1500 nm	1500 nm	1500 nm	1500 nm
Nominal operating wavelength	1550 nm	1550 nm	1550 nm	1550 nm
Nominal optical power output	0.199 mW	0.199 mW	0.199 mW	0.199 mW
minimum return loss	14 dB	14 dB	14 dB	14 dB
Sensitivity	-22 dBm	-22 dBm	-22 dBm	-22 dBm
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
Base Number Matches	1	1	1	1
