BFTX-1001/H5: DescriptionLED Emitter, 12Mbps, Panel Mount,; CategoryWireless rf/communication Optical fiber; File Size861KB，1 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BFTX-1001/H5 Overview

LED Emitter, 12Mbps, Panel Mount,

BFTX-1001/H5 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
body width	12 mm
body height	12 mm
Body length or diameter	19 mm
data rate	12 Mbps
Fiber optic equipment types	LED EMITTER
Installation features	PANEL MOUNT
Number of channels	1
Nominal operating wavelength	660 nm
Nominal supply voltage	5 V
surface mount	NO
Transmission type	DIGITAL
Base Number Matches	1

Preview

Download Datasheet

View All

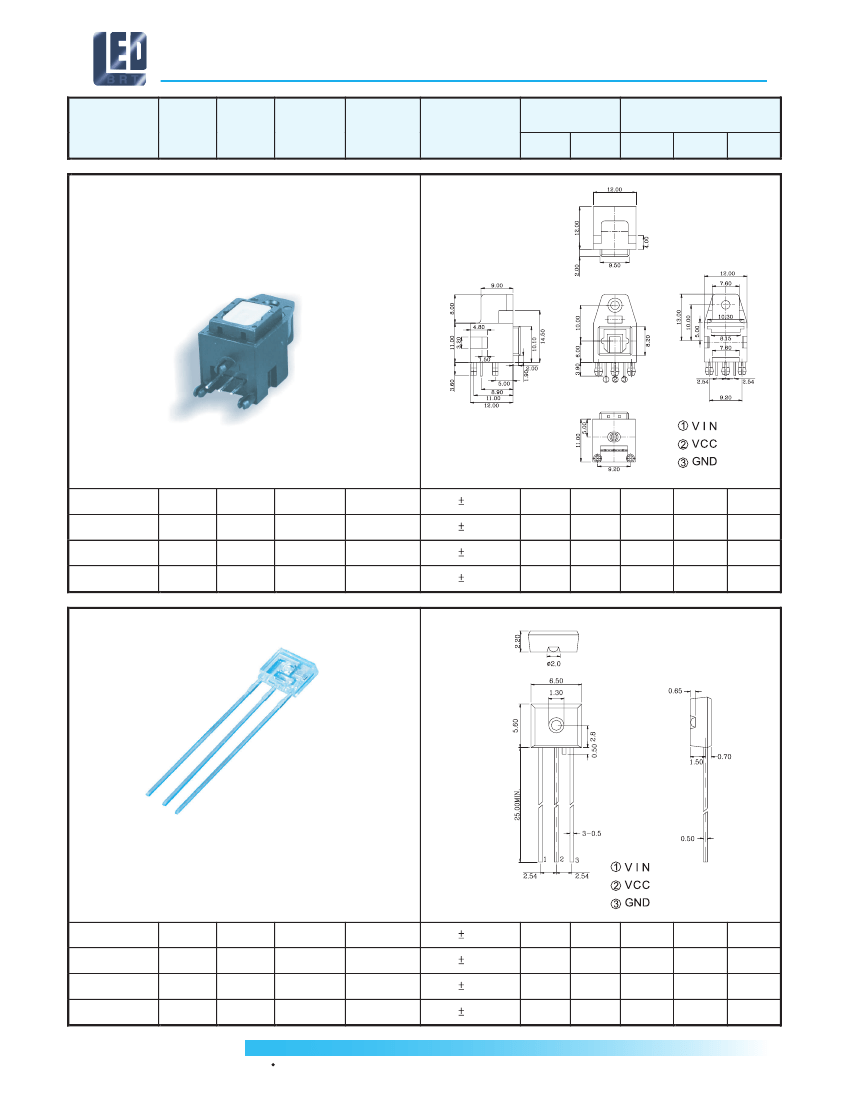

Photo Link

Transmitting

Part Nu mber

Supply

Voltage

(v)

Data Rate

(Mbps)

Wavelength

(nm)

Transmission

Di stance

(m)

Pulse W idth

Di stortion

(ns)

Di ssipation

Current(mA)

Typ.

Max.

Fiber Coupling Light

Output(dBm )

Min.

Typ.

Max.

BFTX-1001/H5

BFTX-1101/H5

BFTX-1201/H5

BFTX-2000/H5

5.0

3.0

12.0

6.0

13.2

12.0

660

Up to 5

25

15

25

8

4

13

10

-21

-17

-15

BFTX-1001

BFTX-1101

BFTX-1201

BFTX-2000

5.0

3.0

12.0

6.0

13.2

12.0

660

Up to 5

25

15

25

8

4

13

10

-21

-17

-15

AMERICAN BRIGHT

(909) 628-5050

FAX (909) 628-5006

.

w w w. a m e r i c a n b r i g h t l e d . c o m

IR-27

BACK

BFTX-1001/H5 Related Products

	BFTX-1001/H5	BFTX-1101/H5	BFTX-2000/H5	BFTX-2000	BFTX-1201	BFTX-1201/H5	BFTX-1101
Description	LED Emitter, 12Mbps, Panel Mount,	LED Emitter, 6Mbps, Panel Mount,	LED Emitter, 12Mbps, Panel Mount,	LED Emitter, 12Mbps, Through Hole Mount,	LED Emitter, 13.2Mbps, Through Hole Mount,	LED Emitter, 13.2Mbps, Panel Mount,	LED Emitter, 6Mbps, Through Hole Mount,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	12 mm	12 mm	12 mm	8.5 mm	8.5 mm	12 mm	8.5 mm
body height	12 mm	12 mm	12 mm	2.2 mm	2.2 mm	12 mm	2.2 mm
Body length or diameter	19 mm	19 mm	19 mm	5.8 mm	5.8 mm	19 mm	5.8 mm
data rate	12 Mbps	6 Mbps	12 Mbps	12 Mbps	13.2 Mbps	13.2 Mbps	6 Mbps
Fiber optic equipment types	LED EMITTER	LED EMITTER	LED EMITTER	LED EMITTER	LED EMITTER	LED EMITTER	LED EMITTER
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	PANEL MOUNT	THROUGH HOLE MOUNT
Number of channels	1	1	1	1	1	1	1
Nominal operating wavelength	660 nm	660 nm	660 nm	660 nm	660 nm	660 nm	660 nm
Nominal supply voltage	5 V	5 V	5 V	3 V	5 V	5 V	3 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Transmission type	DIGITAL	DIGITAL	DIGITAL	DIGITAL	DIGITAL	DIGITAL	DIGITAL
Base Number Matches	1	1	1	1	1	1	1
