XN1531H datasheet, PDF - EEWORLD Datasheet

XN1531H: DescriptionRF Small Signal Bipolar Transistor, 0.05A I(C), 2-Element, Silicon, NPN; CategoryDiscrete semiconductor The transistor; File Size168KB，4 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric View All

XN1531H Overview

RF Small Signal Bipolar Transistor, 0.05A I(C), 2-Element, Silicon, NPN

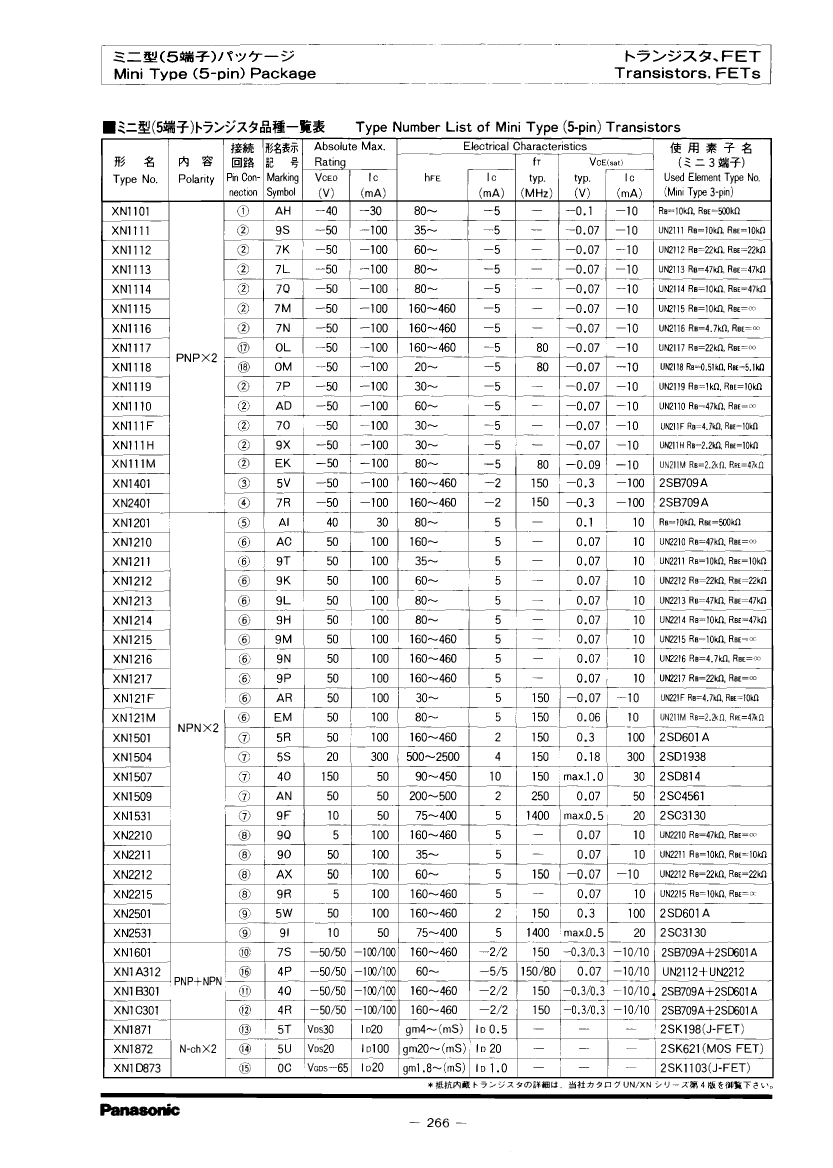

Parameter Name	Attribute value

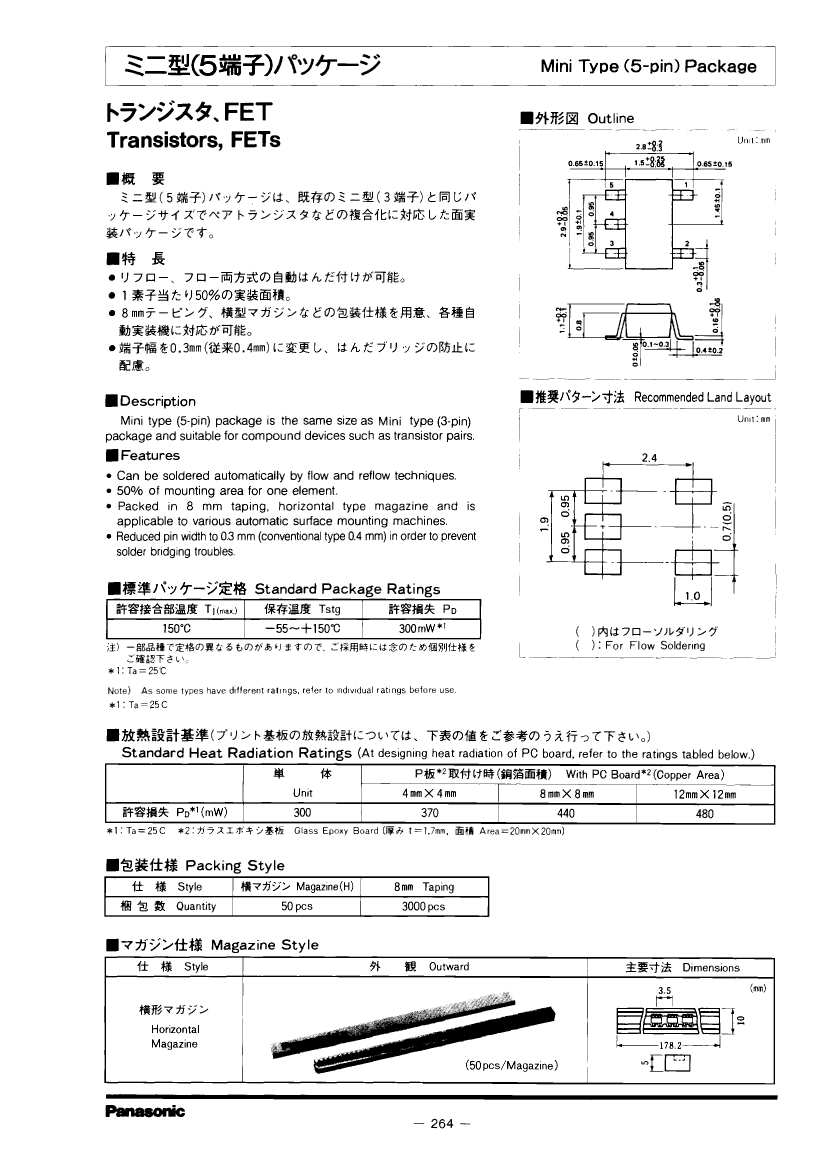

package instruction	SMALL OUTLINE, R-PDSO-G5
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.05 A
Collector-emitter maximum voltage	10 V

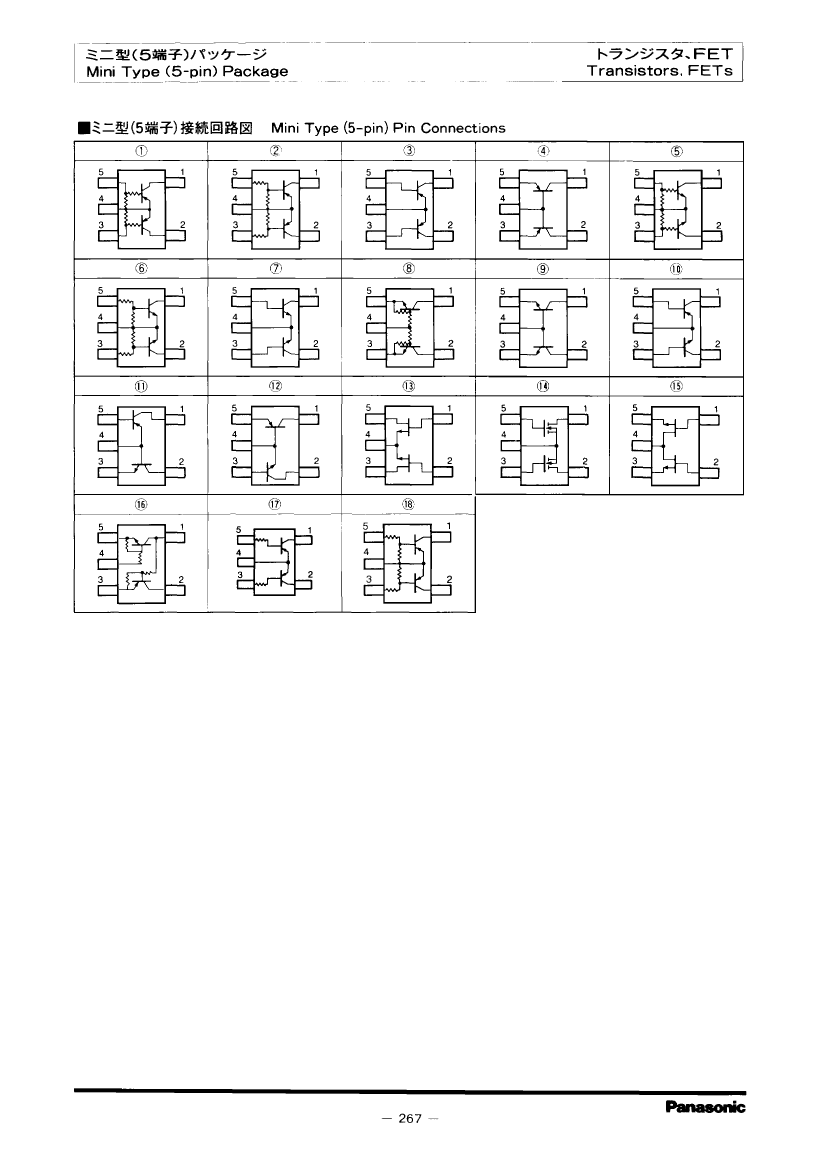

Configuration	COMMON EMITTER, 2 ELEMENTS
Minimum DC current gain (hFE)	75
JESD-30 code	R-PDSO-G5
Number of components	2
Number of terminals	5
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR

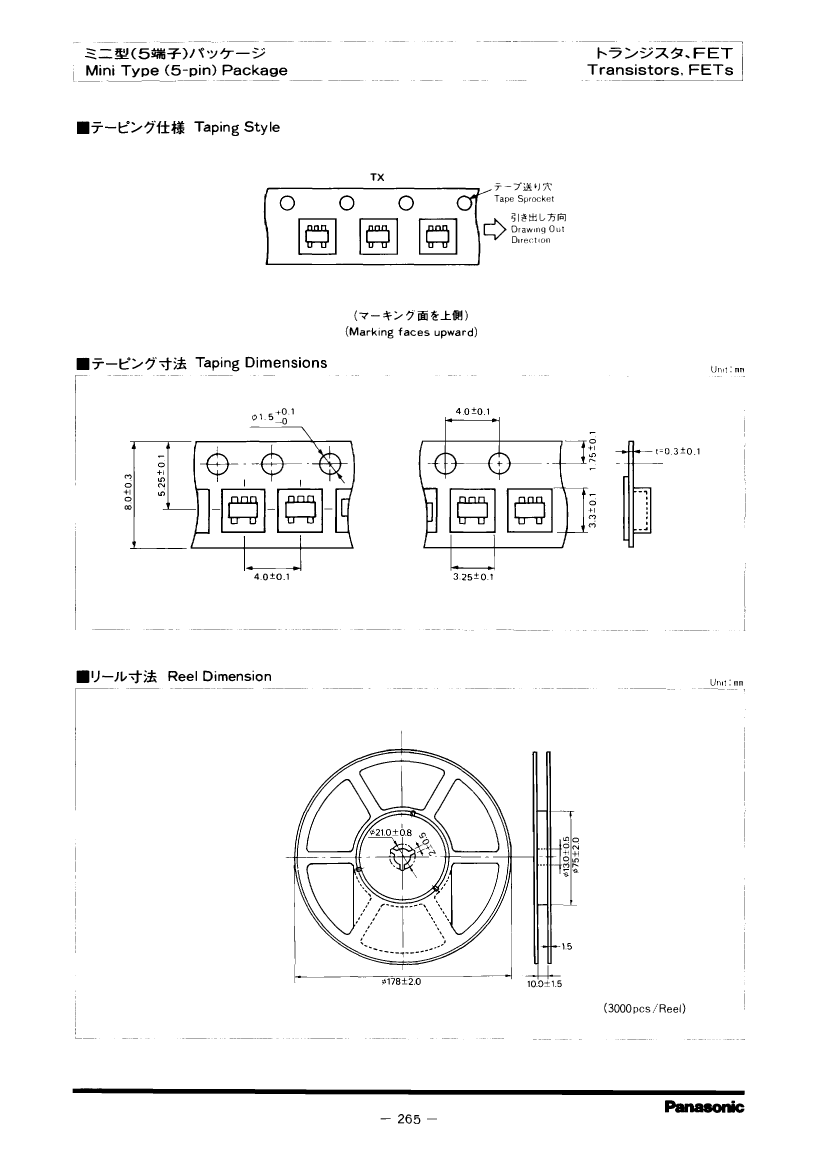

Package form	SMALL OUTLINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Transistor component materials	SILICON
Nominal transition frequency (fT)	1400 MHz
VCEsat-Max	0.5 V
Base Number Matches	1
