Superior Jitter Performance (less than 0.25 ps RMS,
12 kHz - 20 MHz)
SAW replacement - better performance
Frequencies from 150 MHz to 1.4 GHz
QiK Chip™
Product Description
The 220x series of oscillators are 9x14 J-Lead oscillators designed with the QiK Chip
TM
technology. The QiK
Chip
TM
technology was specifically designed for crystal based oscillators to provide low jitter performance (as
low as 0.25 ps RMS) and a wide range of frequency support (150.00 MHz to 1.4 GHz) and provides a break-
through in lean manufacturing enabling product to be provided in less than 2 weeks. The M220x provides
design engineers with the stability needed in their advanced applications and supports the need for parts to be
supplied quickly so that the rest of their circuit design can be solidified.
Product Applications
Telecommunications such as SONET / SDH / DWDM /
FEC / SERDES / OC-3 thru OC-192
1-2-4-10 Gigabit Fibre Channel
Wireless Base Stations / WLAN / Gigabit Ethernet
Avionic Flight Controls
Military Communications
Clock and Data Recovery
SD/HD Video
FPGA/ASIC Clock Generation
Test and Measurement Equipment

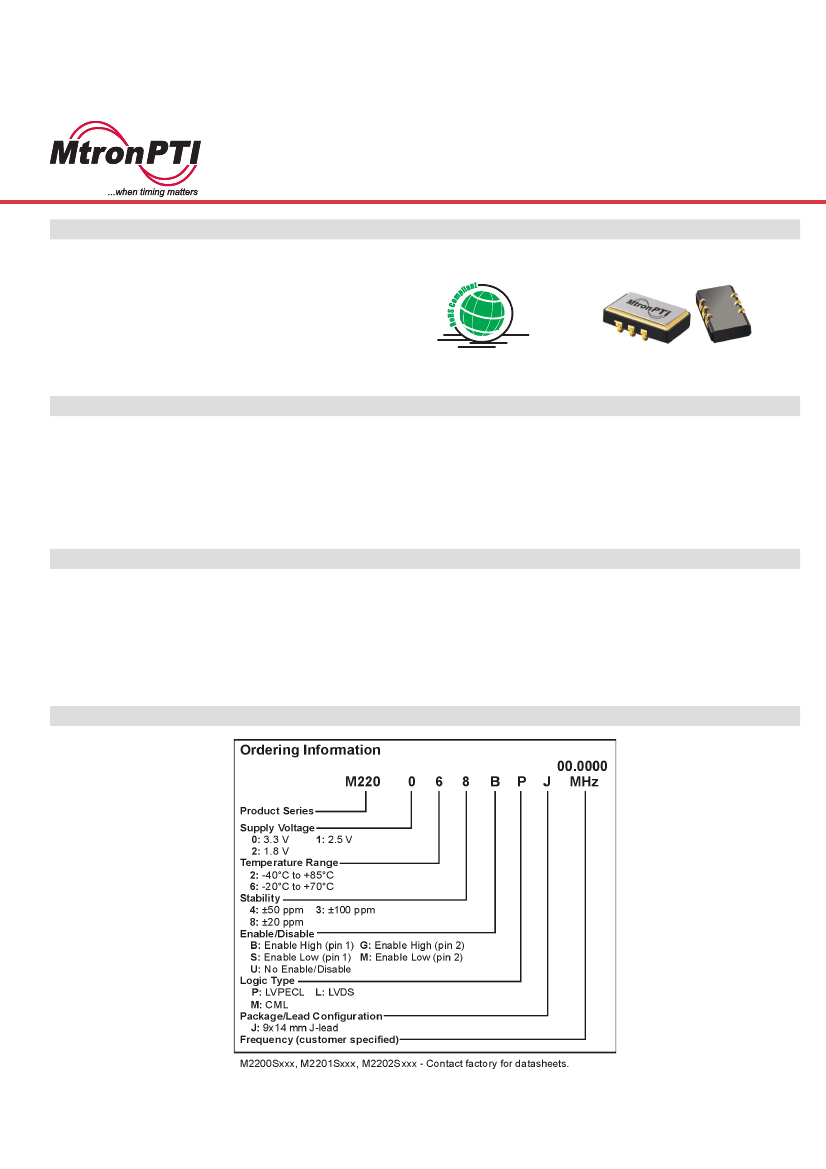

Product Ordering Information
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
Revision: 8-22-08
M220x Series

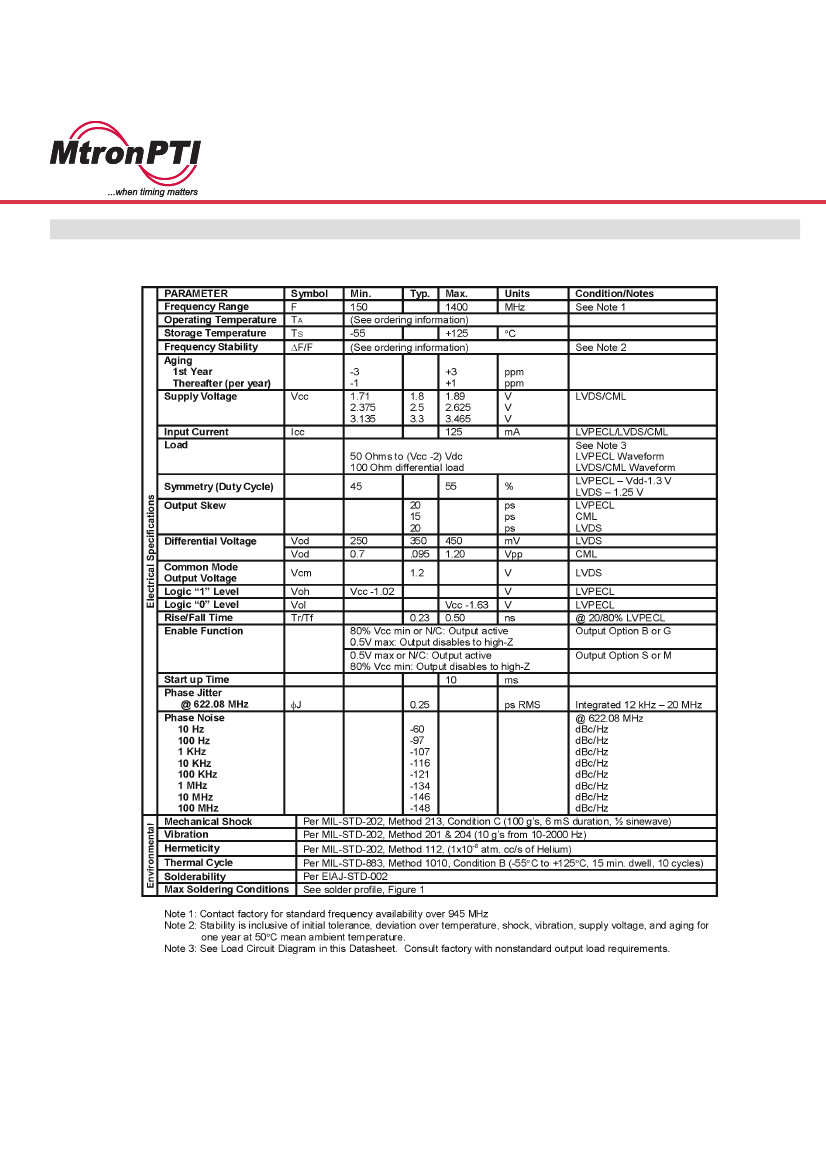

Performance Characteristics
9x14 mm, 3.3/2.5/1.8 Volt, LVPECL/LVDS/CML,
Clock Oscillator
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
2
M220x Series
9x14 mm, 3.3/2.5/1.8 Volt, LVPECL/LVDS/CML,
Clock Oscillator

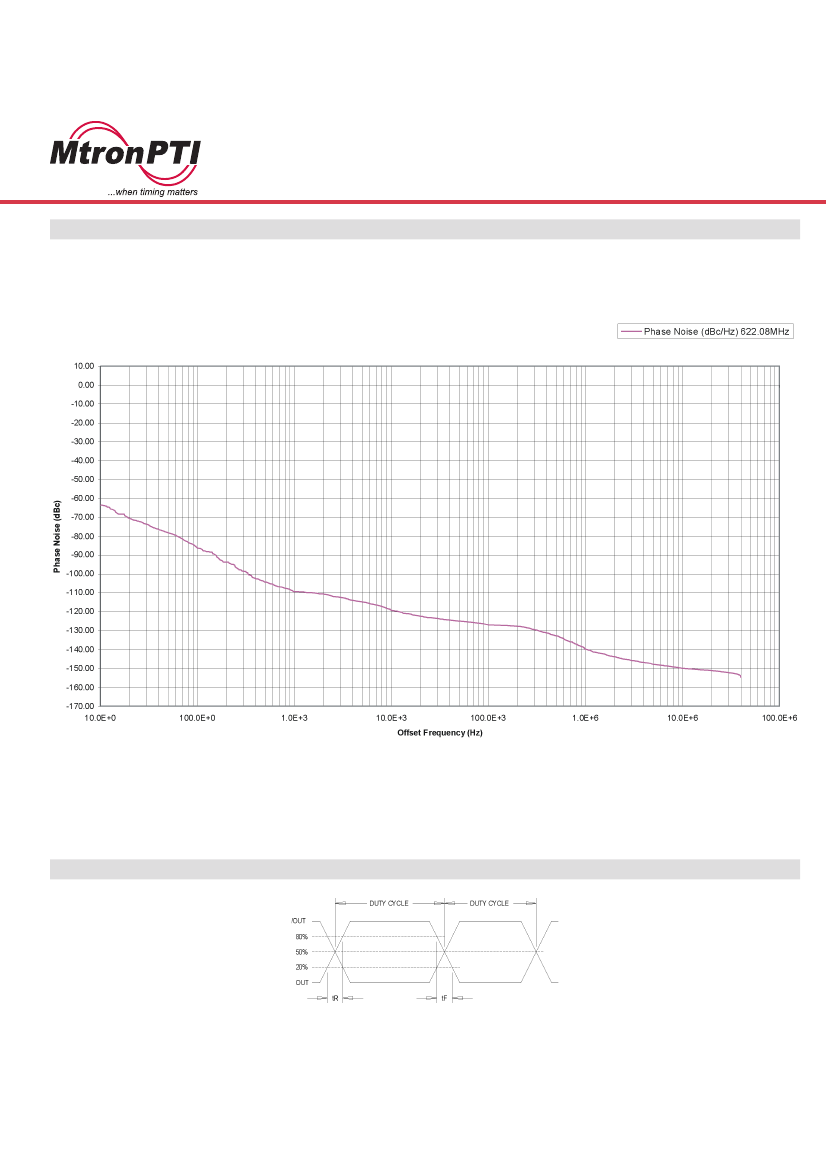

Phase Noise Plot
Output Waveform
Output Waveform: LVDS/CML/PECL
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
3
M220x Series
9x14 mm, 3.3/2.5/1.8 Volt, LVPECL/LVDS/CML,
Clock Oscillator

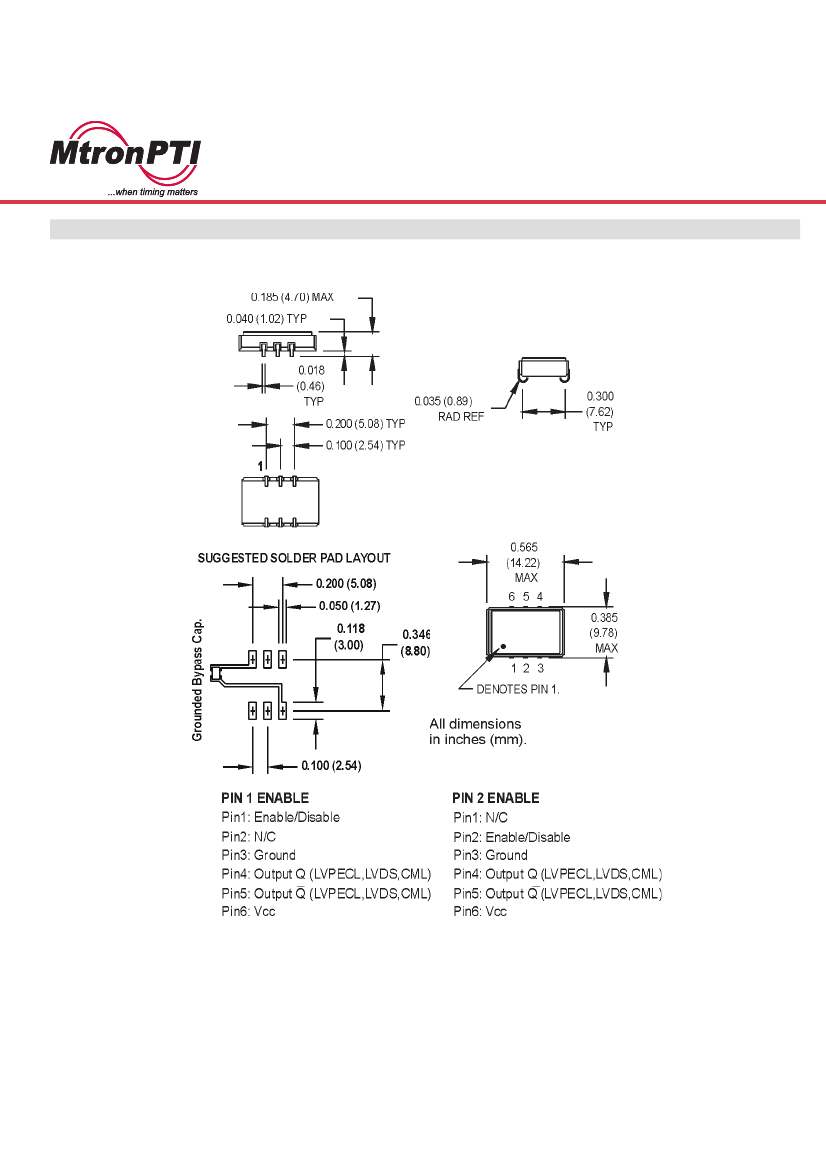

Product Dimension & Pinout Information
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
4
M220x Series
9x14 mm, 3.3/2.5/1.8 Volt, LVPECL/LVDS/CML,
Clock Oscillator

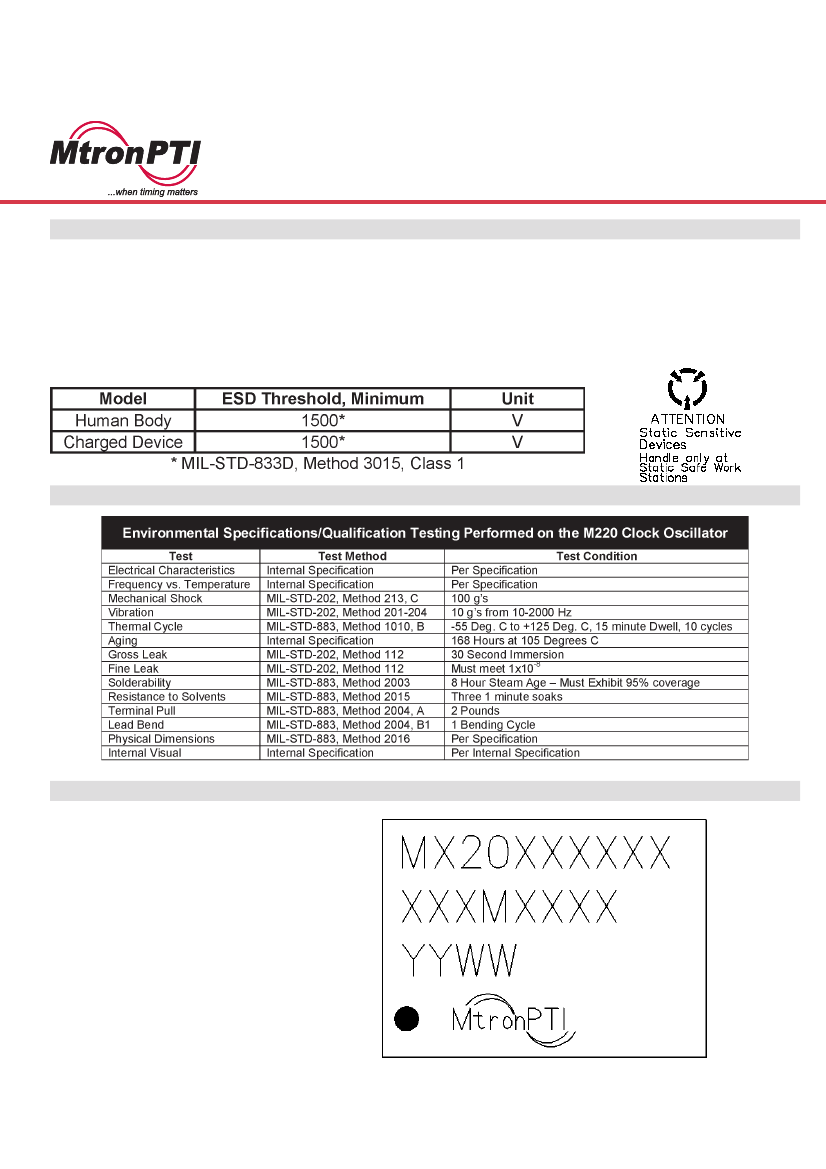

Handling Information
Although protection circuitry has been designed into the M220x oscillator, proper precautions should be taken to
avoid exposure to electrostatic discharge (ESD) during handling and mounting. MtronPTI utilizes a human-body
model (HBM) and a charged-device model (CDM) for ESD-susceptibility testing and protection design evaluation.
ESD voltage thresholds are dependent on the circuit parameters used to define the mode. Although no industry-
wide standard has been adopted for the CDM, a standard HBM (resistance = 1500
Ω,
capacitance = 100 pF) is
widely used and therefore can be used for comparison purposes. The HBM ESD threshold presented here was
obtained using these circuit parameters.
Quality Parameters
Part Marking Guide
Line 1: Model Number
Line 2: Frequency
Line 3: Date Code
Line 4: Pin 1 Indicator / MtronPTI
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
