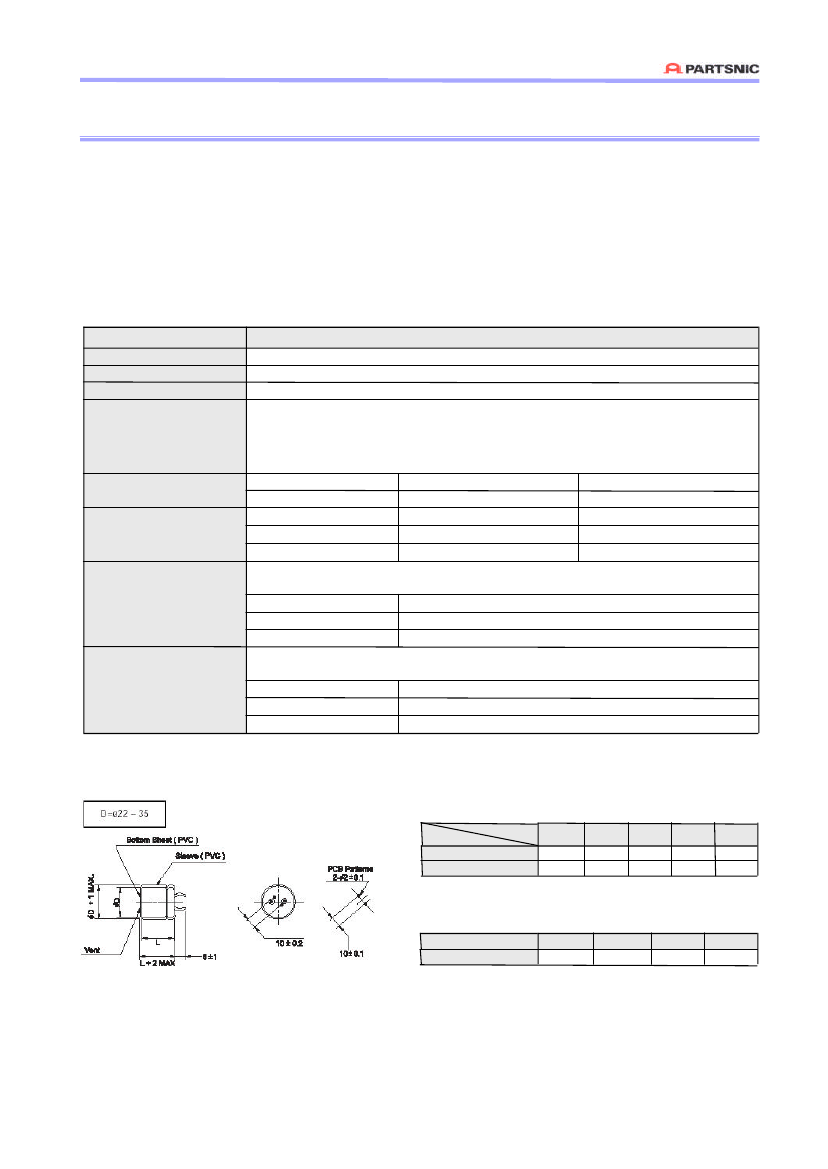

FUT
SERIES
▣ Features
§
§
§
§
§
PCB Mounting
Super low profile(Smaller than FUH)
More compact electronic equipment
High CV density
Load life of 3000 hours at 105℃
ALUMINUM ELECTROLYTIC CAPACITORS
105 ℃, Long life(3000 hours), PCB mounting
▣ Specifications
Item
Operating temperature range
Rated working voltage range
Nominal capacitance range
D.C Leakage current(at
20℃ )
Performance Characteristics
160V ~ 250V : -40℃ ½ +105℃
350V ~ 450V : -25℃ ½ +105℃
160V ½ 450V
56㎌½2200㎌ , ±
20％(at 20℃, 120㎐)
The following specifications shall be satisfied when the rated voltage is applied for the
required time.
I ≤ 0.02CV or 3㎃(3min), Whichever is less
Where I = Leakage current(㎂),
C = Nominal capacitance(㎌),
160 ~ 250
0.10
160 ~ 250
4
12
V = Rated voltage(V)
350 ~ 450
0.20
350 ~ 450
8
-
Tan δ
(max., at 20℃ , 120㎐ )
Characteristics at low
Temperature(max.)
(Impedance ratio at 120㎐)
Load life
(Endurance)
W.V(V)
Tan δ
W.V(V)
Z-25℃/+20℃
Z-40℃/+20℃
After applying rated working voltage for 3000 hrs at +105℃ and then being stabilized at +20℃,
capacitors shall meet following limits.
Capacitance change
Tan δ
Leakage current
Within ±20％ of initial measured value
≤ 200％ of initial specified value
≤ The initial specified value
Shelf life
After storage for 1000 hrs at +105℃ with no voltage applied and then being stabilized at +20℃,
capacitors shall meet following limits.
Capacitance change
Tan δ
Leakage current
Within ±20％ of initial measured value
≤ 150％ of initial specified value
≤ 200％ of initial specified value
▣ Dimensions
▣ Ripple current coefficient
◉ Frequency
W.V(V)
Freq(㎐ )
50
0.80
0.84
120
1.00
1.00
1K
1.25
1.15
10K
1.40
1.20
100 K
1.50
1.32
1 6 0 ½ 250
350 ~ 450
◉ Temperature
Temperature
( 4 . 0 ±0 . 5 )
*
Factor
≤45℃
2.40
60℃
2.20
85℃
1.65
105 ℃
1.00
* Shorter terminal is available upon request
