KM23C8000CG-12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> KM23C8000CG-12

KM23C8000CG-12: DescriptionMASK ROM, 1MX8, 120ns, CMOS, PDSO32; Categorystorage storage; File Size264KB，4 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KM23C8000CG-12 Overview

MASK ROM, 1MX8, 120ns, CMOS, PDSO32

KM23C8000CG-12 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	SOP, SOP32,.56
Reach Compliance Code	unknown
Maximum access time	120 ns
JESD-30 code	R-PDSO-G32
JESD-609 code	e0
memory density	8388608 bit
Memory IC Type	MASK ROM
memory width	8
Humidity sensitivity level	3
Number of terminals	32
word count	1048576 words
character code	1000000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP32,.56
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.00005 A
Maximum slew rate	0.06 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Base Number Matches	1

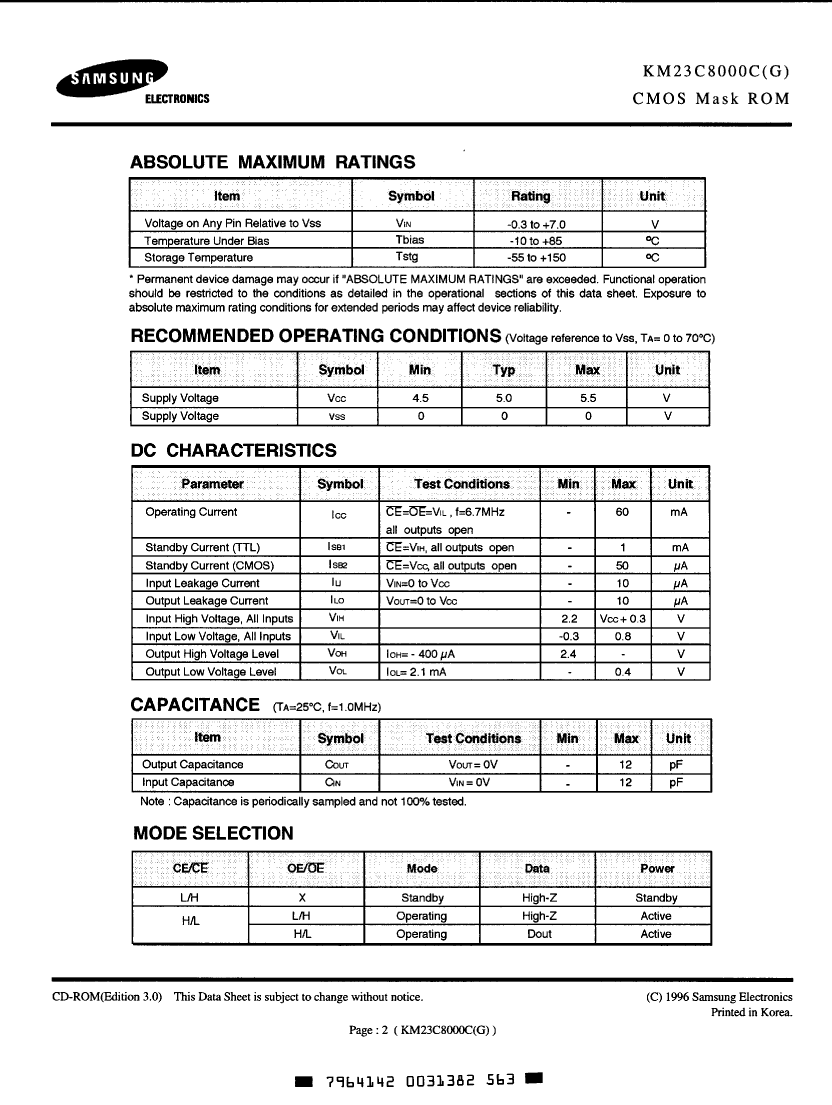

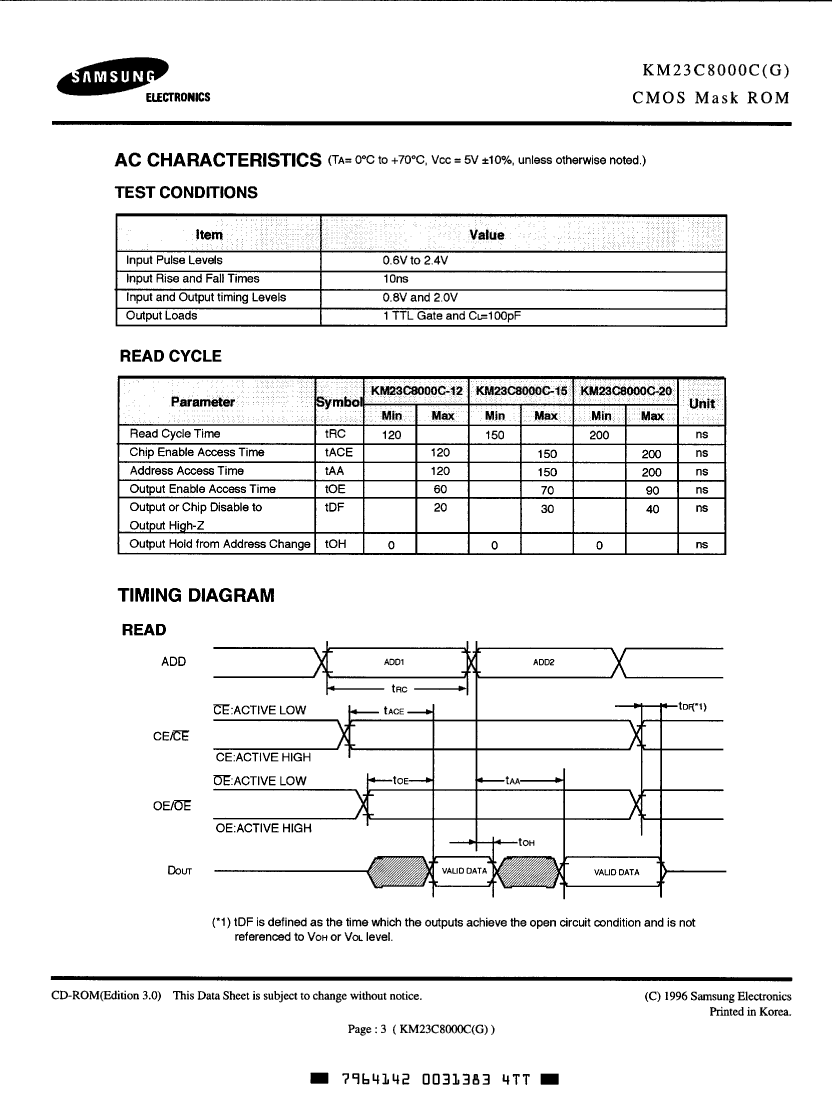

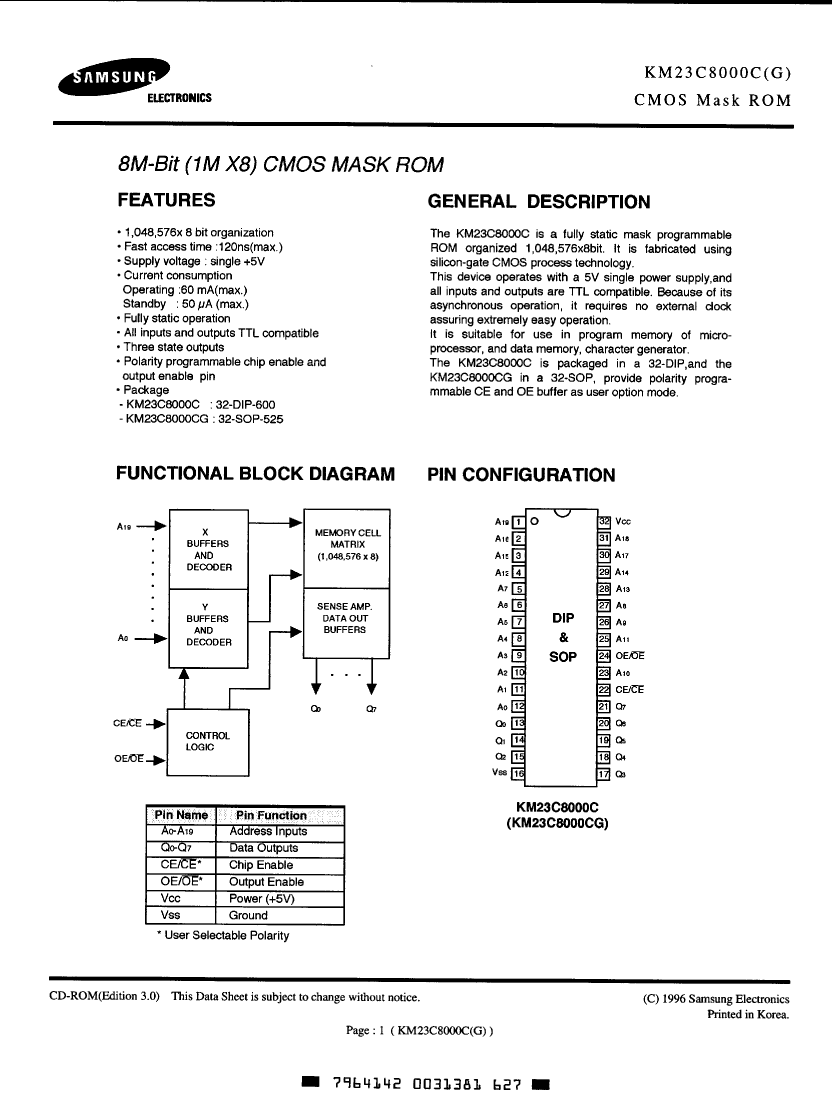

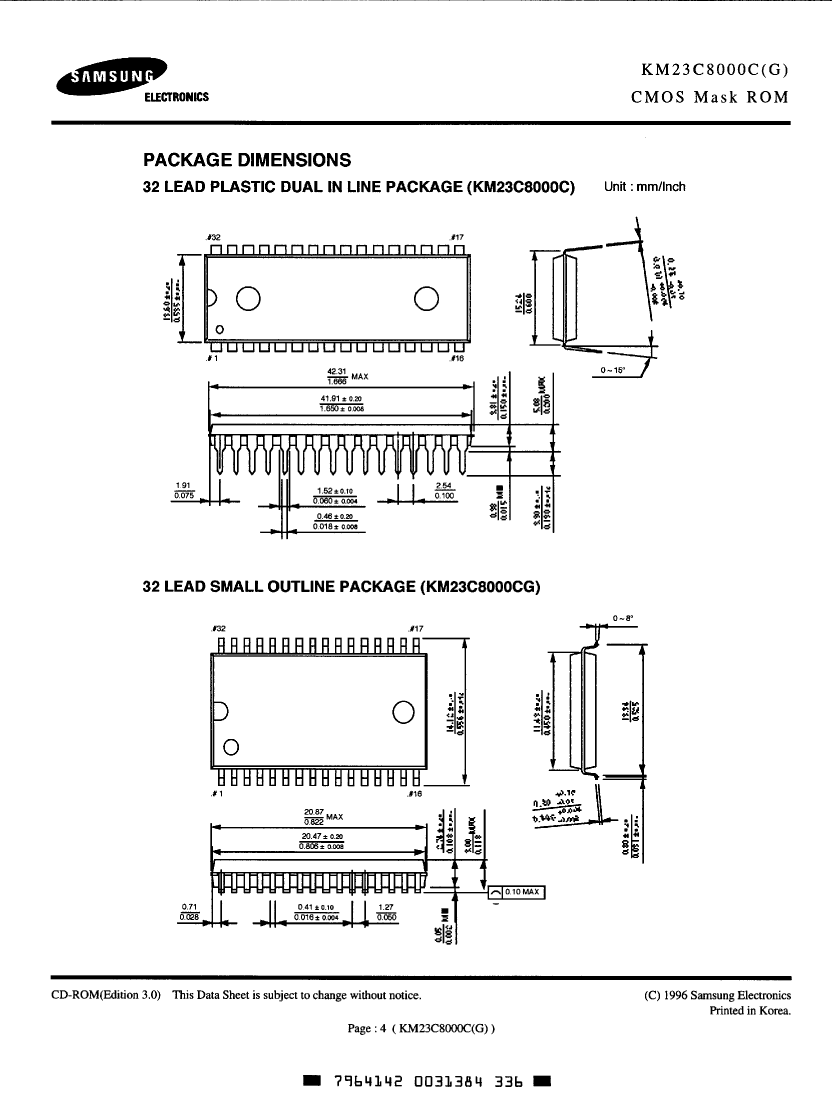

Preview

Download Datasheet

View All

KM23C8000CG-12 Related Products

	KM23C8000CG-12	KM23C8000CG-15	KM23C8000C-20	KM23C8000C-12	KM23C8000C-15	KM23C8000CG-20
Description	MASK ROM, 1MX8, 120ns, CMOS, PDSO32	MASK ROM, 1MX8, 150ns, CMOS, PDSO32	MASK ROM, 1MX8, 200ns, CMOS, PDIP32	MASK ROM, 1MX8, 120ns, CMOS, PDIP32	MASK ROM, 1MX8, 150ns, CMOS, PDIP32	MASK ROM, 1MX8, 200ns, CMOS, PDSO32
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	120 ns	150 ns	200 ns	120 ns	150 ns	200 ns
JESD-30 code	R-PDSO-G32	R-PDSO-G32	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32	R-PDSO-G32
JESD-609 code	e0	e0	e0	e0	e0	e0
memory density	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8	8	8
Humidity sensitivity level	3	3	3	3	3	3
Number of terminals	32	32	32	32	32	32
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX8	1MX8	1MX8	1MX8	1MX8	1MX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	DIP	DIP	DIP	SOP
Encapsulate equivalent code	SOP32,.56	SOP32,.56	DIP32,.6	DIP32,.6	DIP32,.6	SOP32,.56
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A
Maximum slew rate	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	40	40	40	40	40
Base Number Matches	1	1	1	1	1	1
package instruction	SOP, SOP32,.56	SOP, SOP32,.56	DIP, DIP32,.6	DIP, DIP32,.6	DIP, DIP32,.6	-
