M27V322
32 Mbit (2Mb ×16) low-voltage UV EPROM and OTP EPROM
Feature summary
■
■
3.3V ± 10% supply voltage in Read operation
Read access time
– 100ns at V
CC
= 3.0V to 3.6V
Pin compatible with M27C322
Word-wide configurable
1
■
■
■
■
42
32 Mbit Mask ROM replacement
Low power consumption
– Active Current 30mA at 5MHz
– Stand-by Current 60µA
Programming voltage: 12V ± 0.25V
Programming time: 50µs/word
Electronic signature
– Manufacturer Code: 0020h
– Device Code: 0034h

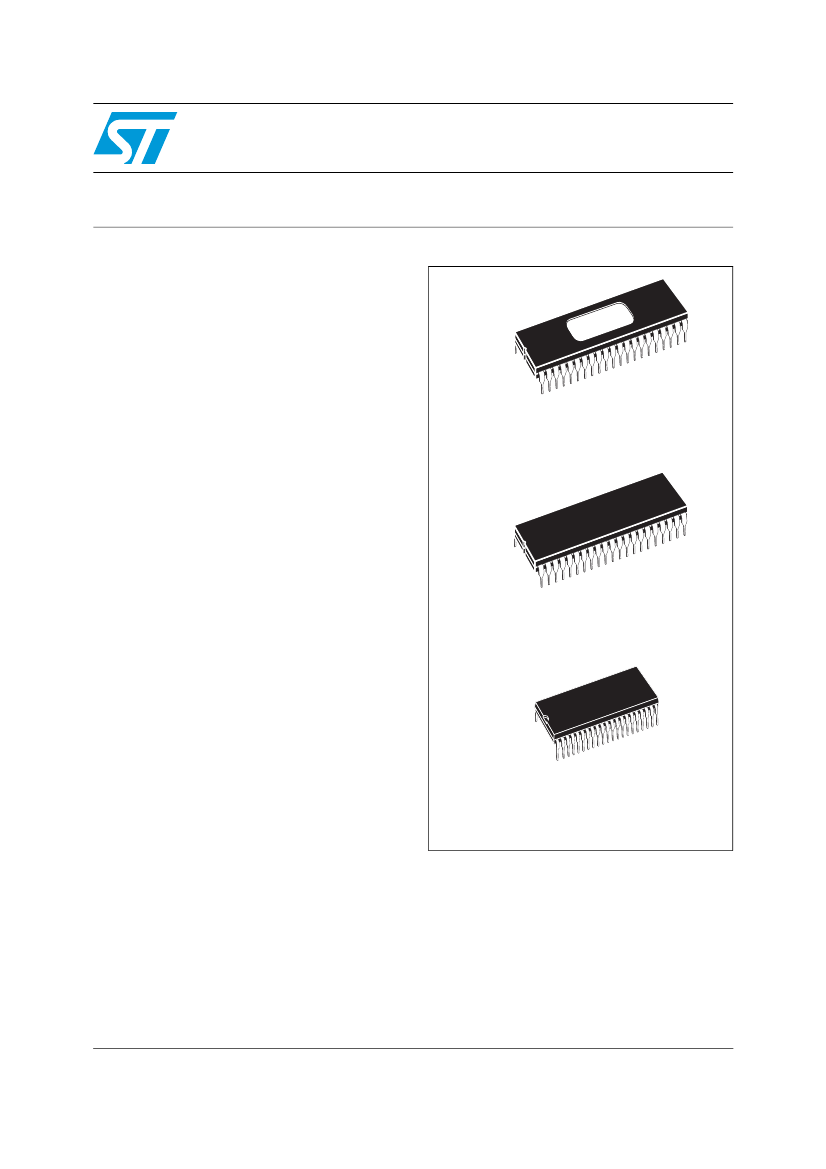

FDIP42W (F)
■
■
■
-
et
l
)
(s
so
b
ct
u
d
-O
ro
s)
P
t(
te
uc
le
o
od
r
s
P
b
O
te
le
so
b
O
42
b
O
so
te
le
1
ro
P
uc
d
s)
t(
P
e
od
r
s)
t(
uc
■
ECOPACK® packages available
PDIP42 (B)
42
1
SDIP42 (S)
May 2006
Rev 3
1/23
www.st.com
1
Contents
M27V322
Contents
1
2
Summary description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Device operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
2.10
2.11
Read mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Standby mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Two Line Output Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
System considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
PRESTO III programming algorithm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Program Inhibit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Program Verify . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
On-Board programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Electronic Signature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Erasure operation (applies to UV EPROM) . . . . . . . . . . . . . . . . . . . . . . . 10
-
et
l
)
(s
so
b
ct
u
d
-O
ro
s)
P
t(
te
uc
le
o
od
r
s
P
b
O
te
le
so
b
O
3
4
5
6
7
Maximum rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
b
O
so
te
le
ro
P
uc
d
s)
t(
P
e
od
r
s)
t(
uc
DC and AC parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Package mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Part numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2/23
M27V322
List of tables
List of tables
Table 1.
Table 2.
Table 3.
Table 4.
Table 5.
Table 6.
Table 7.
Table 8.
Table 9.
Table 10.
Table 11.
Table 12.
Table 13.
Table 14.
Table 15.
Table 16.
Signal names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operating modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Electronic signature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
AC measurement conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Capacitance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Read mode DC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Programming mode DC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Read mode AC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Margin mode AC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Programming mode AC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
FDIP42W - 42 pin Ceramic Frit-seal DIP, with window (0.315" × 0.630"),
mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
PDIP42 - 42 pin Plastic DIP, 600 mils width, package mechanical data . . . . . . . . . . . . . . 19
SDIP42 - 42 lead Shrink Plastic DIP, 600 mils width, package mechanical data . . . . . . . . 20
Ordering information scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
-
et
l
)
(s
so
b
ct
u
d
-O
ro
s)
P
t(
te
uc
le
o
od
r
s
P
b
O
te
le
so
b
O
b
O
so
te
le
ro
P
uc
d
s)
t(
P
e
od
r
s)
t(
uc
3/23
List of figures
M27V322
List of figures
Figure 1.
Figure 2.
Figure 3.
Figure 4.
Figure 5.
Figure 6.
Figure 7.
Figure 8.
Figure 9.
Figure 10.
Figure 11.
Logic diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
DIP connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Programming flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
AC testing input output waveform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
AC testing load circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Read mode AC waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Margin mode AC waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Programming and Verify modes AC waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
FDIP42W - 42 pin Ceramic Frit-seal DIP, with window (0.315" × 0.630"),
package outline. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
PDIP42 - 42 pin Plastic DIP, 600 mils width, package outline . . . . . . . . . . . . . . . . . . . . . . 19
SDIP42 - 42 pin Shrink Plastic DIP, 600 mils width, package outline. . . . . . . . . . . . . . . . . 20
-
et
l
)
(s
so
b
ct
u
d
-O
ro
s)
P
t(
te
uc
le
o
od
r
s
P
b
O
te
le
so
b
O
b
O
so
te
le
ro
P
uc
d
s)
t(
P
e
od
r
s)
t(
uc
4/23
M27V322
Summary description
1
Summary description
The M27V322 is a 32 Mbit EPROM offered in the UV range (ultra violet erase) and OTP
range. It is ideally suited for microprocessor systems requiring large data or program
storage. It is organised as 2 MWords of 16 bit. The pin-out is compatible with a 32 Mbit Mask
ROM.
The FDIP42W (window ceramic frit-seal package) has a transparent lid which allows the
user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be
written rapidly to the device by following the programming procedure.
For applications where the content is programmed only one time and erasure is not
required, the M27V322 is offered in PDIP42 and SDIP42 packages.
In order to meet environmental requirements, ST offers the M27V322 in ECOPACK®
packages.
ECOPACK packages are Lead-free. The category of second Level Interconnect is marked
on the package and on the inner box label, in compliance with JEDEC Standard JESD97.
The maximum ratings related to soldering conditions are also marked on the inner box label.
ECOPACK is an ST trademark. ECOPACK specifications are available at:
www.st.com.
Figure 1.
Logic diagram
-
et
l
)
(s
so
b
ct
u
d
-O
ro
s)
P
t(
te
uc
le
o
od
r
s
P
b
O
te
le
so
b
O
21
A0-A20
E
M27V322
GVPP
VSS
b
O
VCC
so
te
le
16
ro
P
uc
d
s)
t(
P
e
od
r
s)
t(
uc
Q0-Q15
AI03050
Table 1.
A0-A20
Q0-Q15
E
Signal names
Address Inputs
Data Outputs
Chip Enable
GV
PP
V
CC
V
SS
Output Enable / Program Supply
Supply Voltage
Ground
5/23
