A8184SLT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> A8184SLT

A8184SLT: DescriptionSurface-Mount, Low Quiescent Current, Low Dropout Voltage Dropper Type; CategoryPower/power management The power supply circuit; File Size52KB，4 Pages; ManufacturerSANKEN; Websitehttp://www.sanken-ele.co.jp/en/

Download Datasheet Parametric Compare View All

A8184SLT Overview

Surface-Mount, Low Quiescent Current, Low Dropout Voltage Dropper Type

A8184SLT Parametric

Parameter Name	Attribute value
Maker	SANKEN
Parts packaging code	MODULE
package instruction	,
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum drop-back voltage 1	0.15 V
Maximum input voltage	8 V
Minimum input voltage	4 V
JESD-30 code	R-PSSO-F3
length	4.5 mm
Number of functions	1
Number of terminals	3
Working temperatureTJ-Max	150 °C
Maximum output current 1	0.15 A
Maximum output voltage 1	3.1 V
Minimum output voltage 1	2.9 V
Nominal output voltage 1	3 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	1.6 mm
surface mount	YES
Terminal form	FLAT
Terminal pitch	1.5 mm
Terminal location	SINGLE
width	2.445 mm

Preview

Download Datasheet

View All

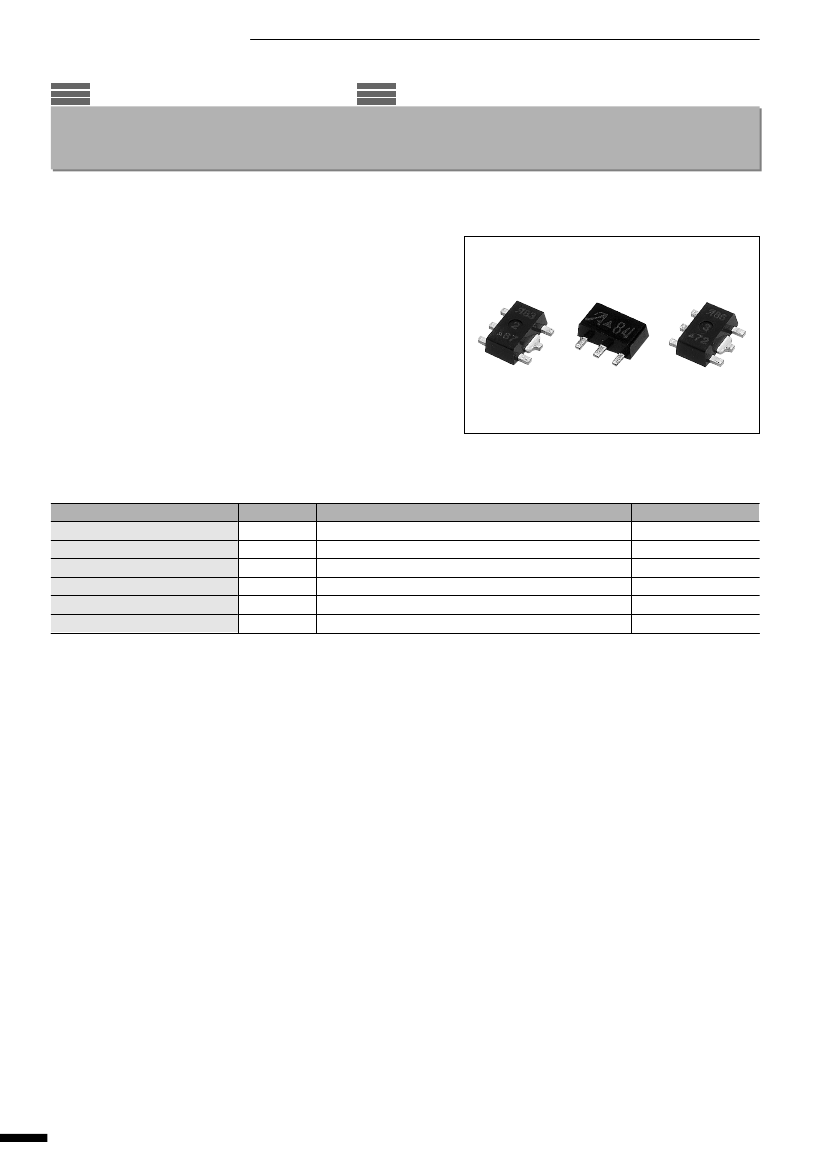

qA8180SLU/SLT

Series

A8180SLU/SLT Series

A8184SLT, A8187SLT are product of Allegro Microsystems, INC.

Surface-Mount, Low Quiescent Current, Low Dropout Voltage Dropper Type

sFeatures

• Compact surface-mount package (equivalent to SOT-89)

• Output current: 0.15A

• Low circuit current

Iq≤60µA (Output ON: V

=6V, I

=0 to 0.1A)

Iq(off)≤5µA(Output OFF: A8183SLU,A8186SLU)

• Low dropout voltage: V

DIF

≤150mV

=60mA)

• Output ON/OFF control terminal is compatible with LS-TTL.

(A8183SLU, A8186SLU)

• Built-in thermal protection circuit

sApplications

• Portable phones and PHS telephones

• Battery-driven electronic equipment

sAbsolute

Maximum Ratings

Parameter

DC Input Voltage

DC Output Current

Power Dissipation

Junction Temperature

Ambient Operating Temperature

Storage Temperature

Symbol

stg

Ratings

0.15

0.5(T

=25°C)

150

–30 to +85

–40 to +150

Unit

°C

=25°C)

A8184SLT Related Products

	A8184SLT	A8180SLU	A8183SLU	A8186SLU	A8187SLT
Description	Surface-Mount, Low Quiescent Current, Low Dropout Voltage Dropper Type	Surface-Mount, Low Quiescent Current, Low Dropout Voltage Dropper Type	Surface-Mount, Low Quiescent Current, Low Dropout Voltage Dropper Type	Surface-Mount, Low Quiescent Current, Low Dropout Voltage Dropper Type	Surface-Mount, Low Quiescent Current, Low Dropout Voltage Dropper Type
Maker	SANKEN	-	-	SANKEN	SANKEN
Parts packaging code	MODULE	-	SOT-89	SOT-89	MODULE
Contacts	3	-	5	5	3
Reach Compliance Code	unknow	-	unknow	unknow	unknow
ECCN code	EAR99	-	EAR99	EAR99	EAR99
Maximum drop-back voltage 1	0.15 V	-	0.15 V	0.15 V	0.15 V
Maximum input voltage	8 V	-	8 V	8 V	8 V
Minimum input voltage	4 V	-	4 V	4.5 V	4.5 V
JESD-30 code	R-PSSO-F3	-	R-PDSO-F6	R-PDSO-F5	R-PSSO-F3
length	4.5 mm	-	4.5 mm	4.5 mm	4.5 mm
Number of functions	1	-	1	1	1
Number of terminals	3	-	6	5	3
Working temperatureTJ-Max	150 °C	-	150 °C	150 °C	150 °C
Maximum output current 1	0.15 A	-	0.15 A	0.15 A	0.15 A
Maximum output voltage 1	3.1 V	-	3.1 V	3.4 V	3.4 V
Minimum output voltage 1	2.9 V	-	2.9 V	3.2 V	3.2 V
Nominal output voltage 1	3 V	-	3 V	3.3 V	3.3 V
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	-	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	-	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	1.6 mm	-	1.6 mm	1.6 mm	1.6 mm
surface mount	YES	-	YES	YES	YES
Terminal form	FLAT	-	FLAT	FLAT	FLAT
Terminal pitch	1.5 mm	-	1.5 mm	1.5 mm	1.5 mm
Terminal location	SINGLE	-	DUAL	DUAL	SINGLE
width	2.445 mm	-	2.5 mm	2.5 mm	2.445 mm
