87427 ServerI/O with SensorPath™ Health Monitoring
Product Brief
December 2006
Revision 1.4
87427 ServerI/O with SensorPath
TM
Health Monitoring
General Description
The Winbond 87427 is targeted for a wide range of servers
workstations and high-end desktops that use the Low Pin
Count (LPC) bus for the host interface and an SMBus
®
interface for either a Baseboard Management Controller
(BMC) or mini-BMC (mBMC), both of which are optional.
For LPC and SMBus access, the 87427 features a fast
X-Bus, over which boot flash and I/O devices can be ac-
cessed. The 87427 supports X-Bus address line forcing
(to 0 or 1) to create memory windows for BIOS data storage.
When V
SB
exists, the BMC or mBMC can access the
87427 and its fast X-Bus via SMBus. The SMBus also
controls serial port float, RTC access, and serial port inter-
connection (snoop and take-over modes). In addition, the
87427 provides routing of up to two selected LPC I/O
port transactions to the GPIO Extension Port.
The 87427 provides a V
SB
-powered high-frequency clock
for on-chip peripherals; it also provides a configurable high-
frequency clock for other V
SB
-powered platform components.
The 87427 supports SensorPath health monitor inter-
face to LMxx sensors, fan monitoring and control, and a
chassis intrusion detector.
The System Wake-Up Control (SWC) module supports flex-
ible wake-up and power-off request mechanisms for all plat-
forms (i.e., with or without BMC/mBMC).
The 87427 supports both I/O and memory mapping of
module registers and enables building legacy-free systems.
The 87427 also incorporates a Floppy Disk Controller
(FDC), two serial ports (UARTs), a Keyboard and Mouse
Controller (KBC), General-Purpose Input/Output (GPIO),
GPIO extension for additional off-chip GPIO ports, and an
interrupt serializer for parallel IRQs.
Outstanding Features
■
Legacy-reduced Advanced I/O, optimized for high-end
platforms. Legacy modules: FDC, two Serial Ports
(UARTs) and a Keyboard and Mouse Controller (KBC).
SensorPath system health support for LMxx sensors,
fan monitor/control, and chassis intrusion detection, for
all platforms (i.e., with or without a BMC or mBMC).
8/16-bit fast X-Bus extension for boot flash, memory
and I/O.
I/O-mapped and memory-mapped registers.
V
SB
-powered SMBus access to modules and fast X-Bus.
Two sets of BIOS code and data support, for main and
back-up BIOS.
Extremely low current consumption in Battery Backup
mode.
Serial Interface for manageability (Serial Interface M).
Two-to-one multiplexing of Serial Ports 1 and 2.
52 GPIO ports with a variety of wake-up events, plus
GPIO extension for additional off-chip GPIO ports.
Watchdog for autonomous system recovery for BIOS
Boot process and for operating system use.
128-pin TFBGA package (for blade applications) and
128-pin PQFP package.
■
■
■
■
■
■
■
■
■
■

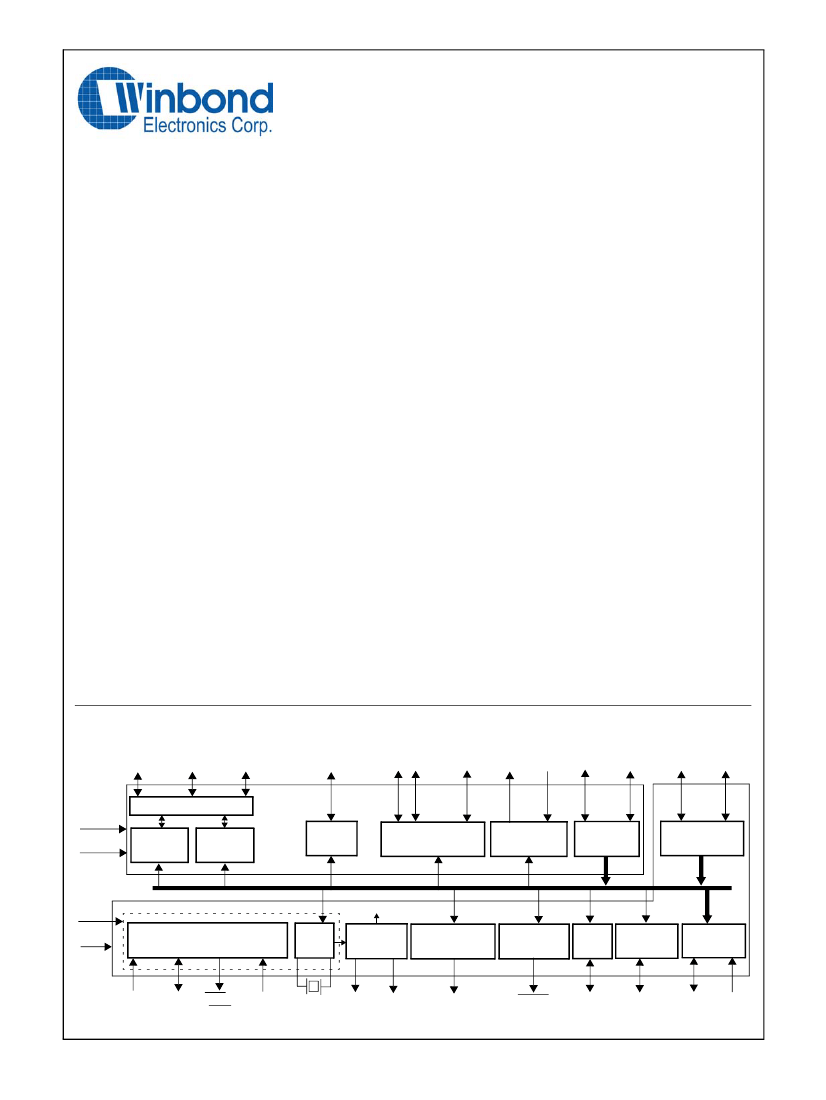

Block Diagram
Serial
Serial
Serial
Interface 1 Interface 2 Interface M
ServerI/O
Clock
V
DD
Route Matrix
Serial
Port 1
Serial
Port 2
FDC
Keyboard &
Mouse Controller
Fan Monitor
and Control
LPC Bus
Interface
SMBus Slave
Interface
Floppy Disk
Interface
PS/2
Interfaces
KBC
Ports
Fan Fan Serial LPC
PWM Tach IRQ Interface Clock
Serial
Data
V
BAT
V
SB
System Wake-Up Control
RTC
Internal Clocks
Clock
Health Monitor
Watchdog
Generator and Control
GPIO
GPIO
Ports Extension
X-Bus
Extension
Wake-Up Power SCI & Chassis 32.768 Low-F High-F SensorPath
Events Control SMI Intrusion KHz Clock Clock
Interface
© 2006 Winbond Electronics Corporation
WDO
I/O
Port
XIRQ X-Bus
Interface
Ports Extension
www.winbond.com
87427
Features
System Health Support
■
—
Multiplexed address-data lines:
❏
Four direct address lines
❏
Partial non-multiplexed option
SensorPath interface to sensors optimizes digital/ana-
log partitioning
—
Simplifies board design and routing
—
Supports distributed sensors and centralized control
—
Off-loads SMBus, faster boot time
Fan Monitor and Control (FMC)
—
Four PWM-based fan controls
—
Eight 16-bit resolution tachometer inputs
—
Software or local temperature feedback control
Chassis intrusion detection
—
Four chip-select outputs, each supporting multiple
zones:
❏
Two BIOS memory zones (up to 32 Mbytes total)
❏
❏
Two user-defined memory zones
(up to 32 Mbytes total)
Four user-defined I/O zones
■
■
Bus Interfaces
■
LPC Bus Interface
—
Based on Intel’s
LPC Interface Specification Revi-
sion 1.1,
August, 2002
—
Synchronous cycles using up to 33 MHz bus clock
—
8-bit I/O and 8-bit Memory read and write cycles
—
Up to four 8-bit DMA channels
—
Serial IRQ
—
Supports bootable memory
—
Supports LPC and FWH boot transactions
—
Supports registers memory and I/O mapping
SMBus Interface
—
Compliant with
SMBus Specification Revision 2.0,
August 3, 2000
—
Enables a system controller to access the internal
functions and the fast X-Bus extension
—
Proprietary commands for read/write byte from/to:
❏
Internal register
❏
❏
—
Address line forcing (to 0 or 1) for access to two
BIOS code and data sets
—
Optional indirect addressing of memory
—
XRD-XEN or XWR-XR/W mode support
—
Supports both slow and fast devices
—
For faster transactions in 16-bit data bus, strobe sig-
nals for address latches change automatically only
when the address is changed
■
■
Configuration Control
—
Compliant with
PC2001 Specification Revision 1.0,
1999-2000
—
Compliant with
Hardware Design Guide Version 3.0
for Microsoft Windows 2000 Server, June 30 2000
—
Plug and Play (PnP) Configuration register structure
—
Base Address strap, to setup the address of the
Index-Data register pair
—
Flexible resource allocation for all logical devices:
❏
Relocatable base address
❏
❏
15 IRQ routing options to serial IRQ
Up to four optional 8-bit DMA channels
—
SMBus control over pin multiplexing, module disable
and output TRI-STATE
®
for all Legacy modules
Legacy Modules
■
X-Bus I/O device
X-Bus memory device
—
Slave address:
❏
One of two values selected by strap
❏
❏
Programmable through the LPC bus
V
BAT
backed-up
Serial Ports 1 and 2
—
Software compatible with the 16550A and the 16450
—
Supports shadow register for write-only bit monitoring
—
UART data rates up to 1.5 Mbaud
—
Three sets of Serial Interface pins
❏
Serial Interface 1
❏
❏
—
Supports SMBALERT
—
Concurrent access with the LPC bus
—
V
SB
powered
—
Optional internal pull-up on the two SMBus pins
■
Snoop or Take-over connection of Serial Inter-
face M
Two-to-one multiplexing of Serial Ports 1 and 2 to
Serial Interface 2
Fast X-Bus Extension
—
Supports I/O and memory read/write operations
—
8- or 16-bit data bus, 28-bit addressing
—
Accessible from both LPC bus and SMBus
—
V
SB
powered
—
Boot configuration selected by straps
—
Programmable protection control for access from the
LPC bus
—
Supports three XIRQ external interrupts
■
Floppy Disk Controller (FDC)
—
Programmable write protect
—
Supports FM and MFM modes
—
Supports Enhanced mode command for three-mode
Floppy Disk Drive (FDD)
—
Perpendicular recording drive support for 2.88 MB
—
Burst and Non-Burst modes
—
Full support for IBM Tape Drive Register (TDR) im-
plementation of AT and PS/2 drive types
—
16-byte FIFO
—
Error-free handling of data overrun and underrun
www.winbond.com
2
Revision 1.4
87427
Features
(Continued)
—
Software compatible with the PC8477, which
contains a superset of the FDC functions in the
µDP8473,
NEC
µPD765A/B
and N82077
—
High-performance digital separator
—
Supports standard 5.25" and 3.5" FDDs
—
Supports one FDD
—
Supports fast tape drives (2 Mbps) and standard
tape drives (1 Mbps, 500 Kbps and 250 Kbps)
■
Power Management
■
■
Supports
ACPI Specification Revision 3.0, September 2,
2004
System Wake-Up Control (SWC)
—
Wake-up request on detection of:
❏
Preprogrammed Keyboard or Mouse sequence
❏
❏
❏
❏
External modem ring from RI1 or RI2 on serial ports
Predetermined RTC date and time alarm
General-Purpose Input Events from up to 16
GPIO pins
IRQs of internal logical devices
Keyboard and Mouse Controller (KBC)
—
8-bit microcontroller, software compatible with
8042AH and PC87911
—
Standard interface (60h, 64h, IRQ1 and IRQ12)
—
Supports two external swapable PS/2 interfaces for
keyboard and mouse
—
Five programmable, dedicated, quasi-bidirectional
I/O lines (Fast GA20/P21, KBRST/P20, P12, P16,
P17)
General-Purpose I/O Module
■
52
—
—
—
—
General-Purpose I/O (GPIO) Ports
Individually assigned to either LPC or SMBus control
45 ports individually configured as input or output
7 output ports
Programmable features for each output pin:
❏
Drive type (open-drain, push-pull or TRI-STATE)
❏
—
Optional routing of power-up request to SERIRQ,
SIOSMI, SIOSCI, PWBTOUT and ONCTL
—
Routing control per input/output event combination
—
Outputs enable/disable per event and system state
combination (ACPI Sx states)
—
Implements bank “b” of the ACPI registers
—
Suspend modes via software emulation (control)
—
Battery-backed event-logic configuration
—
Power Button support, featuring:
❏
On/Off control
❏
❏
Power-off, 4-second override
Power Button output
TRI-STATE on V
DD
-fall detection for pins driving
V
DD
-supplied devices
—
Sleep Button support
■
—
Programmable option for internal pull-up resistor on
each input pin
—
Lock option for the configuration and data of each
output pin
—
16 GPIO ports generate IRQ/SIOSMI/SIOSCI for
wake-up events, with individual:
❏
Enable control
❏
❏
Power Supply On/Off control
—
Supports Legacy- and ACPI-compatible Power Button
—
Direct power supply control in response to wake-up
events
—
Programmable Crowbar time-out for “On” request
—
On/Off control via software emulation
—
Power-fail recovery
Enhanced Power Management (PM), including:
—
Special configuration registers for power down
—
Reduced current leakage from pins
—
Low-power CMOS technology
—
Capability for disabling all modules
Keyboard Events
—
Wake-up on any key
—
Supports programmable 8-byte sequence “pass-
word” for Power Management
—
Simultaneous recognition of three programmable
keys (sequences): “Power”, “Sleep” and “Resume”
Power Active Timers
—
Two power-on, elapsed-time counters for the main
(V
DD
) and standby (V
SB
) power supplies
—
32-bit counters, clocked by a 1-second clock
—
V
BAT
backed-up counters
Polarity and edge/level selection
Debounce mechanism
■
—
V
SB
powered
—
Low-cost external GPIO port extension via a serial bus
—
I/O ports transactions routing to the GPIO port ex-
tension
■
■
Real-Time Clock
—
DS1287, MC146818 and PC87911 compatible
—
Battery-backed 242-byte CMOS RAM, in two banks
(accessed through 70-71h and 72-73h)
—
Selective lock mechanisms for the RTC RAM
—
Y2K-compliant calendar, including century and
automatic leap-year adjustment
—
Time of day in seconds, minutes and hours, which
allows a 12-hour or 24-hour format with optional
adjustment for daylight saving time
—
Separated SMBus access to RTC RAM and RTC
Control D register
—
Battery level measurement
■
Revision 1.4
3
www.winbond.com
87427
Features
■
Watchdog
—
Compliant with
Watchdog Timer Hardware Require-
ments for Microsoft Windows .NET Server, April 2002
—
Autonomous system reset and programmable ad-
dress line forcing on expiration of watchdog timer
—
Generates a 100 ms pulse at WDO pin
—
On-chip high-frequency clock generator:
❏
Based on the 32.768 KHz clock
❏
V
SB
powered
—
Clock outputs:
❏
LFCKOUT - 32.768 KHz or 1 Hz
❏
Clocking, Supply and Package Information
■
Strap Input Controlled Operating Modes
—
Base Address (BADDR) for the PnP Index-Data
register pair
—
Input clock presence (CKIN48) select
—
X-Bus configuration (XCNF2-0) select
—
SMBus slave address (SMBSA) select
—
High frequency clock selection (HFCKS)
Testability
—
XOR tree structure
❏
Includes all the device pins (except the supply
pins, oscillator pins and CHASSIS pin)
❏
HFCKOUT - configurable up to 48 MHz. The de-
fault frequency 6, 10, 24 or 40 MHz, configurable
by strap.
■
Protection
—
All pins are 5V tolerant and back-drive protected
(except the LPC bus pins)
—
Separate battery pin that includes an internal UL
protection resistor
—
GPIO multiplexing configuration lock
Power Supply
—
3.3V supply operation
—
Separate pins for main (V
DD
) and standby (V
SB
)
power supplies
—
Backup battery input for RTC, SWC and Power
Active timers
—
Separate pin for core voltage filtering (V
CORF
)
—
Reduced standby power consumption
—
Very low power consumption for RTC and timers (0.9
µA
typical) from backup battery
■
■
Selected at power-up by strap input (TEST)
—
TRI-STATE device pins, selected at power-up by
strap input (TRIS)
■
Clocks
—
LPC clock input (up to 33 MHz)
—
ServerI/O modules clock: 48 MHz input or internal
clock multiplier
—
32.768 KHz crystal
—
On-chip low-frequency clock generator:
❏
32.768 KHz for RTC, System Wake-Up Control
(SWC), Power Active timers and the high-fre-
quency clock generator
❏
❏
■
Packages
—
128-pin PQFP
—
128-pin TFBGA
Very low power consumption
V
BAT
powered
www.winbond.com
4
Revision 1.4
87427

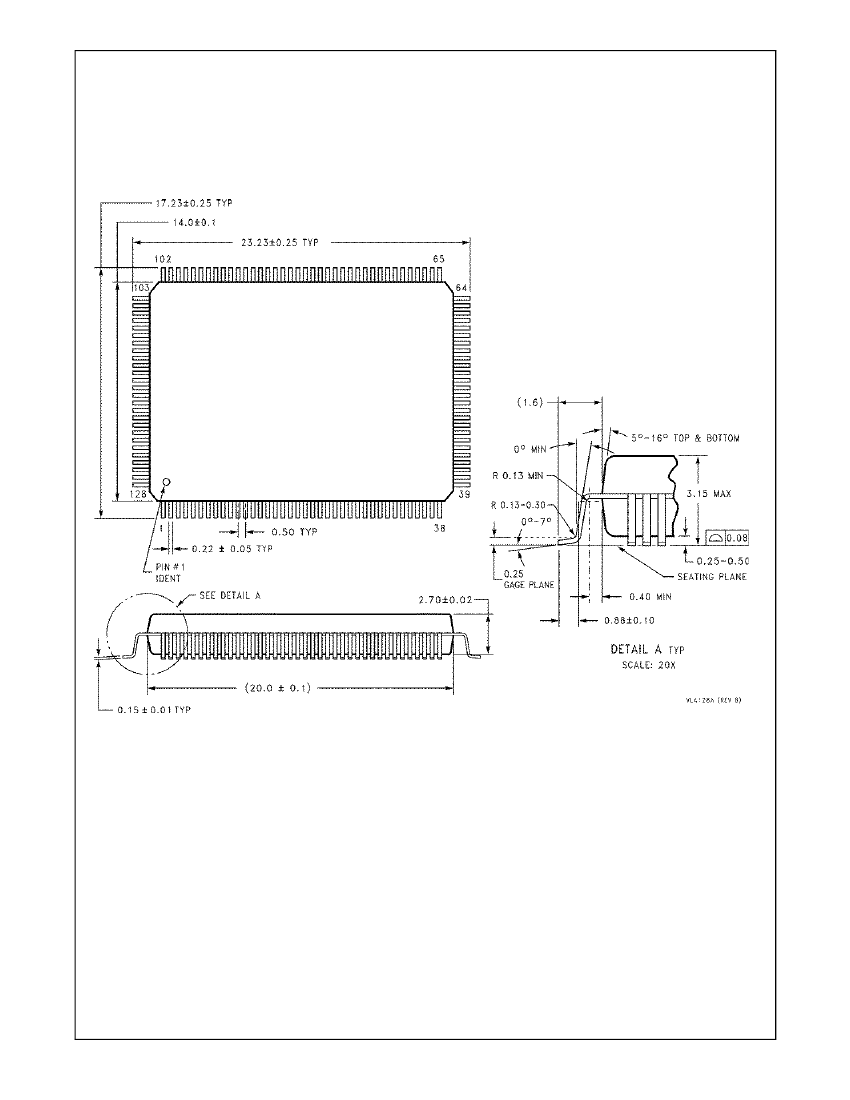

Physical Dimensions
All dimensions are in millimeters
Plastic Quad Flatpack (PQFP), JEDEC
Order Number 87427Fx-r/ff
Legend:
F - package identifier for PQFP128
x - additional identifier, may change with part revision
r - KBC ROM code identifier:
C - IBU
B - IBM
R - ICK
ff - package finish (leaded, lead-free or RoHS-compliant)
Please contact your local sales representative for further details.
Revision 1.4
5
www.winbond.com
京公网安备 11010802033920号
EEWORLD
