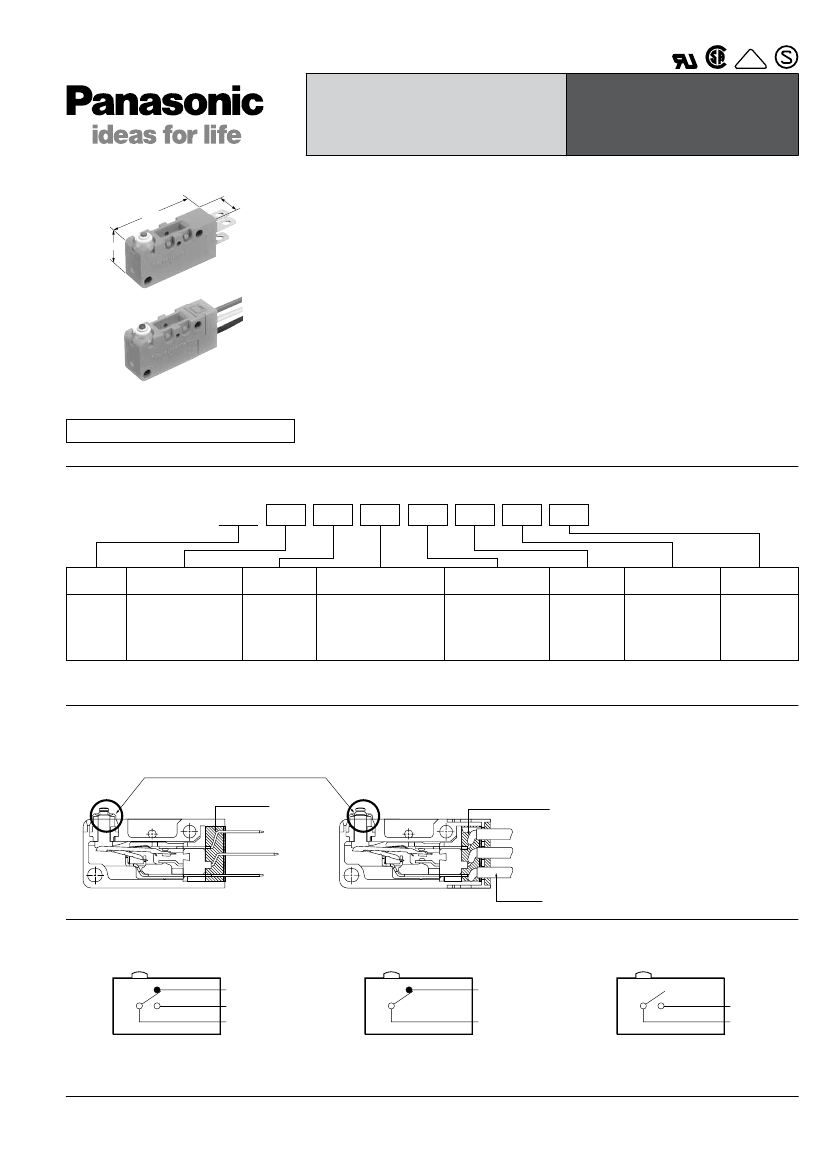

ABV1
VDE
HIGH ENVIRONMENTAL
RESISTANCE
TURQUOISE SWITCHES
ABV TYPE
10.3
33.0
FEATURES
• Miniature size (33×15.9×10.3 mm)
• Sealed construction for use in adverse environment-Sealed construction by
epoxy resin and rubber cap greatly reduces possible miscontact due to
contaminants such as dust. Conforming to IP67* of IEC protective construction
classification
• Elastomer double molding technology, an industry first and ultrasonic swaging
technology contribute to uniform sealing in high production quantities
• UL/CSA/VDE/SEMKO approved
* Based on the protective construction classification of IED, items which satisfy the test
requirements are denoted with an IP designation.
15.9
TYPICAL APPLICATIONS
Compliance with RoHS Directive
• Automotive
• Agricultural devices
• Industrial equipment
ORDERING INFORMATION
Ex.
ABV1
2
1
0
4
1
3
R
Type of
switch
ABV1:
Turquoise
switch
V type
Contact
arrangement
2: .187 quick-connect 1: SPDT
terminal
2: SPST-NC
6: Wire leads
3: SPST-NO
Terminal
Actuator
0: Pin plunger
2: Hinge lever
4: Simulated roller lever
5: Short roller lever
6: Roller lever
Operating force by
pin plunger (max.)
4: 0.98 N
5: 1.96 N
Contact
0: AgNi alloy
1: AgNi alloy
+ Au clad
Agency standard
3: UL/CSA/VDE/
SEMKO
Short roller
lever
R: Improved
short roller
lever
Remarks: 1. Standard packing: Dust protected type 50 pcs./carton, 500 pcs./case; Immersion protected type 50 pcs./case.
2. Not every combination is available. Please refer to the following table, “PRODUCT TYPES”.
CONSTRUCTION
.187 quick-connect terminal
Rubber cap
Ultrasonic swaging technology contribute for sealing
Epoxy resin
Wire leads
Epoxy resin (include)
Wire leads
CONTACT ARRANGEMENT
1. SPDT
NC
NO
COM
COM
2. SPST-NC
NC
3. SPST-NO
NO
COM
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
ABV1
APPLICABLE CURRENT RANGE (Reference only)
5A
3A
AgNi alloy
100mA
AgNi alloy + Au clad
1mA
0
DC 5V
AC 5V
15V
15V
30V
125V
PRODUCT TYPES
AgNi alloy
Contact
Actuator
Contact
Arrangement
SPDT
Pin plunger
SPST-NC
SPST-NO
SPDT
Hinge lever
SPST-NC
SPST-NO
SPDT
AgNi alloy
Simulated roller lever
SPST-NC
SPST-NO
SPDT
Short roller lever
SPST-NC
SPST-NO
SPDT
Roller lever
SPST-NC
SPST-NO
Operating force, Max.
0.98 N
1.96 N
0.98 N
1.96 N
0.98 N
1.96 N
0.59 N
1.18 N
0.59 N
1.18 N
0.59 N
1.18 N
0.59 N
1.18 N
0.59 N
1.18 N
0.59 N
1.18 N
1.08 N
2.16 N
1.08 N
2.16 N
1.08 N
2.16 N
0.59 N
1.18 N
0.59 N
1.18 N
0.59 N
1.18 N
187 Quick-connect terminal
ABV1210403
ABV1210503
ABV1220403
ABV1220503
ABV1230403
ABV1230503
ABV1212403
ABV1212503
ABV1222403
ABV1222503
ABV1232403
ABV1232503
ABV1214403
ABV1214503
ABV1224403
ABV1224503
ABV1234403
ABV1234503
ABV1215403R
ABV1215503R
ABV1225403R
ABV1225503R
ABV1235403R
ABV1235503R
ABV1216403
ABV1216503
ABV1226403
ABV1226503
ABV1236403
ABV1236503
Wire Leads
ABV1610403
ABV1610503
ABV1620403
ABV1620503
ABV1630403
ABV1630503
ABV1612403
ABV1612503
ABV1622403
ABV1622503
ABV1632403
ABV1632503
ABV1614403
ABV1614503
ABV1624403
ABV1624503
ABV1634403
ABV1634503
ABV1615403R
ABV1615503R
ABV1625403R
ABV1625503R
ABV1635403R
ABV1635503R
ABV1616403
ABV1616503
ABV1626403
ABV1626503
ABV1636403
ABV1636503
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
ABV1
AgNi alloy + Au clad
Contact
Actuator
Contact
Arrangement
SPDT
Pin plunger
SPST-NC
SPST-NO
SPDT
Hinge lever
SPST-NC
SPST-NO
SPDT
AgNi alloy
+ Au clad
Simulated roller lever
SPST-NC
SPST-NO
SPDT
Short roller lever
SPST-NC
SPST-NO
SPDT
Roller lever
SPST-NC
SPST-NO
Operating force, Max.
0.98 N
1.96 N
0.98 N
1.96 N
0.98 N
1.96 N
0.59 N
1.18 N
0.59 N
1.18 N
0.59 N
1.18 N
0.59 N
1.18 N
0.59 N
1.18 N
0.59 N
1.18 N
1.08 N
2.16 N
1.08 N
2.16 N
1.08 N
2.16 N
0.59 N
1.18 N
0.59 N
1.18 N
0.59 N
1.18 N
187 Quick-connect terminal
ABV1210413
ABV1210513
ABV1220413
ABV1220513
ABV1230413
ABV1230513
ABV1212413
ABV1212513
ABV1222413
ABV1222513
ABV1232413
ABV1232513
ABV1214413
ABV1214513
ABV1224413
ABV1224513
ABV1234413
ABV1234513
ABV1215413R
ABV1215513R
ABV1225413R
ABV1225513R
ABV1235413R
ABV1235513R
ABV1216413
ABV1216513
ABV1226413
ABV1226513
ABV1236413
ABV1236513
Wire Leads
ABV1610413
ABV1610513
ABV1620413
ABV1620513
ABV1630413
ABV1630513
ABV1612413
ABV1612513
ABV1622413
ABV1622513
ABV1632413
ABV1632513
ABV1614413
ABV1614513
ABV1624413
ABV1624513
ABV1634413
ABV1634513
ABV1615413R
ABV1615513R
ABV1625413R
ABV1625513R
ABV1635413R
ABV1635513R
ABV1616413
ABV1616513
ABV1626413
ABV1626513
ABV1636413
ABV1636513
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
ABV1

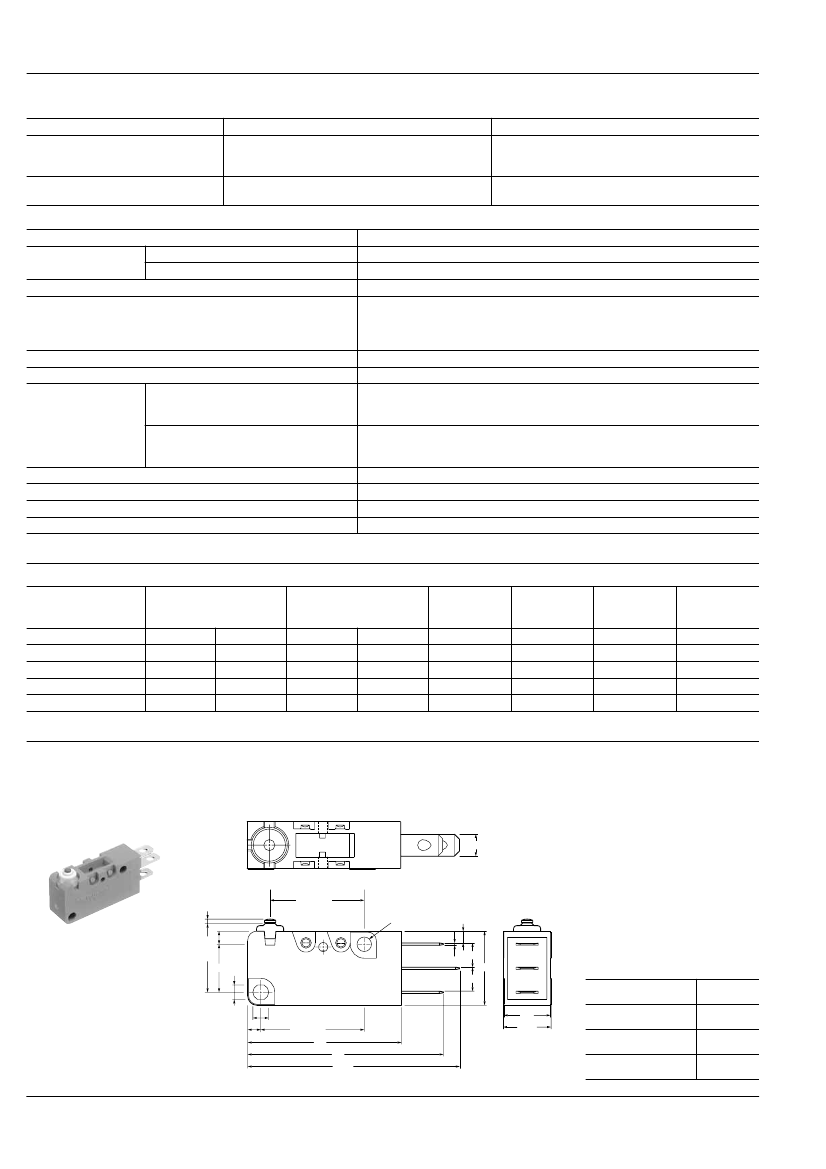

SPECIFICATIONS
1. Contact rating
Type
AgNi alloy + Au clad contact
AgNi alloy
Standard rating
3 A 250 V AC (O.F. 1.96 N)
1 A 250 V AC (O.F. 0.98 N)
5 A 250 V AC (O.F. 1.96 N)
3 A 250 V AC (O.F. 0.98 N)
Low-level rating
5 mA 6 V DC
2 mA 12 V DC
1 mA 24 V DC
—
2. Characteristics
Mechanical life (O.T.: Specified value)
Electrical life
Nominal rating (O.T.: Max.)
Low-level rating (O.T.: Specified value)
Min. 5x10
6
(at 60 cpm)
Min. 10
5
(at 20 cpm)*
1
Min. 10
6
(at 20 cpm)
Min. 100 MΩ (at 500 V DC insulation resistance meter)
1,000 Vrms
2,000 Vrms
2,000 Vrms
10 to 55 Hz at single amplitude of 0.75 mm (Contact opening: max. 1 msec.)
Min. 294 m/s
2
(Contact opening: Max. 1 msec.)
Dust protected type (IP50): Max. 50 mΩ
Immersion protected type (IP67): Max. 100 mΩ
(By voltage drop 1 A 6 to 8 V DC)
Dust protected type (IP50): Max. 50 mΩ
Immersion protected type (IP67): Max. 100 mΩ
(By voltage drop 0.1 A 6 to 8 V DC)
1 to 500 mm/sec.
120 cpm
−40°C
to +85°C
Approx. 7 g (IP50 type)
Insulation resistance
Dielectric strength
Between non-continuous terminals
Between each terminal and other exposed metal parts
Between each terminal and ground
Vibration resistance
Shock resistance
AgNi alloy contact type
Contact resistance
AgNi alloy + Au clad contact type
Allowable operating speed (at no load)
Max. operating cycle rate (at no load)
Ambient temperature (at no load)
Unit weight
Note: *1 O.F. 0.98N type is Min 5
×
10
5
(at 20 com)
3. Operating characteristics
Type of actuator
Pin plunger
Hinge lever
Simulated roller lever
Short roller lever
Roller lever
( ): Low force type
Operating force, Max.
1.96N
1.18N
1.18N
2.16N
1.18N
0.98N
0.59N
0.59N
1.08N
0.59N
Release force, Min.
0.39N
0.13N
0.13N
0.39N
0.13N
0.25N
0.098N
0.098N
0.20N
0.098N
Pretravel,
Max. mm
1.6
3.2
3.2
1.6
3.2
Movement
differential,
Max. mm
0.4
1.2
1.2
0.5
1.2
Overtravel,
Min. mm
0.8
1.2
1.2
0.8
1.2
Operating
position,
mm
14.7±0.6
15.3±1.2
18.5±1.2
20.7±0.8
20.7±1.2

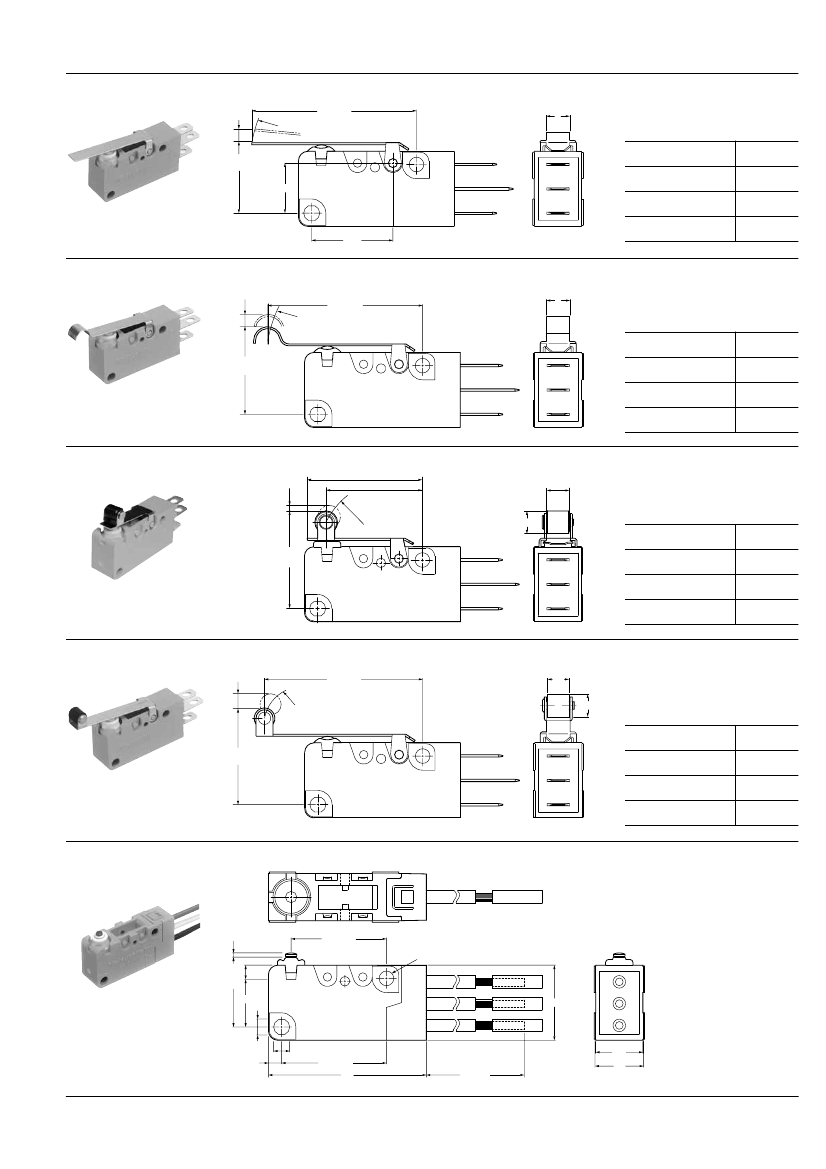

DIMENSIONS
1. Dust protected type
1-(1) .187 quick-connect terminal
Pin plunger
4.75
mm General tolerance:
±0.4
Pretravel
1.6 max
20.2±0.3
3.1
+0.25
dia.
–0.05
2.5
Operating 2.8
Position
14.7±0.6
10.3±0.1
0.5
5.2
15.9
5.2
3.1
+0.25
–0.05
3.4
2.8
22.2±0.1
33
42
45.5
10
10.3
Pretravel,
Max. mm
Movement differential,
Max. mm
Overtravel,
Min. mm
Operating position,
mm
1.6
0.4
0.8
14.7±0.6
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
ABV1
Hinge lever
Pretravel
3.2 max.
R30.8
35.8±0.5
5
mm General tolerance:
±0.25
Operating Position
15.3±1.2
10.6
17.2
Pretravel,
Max. mm
Movement differential,
Max. mm
Overtravel,
Min. mm
Operating position,
mm
3.2
1.2
1.2
15.3±1.2
Simulated roller lever
Pretravel
3.2 max.
32.8±0.5
R27.8
5
Operating Position
18.5±1.2
Pretravel,
Max. mm
Movement differential,
Max. mm
Overtravel,
Min. mm
Operating position,
mm
3.2
1.2
1.2
18.5±1.2
Short roller lever
Pretravel
1.6 max.
24.6±0.5
20.6±0.5
R
.
17
2
4.9
4.8 dia.
Operating Position
20.7±0.8
Pretravel,
Max. mm
Movement differential,
Max. mm
Overtravel,
Min. mm
Operating position,
mm
1.6
0.5
0.8
20.7±0.8
Roller lever
Pretravel
3.2 max.
R30.0
34.2±0.5
4.9
4.8 dia.
Operating Position
20.7±1.2
Pretravel,
Max. mm
Movement differential,
Max. mm
Overtravel,
Min. mm
Operating position,
mm
3.2
1.2
1.2
20.7±1.2
2. Immersion protected type
Wire Leads
Pretravel
1.6 max.
20.2±0.3
3.1
+0.25
dia.
–0.05
Operating
Position
14.7±0.6
10.3±0.1
15.9
3.1
+0.25
–0.05
2.8
3.4
22.2±0.1
36
300±10
10
10
Thickness of the lead wire:
Standard type: 0.75mm
2
UL/CSA approved type:
AWG #18
Color of the lead wire
COM ...black
N.C. ....red
N.O. ....white
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
