RF-12-1
RF174–07SP1–01BJ1–0300
RF174–01RP1–02RP1–0200

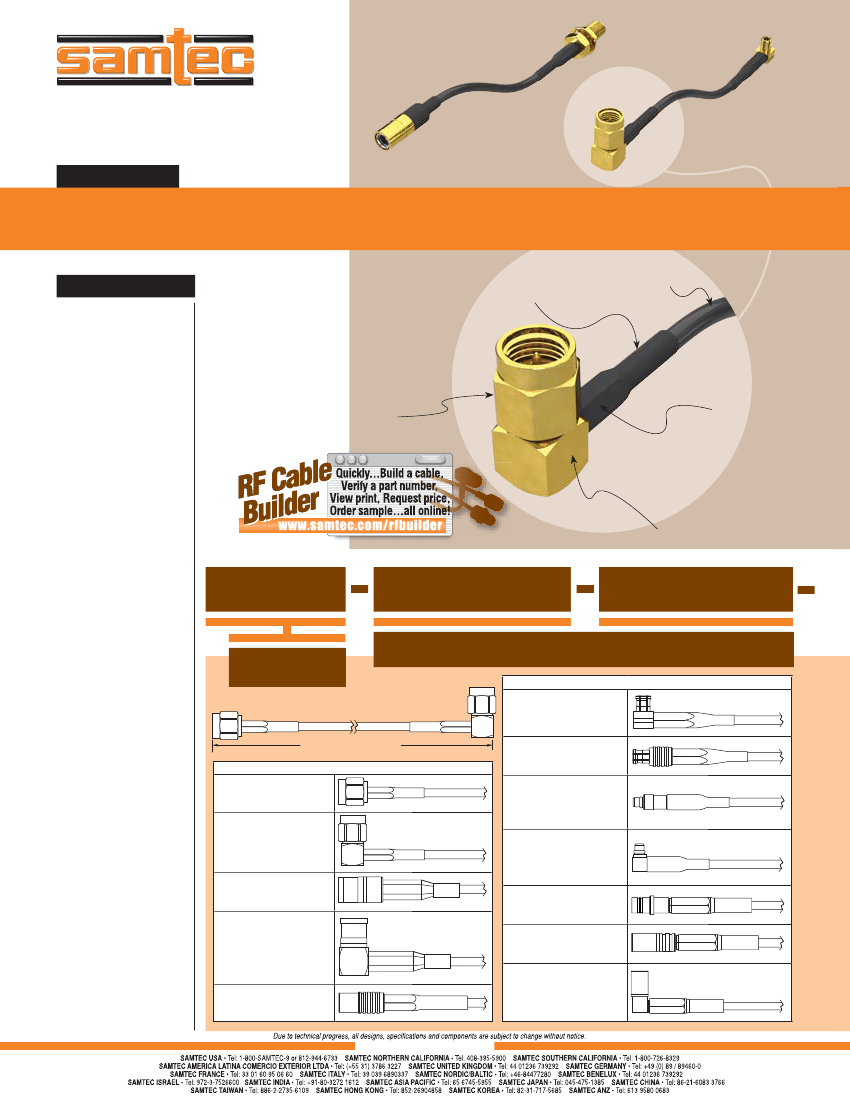

RF174 SERIES
50Ω RG 174 CABLE ASSEMBLIES
SPECIFICATIONS
For complete specifications see
www.samtec.com?RF174
Mates with:
MCX, MMCX, MMCXV,
SMA, SMB5, SSMB,
BNC, TNC, NTPE
2.3dK
Standard performance 26 AWG
RG 174 coax cable
RF Connector:
Outer Contact Material:
Ni plated Brass (BNC)
Au plated Brass (SMB & SMA)
Au plated BeCu
(MCX, MMCX & SSMB)
Center Contact Material:
Au plated Brass (BNC-P MCX-P
,
,
MMCX-P & SMA-P)
Au plated BeCu
(SMB-P, SMA-J & SSMB)
Au plated Phos. Bronze (BNC-J)
Insulator Material:
PTFE
Operating Temperature:
-50°C to +90°C
Insulator Resistance:
5,000 MΩ
Impedance:
50Ω
Frequency Range:
0~6 GHz
(Cable & connector dependent)
RoHS Compliant:
Yes
Plugs and
Jacks
Single or
Double Ended
Straight or
Right Angle
RG 174 Cable:
CABLE TYPE
Impedance:
50Ω
Capacitance:
101.024 pF/meter
Max Attenuation
(cable only):
1.4dB @ 1GHz for 1 meter
Conductor Size:
26 AWG, (0,48 mm) .019" dia.
Conductor Material:
Copper
Insulator Material:
LEP
Shield Material:
Tin Copper
Jacket Material:
PVC
Jacket Diameter:
(2,70 mm) .106"
Jacket Color:
Black
RoHS Compliant:
Yes
END 1
CONNECTOR
END 2
CONNECTOR
RF174
= RG 174 Cable
Specify END OPTIONS from chart
END OPTIONS
–02RP1
= MCX,
Right Angle Plug
XXXX = OAL (millimeters)
END OPTIONS
–01SP1
= SMA,
Straight Plug
–02SP1
= MCX,
Straight Plug
–03SP1
= MMCX,
Straight Plug
–V3SP4
= MMCXV,
Straight Plug
–01RP1
= SMA,
Right Angle Plug
–03RP1
= MMCX,
Right Angle Plug
–V3RP4
= MMCXV,
Right Angle Plug
–07SP1
= SMB,
Straight Plug
–V3SJ4
= MMCXV,
Straight Jack
–S7SP4
= SSMB,
Straight Plug
–07RP1
= SMB,
Right Angle Plug
–02SJ1
= MCX,
Straight Jack
–S7RP4
= SSMB,
Right Angle Plug
WWW.SAMTEC.COM
RF174–02RP1–02SP1–0200
RF174–03RP1–07RP1–0200
RF174–04BJ3–07SP1–0100
Variety of
Bulkhead Jacks
Heavy Gold
plated
Standard heat
shrink wraps
Single or
Double ended
ALSO AVAILABLE
• IP67 TNC option.
• Cable Connector Kits.
• Additional plating options available.
• Additional end connector combinations.
• Knurled nuts with BNC option.
Call Samtec.
Choice of RF
connector styles
OVERALL LENGTH
–“XXXX”
= Overall Length in millimeters –0100 (100 mm) minimum
(Cable lengths larger than 1000 millimeters are not supported by S.I. Test data)
END OPTIONS
–01PN1
= SMA,
Straight Panel
Mount Jack
END OPTIONS
END OPTIONS
–SING
= Single Ended
(End 2 Callout)
–04SP3
= BNC,
Straight Plug
XXXXXX
= Stripped & Tinned
(End 2 Callout)
–05SP3
= TNC,
Straight Plug
–04BJ3
= BNC,
Bulkhead Jack
B
C
A
–07BJ1
= SMB,
Bulkhead Jack
–05BJ3
= TNC,
Bulkhead Jack
–01BJ1
= SMA,
Straight Bulkhead Jack
–01SB1
= SMA,
Straight Bulkhead Jack, Sealed
–01SR1
= SMA,
Straight Bulkhead Jack, Sealed,
Reversed Polarity
–01BR1
= SMA,
Straight Bulkhead Jack,
Reversed Polarity

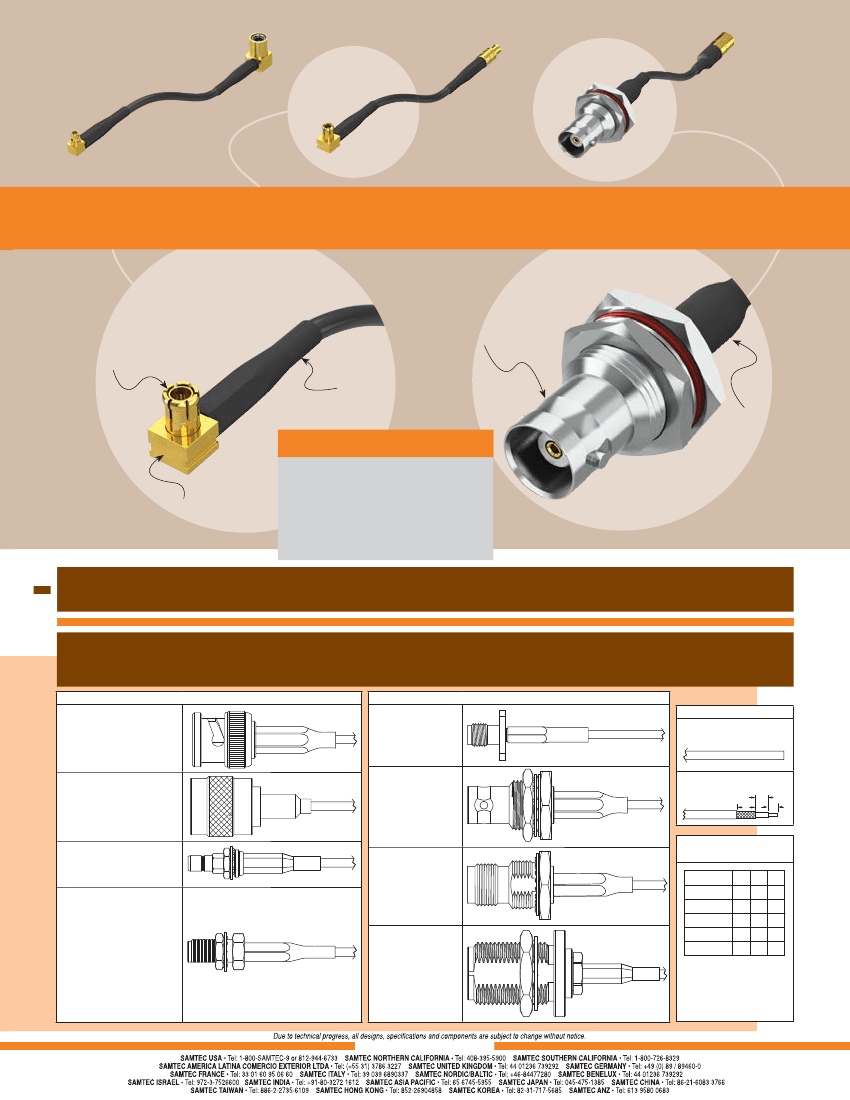

STRIPPED & TINNED
(Dimensions in mm)
CALLOUT
–303030
–303040
–403030
–403040
–404040
A
3.0
3.0
4.0
4.0
4.0
B
3.0
3.0
3.0
3.0
4.0
C
3.0
4.0
3.0
4.0
4.0
–06BJ2
= N Type,
Bulkhead Jack
Both center conductor and
braid shield are stripped,
only the center
conductor is tinned.
Call Samtec for other
sizes or tinning options.
WWW.SAMTEC.COM
