AN7291SC datasheet, PDF - EEWORLD Datasheet

AN7291SC: DescriptionFM-IF,DETECTION, NOISE CANCELLER, MPX DEMODULATION IC; CategoryOther integrated circuit (IC) Consumption circuit; File Size67KB，1 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

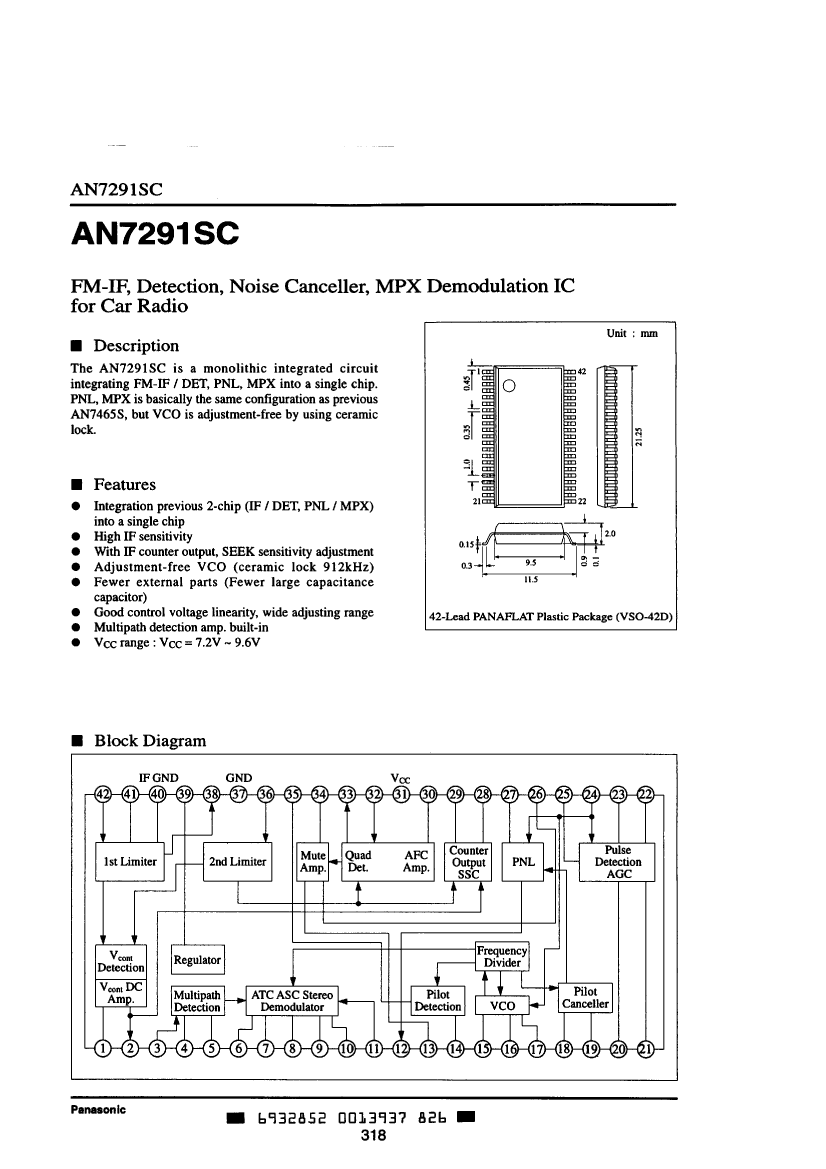

AN7291SC Overview

FM-IF,DETECTION, NOISE CANCELLER, MPX DEMODULATION IC

Parameter Name	Attribute value
Parts packaging code	SSOP
package instruction	SSOP,
Contacts	42
Reach Compliance Code	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G42
length	21.25 mm
Number of functions	1
Number of terminals	42
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	2.4 mm
Maximum supply voltage (Vsup)	9.6 V
Minimum supply voltage (Vsup)	7.2 V
surface mount	YES
technology	BIPOLAR
Terminal form	GULL WING
Terminal pitch	1 mm
Terminal location	DUAL
width	9.5 mm
Base Number Matches	1

	AN7291SC	AN7291
Description	FM-IF,DETECTION, NOISE CANCELLER, MPX DEMODULATION IC	FM-IF,DETECTION, NOISE CANCELLER, MPX DEMODULATION IC
