MJ04-A110FSP-31A datasheet, PDF

Datasheet> All Categories > The connector> The connector> MJ04-A110FSP-31A

MJ04-A110FSP-31A: DescriptionBoard Connector, 110 Contact(s), 5 Row(s), Female, Straight, Press Fit Terminal,; CategoryThe connector The connector; File Size195KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric Compare View All

MJ04-A110FSP-31A Overview

Board Connector, 110 Contact(s), 5 Row(s), Female, Straight, Press Fit Terminal,

MJ04-A110FSP-31A Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (1) OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	MJ04
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	110
UL Flammability Code	94V-0
Base Number Matches	1

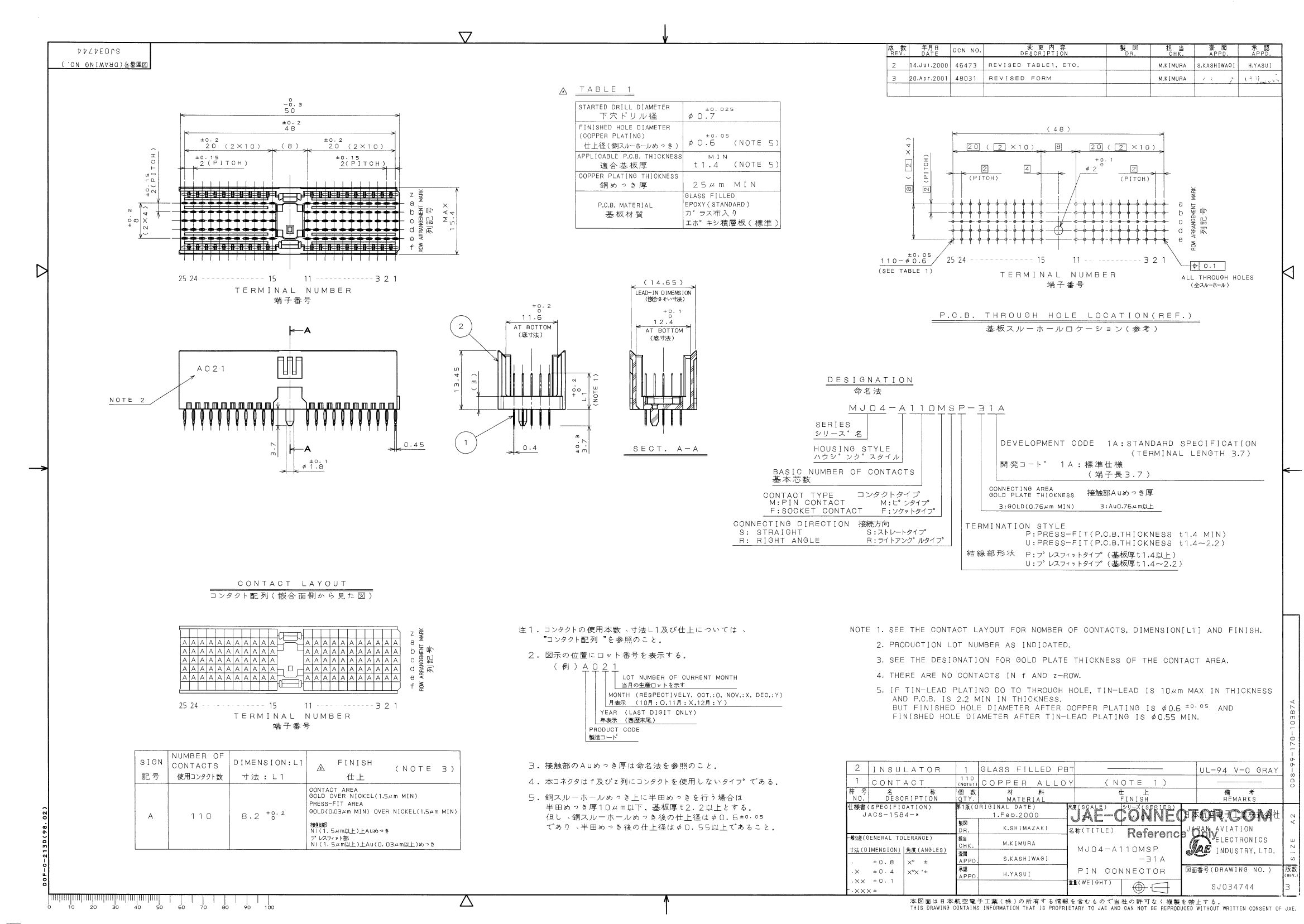

Preview

Download Datasheet

View All

MJ04-A110FSP-31A Related Products

	MJ04-A110FSP-31A	MJ04-A110MSP-31A	MJ04-A110FRP-31A	MJ04-A110FSU-31A	MJ04-A110MRP-31A	MJ04-A110MSU-31A	MJ04-A110MRU-31A	MJ04-A110FRU-31A
Description	Board Connector, 110 Contact(s), 5 Row(s), Female, Straight, Press Fit Terminal,	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Receptacle	Board Connector, 110 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal,	Board Connector, 110 Contact(s), 5 Row(s), Female, Straight, Press Fit Terminal,	Board Connector, 110 Contact(s), 5 Row(s), Male, Right Angle, Press Fit Terminal,	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Receptacle	Board Connector, 110 Contact(s), 5 Row(s), Male, Right Angle, Press Fit Terminal,	Board Connector, 110 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	NOT SPECIFIED	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	NOT SPECIFIED	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact point gender	FEMALE	MALE	FEMALE	FEMALE	MALE	MALE	MALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	110	110	110	110	110	110	110	110
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99
Contact completed and terminated	GOLD (1) OVER NICKEL	-	GOLD (1) OVER NICKEL	GOLD (1) OVER NICKEL	GOLD (1) OVER NICKEL	-	GOLD (1) OVER NICKEL	GOLD (1) OVER NICKEL
JESD-609 code	e4	-	e4	e4	e4	-	e4	e4
Manufacturer's serial number	MJ04	-	MJ04	MJ04	MJ04	-	MJ04	MJ04
Base Number Matches	1	1	1	1	1	1	-	-
