C&K CA Series
Power Rocker Switches
Features/Benefits
•
15 AMPS @ 125 V AC
•
Cosmetic slimline detail
•
Positive detent
Typical Applications
•
Hair dryers
•
Major and small appliances
Models Available
Specifications
CONTACT RATING: 15 AMPS @ 125 V AC; 10 AMPS
@ 250 V AC; 1/4 HP @ 125 V AC or 250 V AC
.
Materials
HOUSING: 6/6 nylon (UL 94V-2), black.
ACTUATOR: Polycarbonate (UL 94V-2), black.
CONTACTS: Coin silver, silver plated.
TERMINALS: Copper, silver plated.
CONTACT SPRING: Music wire.
NOTE:
Specifications and material listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.

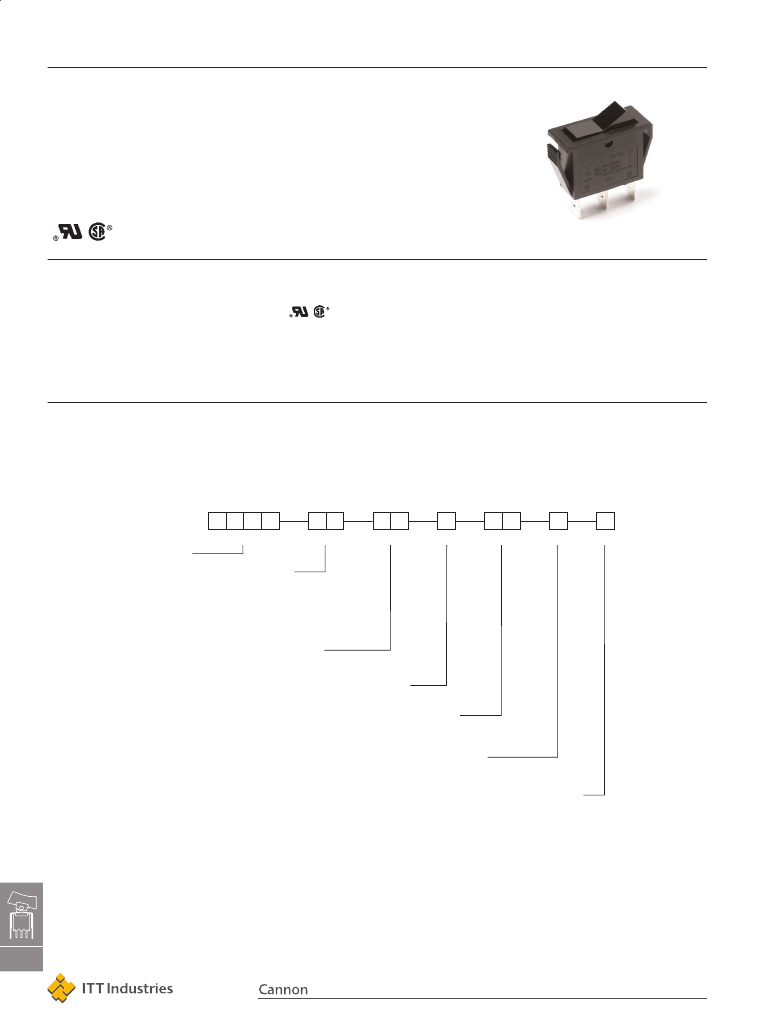

Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages G-72 thru G-74. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
CA01
(STD.) SPDT, On-On
CA02
SPST, On-Off
CA21
(STD.) DPDT, On-On
CA22
DPST, On-Off
Actuator
J1
(STD.) Rocker with gloss finish
J6
Flat rocker with gloss finish
J7
Curved rocker with matte finish
J8
Curved rocker with matte finish,
bevelled frame
Actuator Color
2
(STD.) Black
1
White
3
Red
6
Green
Housing Color
2
(STD.) Black
1
White
Terminations
07
(STD.) Quick connect
37
Quick connect with protective barrier
Actuator Markings
NONE
(STD.) No marking
D
ON-OFF
H
O|
Contact Material
P
O–
Q
(STD.) Silver
Rocker
G

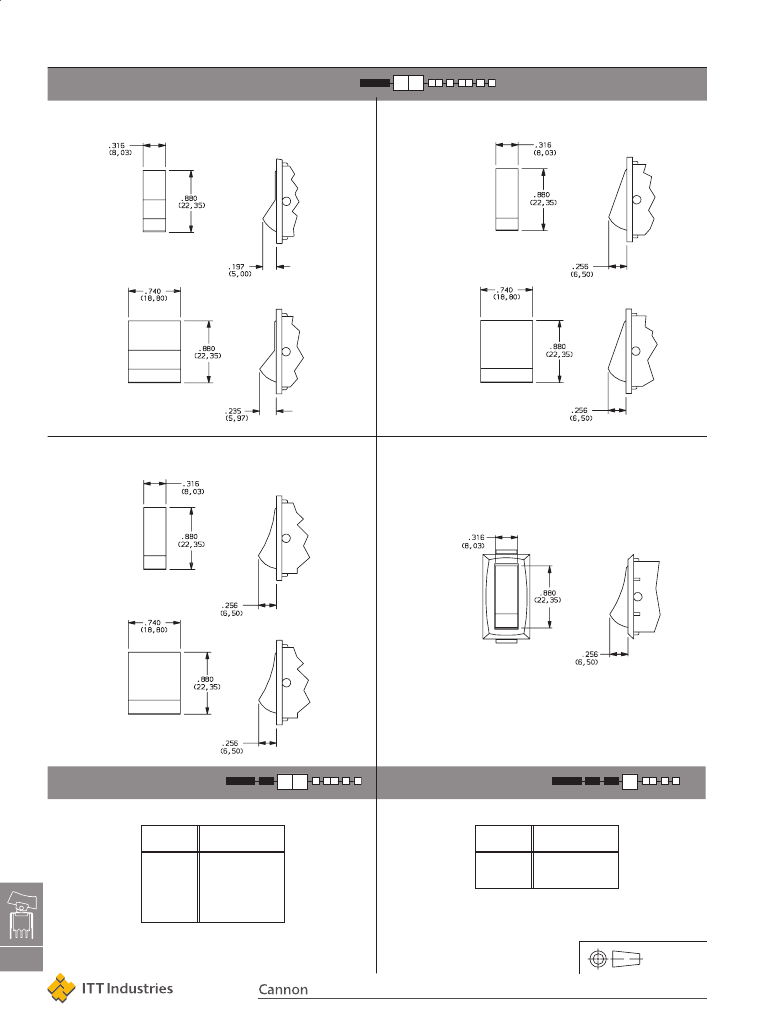

Dimensions are shown: IN (mm)
Dimensions subject to change
G-72
www.ittcannon.com
C&K CA Series
Power Rocker Switches

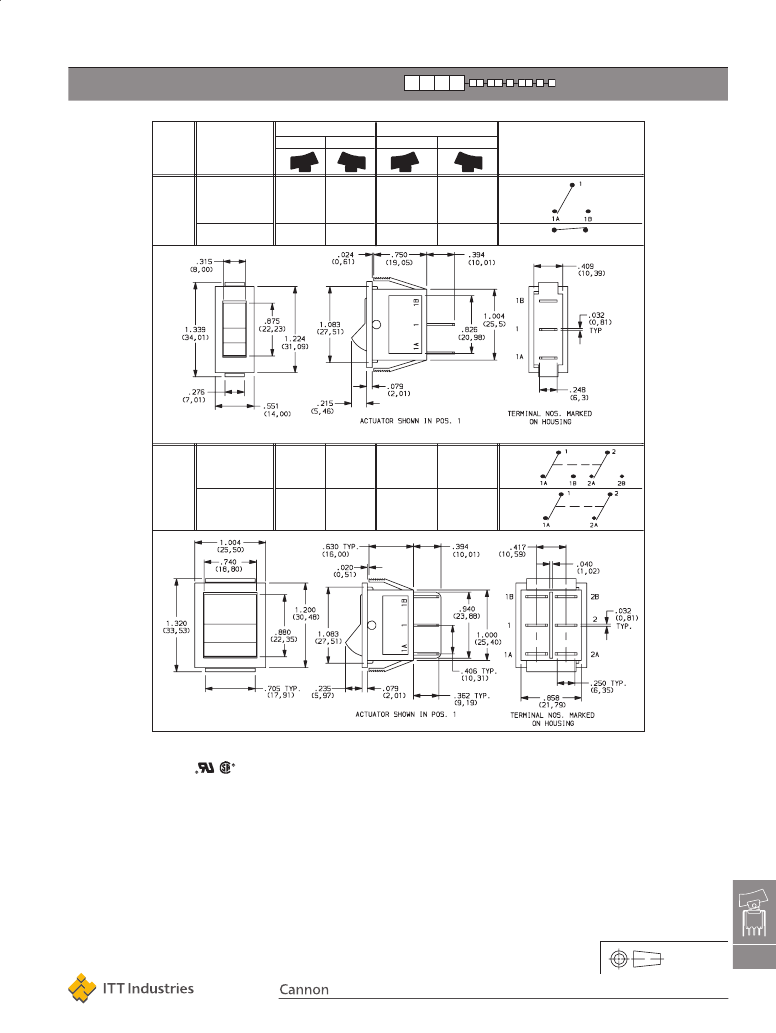

SWITCH FUNCTION
SWITCH FUNCTION
POS. 1
NO.
POLES
MODEL
NO.
POS. 2
CONNECTED TERMINALS
POS. 1
POS. 2
SCHEMATIC
CA01
SP
(STD.)
ON
ON
1-1A
1-1B
SPDT
CA02
SPDT
ON
OFF
1-1A
OPEN
SPST
1A
1
Part number shown: CA01J12207Q
CA21
DP
(STD.)
ON
ON
1-1A, 2-2A
1-1B, 2-2B
DPDT
CA22
DPDT
ON
OFF
1-1A, 2-2A
OPEN
DPST
Part number shown: CA21J12207Q
For complete contact ratings and agency approvals, see CONTACT MATERIAL section, page G-74.
Contacts make on side opposite actuator thrown.
All models
with all options.
Rocker
Third Angle
Projection
Dimensions are shown: IN (mm)
Dimensions subject to change
G
G-73
www.ittcannon.com
C&K CA Series
Power Rocker Switches
ACTUATOR
J1
SP
(STD.) ROCKER WITH GLOSS FINISH
J6
FLAT ROCKER WITH GLOSS FINISH
SP
DP
DP
J7
SP
CURVED ROCKER WITH MATTE FINISH
J8
CURVED ROCKER WITH MATTE FINISH AND BEVELLED FRAME
SP
DP
NOTE:
Available on SP models only.
ACTUATOR COLOR
HOUSING COLOR
Rocker
OPTION
CODE
OPAQUE
ACTUATOR COLOR
(STD.) BLACK
WHITE
RED
GREEN
OPTION
CODE
HOUSING
COLOR
(STD.) BLACK
WHITE
2
1
3
6
2
1
NOTE:
Housing frame finish: matte.
NOTE:
Actuator finish: matte. Special colors
available, consult Customer Service Center.
G
G-74
Third Angle
Projection
Dimensions are shown: IN (mm)
Dimensions subject to change
www.ittcannon.com
C&K CA Series
Power Rocker Switches

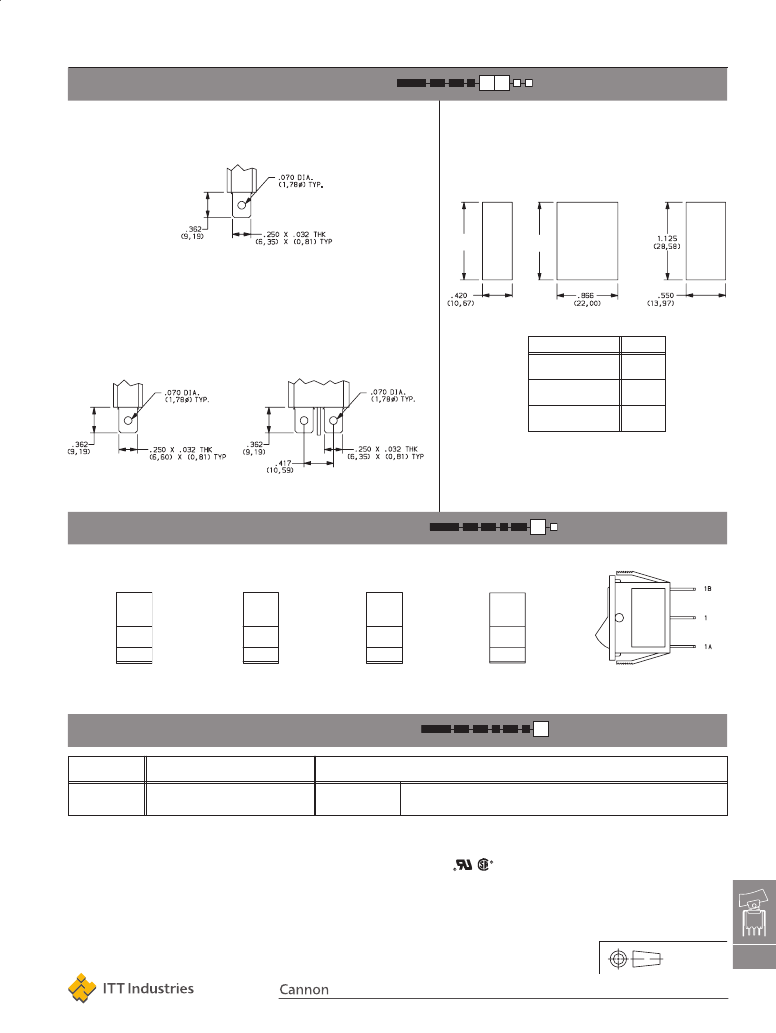

TERMINATIONS
07
(STD.) QUICK CONNECT
PANEL MOUNTING
SP
J1, J6 & J7 only
SP
J8 only
DP
`A'
NOTE:
Not available with DP verisons.
`A'
37
QUICK CONNECT WITH PROTECTIVE BARRIER
PANEL THICKNESS
SP
DP
.059–.078
(1,50) (2,00)
.078–.118
(2,00) (3,00)
.118–.177
(3,00) (4,50)
DIM ‘A’
1.102
(28,00)
1.110
(28,20)
1.126
(28,60)
ACTUATOR MARKINGS
NONE
(STD.) NO MARKING
D
ON-OFF
H
O|
P
O–
ON
OFF
O
I
O
NOTE:
Orientation of actuator
markings and terminals
Marking color white, standard for all actuator colors except white and yellow. Marking color black, standard for
white and yellow actuators. Consult Customer Service Center for other available markings and colors.
CONTACT MATERIAL
OPTION CODE
CONTACT & TERMINAL MATERIAL
RATINGS
15 AMPS @ 125 V AC; 10 AMPS @ 250 V AC;
1/4 HP @ 125 V AC or 250 V AC (UL/CSA).
Q
(STD.)
SILVER 1
POWER
I
Rocker
CONTACT MATERIAL/APPLICATION RECOMMENDATIONS – SEE SECTION N.
1 CONTACTS: Coin silver, silver plated.
TERMINALS: Copper, silver plated.
All models
with all options.
Third Angle
Projection
Dimensions are shown: IN (mm)
Dimensions subject to change
G
G-75
www.ittcannon.com
