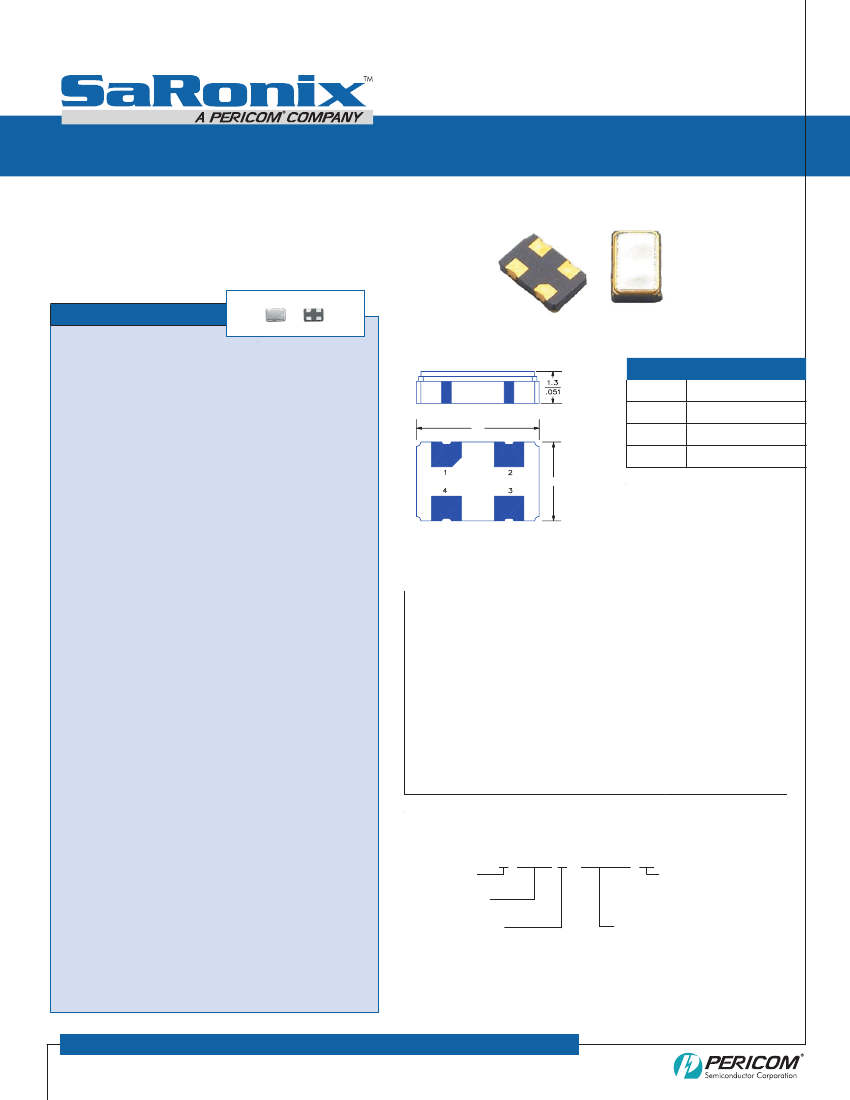

S1633 Series
3.3V CMOS Low Jitter
Crystal Clock Oscillator (XO)
Actual Size = 3.2 x 5mm
Product Features
• Less than 1.5 ps RMS jitter with fundamental or
overtone design
• 3.3V CMOS/TTL compatible logic levels
• Pin-compatible with standard 3.2x5mm packages
• Designed for standard reflow and washing
techniques
• Low power standby mode
• Pb-free and RoHS/Green compliant
Packaging Outline
Pin Functions
Pin
Function
1
2
½½½
OE Function
Ground
Clock Output
V
DD
3
4
½½½
Product Description
The S1633 Series is a 3.3V crystal clock oscillator
that achieves superb jitter and stability over a broad
range of operating conditions and frequencies. The
output clock signal, generated internally with a non-PLL
oscillator design, is compatible with LVCMOS/LVTTL
logic levels. The device, available on tape and reel,
is contained in a 3.2x5mm surface-mount ceramic
package.
Common Frequencies
Contact SaRonix for additional frequencies
Applications
The S1633 Series is an ideal reference clock for
compact, high-density applications requiring low jitter
or tight stability, including:
• Ethernet
• FibreChannel
• Serial Attached SCSI (SAS)
• Server & Storage platforms
• SONET/SDH linecards
• T1/E1, T3/E3 linecards
• DSLAM
• 802.11a/b/g WiFi
2.0480 MHz
3.6864 MHz
8.0000 MHz
10.0000 MHz
14.3181 MHz
16.0000 MHz
16.3840 MHz
19.4400 MHz
20.0000 MHz
22.0000 MHz
24.5760 MHz
25.0000 MHz
27.0000 MHz
32.0000 MHz
33.0000 MHz
40.0000 MHz
44.0000 MHz
48.0000 MHz
50.0000 MHz
60.0000 MHz
66.0000 MHz
66.6667 MHz
75.0000 MHz
80.0000 MHz
90.0000 MHz
100.0000 MHz
106.2500 MHz
125.0000 MHz
Ordering Information
½½½½½½½
½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½
½ ½½½½ ½½½½½½½½½½½½½½½½½½
½½½½½½½½½
½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½
* Availability varies by frequency.
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
1
All specifications are subject to change without notice.
DS 246 Rev A | 04/13/05
S1633 Series
3.3V CMOS Low Jitter
Crystal Clock Oscillator (XO)
Electrical Performance
Parameter
Min.
Typ.
Max.
Units
Notes
Output frequency
Supply voltage
1.8432
+3.135
+3.3
125
+3.465
15
12
MHz
V
As specified
1.8432 to <40 MHz
Supply current, output enabled
25
40
55
mA
40 to 50 MHz
>50 to <60 MHz
60 to <80 MHz
80 to 125 MHz
Output Hi-Z
See Note 1 below
As specified
mA
µA
ppM
°C
V
V
Supply current, standby mode
Frequency stability
Operating temperature
Output logic 0, VOL
Output logic 1, VOH
Output load
Duty cycle (1.8432 to 79.9999 MHz)
Duty cycle (80 to 125 MHz)
Duty cycle (80 to 125 MHz)
Rise and fall
time
Jitter,
Phase
Jitter,
Accumulated
Jitter,
Total
<40 MHz
40 to <80 MHz
80 to 125 MHz
up to <80 MHz
80 to 125 MHz
up to <80 MHz
80 to 125 MHz
up to <80 MHz
80 to 125 MHz
45
45
40
90% V
DD
-40
10
±25 to ±50
+85
10% V
DD
15 pF (max) or 10 LSTTL
55
55
60
7
5
3
1.5
1
5
3
50
30
%
%
%
ns
ps RMS
(1-σ)
ps RMS
(1-σ)
ps
pk-pk
-40 to +85°C measured 50%VDD
-20 to +70°C measured 50%VDD
-40 to +85°C measured 50%VDD
measured 20/80% of waveform
10kHz to 20 MHz frequency band
20.000 adjacent periods
100.000 random periods
Notes:
1. As specified. Stability includes all combinations of operating temperature, load changes, rated input (supply) voltage changes, initial calibration tolerance (25°C),
aging (1 year at 25°C average effective ambient temperature), shock and vibration.
Output Enable / Disable Function
Parameter
Min.
Typ.
Max.
Units
Notes
Input Voltage (pin 1), Output
Enable
Input voltage (pin 1), Output
Disable (low power standby)
Internal pullup resistance
Output disable delay
Output enable delay
2.2
0.8
50
100
10
V
V
kΩ
ns
ms
or open
Output is Hi-Z
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
2
All specifications are subject to change without notice.
DS 246 Rev A | 04/13/05
S1633 Series
3.3V CMOS Low Jitter
Crystal Clock Oscillator (XO)

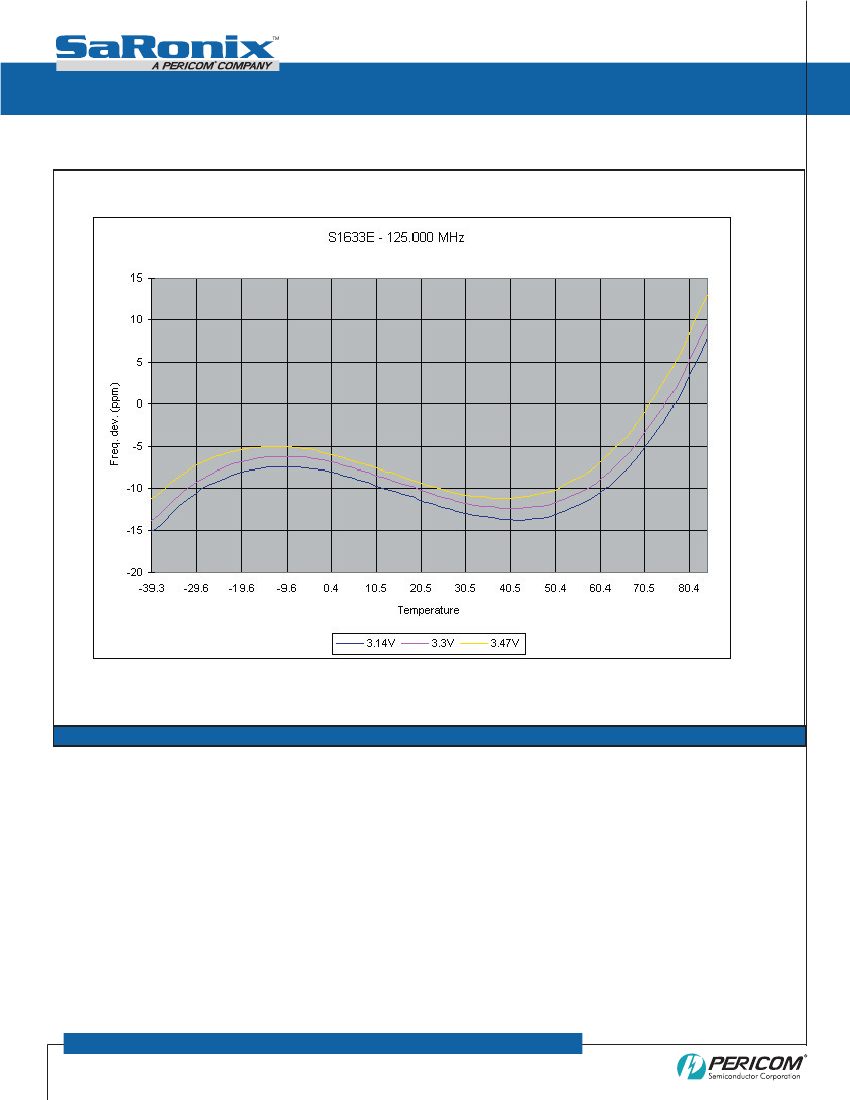

Typical Frequency Stability
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
3
All specifications are subject to change without notice.
DS 246 Rev A | 04/13/05
S1633 Series
3.3V CMOS Low Jitter
Crystal Clock Oscillator (XO)
Absolute Maximum Ratings
Parameter
Min.
Typ.
Max.
Units
Notes
Storage temperature
-55
+125
°C
Test Circuit
Test Point
4
0.1µF
or
0.01µF
1
Power
Supply
3
2
15 pF
(Including probe
and fixture
capacitance)
Output Enable / Disable Function
Reliability Test Ratings
This product is rated to meet the following test conditions:
Type
Parameter
Test Condition
Mechanical
Mechanical
Mechanical
Mechanical
Mechanical
Mechanical
Environmental
Environmental
Environmental
Environmental
Shock
Solderability
Terminal strength
Gross leak
Fine leak
Solvent resistance
Thermal shock
Moisture resistance
Vibration
Resistance to soldering heat
MIL-STD-883, Method 2002, Condition B
JESD22-B102-D Method 2 (Preconditioning E)
MIL-STD-883, Method 2004, Condition D
MIL-STD-883, Method 1014, Condition C
MIL-STD-883, Method 1014, Condition A2 (R
1
= 2x10
-8
atm cc/s)
MIL-STD-202, Method 215
MIL-STD-883, Method 1011, Condition A
MIL-STD-883, Method 1004
MIL-STD-883, Method 2007, Condition A
J-STD-020C Table 5-2 Pb-free devices (2 cycles max)
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
4
All specifications are subject to change without notice.
DS 246 Rev A | 04/13/05
S1633 Series
3.3V CMOS Low Jitter
Crystal Clock Oscillator (XO)
Output Waveform
t
f
t
r
VOH
80%
50%
20%
VOL
t
A
Duty cycle = 100%
x
(t
A
)
/
(t
A
+ t
B
)
t
B
Reflow Soldering Profile
As per IPC/JEDEC J-STD-020C
260
217
1 to 3°C/sec max
Peak 260°C for 10 sec max
1 to 3°C/sec
Temperature – °C
Time
60 to 90 sec
4 to 6 minutes max
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
5
All specifications are subject to change without notice.
DS 246 Rev A | 04/13/05
