FOLC-150-02-L-Q-LC: DescriptionBoard Connector, 200 Contact(s), 4 Row(s), Female, Straight, Surface Mount Terminal, Socket,; CategoryThe connector The connector; File Size792KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

FOLC-150-02-L-Q-LC Overview

Board Connector, 200 Contact(s), 4 Row(s), Female, Straight, Surface Mount Terminal, Socket,

FOLC-150-02-L-Q-LC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (100)
Contact completed and terminated	MATTE TIN
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	FOLC
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	200
Base Number Matches	1

Preview

Download Datasheet

View All

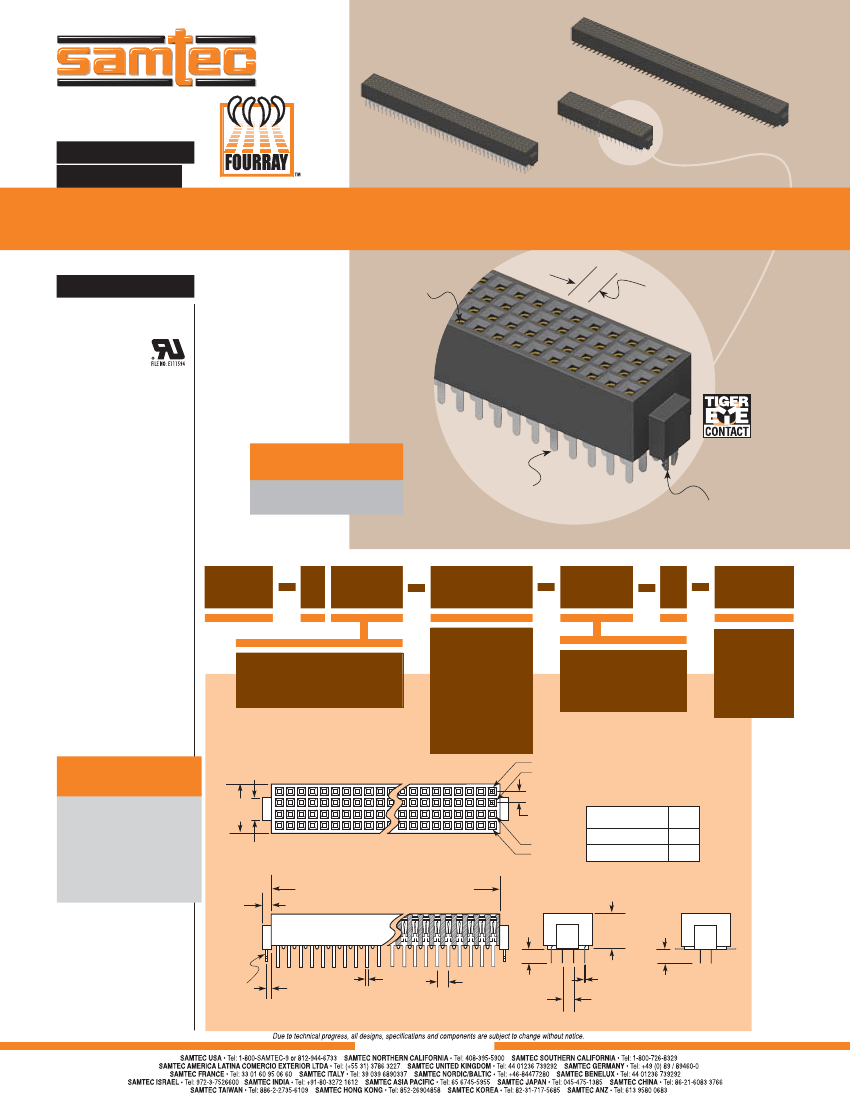

F-212

FOLC–150–M1–L–Q

FOLC–120–L1–L–Q–LC

(1,27mm) .050"

FOLC–140–04–L–Q

FOLC SERIES

HIGH DENSITY TIGER EYE SOCKETS

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?FOLC

Insulator Material:

Black Liquid Crystal

Polymer

Contact Material:

BeCu

Current Rating:

1A @ 80°C ambient

Operating Temp Range:

-55°C to +125°C

Plating:

Au or Sn over

50µ" (1,27µm) Ni

Contact Resistance:

15 mΩ max

Insertion Depth:

(3,30mm) .130" to

(4,06mm) .160"

Insertion Force:

(Single contact only)

Standard= 5.0oz (1,39N) avg.

LIF= 2.0oz (0,56N) avg.

Normal Force:

Standard= 70 grams

(0,69N) avg. LIF= 40 grams

(0,39N) avg.

Withdrawal Force:

(Single contact only)

Standard= 4oz (1,11N) avg.

LIF= 1.5oz (0,42N) avg.

Max Cycles:

100 with 30µ" (0,76µm) Au

RoHS Compliant:

Yes

™

Mates with:

MOLC

Low Insertion Force

contacts available

(1,27mm) .050" x

(1,27mm) .050"

micro pitch

High reliability

Tiger Eye™

contacts

™

APPLICATION

SPECIFIC OPTION

Alignment pins available.

Call Samtec.

Through-hole

Locking clip

options available

FOLC

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

–01 & –04

20, 25, 30, 35,

40, 45, 50

(Call Samtec for other sizes)

= Through-Hole

–LC

–L

= 10µ" (0,25µm)

Gold on contact,

Matte Tin on tail

= Locking

Clip

(Manual

placement

required)

Processing:

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0,15mm) .006" max

–M1 & –M2

= Mixed Technology

–L1 & –L4

= Low Insertion Force

Through-Hole

ALSO

AVAILABLE

• For surface mount with

Tiger Eye

™

contact, see

www.samtec.com?ROLC

• Also see TOLC/SOLC

Series for surface mount

design with Tiger Buy

™

contacts.

(2,54)

.100

(5,59)

.220

(1,27)

.050

TYP

LEAD

STYLE

(1,91)

.075

(3,04)

.120

– 01, –M1

– 04, –M2

No. of positions x (1,27) .050 + (0,51) .020

(1,02) .040 TYP (2)

(4,57)

.180

Note:

Other Gold plating

options available.

Contact Samtec.

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

(0,13)

.005

TYP

Mixed

Technology

Optional

Locking

Clip

(–LC)

(0,51)

.020

(0,41)

.016

(1,27)

.050

(1,27)

.050

TYP

WWW.SAMTEC.COM
