78946-628 datasheet, PDF - EEWORLD Datasheet

78946-628: DescriptionBoard Connector, 28 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size160KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

78946-628 Overview

Board Connector, 28 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	PEG
body width	0.318 inch
subject depth	0.386 inch
body length	1.4 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL/GOLD FLASH (30) OVER PALLADIUM NICKEL
Contact completed and terminated	GOLD (30) OVER NICKEL/NICKEL PALLADIUM GOLD (30) OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYCYCLOHEXYLENE TEREPHTHALLATE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	78946
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	130 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.19 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	28
UL Flammability Code	94V-0
Base Number Matches	1

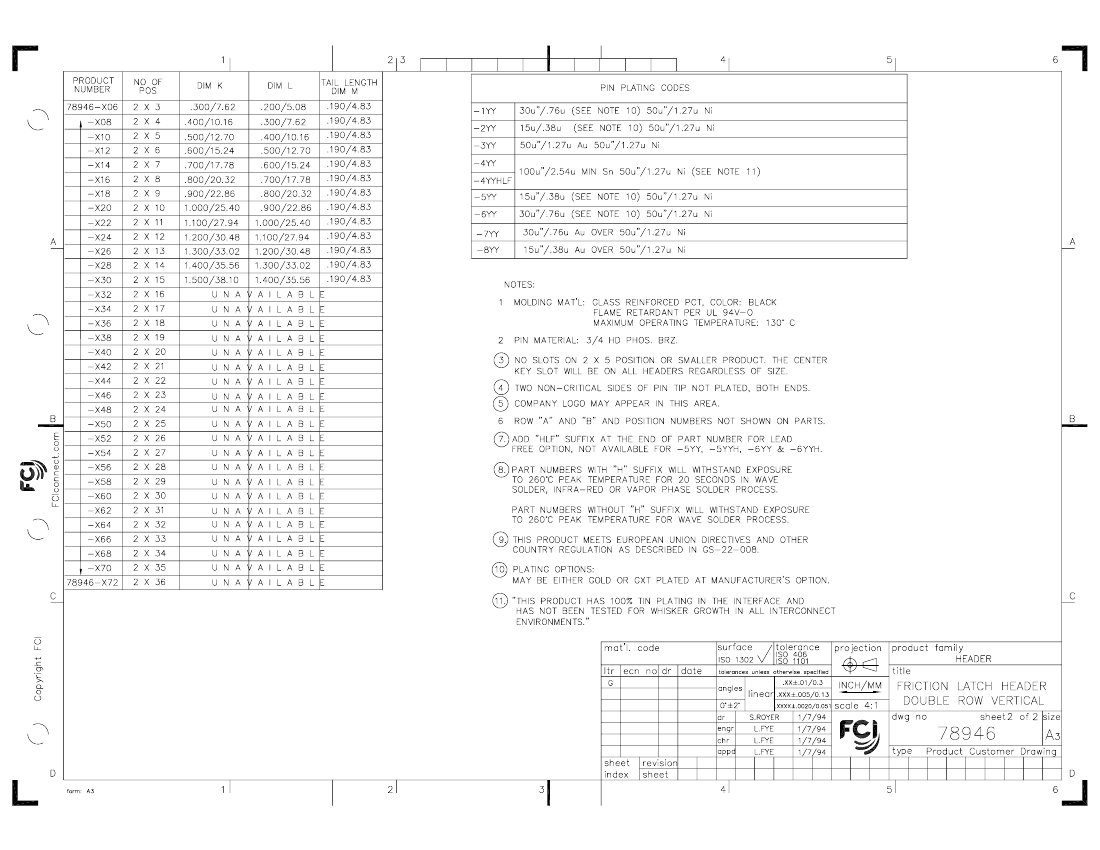

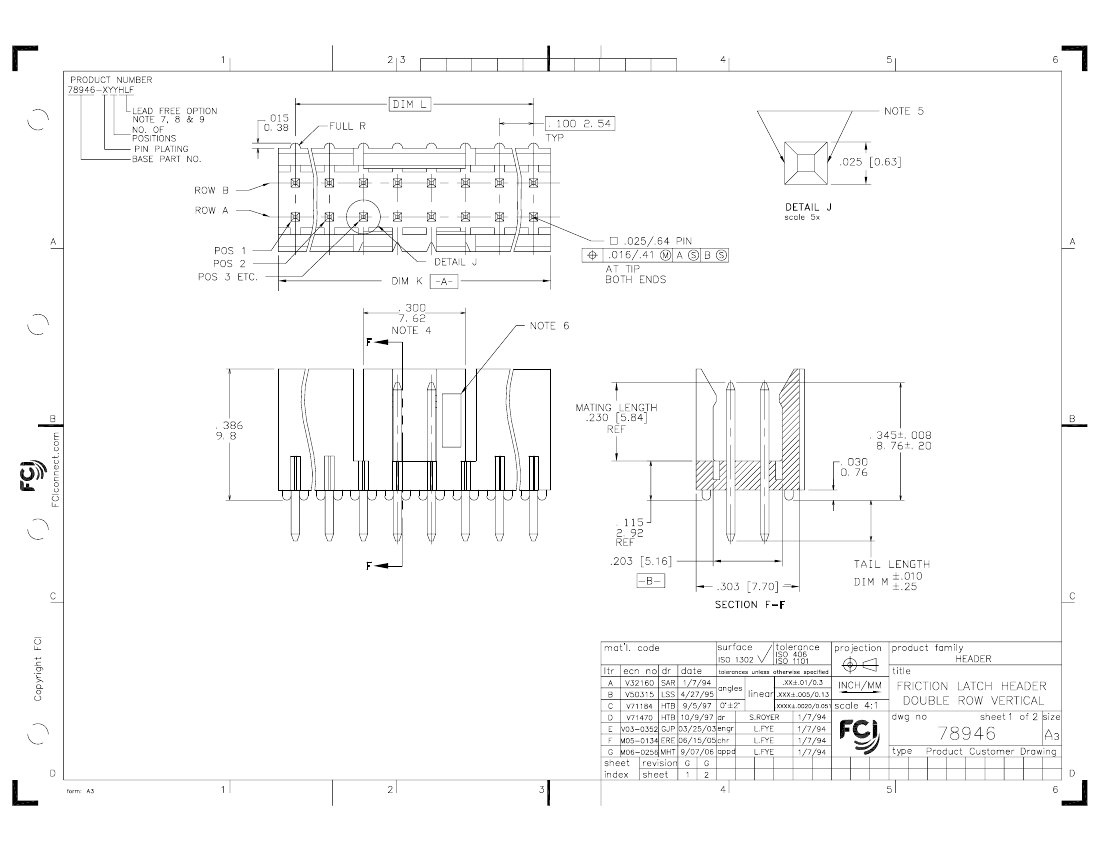

PDM: Rev:G

STATUS:

Released

Printed: Feb 20, 2010
