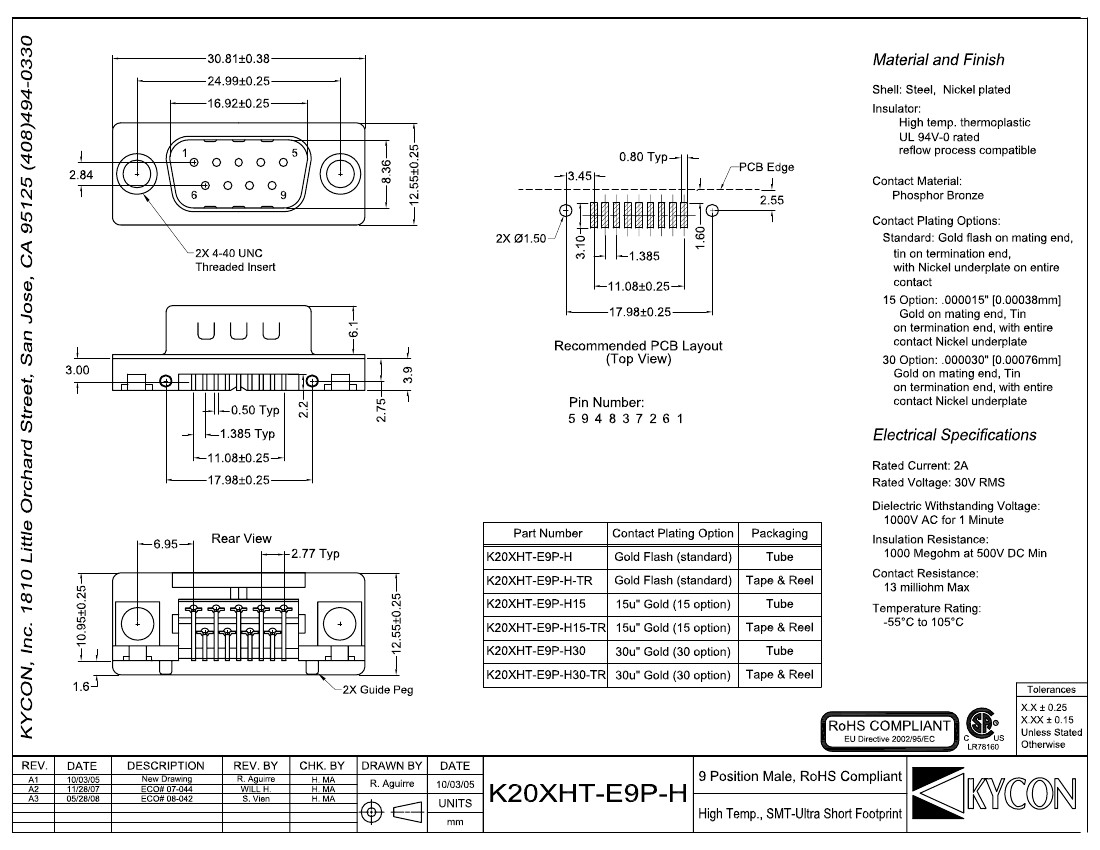

Preview

K20XHT-E9P-H30-TR: DescriptionD Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Surface Mount Terminal, #4-40, Receptacle,; CategoryThe connector The connector; File Size343KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric Compare View All

K20XHT-E9P-H30-TR Overview

D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Surface Mount Terminal, #4-40, Receptacle,

K20XHT-E9P-H30-TR Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.494 inch
subject depth	0.154 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	13 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1400VAC V
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	K20XHT
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	THREADED INSERT
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal pitch	1.3716 mm
Termination type	SURFACE MOUNT
Total number of contacts	9
Base Number Matches	1

Preview

Download Datasheet

View All

K20XHT-E9P-H30-TR Related Products

	K20XHT-E9P-H30-TR	K20XHT-E9P-H15-TR	K20XHT-E9P-H-TR
Description	D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Surface Mount Terminal, #4-40, Receptacle,	D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Surface Mount Terminal, #4-40, Receptacle,	D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Surface Mount Terminal, #4-40, Receptacle,
Reach Compliance Code	compliant	compliant	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.494 inch	0.494 inch	0.494 inch
subject depth	0.154 inch	0.154 inch	0.154 inch
body length	1.213 inch	1.213 inch	1.213 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	STAGGERED	STAGGERED	STAGGERED
Contact resistance	13 mΩ	13 mΩ	13 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	K20XHT	K20XHT	K20XHT
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch
Installation option 1	#4-40	#4-40	#4-40
Installation option 2	THREADED INSERT	THREADED INSERT	THREADED INSERT
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
PCB row number	1	1	1
Number of rows loaded	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	30u inch	15u inch	FLASH inch
Rated current (signal)	2 A	2 A	2 A
Guideline	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL
Shell material	STEEL	STEEL	STEEL
Terminal pitch	1.3716 mm	1.3716 mm	1.3716 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	9	9	9
Base Number Matches	1	1	1
ECCN code	EAR99	-	EAR99
