High Voltage Ceramic Capactiors (SMD)
High Voltage Ceramic Capactiors
For Surface Mounting
1 to 5 kVDC
n
Features
l
Resin molded SMD type for reflow soldering
l
High reliability
l
Excellent "Voltage vs.Temperature Rise"
l
Wide rated voltage range 1 to 5 kV
l
Smaller type (5.7
´
4.5mm) available for 4kV
n
Recommended Applications
l
Ballast circuit of LCD backlighting inverter
(For 3 to 5 kVDC Char.SL/GP)
l
Snubber circuit of switching power supply
(For 1 to 2 kVDC Char.B/Y5P)
n
Explanation of Part Numbers
E
C
C
T
3
F
4
7
0
J
G
n
Construction
n
Dimensions in mm (not to scale)
l
style 1, 3
l
style 2
n
Handling Precautions
See Pages 80 to 81
Unit : (mm)
Symbol
Dim
(mm)
Style 1
Style 2
Style 3
L1
Ñ
Ñ
L
W
H
S
Ñ
E
A
B
7.1±0.5 6.3±0.3 2.5±0.3 1.45±0.30 2.5±0.2 (2.0) (3.7)
2.5±0.2 (2.0) (3.7)
5.7±0.5 4.5±0.3 2.3max. 0.85±0.30 2.5±0.2 (1.7) (3.1)
n
Packaging Information
See Pages 82 to 83
10.8±0.5 7.1±0.5 6.3±0.3 2.5±0.3
Rev. 02/04
High Voltage Ceramic Capactiors (SMD)
n
Specifications
Characteristics
Char. SL/GP
Char. B/Y5P
Ð25 to 105 ûC
Operating Temperature Range
4 to 5 kVDC
2 to 3 kVDC
1 to 2 kVDC
Rated Voltage
150 % of Rated Voltage 200 % of Rated Voltage
Dielectric
for 1 to 5 seconds
for 1 to 5 seconds
Withstanding Voltage
Within the specified tolerance, when mea-
Within the specified tolerance, when mea-
Capacitance
sured at 1 MHz±20 %,1 to 5 Vrms. and 20 ûC sured at 1 kHz±20 %,1 to 5 Vrms. and 20 ûC
tan
d
<
0.025
Q or Dissipation Factor 30 pF or under Q
>
400+20 C (C:Cap.pF)
over 30 pF
Q
>
1000
at 1 kHz±20 %,1 to 5 Vrms. and 20 ûC
(tan
d)
at 1 MHz±20 %,1 to 5 Vrms. and 20 ûC
Insulation Resistance
10000 M
W
min. at 500 VDC and 1 minute electrification
Temperature
Temperature Coeffcient:
(Temperature Range : Ð25 to 85 ûC)
+350 to Ð1000 ppm/ ûC
Characteristics
(Temperature Range : 20 to 85 ûC)
n
Packaging Specifications
l
Standard Packing Quantity
Bulk: 1000 pcs./bag
Embossed taping: 2000 pcs./reel for style 1, 2
Embossed taping:
3000 pcs./reel for style 3
l
Reel
l
Embossed taping
style 1, 3
style 2
Unit:(mm)
Unit:(mm)
Symbol
A
B
C
D
E
W
t
r
Symbol
A
6.5
B
W
F
E
P
1
P
2
P
0
fD
0
t
1
t
2
13.5
±1.5
Dim. style 1, 3
330
±5
60
min.
13.0
±0.5
21.0
±1.0
2.0
±0.5
2.0
±0.5
R1.0
(mm) style 2
25.5
±1.5
style1
±0.2
±0.2 ±0.3 ±0.1 ±0.10 ±0.1 ±0.1 ±0.1 +0.1 ±0.1 ±0.3
0
7.5 12.0 5.5 1.75 8.0 2.0 4.0 1.5 0.3 3.2
Dim.
6.65 11.2 24.0 11.5 1.75 12.0 2.0 4.0 1.5 0.3 3.2
style2
±0.20 ±0.2 ±0.3 ±0.1 ±0.10 ±0.1 ±0.1 ±0.1 +0.1 ±0.1 ±0.3
(mm)
0
style3
±0.2
4.8
±0.2 ±0.3 ±0.1 ±0.10 ±0.1 ±0.1 ±0.1 +0.1 ±0.1 ±0.3
0
6.0 12.0 5.5 1.75 8.0 2.0 4.0 1.5 0.3 2.8
l
Leader Part and Taped End
Unloaded
Unloaded
High Voltage Ceramic Capactiors (SMD)
n
Ratings and Characteristics
l
Rated Voltage 1 to 5 kVDC
Rated Voltage
Part Number
ECCT3H100JGM
ECCT3H120JGM
ECCT3H150JGM
ECCT3H180JGM
ECCT3H220JGM
ECCT3H270JGM
ECCT3G100JG
ECCT3G120JG
ECCT3G150JG
ECCT3G180JG
ECCT3G220JG
ECCT3G270JG
ECCT3G330JG
ECCT3G390JG
ECCT3G470JG
ECCT3F100JG
ECCT3F120JG
ECCT3F150JG
ECCT3F180JG
ECCT3F220JG
ECCT3F270JG
ECCT3F330JG
ECCT3F390JG
ECCT3F470JG
ECCT3F560JG
ECCT3D680JG
ECKT3D101KB
ECKT3D121KB
ECKT3D151KB
ECKT3D181KB
ECKT3D221KB
ECKT3D271KB
ECKT3D331KB
ECKT3A391KB
ECKT3A471KB
Capacitance (pF)
10
12
15
18
22
27
10
12
15
18
22
27
33
39
47
10
12
15
18
22
27
33
39
47
56
68
100
120
150
180
220
270
330
390
470
Cap. Tolerance (%) Temp. Char
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
±10
±10
±10
±10
±10
±10
±10
±10
±10
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
B/Y5P
B/Y5P
B/Y5P
B/Y5P
B/Y5P
B/Y5P
B/Y5P
B/Y5P
B/Y5P
Style
Style 2
7.1L´6.3W´2.5H mm
Outside kinked terminal
5 kVDC
4 kVDC
3 kVDC
Style 1
7.1L´6.3W´2.5H mm
Inside kink terminal
2 kVDC
1 kVDC
Notes
[
This Part Number indicates Taped type, Bulk type is indicated for ECCS...... or ECKS......
Notes
[
Capacitance 9pF or under is available on special order.
Notes
[
Style code 2 (Outside kinked terminal) is available for rated voltage 4kVDC
l
Rated Voltage 4 kVDC Smaller Size
Rated Voltage
Part Number
ECCT3G100JG2
ECCT3G120JG2
ECCT3G150JG2
ECCT3G180JG2
ECCT3G220JG2
Capacitance (pF)
10
12
15
18
22
Cap. Tolerance (%) Temp. Char
±5
±5
±5
±5
±5
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
Style
Style 3
5.7L´4.5W´2.3H mm
Inside kink terminal
4 kVDC
Notes
[
This Part Number indicates Taped type, Bulk type is indicated for ECCS3G......JG2
Notes
[
Capacitance 9pF or under is available on special order.
High Voltage Ceramic Capactiors (SMD)
n

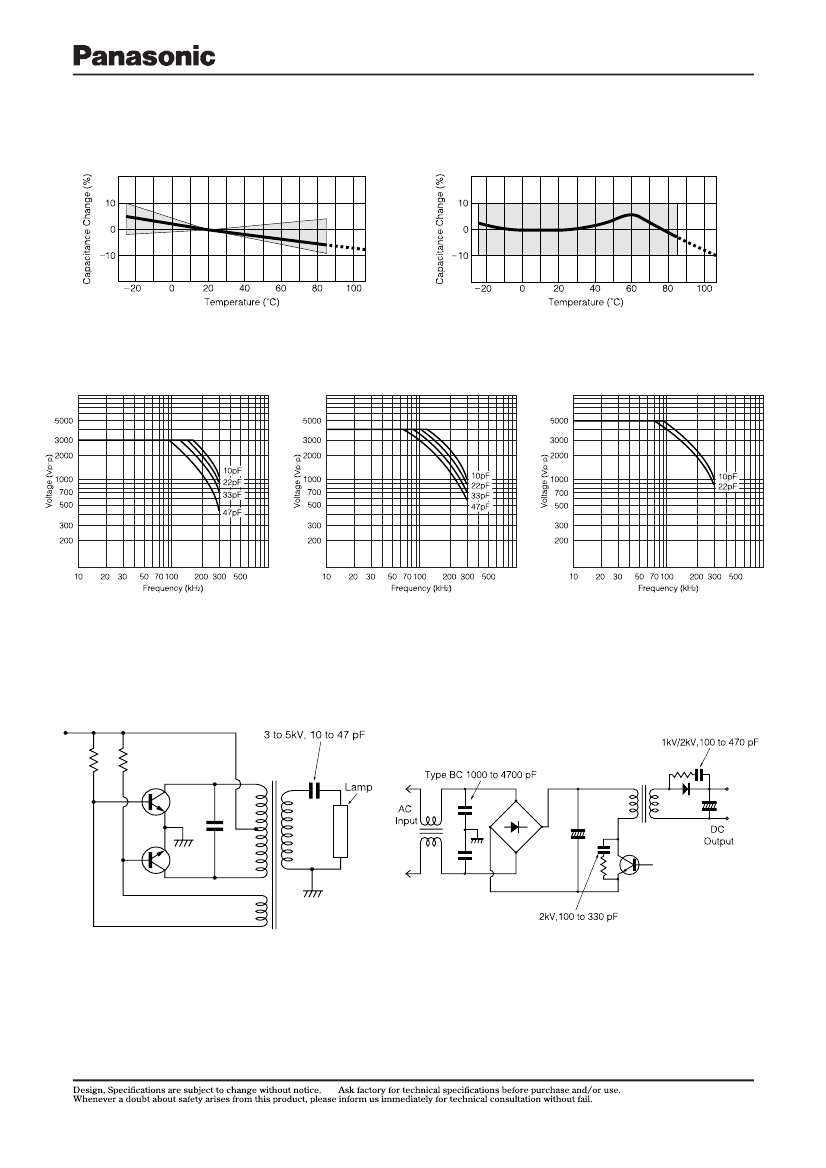

Typical Characteristics
Char. SL/GP
l
Temperature Characteristics
(Temp.Coeff.:+350 to Ð1000 ppm/ûC)
(
+
Char. B/Y5P
Temp.Range:Ð25 to 85 ûC
max.Cap.Change:±10 %
)
+
l
Characteristics of Voltage-Frequency
Rated Voltage 3kVDC
Rated Voltage 4kVDC
Rated Voltage 5kVDC
n
Example Applications
l
LCD Backlighting Inverter
l
Primary circuit and Snubber circuit of
Switching Power Supply
