ROW
Connectors
WGAV122PD9SY
3

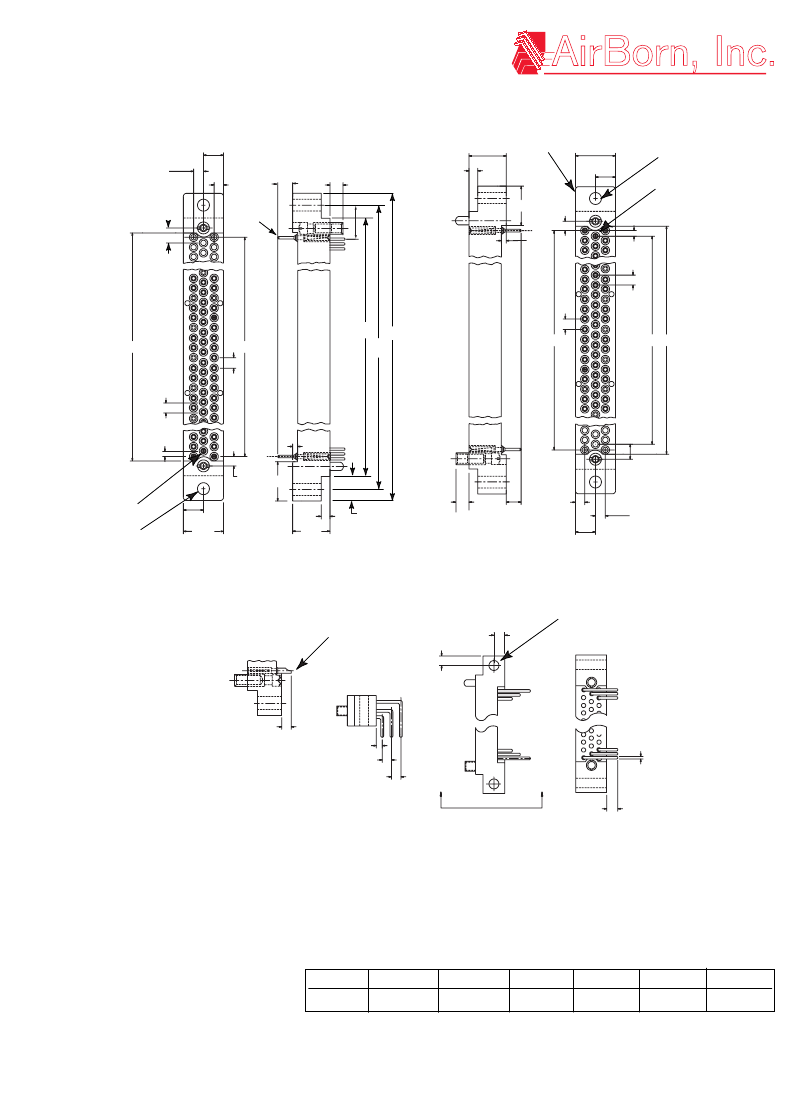

Sandwich-
Boards
WGAV-WGA
WGA122SACSY

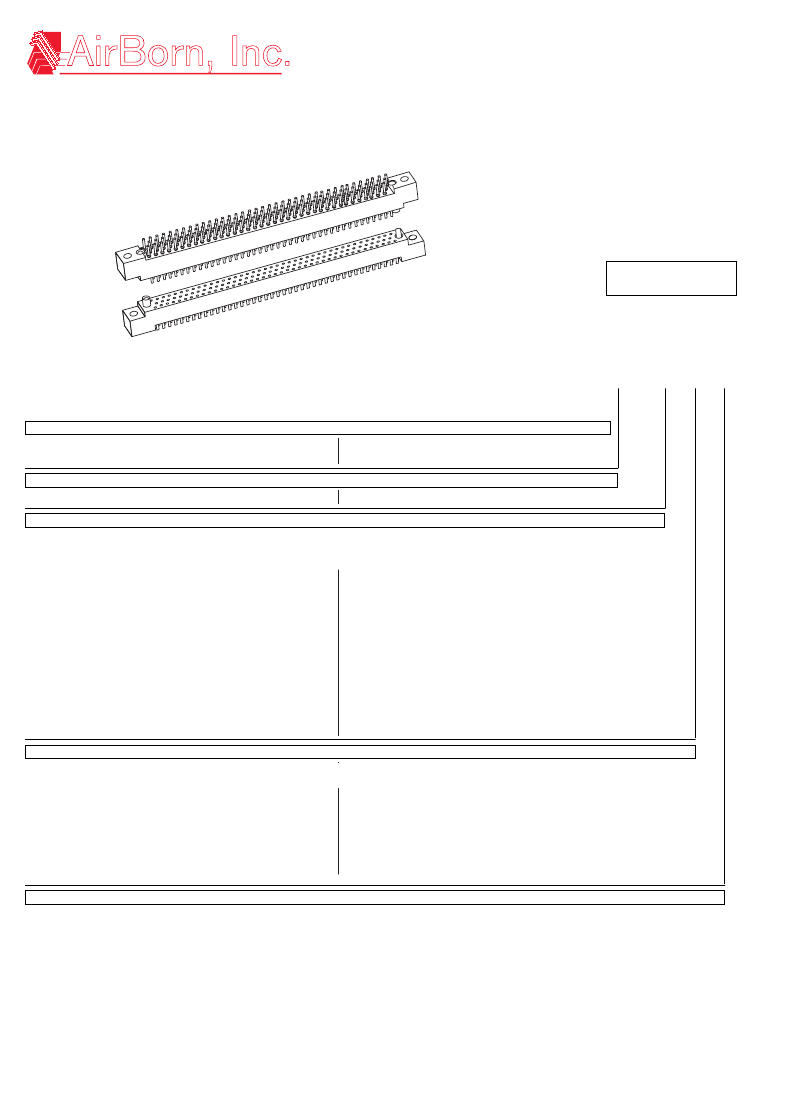

Examples:
PLUG:
RECEPTACLE:
WGAV
WGA
122
122
PD9 SY
SAC SY
PLUG
WGAV = 3-row, straight, plug, mounting ears
RECEPTACLE
SERIES
WGA
WGA
= 3-row, straight, receptacle, mounting ears
= 3-row, right-angle, receptacle, mounting ears
NUMBER OF CONTACTS
122
122
TYPE OF CONTACTS
• Pin or contact can be used in either receptacle.
• When pin contacts are used, standard hardware orientation places the female hardware next to the #1 position.
• When socket contacts are used, standard hardware orientation places the male hardware next to the #1 socket position.
PC
PD7
PD9
PD11
PD15
PF6
= Pin, straight, solder cup
= Pin, straight, dip solder, .109
= Pin, straight, dip solder, .140
= Pin, straight, dip solder, .172
= Pin, straight, dip solder, .234
= Pin, straight, flex-circuit, .093
SAC
SAD7
SAD9
SAD11
SAF3
SAF6
SAF9
SAP
SAW24
SAW40
SOR7
SOR9
SOR11
= Socket, straight, solder cup
= Socket, straight, dip solder, .109
= Socket, straight, dip solder, .140
= Socket, straight, dip solder, .172
= Socket, straight, flex-circuit, .050
= Socket, straight, flex-circuit, .093
= Socket, straight, flex-circuit, .140
= Socket, straight, pin termination, .150, connector saver
= Socket, straight, wire wrap, .375
= Socket, straight, wire wrap, .625
= Socket, right-angle, dip solder, .109, see page W-51.
= Socket, right-angle, dip solder, .140, see page W-51.
= Socket, right-angle, dip solder, .172, see page W-51.
TYPE OF HARDWARE
• Plug facial seal gaskets and hoods; order separately or add “Q” in part number. Example: WGAV122PD9QJ. See “Gaskets” and
“Hoods” under next tab for instructions.
SY
= Guide Set
SY
= Guide Set
SY-#
= Guide Set, polarized
SY-#
= Guide Set, polarized
SYL
= Guide Set, long
SYL
= Guide Set, long
JT
= Turning jackset, .460
J
= Fixed jackset
JTA
= Turning jackset, .160
JL
= Fixed jackset, long
JTB
= Hex turning jackset, .160
JTC
= Turning jackset, .460
OPTIONS
• OPTION CODES: Add to the end of the part number. Example: WGAV122PD9SY-D01. Call factory for additional codes.
-B82: Termination face sealed against conformal coating.
-342: Remove .250 mounting ears.
-D01: Pre-tin contact terminations. (Solder cup, wire wrap and flex circuit contacts are excluded.)
-G69: Solder cups are fixed in an outward orientation, otherwise contacts can rotate.
“W” Series Connectors
