66901-250: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Blue Insulator; CategoryThe connector The connector; File Size152KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

66901-250 Overview

Board Connector, 50 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Blue Insulator

66901-250 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	POLARIZED
body width	0.235 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	50000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Plating thickness	50u inch
polarization key	DUAL POLARIZED
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1

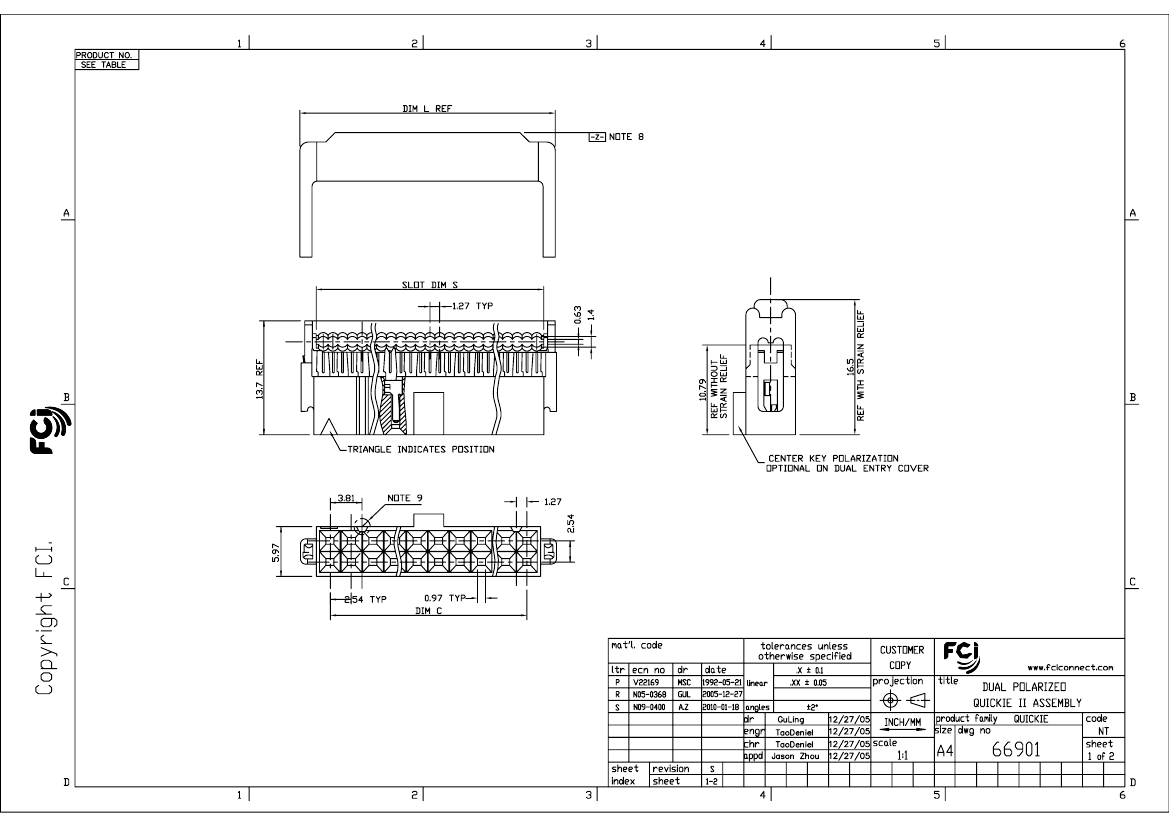

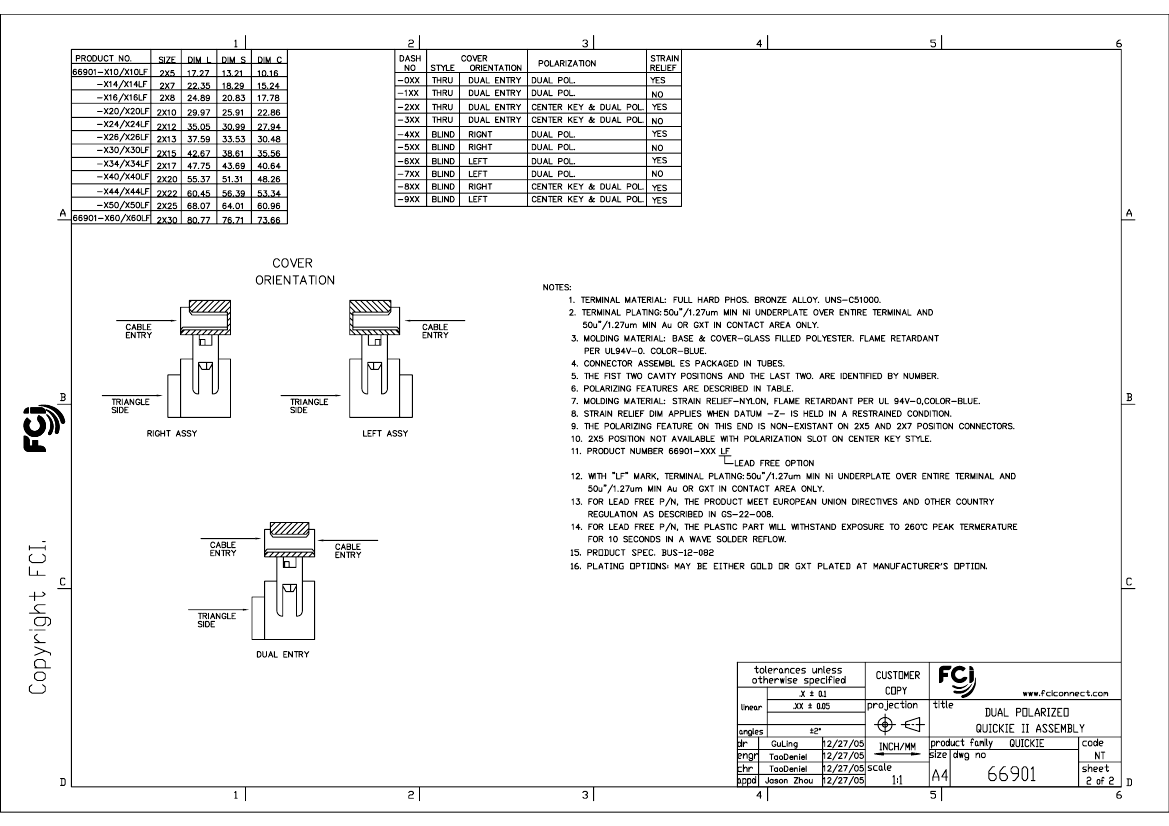

Preview

Download Datasheet

View All

PDM: Rev:S

STATUS:

Released

Printed: Apr 12, 2011

66901-250 Related Products

	66901-250	66901-226LF	66901-234	66901-240LF	66901-240	66901-250LF	66901-314	66901-326
Description	Board Connector, 50 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Blue Insulator	Board Connector, 26 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Blue Insulator, LEAD FREE	Board Connector, 34 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Blue Insulator	Board Connector, 40 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Blue Insulator, LEAD FREE	Board Connector, 40 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Blue Insulator,	Board Connector, 50 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Blue Insulator, LEAD FREE	Board Connector, 14 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Blue Insulator	Board Connector, 26 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Blue Insulator
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
body width	0.235 inch	0.235 inch	0.235 inch	0.235 inch	0.235 inch	0.235 inch	0.235 inch	0.235 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	PHOSPHOR BRONZE	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	50000000000 Ω	50000000000 Ω	50000000000 Ω	50000000000 Ω	50000000000 Ω	50000000000 Ω	50000000000 Ω	50000000000 Ω
Insulator color	BLUE	BLUE	BLUE	BLUE	BLUE	BLUE	BLUE	BLUE
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	50u inch	50u inch	50u inch	50u inch	50u inch	50u inch	50u inch	50u inch
polarization key	DUAL POLARIZED	DUAL POLARIZED	DUAL POLARIZED	DUAL POLARIZED	DUAL POLARIZED	DUAL POLARIZED	DUAL POLARIZED	DUAL POLARIZED
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	50	26	34	40	40	50	14	26
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-
ECCN code	-	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
Contact completed and terminated	-	Gold (Au) - with Nickel (Ni) barrier	GOLD (50) OVER NICKEL	Gold (Au) - with Nickel (Ni) barrier	-	Gold (Au) - with Nickel (Ni) barrier	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL
JESD-609 code	-	e4	e4	e4	-	e4	e4	e4
