74191FC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74191FC

74191FC: DescriptionBinary Counter, Synchronous, Bidirectional, TTL, CDFP16,; Categorylogic logic; File Size56KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

74191FC Overview

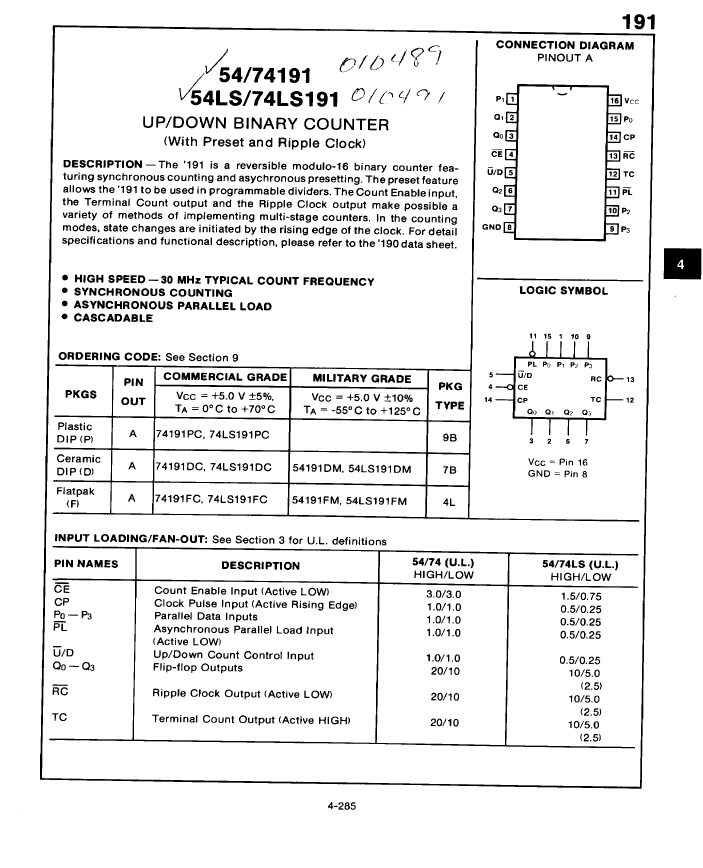

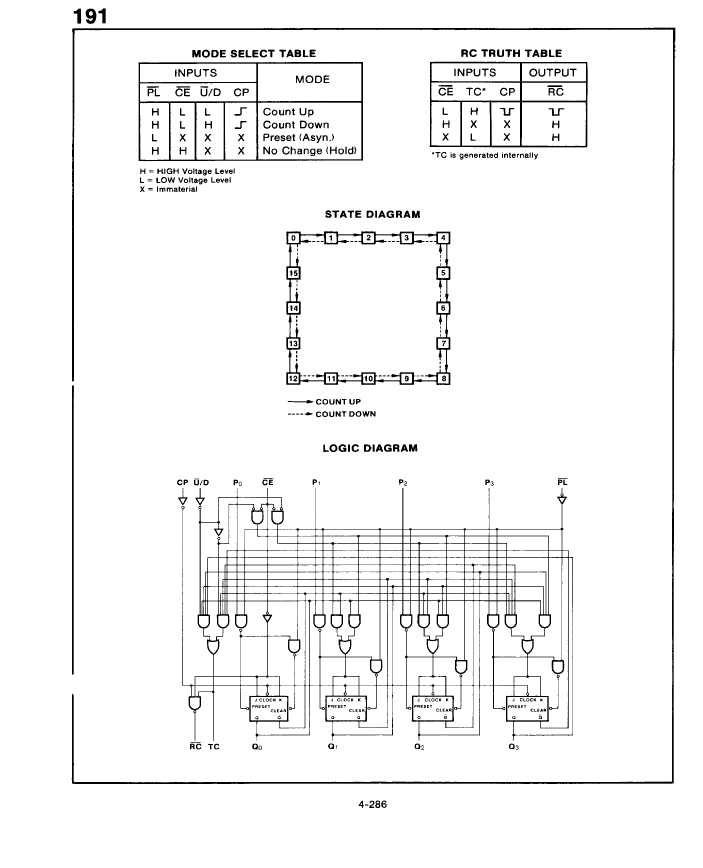

Binary Counter, Synchronous, Bidirectional, TTL, CDFP16,

74191FC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	DFP, FL16,.3
Reach Compliance Code	compliant
Counting direction	BIDIRECTIONAL
JESD-30 code	R-XDFP-F16
JESD-609 code	e0
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	SYNCHRONOUS
Humidity sensitivity level	2A
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	250
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

74191FC Related Products

	74191FC	74LS191DC	74LS191FC	74LS191PC	54191DM	74191DC	74191PC
Description	Binary Counter, Synchronous, Bidirectional, TTL, CDFP16,	Binary Counter, Synchronous, Bidirectional, TTL, CDIP16,	Binary Counter, Synchronous, Bidirectional, TTL, CDFP16,	Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, PDIP16, PLASTIC, DIP-16	Binary Counter, Synchronous, Bidirectional, TTL, CDIP16,	Binary Counter, Synchronous, Bidirectional, TTL, CDIP16,	Binary Counter, Synchronous, Bidirectional, TTL, PDIP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DFP, FL16,.3	DIP, DIP16,.3	DFP, FL16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	compliant	compliant	compliant	unknown	unknown	compliant	unknown
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-XDFP-F16	R-XDIP-T16	R-XDFP-F16	R-PDIP-T16	R-XDIP-T16	R-XDIP-T16	R-PDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Load/preset input	YES	YES	YES	YES	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of functions	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	125 °C	70 °C	70 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	DFP	DIP	DFP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	FL16,.3	DIP16,.3	FL16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it lead-free?	Contains lead	Contains lead	Contains lead	-	-	Contains lead	Contains lead
Peak Reflow Temperature (Celsius)	250	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	250	250
Maximum time at peak reflow temperature	30	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	30	30
Base Number Matches	1	1	1	1	-	-	-
Maker	-	Fairchild	-	Fairchild	Fairchild	Fairchild	Fairchild
