74FCT163TSO datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74FCT163TSO

74FCT163TSO: DescriptionSOIC-16, Tube; Categorylogic logic; File Size116KB，7 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

74FCT163TSO Overview

SOIC-16, Tube

74FCT163TSO Parametric

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP, SOP16,.4
Contacts	16
Manufacturer packaging code	PS16
Reach Compliance Code	not_compliant
Other features	TCO OUTPUT
Counting direction	UP
series	FCT
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	71400000 Hz
MaximumI(ol)	0.048 A
Operating mode	SYNCHRONOUS
Humidity sensitivity level	1
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Prop。Delay @ Nom-Sup	11 ns
propagation delay (tpd)	11 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
Base Number Matches	1

Preview

Download Datasheet

View All

IDT54/74FCT163T/AT/CT

FAST CMOS SYNCHRONOUS PRESETTABLE BINARY COUNTER

MILITARY AND INDUSTRIAL TEMPERATURE RANGES

FAST CMOS

SYNCHRONOUS

PRESETTABLE

BINARY COUNTER

FEATURES:

−

Std., A and C speed grades

Low input and output

≤1µ

A (max.)

CMOS power levels

True TTL input and output compatibility

•

– V

= 3.3V (typ.)

•

– V

= 0.3V (typ.)

High drive outputs (-15mA I

, 48mA I

)

Meets or exceeds JEDEC standard 18 specifications

Military product compliant to MIL-STD-883, Class B and DESC

listed (dual marked)

Power off disable outputs permit “live insertion”

Available in the following packages:

•

Industrial: SOIC, QSOP

•

Military: CERDIP, LCC, CERPACK

IDT54/74FCT163T/AT/CT

DESCRIPTION:

The FCT163T is a high-speed synchronous modulo-16 binary counter

built using an advanced dual metal CMOS technology. They are synchro-

nously presettable for application in programmable dividers and have two

types of count enable inputs plus a terminal count output for versatility in

forming synchronous multi-stage counters. The FCT163T has Synchro-

nous Reset inputs that override counting and parallel loading and allow the

outputs to be simultaneously reset on the rising edge of the clock.

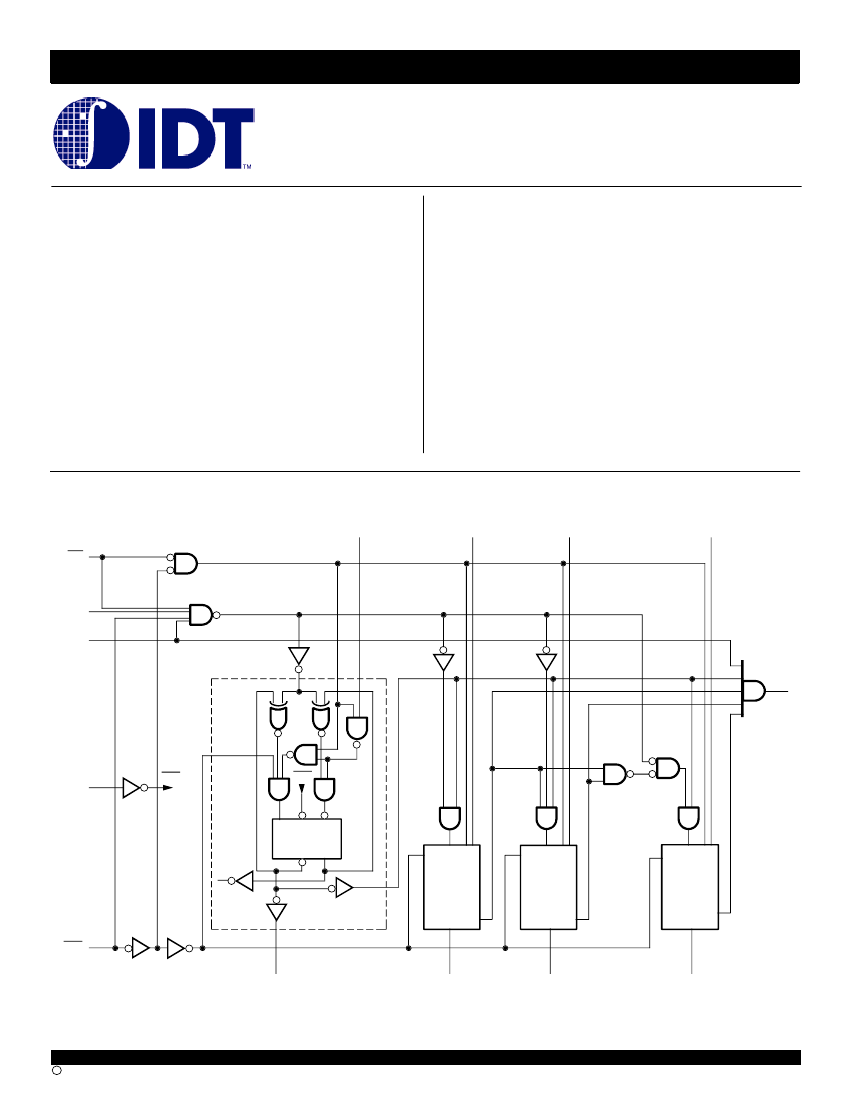

FUNCTIONAL BLOCK DIAGRAM

CEP

CET

D CP

DETAIL

DETAIL A

MILITARY AND INDUSTRIAL TEMPERATURE RANGES

1999 Integrated Device Technology, Inc.

AUGUST 2000

DSC-5503/-
