HE52-7023-024-Z: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size395KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

HE52-7023-024-Z Overview

Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Receptacle

HE52-7023-024-Z Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.197 inch
subject depth	0.138 inch
body length	0.6 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Manufacturer's serial number	HE52
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5626 mm
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	24
Base Number Matches	1

Preview

Download Datasheet

View All

A

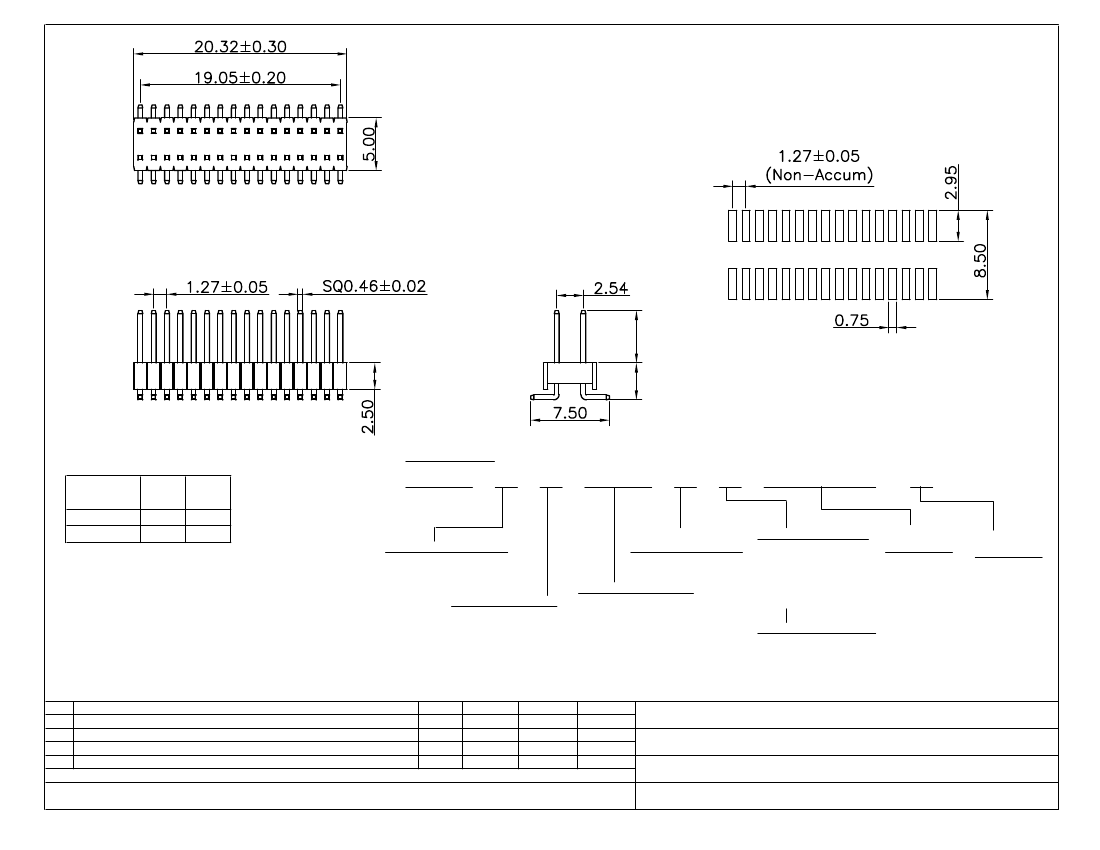

Recommended P.C. Board Layout

B

DIMENSION(mm)

DIMENSION

NUMBER

A

B

70

2.80

3.50

71

6.00

3.50

* OTHER DIMENSIONS AVAILABLE

HOW TO ORDER:

H

E

5

2

-

X

2

X

-

X

-

Z

ELECTRICAL:

CONTACT MATERIAL:

5 - DOUBLE ROW (1.27x2.54)

NUMBER OF ROWS:

2 - DOUBLE ROW

H DIMENSION

INSULATOR HEIGHT:

2 - 2.54mm

DIMENSION NUMBER:

SEE DIMENSION

NUMBER ABOVE

CURRENT RATING: 1.0 A

CONTACT RESISTANCE: 20m

Ω

MAX.

INSULATOR RESISTANCE: > 1000M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 1000V AC FOR 1 MIN.

OPERATING TEMPERATURE: -65° C TO +125°C (With Gold Plating)

PROCESSING TEMERATURE: 260° FOR SECONDS

INSULATOR: HIGHT TEMPERATURE PLASTIC, UL94V-0 (Nylon 6T)

CONTACT: COPPER ALLOY

Rev

0

Issued

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au FLASH

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

NUMBER OF

CONTACTS:

006 thru 100

RoHS

COMPLIANT

MATERIAL:

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Drawn Checked Approved

B.S.

S.M.

Date

03/04/08

SMP TECHNOLOGY, INC.

PIN HEADER, 1.27 x 2.54, Double Row, Surface Mount

TOL. DEC.

.X +/- 0.3

.XX +/- 0.2

.XXX +/- 0.1

ANGLE +/- 5°

UNIT: mm

SERIES: HE52-XX2X-XXX-Z

Pg: 1
