7023.029 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 7023.029

7023.029: DescriptionElectric Fuse, VERY FAST BLOW ELECTRIC FUSE, 10A, 250VAC, 10000A (IR), INLINE/HOLDER, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size47KB，1 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

7023.029 Overview

Electric Fuse, VERY FAST BLOW ELECTRIC FUSE, 10A, 250VAC, 10000A (IR), INLINE/HOLDER, ROHS COMPLIANT

7023.029 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	VERY FAST
body height	32 mm
Body length or diameter	6.35 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	22 J
Installation features	INLINE/HOLDER
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	BOX
physical size	6.35mm x 32mm
Pre-discharge time - minutes	120000 ms
Rated breaking capacity	10000 A
Rated current	10 A
Rated voltage	250 V
Rated voltage (AC)	250 V
Guideline	CSA; NNO; UL
surface mount	NO
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

FUSES /

SICHERUNGEN

Miniature fuse-links

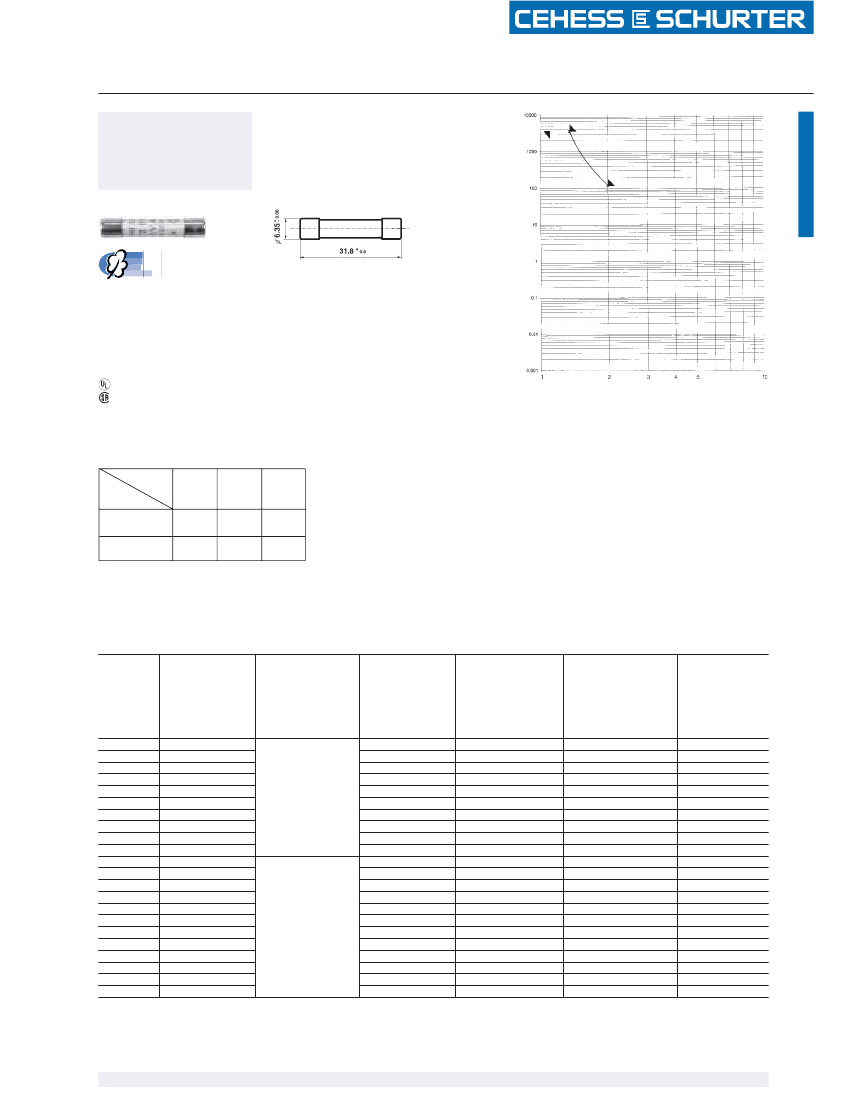

Type A12BK

quick-acting F

high breaking capacity

Ceramic tube

NON RESETTABLE /

NICHT RÜCKSTELLEND

(

’’

’’)

6,3 x 32 mm

G-Sicherungseinsätze

Typ A12BK

flink F

grosses Ausschaltvermögen

Keramikrohr

100

Standards /

Normen

UL 248-14

(formerly /

früher 198.G)

CSA C22.2 No. 248.14

(formerly /

früher 59.2 M)

Approvals /

Approbationen

CSA

Lists /

Listen: NNO

Pre-arcing time in seconds t

Schmelzzeit in Sekunden t

Multiple of rated current I

Vielfaches des Nennstromes I

Pre-arcing time/current

characteristic (at T

23 °C)

Rated

current I

Nennstrom I

Zeit-Strom-Charakteristik

(bei T

23 °C)

2 · I

max.

120 s

n · I

1,1 · I

min.

1,35 · I

max.

0,125 – 16 A

Technical data

Weight

2,8 g

Technische Daten

Gewicht

2,8 g

Order No. /

Bestell-Nr.

Rated current I

Rated voltage U

Nennstrom I

Nennspannung U

Breaking capacity /

Ausschaltvermögen

Voltage drop /

Spannungsfall

at /

bei I

max.

2450

1600

1950

2100

2050

3150

2650

2450

2200

820

725

445

405

365

320

285

255

280

100

115

Sustained

power dissipation /

Verlustleistung

at /

bei 1,1 · I

max.

0,42

0,34

0,54

0,72

0,93

1,55

1,65

1,9

2,2

1,1

1,25

0,93

1,1

1,25

1,35

1,55

1,7

2,35

0,96

0,99

1,5

2,30

Pre-arcing

t /

Schmelz I

at /

bei 10 · I

4,3 · 10

-3

1,1 · 10

-2

1,6 · 10

-2

2,7 · 10

-2

4,7 · 10

-2

5 · 10

-2

7 · 10

-2

2 · 10

-1

3,9 · 10

-1

1,6 · 10

-1

3,7 · 10

-1

8,3 · 10

-1

1,5

3,2

6,5

Approvals /

Approbationen

NNO

•

CSA

•

7023.0110

7023.0330

7023.0340

7023.0120

7023.0130

7023.0140

7023.0150

7023.0160

7023.0170

7023.0180

7023.0190

7023.0210

7023.0220

7023.0230

7023.0240

7023.0250

7023.0260

7023.0270

7023.0280

7023.0290

7023.0310

7023.0320

0,125

0,160

0,200

0,250

0,310

0,400

0,500

0,630

0,800

1,25

1,60

2,50

3,15

6,3

12,5

A / 250 V

10 000 A / 125 V AC

p.f. /

cos 0,7–0,8

35 A / 250 V AC

p.f. /

cos 0,7–0,8

10 000 A / 250 V AC

p.f. /

cos 0,7–0,8

CEHESS SCHURTER S.A. France

☎

++33 +3 25 02 50 49

•

Fax ++33 +3 25 02 56 57

E-mail: 106426.2362@compuserve.com

111

7023.029 Related Products

	7023.029	7023.028	7023.024	7023.032
Description	Electric Fuse, VERY FAST BLOW ELECTRIC FUSE, 10A, 250VAC, 10000A (IR), INLINE/HOLDER, ROHS COMPLIANT	Electric Fuse, VERY FAST BLOW ELECTRIC FUSE, 8A, 250VAC, 10000A (IR), INLINE/HOLDER, ROHS COMPLIANT	Electric Fuse, VERY FAST BLOW ELECTRIC FUSE, 3.15A, 250VAC, 10000A (IR), INLINE/HOLDER, ROHS COMPLIANT	Electric Fuse, VERY FAST BLOW ELECTRIC FUSE, 16A, 250VAC, 10000A (IR), INLINE/HOLDER, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Fusing characteristics	VERY FAST	VERY FAST	VERY FAST	VERY FAST
body height	32 mm	32 mm	32 mm	32 mm
Body length or diameter	6.35 mm	6.35 mm	6.35 mm	6.35 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Joule integral nominal	22 J	10 J	6 J	92 J
Installation features	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
method of packing	BOX	BOX	BOX	BOX
physical size	6.35mm x 32mm	6.35mm x 32mm	6.35mm x 32mm	6.35mm x 32mm
Pre-discharge time - minutes	120000 ms	120000 ms	120000 ms	120000 ms
Rated breaking capacity	10000 A	10000 A	10000 A	10000 A
Rated current	10 A	8 A	3.15 A	16 A
Rated voltage (AC)	250 V	250 V	250 V	250 V
Guideline	CSA; NNO; UL	CSA; NNO; UL	CSA; NNO; UL	NNO; UL
surface mount	NO	NO	NO	NO
Terminal shape	END CAP	END CAP	END CAP	END CAP
Base Number Matches	1	1	1	1
Rated voltage	250 V	-	250 V	250 V
