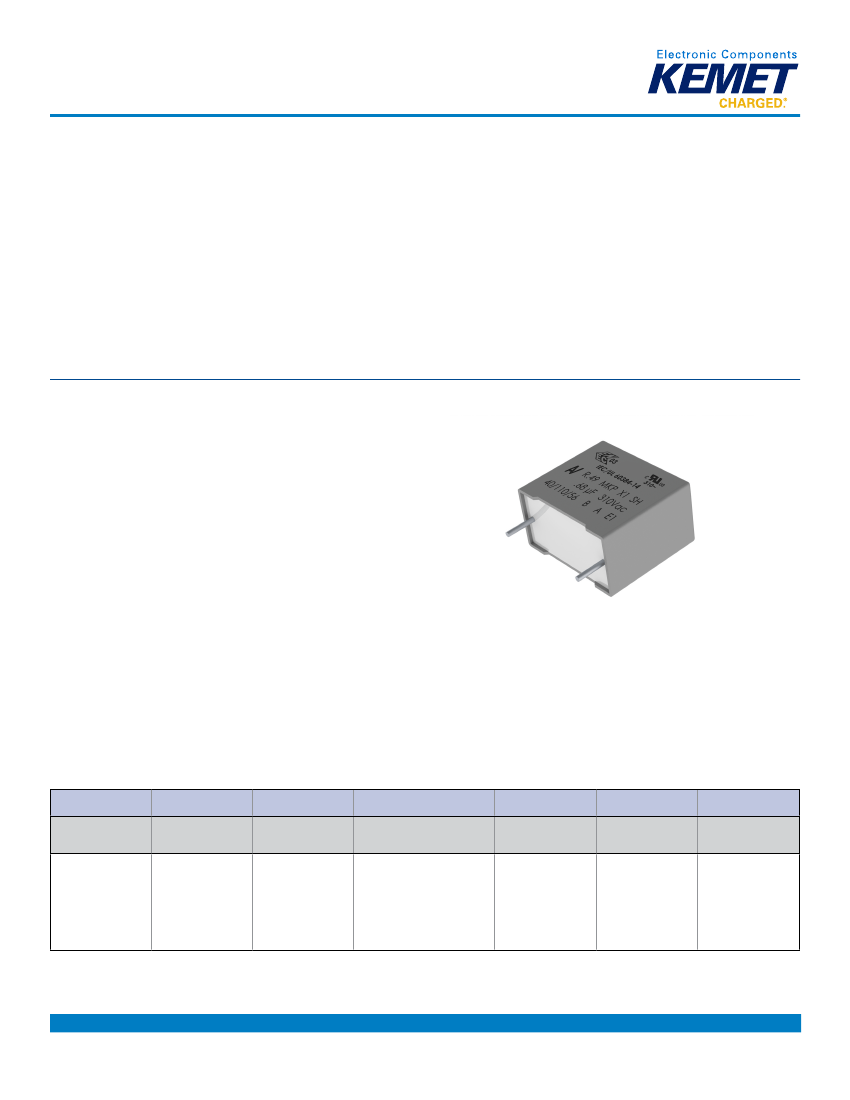

Metallized Polypropylene Film EMI Suppression Capacitors
R49 Series, Class X1, 310 VAC, 110ºC
Overview
The R49 Series is constructed of metallized polypropylene film
encapsulated with self-extinguishing resin in a box of material
meeting the requirements of UL 94 V–0.
Applications
For use as electromagnetic interference (EMI) suppression filter
in across-the-line applications requiring X1 safety classification.
Intended for use in situations where exposure to a shock in the
event of capacitor failure is not possible. Not for use in "series
with mains" type applications. X1 classified capacitors are for use
only in a permanently connected apparatus with a connection to
mains which cannot be loosened without the use of a tool.
Benefits
•
•
•
•
•
•
•
•
•
•
•
•
Approvals: ENEC, UL, cUL
Class X1 (IEC 60384-14)
Rated voltage: 310 VAC 50/60 Hz
Capacitance range: 0.01 – 2.2 µF
Lead spacing: 10.0 – 27.5 mm
Capacitance tolerance: ±20%, ±10%
Climatic category: 40/110/56, IEC 60068–1
Tape and reel in accordance with IEC 60286–2
RoHS Compliant and lead-free terminations
Operating temperature range of -40˚C to +110˚C
100% screening factory test at 2,200 VDC/1,500 VAC
Self-healing properties
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Part Number System
R49
Series
X1, Metallized
Polypropylene
A
Rated Voltage
(VAC)
A = 310
I
Lead Spacing
(mm)
F = 10.0
I = 15.0
N = 22.5
R = 27.5
3100
Capacitance Code (pF)
Digits 2 – 4 indicate the
first three digits of the
capacitance value.
First digit indicates the
number of zeros to be
added.
00
Lead and
Packaging Code
See Ordering
Options Table
01
Internal Use
01
M1
M
Capacitance
Tolerance
K = ±10%
M = ±20%
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3098_R49_X1_310 • 10/20/2014
1
Metallized Polypropylene Film EMI Suppression Capacitors
R49 Series, Class X1, 310 VAC, 110ºC
Ordering Options Table
Lead Spacing
Nominal (mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Ammo Pack
Other Lead and Packaging Options
Tape & Reel (Large Reel)
H
0
= 18.5 +/-0.5
3.5 +0.5/-0
4.0 +0.5/-0
3.2 +0.3/-0.2
18 +1/-1
30 +5/-0
25 +2/-1
30 +5/-0 (sp 8+2/-2)
150 +5/-5 (sp 8+2/-2)
CK
JB
JE
JH
JM
40
50
51
52
4 +2/-0
H
0
= 18.5 +/-0.5
00
DQ
Lead Length
(mm)
Lead and
Packaging Code
10,
15,
22.5
Bulk (Bag) – Short Leads
Bulk (Bag) – Short Leads
Bulk (Bag) – Short Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Insulated Rigid Leads
Bulk (Bag) – Insulated Flexible Leads
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Tape & Reel (Large Reel)
4 +2/-0
H
0
= 18.5 +/-0.5
30 +5/-0
25 +2/-1
30 +5/-0 (sp 8+2/-2)
150 +5/-5 (sp 8+2/-2)
00
CK
40
50
51
52
27.5
Other Lead and Packaging Options
Bulk (Bag) – Long Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Insulated Rigid Leads
Bulk (Bag) – Insulated Flexible Leads
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
4 +2/-0
30 +5/-0
25 +2/-1
30 +5/-0 (sp 8+2/-2)
150 +5/-5 (sp 8+2/-2)
00
40
50
51
52
Other Lead and Packaging Options
Bulk (Bag) – Long Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Insulated Rigid Leads
Bulk (Bag) – Insulated Flexible Leads
37.5
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3098_R49_X1_310 • 10/20/2014
2
Metallized Polypropylene Film EMI Suppression Capacitors
R49 Series, Class X1, 310 VAC, 110ºC
Dimensions – Millimeters
Loose
FRONT VIEW
L
SIDE VIEW
B
Insulated Rigid Leads
FRONT VIEW
L
SIDE VIEW
B
Insulated Flexible Leads 0.5 mm
2
FRONT VIEW
L
SIDE VIEW
B
H
H
H
d
p
LL
35 +0/-5
150 ±5
d
8 ±2
d
p
Nominal
10.0
10.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
27.5
27.5
27.5
Tolerance
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
Nominal
5.0
6.0
5.0
6.0
7.5
8.5
10.0
6.0
7.0
8.5
10.0
11.0
9.0
11.0
13.0
14.0
18.0
22.0
B
Tolerance
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
Nominal
11.0
12.0
11.0
12.0
13.5
14.5
16.0
15.0
16.0
17.0
18.5
20.0
17.0
20.0
22.0
28.0
33.0
37.0
H
Tolerance
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
Nominal
13.0
13.0
18.0
18.0
18.0
18.0
18.0
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
32.0
32.0
L
Tolerance
+0.2
+0.2
+0.3
+0.3
+0.5
+0.5
+0.5
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
Nominal
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
d
Tolerance
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
Note: See Ordering Options Table for lead length (LL/H
0
) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3098_R49_X1_310 • 10/20/2014
8 ±2
3
Metallized Polypropylene Film EMI Suppression Capacitors
R49 Series, Class X1, 310 VAC, 110ºC
Performance Characteristics
Dielectric
Plates
Winding
Leads
Protection
Related documents
Rated Voltage (V
R
)
Capacitance Range
Capacitance Values
Capacitance Tolerance
Temperature Range
Climatic Category
Approvals
Dissipation Factor (tanδ)
Test Voltage Between Terminals
Polypropylene film
Metal layer deposited by evaporation under vacuum
Non-inductive type
Tinned wire
Plastic case, thermosetting resin filled. Box material is solvent resistant and flame retardant according to UL94.
IEC 60384-14, EN 60384-14
310 VAC (50/60 Hz), 800 VDC
0.010 µF to 2.2 µF
E6 series (IEC 60063)
±10%, ±20%
-40ºC to +110°C
40/110/56 IEC 60068-1
ENEC, UL, cUL
≤ 0.1% (0.06%*) @ 1kHz , +25°C ±5°C (* typical value)
The 100% screening factory test is carried out at 2,200 VDC/1,500 VAC. The voltage level is selected to meet the
requirements in applicable equipment standards. All electrical characteristics are checked after the test. It is not
permitted to repeat this test as there is a risk to damage the capacitor. KEMET is not liable in such case for any failures.
Measured at +25°C ±5°C, according to IEC 60384–2
Minimum Values Between Terminals
Insulation Resistance
Voltage Charge
100 VDC
In DC Applications
Recommended voltage ≤ 800 VDC
Voltage Charge Time
1 min
C ≤ 0.33 μF
≥ 1 • 10
5
MΩ
( ≥ 5 • 10
5
MΩ )*
* typical value
C > 0.33 μF
≥ 30,000 MΩ • µF
( ≥ 150,000 MΩ • µF )*
* typical value
Impedance Graph
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3098_R49_X1_310 • 10/20/2014
4
Metallized Polypropylene Film EMI Suppression Capacitors
R49 Series, Class X1, 310 VAC, 110ºC
Environmental Test Data
Test
Endurance
Vibration
Bump
Change of Temperature
Active Flammability
Passive Flammability
Damp Heat Steady State
IEC Publication
EN/IEC 60384–14
IEC 60068–2–6 Test Fc
IEC 60068–2–29 Test Eb
IEC 60068–2–14 Test Na
IEC 60384–14
IEC 60384–14
IEC 60068–2–78 Test Cab
Procedure
1.25 x V
R
VAC 50 Hz, once every hour increase to 1,000 VAC for 0.1
second, 1,000 hours at upper rated temperature
3 directions at 2 hours each 10 – 55 Hz at 0.75 mm or 98 m/s
2
1,000 bumps at 390 m/s
2
Upper and lower rated temperature 5 cycles
V
R
+ 20 surge pulses at 4 kV (pulse every 5 seconds)
IEC 60384–1, IEC 60695–11–5 Needle flame test
+40°C and 93% RH, 56 days
Approvals
Mark
Specification
EN/IEC 60384-14
File Number
CA08.00030
UL 60384-14 and
CAN/CSA E60384-14
(310 VAC)
E97797
Environmental Compliance
All KEMET EMI capacitors are RoHS Compliant.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3098_R49_X1_310 • 10/20/2014
5
