71163-1004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 71163-1004

71163-1004: DescriptionTelecom and Datacom Connector, 68 Contact(s), Female, Straight, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size196KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

71163-1004 Overview

Telecom and Datacom Connector, 68 Contact(s), Female, Straight, Solder Terminal, Receptacle

71163-1004 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: SCSI, STAGGERED CONFIGURATION
body width	0.29 inch
subject depth	0.11 inch
body length	2.2 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.4734 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	71163
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Plug information	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	GLASS FILLED LIQUID CRYSTAL POLYMER
Terminal length	0.08 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	68
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N
Base Number Matches	1

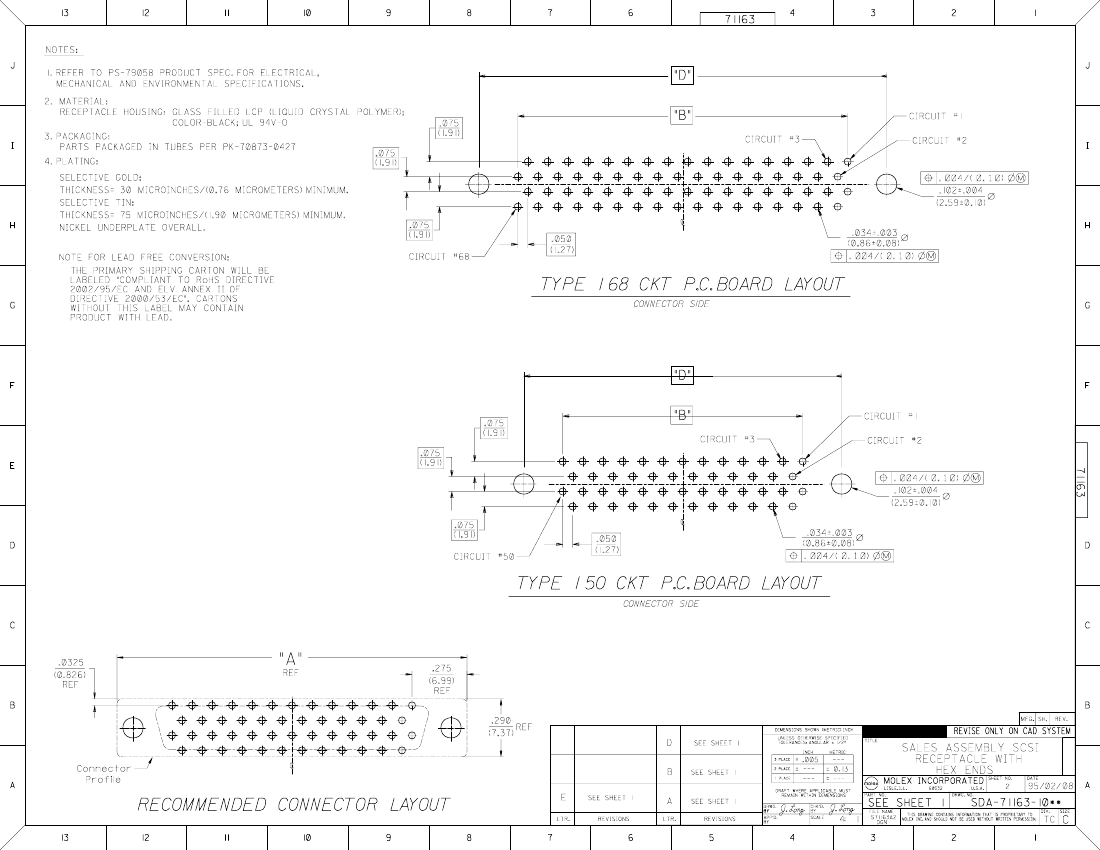

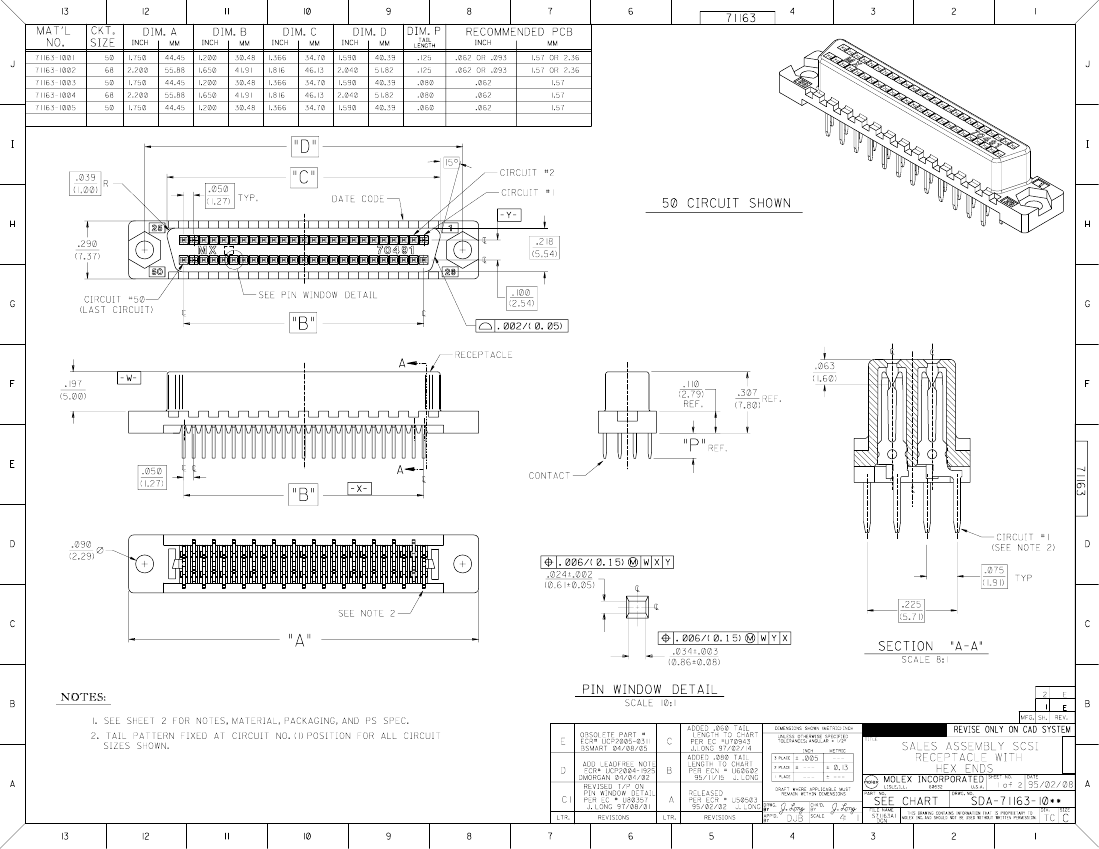

Preview

Download Datasheet

View All

71163-1004 Related Products

	71163-1004	71163-1002	71163-1003	71163-1001
Description	Telecom and Datacom Connector, 68 Contact(s), Female, Straight, Solder Terminal, Receptacle	Telecom and Datacom Connector, 68 Contact(s), Female, Straight, Solder Terminal, Receptacle	Telecom and Datacom Connector, 50 Contact(s), Female, Straight, Solder Terminal, Receptacle	Telecom and Datacom Connector, 50 Contact(s), Female, Straight, Solder Terminal, Receptacle,
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	compliant	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	STANDARD: SCSI, STAGGERED CONFIGURATION	STANDARD: SCSI, STAGGERED CONFIGURATION	STANDARD: SCSI, STAGGERED CONFIGURATION	STANDARD: SCSI, STAGGERED CONFIGURATION
body width	0.29 inch	0.29 inch	0.29 inch	0.29 inch
subject depth	0.11 inch	0.11 inch	0.11 inch	0.11 inch
body length	2.2 inch	2.2 inch	1.75 inch	1.75 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
maximum insertion force	1.4734 N	1.4734 N	1.4734 N	1.4734 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
MIL compliance	NO	NO	NO	NO
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Plug information	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
PCB row number	4	4	4	4
Number of rows loaded	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	1.905 mm	1.905 mm	1.905 mm	1.905 mm
Plating thickness	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	1 A	1 A	1 A	1 A
Guideline	UL, CSA	CSA, UL	CSA, UL	CSA, UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
Terminal length	0.08 inch	0.125 inch	0.08 inch	0.125 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	68	68	50	50
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.278 N	.278 N	.278 N	.278 N
Base Number Matches	1	1	1	1
Maker	-	Molex	Molex	Molex
Contact completed and terminated	-	TIN (75) OVER NICKEL	TIN (75) OVER NICKEL	TIN (75) OVER NICKEL
JESD-609 code	-	e3	e3	e3
