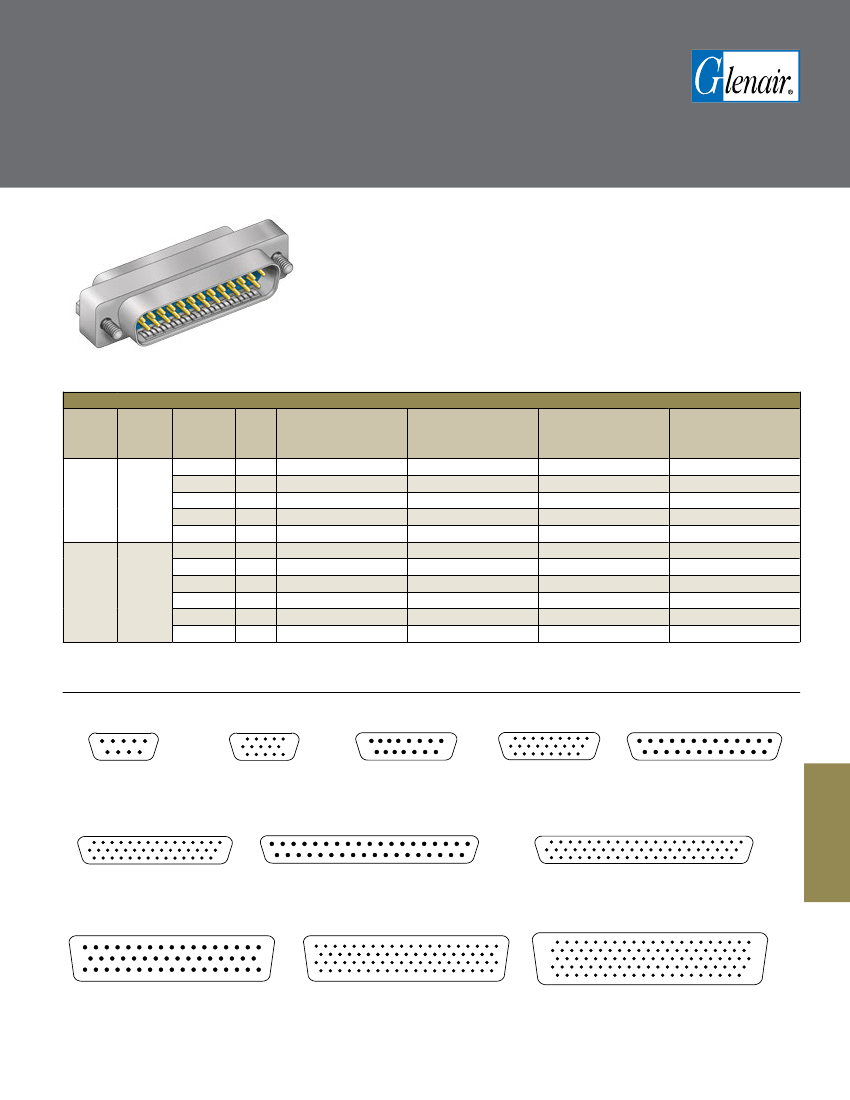

series 28
HiPer-D Accessories
Sav-Con
®
D-subminiature connector saver
289-012
Prevent damage to expensive instruments and cables with Glenair HiPer-D Sav-
Cons®. One side is a pin connector and the other side is a socket connector. Low
profile one-piece machined aluminum housing and ground spring protect circuits
from EMI problems. Contacts are heavy gold plated for improved durability.
Available in standard density and high density contact arrangements. Contacts are
factory-installed. Pin mating face has fluorosilicone rubber seal. Choose electroless
nickel or gold shell finish for avionics and space applications. Choose cadmium for
compatibility with cadmium or zinc plated M24308 connectors, or choose nickel-PTFE
for maximum corrosion protection. Other materials and finishes available on request.
How To order
Contact
Size
Contact No. of
Density Contacts
9
15
Standard 25
37
50
15
26
44
High
Density 62
78
104
Shell
Size
1
2
3
4
5
1
2
3
4
5
6
Electroless Nickel
Shell Finish
Space, Avionics (ME)
Gold Plated Shell
Space (Z2)
Nickel-PTFE Finish
Maximum Corrosion
Protection (MT)
#20
#22
289-0121S9MEGr
289-0122S15MEGr
289-0123S25MEGr
289-0124S37MEGr
289-0125S50MEGr
289-0121H15MEGr
289-0122H26MEGr
289-0123H44MEGr
289-0124H62MEGr
289-0125H78MEGr
289-0126H104MEGr
289-0121S9Z2Gr
289-0122S15Z2Gr
289-0123S25Z2Gr
289-0124S37Z2Gr
289-0125S50Z2Gr
289-0121H15Z2Gr
289-0122H26Z2Gr
289-0123H44Z2Gr
289-0124H62Z2Gr
289-0125H78Z2Gr
289-0126H104Z2Gr
289-0121S9MTGr
289-0122S15MTGr
289-0123S25MTGr
289-0124S37MTGr
289-0125S50MTGr
289-0121H15MTGr
289-0122H26MTGr
289-0123H44MTGr
289-0124H62MTGr
289-0125H78MTGr
289-0126H104MTGr
Cadmium Shell Finish
General Purpose (JF)
289-0121S9JFGr
289-0122S15JFGr
289-0123S25JFGr
289-0124S37JFGr
289-0125S50JFGr
289-0121H15JFGr
289-0122H26JFGr
289-0123H44JFGr
289-0124H62JFGr
289-0125H78JFGr
289-0126H104JFGr
STANDArD AND HIGH DENSITy CoNTACT ArrANGEMENTS
(face view of pin connector)
1
6
9
5
1
6
11
5
10
15
1
9
8
15
1
10
19
9
18
26
1
14
13
25
9 #20 Contacts
1S9
15 #22 Contacts
1H15
15 #20 Contacts
2S15
26 #22 Contacts
2H26
25 #20 Contacts
3S25
1
16
31
15
30
44
1
20
19
37
1
22
43
21
42
62
E
44 #22 Contacts
3H44
37 #20 Contacts
4S37
62 #22 Contacts
4H62
1
18
34
17
33
50
1
21
40
60
20
39
59
78
1
22
43
64
85
50 #20 Contacts
5S50
78 #22 Contacts
5H78
104 #22 Contacts
6H104
21
42
63
84
104
E-17
© 2013 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324
series 28
HiPer-D Accessories
Sav-Con
®
D-subminiature connector saver
289-012
289-012 SAv-CoN MATErIALS, FINISHES AND SPECIFICATIoNS
Specifications
Materials and Finishes
Current Rating
Test Voltage
Insulation Resistance
Operating Temperature
Shock
Vibration, Random
#20 7.5 AMPS, #8 40 AMPS
1000 VAC RMS
5000 megohms minimum
-65° C. to +200° C.
300 g.
43.92 g.
Shell
Contacts
Insulator
EMI Spring
Face Seal
Hardware
Aluminum alloy
Copper alloy, 50 microinches gold
Thermoset epoxy
Copper alloy, nickel plated
Fluorosilicone rubber
300 series stainless steel

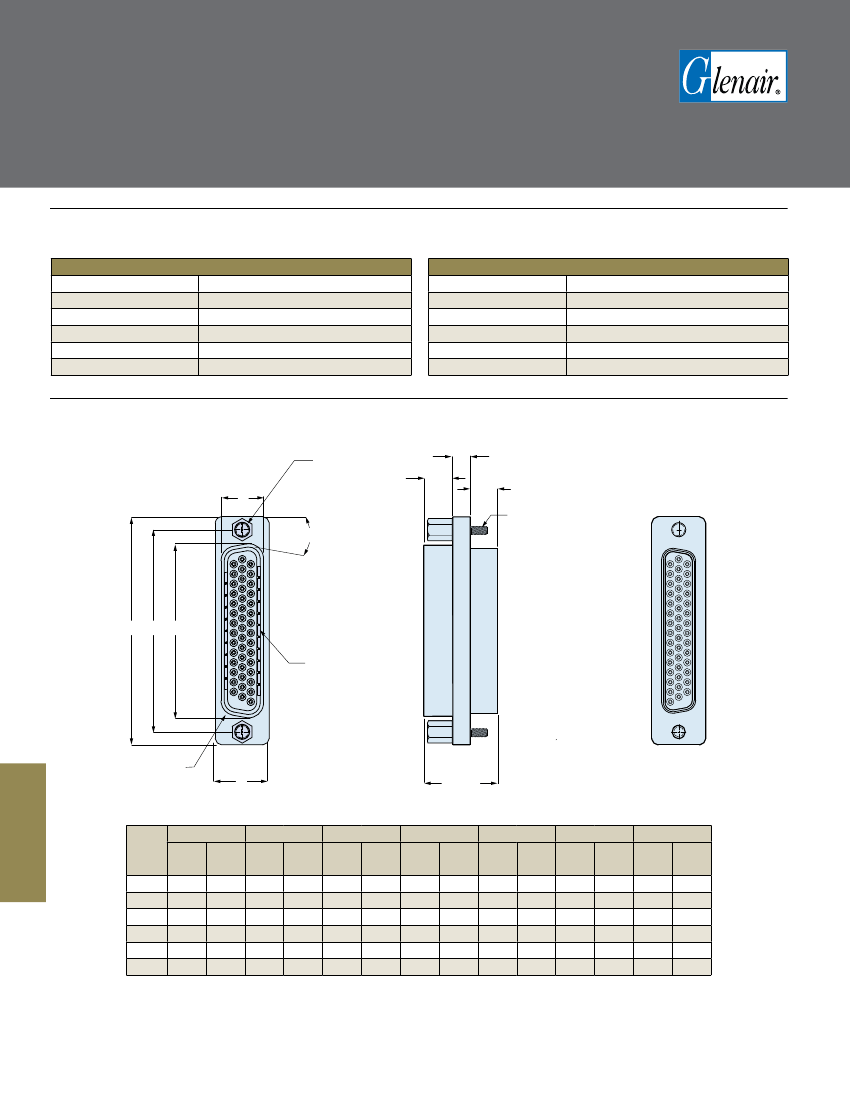

289-012 SAv-CoN DIMENSIoNS
#4-40 UNC
E
10° TYP
.262
(6.65)
.160 (4.06)
.243 (6.17)
#4-40 UNC JACKPOST
- JACKSCREW
(SUPPLIED
UNASSEMBLED)
A
C
D
PIN
GROUND
SPRING 2
PLCS
SOCKET
REF
R .134 (3.40)
B
REF .665
(1.689)
E
Shell
Size
1
2
3
4
5
6
± .015
± 0.38
± .015
± 0.38
1.213 30.81
1.541 39.14
2.088 53.04
2.729 69.32
2.635 66.93
2.729 69.32
.494 12.55
.494 12.55
.494 12.55
.494 12.55
.605 15.37
.668 16.97
In .
A
mm.
In .
B
mm.
C Basic
In.
mm.
± .005
± 0.13
± .005
± 0.13
± .005
± 0.13
± .005
± 0.13
.726 18.44
1.054 26.77
1.594 40.49
2.242 56.95
2.139 54.33
2.272 57.71
.329
.329
8.36
8.36
.311
.311
7.90
7.90
.643 16.33
.971 24.66
1.511 38.38
2.159 54.84
2.064 52.43
2.189 55.60
In .
D
mm.
In .
E
mm.
In .
F
mm.
In .
G
mm.
.984 24.99
1.312 33.32
1.852 47.04
2.500 63.50
2.406 61.11
2.500 63.50
.329 8.36
.329 8.36
.441 11.20
.503 12.78
.311
7.90
.311
7.90
.423 10.74
.486 12.34
E-18
