89400-0426 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 89400-0426

89400-0426: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size45KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

89400-0426 Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal

89400-0426 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	LATCHED
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

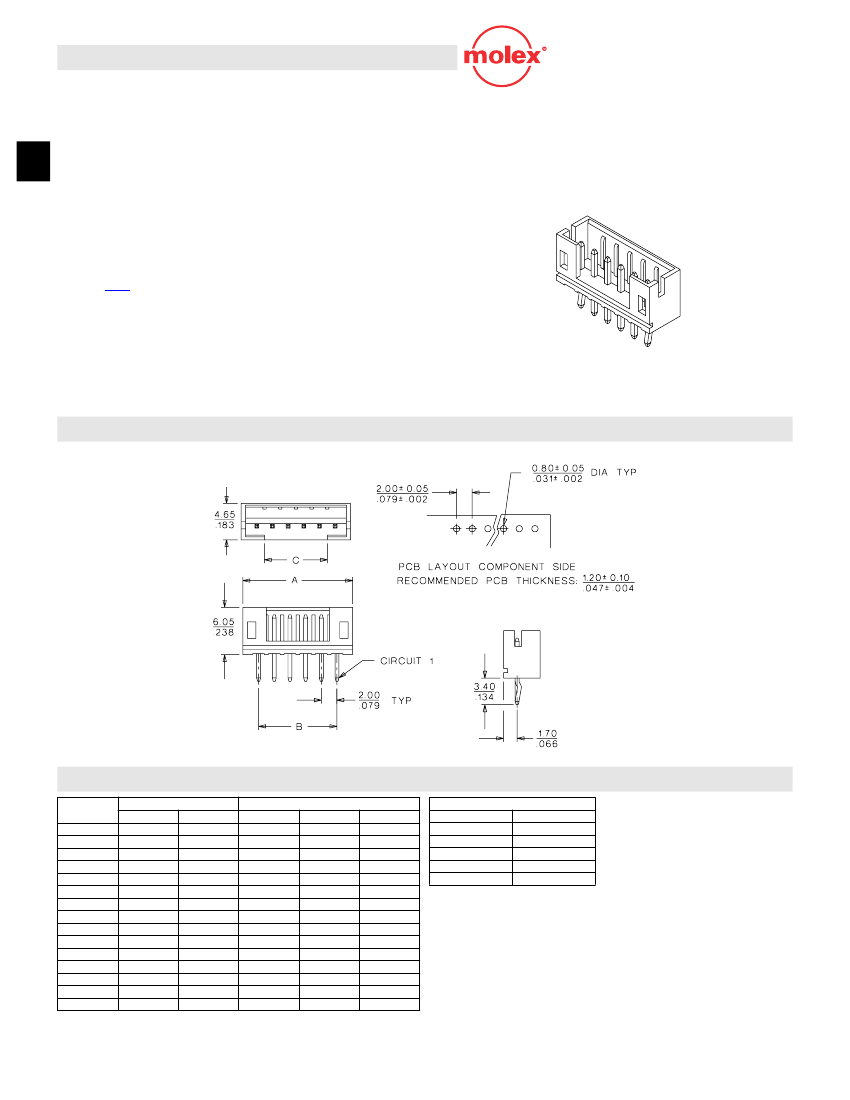

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 2 to 15 circuits for standard version;

2.00 to 2.50mm (.079 to .098") Pitch

sizes 2 to 15 circuits for coined version

Latch windows retain positive locks after mating

Standoffs minimize ﬂux retention

Coined version available for positive pin retention

to header

For other color options, contact Molex

Electrical

Voltage: 250V

Current: 4.0A

Contact Resistance: 40m

Ω

max.

Dielectric Withstanding Voltage: 500V AC/1 min.

Insulation Resistance: 1000 M

Ω

min.

Physical

Housing: Thermoplastic, UL 94V-0

Contact: Brass

Plating: Tin

Operating Temperature: -25 to +85˚C

2.00mm (.079") Pitch

Wire-to-Board

Header

89400

Vertical

Reference Information

Product Speciﬁcation: PS-87369

Packaging: Bag

UL File No.: E29179

CSA File No.: LR19980A

Mates With:

87369

Designed In: Millimeters

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order

Standard

89400-021X

89400-031X

89400-041X

89400-051X

89400-061X

89400-071X

89400-081X

89400-091X

89400-101X

89400-111X

89400-121X

89400-131X

89400-141X

89400-151X

89400-161X

No.

Coined

89400-022X

89400-032X

89400-042X

89400-052X

89400-062X

89400-072X

89400-082X

89400-092X

89400-102X

89400-112X

89400-122X

89400-132X

89400-142X

89400-152X

89400-162X

6.00

8.00

10.00

12.00

14.00

16.00

18.00

20.00

22.00

24.00

26.00

28.00

30.00

32.00

34.00

(.236)

(.314)

(.393)

(.472)

(.551)

(.629)

(.708)

(.787)

(.866)

(.944)

(1.023)

(1.102)

(1.181)

(1.259)

(1.339)

Dimension

2.00 (.079)

4.00 (.157)

6.00 (.236)

8.00 (.314)

10.00 (.393)

12.00 (.472)

14.00 (.551)

16.00 (.629)

18.00 (.708)

20.00 (.787)

22.00 (.866)

24.00 (.944)

26.00 (1.023)

28.00 (1.102)

30.00 (1.181)

(.029)

(.079)

(.157)

(.236)

(.314)

(.393)

(.472)

(.551)

(.629)

(.708)

(.787)

(.866)

(.944)

(1.023)

(1.102)

Replace X with color option (0 to 6)

Natural

Black

Red

Yellow

Blue

Green

0.75

2.00

4.00

6.00

8.00

10.00

12.00

14.00

16.00

18.00

20.00

22.00

24.00

26.00

28.00

B-52

MX01
