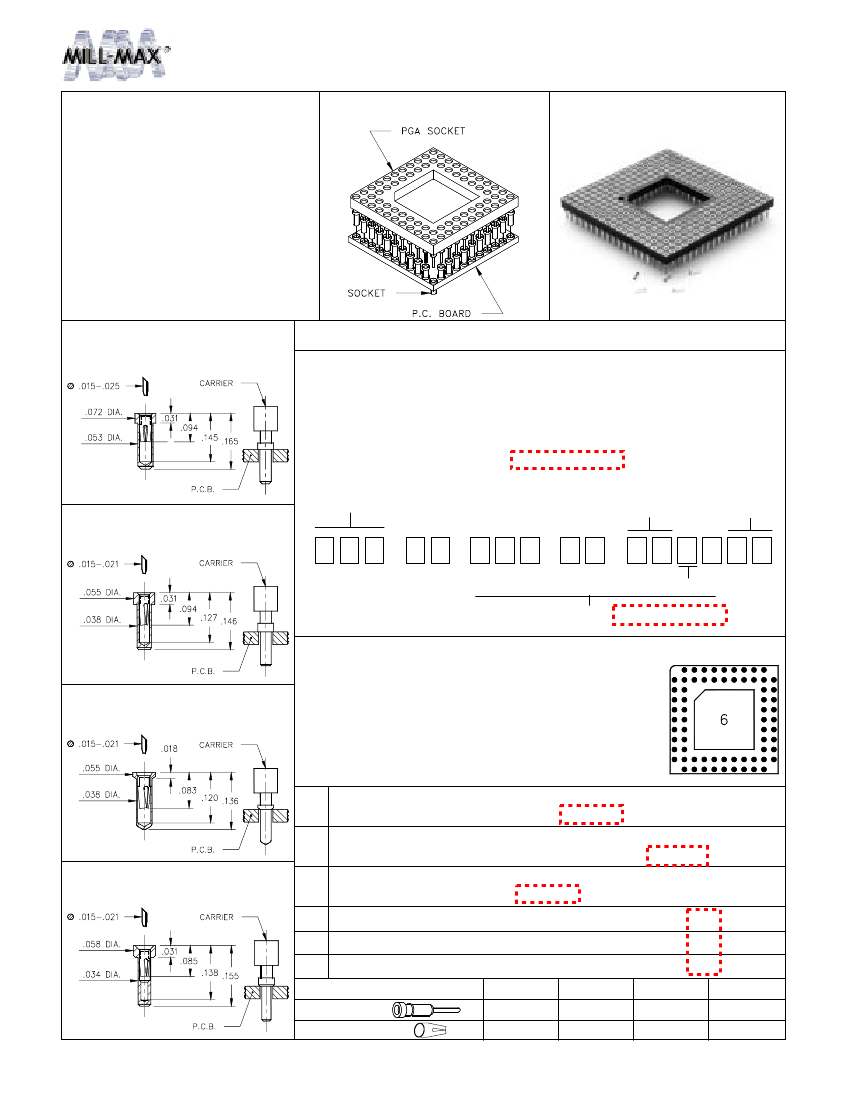

PIN GRID ARRAY SOCKETS
Carrier Type
•
Series 614 & 605 PGA carrier
sockets offer 4 receptacle styles.
•
Many combinations of
receptacles and clips to cover
all applications.
•
Hi-Temp PCT polyester insulator
material suitable for all forms of
soldering.
•
Carrier sockets provide a
convenient way of loading groups
of receptacles onto a PC board.
APPLICATION OF
PGA SOCKET CARRIERS
Series 614, 605
LOW PROFILE
SERIES 614...001, 002, 003
Ordering Information
1. Select receptacle type at left in combination with receptacle chart below
to determine series prefix & suffix numbers.
2. Specify 2-digit plating code from chart at bottom of page
3. Locate footprint pattern from pages 107 to 111, the middle 8 digits of
the part number will be located under the pattern.
MINIATURE
SERIES 614...007
Series
Plating
Code
Window
Suffix
6
-
-
No. of pins
-
Grid size
-
Pattern #
0
Determined from footprint pattern pages 107 to 111
EXAMPLE OF COMPLETE PART NUMBER:
614-93-068-11-061001
This is a 68 pin (11x11 grid) insulator with a .6” square
window and fitted with low profile receptacles. Pin
sleeve is tin plated, inner contacts are Mill-Max #32
and are plated 30µ” gold.
Suffix
01
02
Receptacle/ Clip Chart
Low Profile Mill-Max #32 clip, standard low force, recommended for
devices with less than 150 pins. See page 208 for details.
Low Profile Mill-Max #35 clip, ultra low force, recommended for devices
with more than 150 pins, but less than 250 pins. See page 209 for details.
Low Profile Mill-Max #43 clip, “ultra lite”, recommended for devices
with more than 250 pins. See page 209 for details.
LOWEST PROFILE
SERIES 614...012
REDUCED BARREL
SERIES 605...048
03
07 Miniature Mill-Max #21 clip, standard low force.See page 206 for details.
12 Lowest Profile Mill-Max #21 clip,standard low force.See page 206 for details.
48 Reduced Barrel Mill-Max #21 clip,standard low force.See page 206 for details.
SPECIFY PLATING CODE XX=
13
10µ” Au
30µ” Au
93
200µ” Sn/Pb
30µ” Au
Sleeve (Pin)
Contact (Clip)
Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253
