864-8499-001-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 864-8499-001-2

864-8499-001-2: DescriptionTelecom and Datacom Connector, 84 Contact(s), Female and Male, Right Angle, Surface Mount Terminal, Socket; CategoryThe connector The connector; File Size214KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

864-8499-001-2 Overview

Telecom and Datacom Connector, 84 Contact(s), Female and Male, Right Angle, Surface Mount Terminal, Socket

864-8499-001-2 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	STRADDLE MOUNT
Body/casing type	SOCKET
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (200)/TIN (300) OVER NICKEL (200)
Contact completed and terminated	TIN LEAD (200) OVER NICKEL (100)
Contact point gender	FEMALE AND MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYPHTHALAMIDE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	864-8499-001
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Termination type	SURFACE MOUNT
Total number of contacts	84
UL Flammability Code	94V-0
Base Number Matches	1

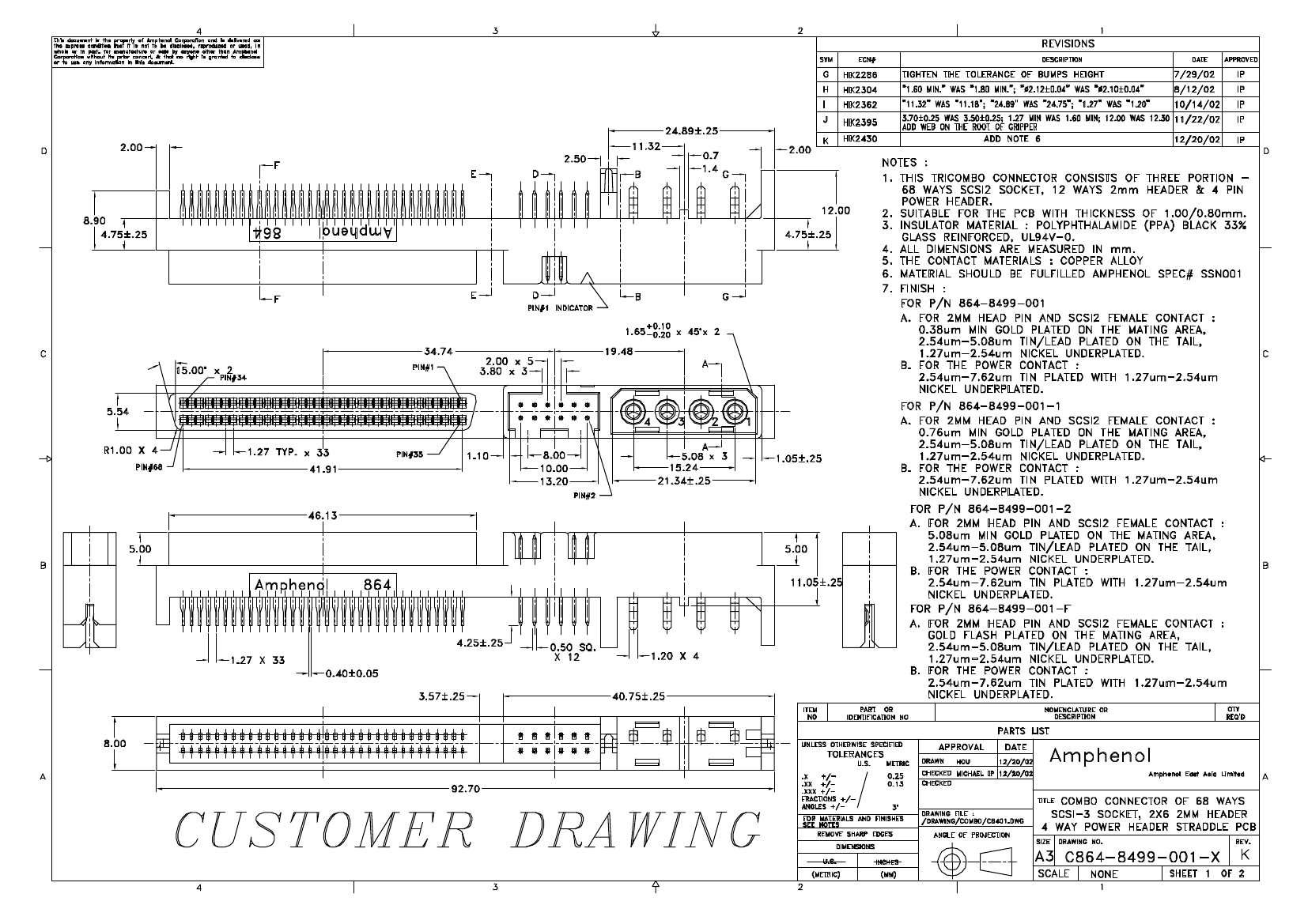

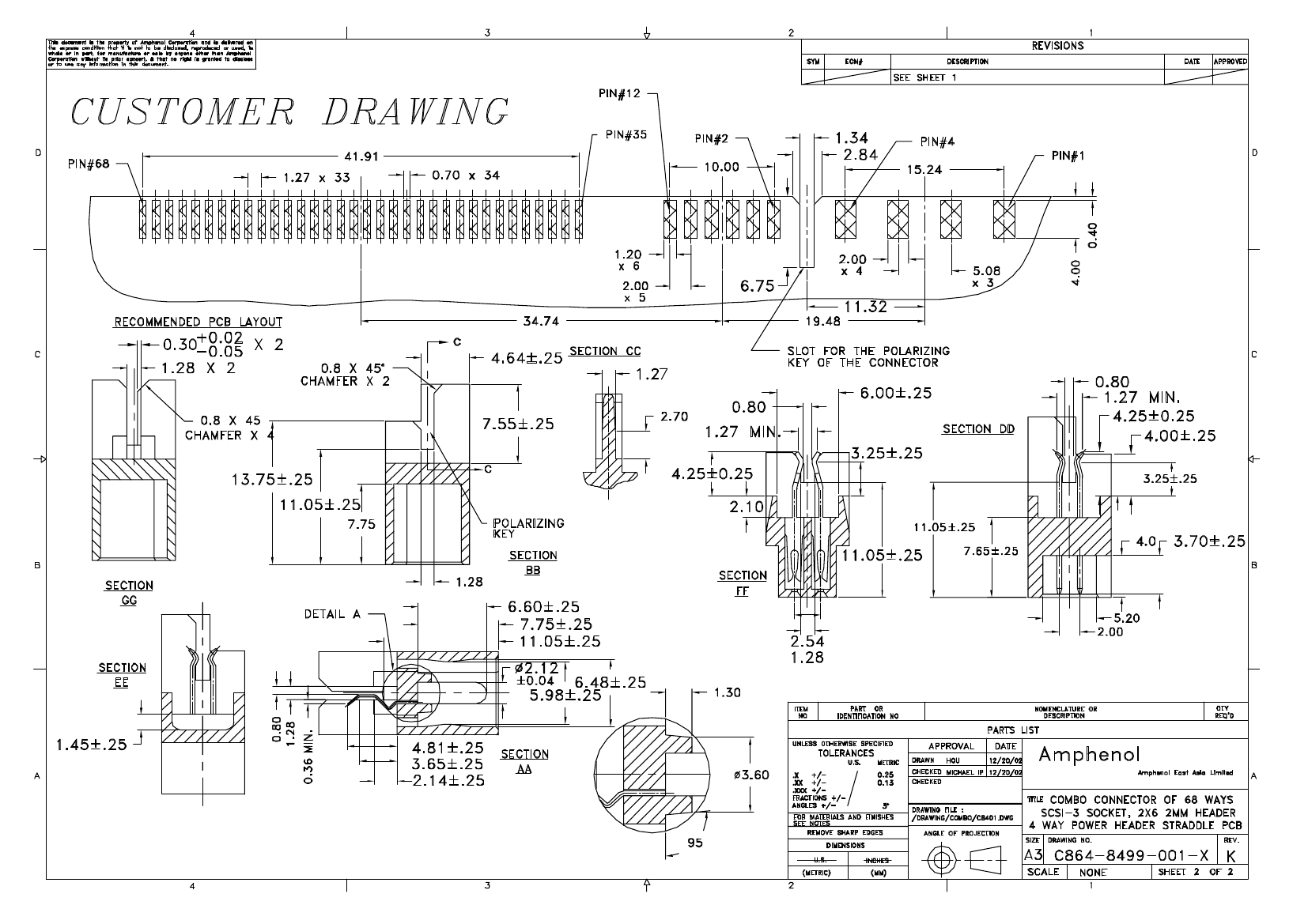

Preview

Download Datasheet

View All

864-8499-001-2 Related Products

	864-8499-001-2	864-8499-001-1	864-8499-001-F	864-8499-001
Description	Telecom and Datacom Connector, 84 Contact(s), Female and Male, Right Angle, Surface Mount Terminal, Socket	Telecom and Datacom Connector, 84 Contact(s), Female and Male, Right Angle, Surface Mount Terminal, Socket	Telecom and Datacom Connector, 84 Contact(s), Female and Male, Right Angle, Surface Mount Terminal, Socket	Telecom and Datacom Connector, 84 Contact(s), Female and Male, Right Angle, Surface Mount Terminal, Socket
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	STRADDLE MOUNT	STRADDLE MOUNT	STRADDLE MOUNT	STRADDLE MOUNT
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (200)/TIN (300) OVER NICKEL (200)	GOLD (30)/TIN (300) OVER NICKEL (200)	GOLD FLASH/TIN (300) OVER NICKEL (200)	GOLD (15)/TIN (300) OVER NICKEL (200)
Contact completed and terminated	TIN LEAD (200) OVER NICKEL (100)	TIN LEAD (200) OVER NICKEL (100)	TIN LEAD (200) OVER NICKEL (100)	TIN LEAD (200) OVER NICKEL (100)
Contact point gender	FEMALE AND MALE	FEMALE AND MALE	FEMALE AND MALE	FEMALE AND MALE
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	GLASS FILLED POLYPHTHALAMIDE	GLASS FILLED POLYPHTHALAMIDE	GLASS FILLED POLYPHTHALAMIDE	GLASS FILLED POLYPHTHALAMIDE
JESD-609 code	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	864-8499-001	864-8499-001	864-8499-001	864-8499-001
Mixed contacts	YES	YES	YES	YES
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	84	84	84	84
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1
