87436-1177 datasheet, PDF - EEWORLD Datasheet

87436-1177: DescriptionBoard Stacking Connector, 21 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Natural Insulator, Plug; CategoryThe connector The connector; File Size73KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

87436-1177 Overview

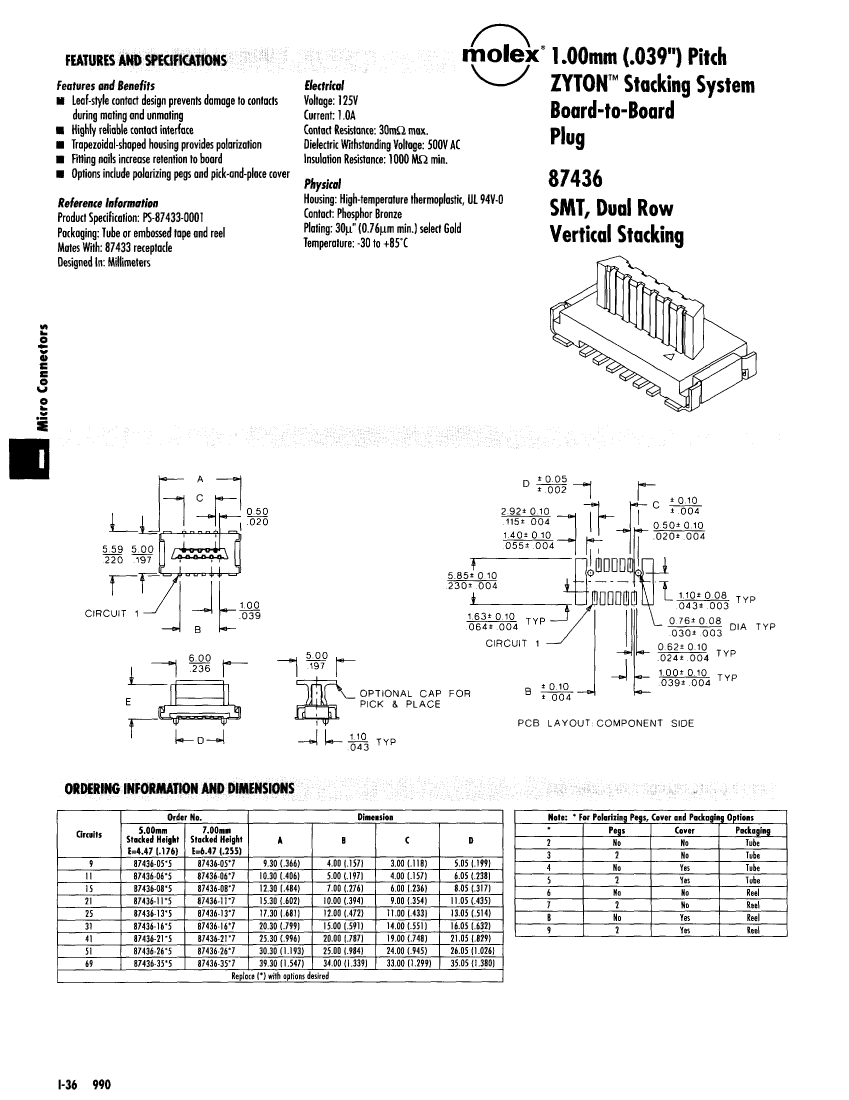

Board Stacking Connector, 21 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Natural Insulator, Plug

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ZYTON
Board mount options	LOCATING POSTS
body width	0.197 inch
subject depth	0.435 inch
body length	0.602 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	30 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	87436
Plug contact pitch	0.039 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	4.191 mm
Plating thickness	30u inch
polarization key	D-SHAPE
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	21
UL Flammability Code	94V-0
Base Number Matches	1
