94753-0011 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 94753-0011

94753-0011: DescriptionCard Edge Connector, 188 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,; CategoryThe connector The connector; File Size658KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

94753-0011 Overview

Card Edge Connector, 188 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,

94753-0011 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NICKEL PALLADIUM GOLD (40) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	94753
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	188
Base Number Matches	1

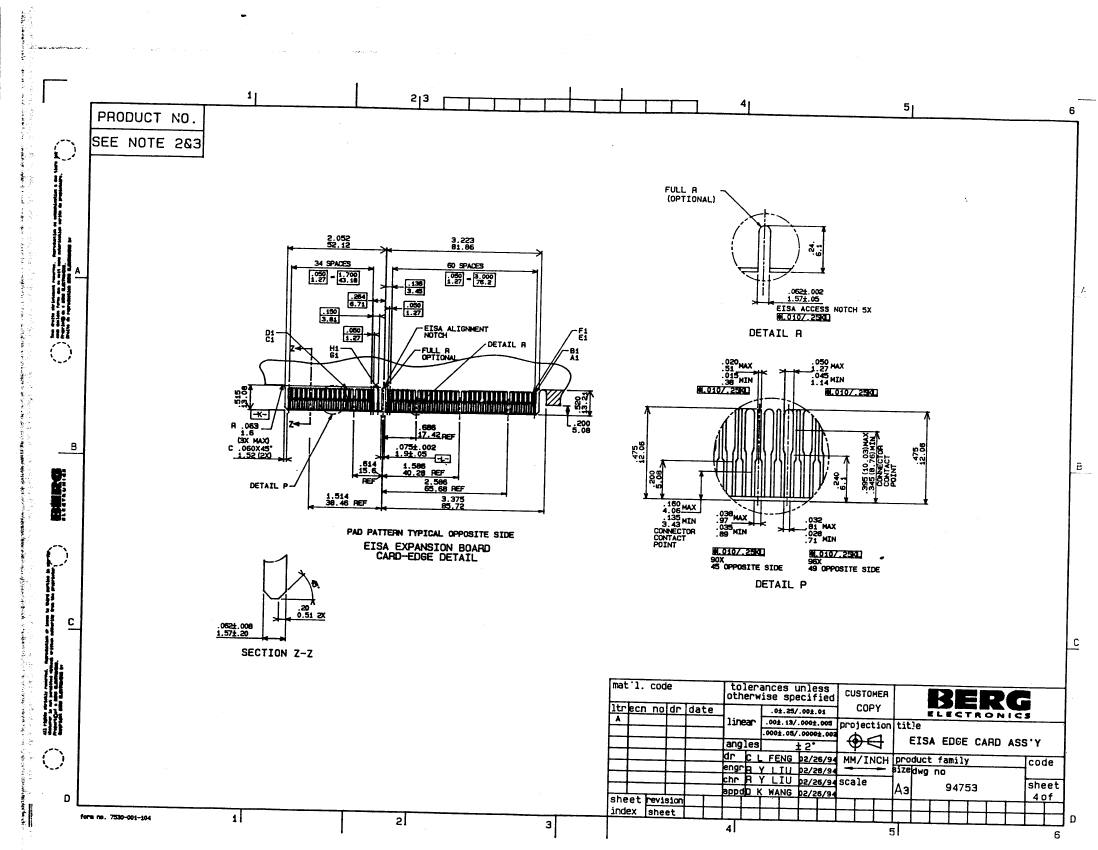

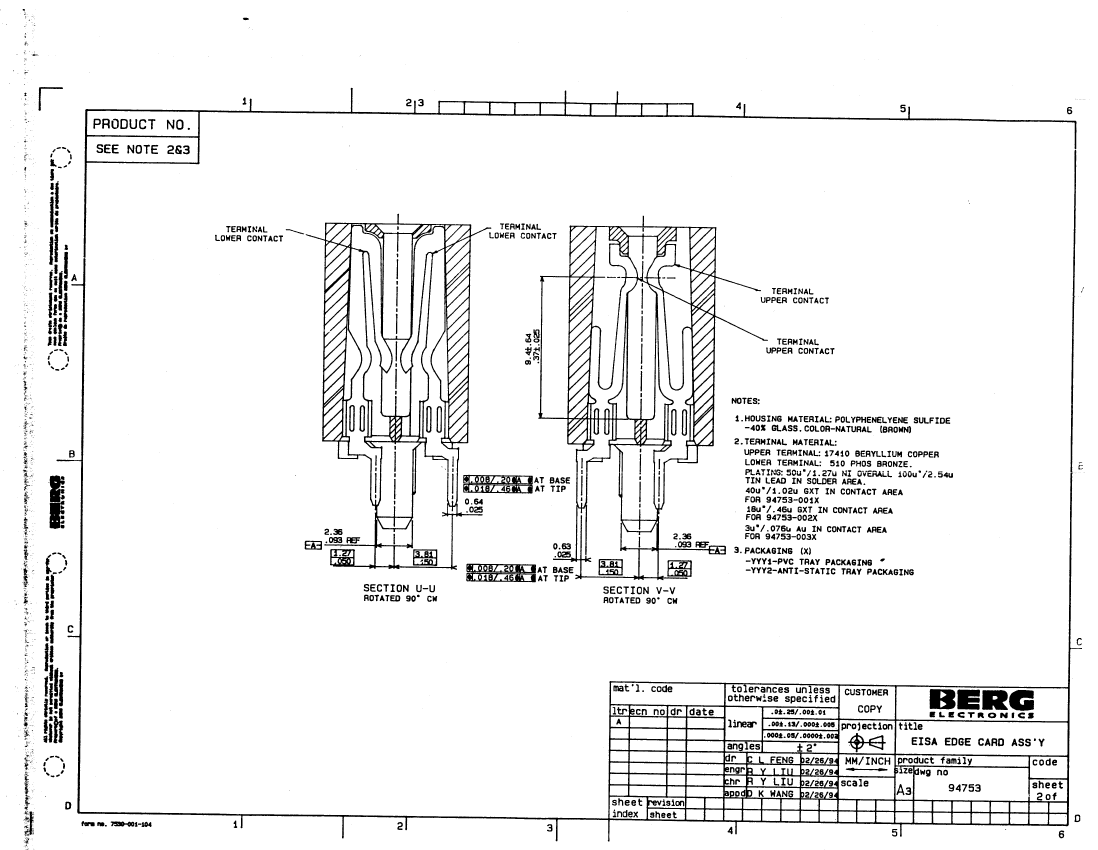

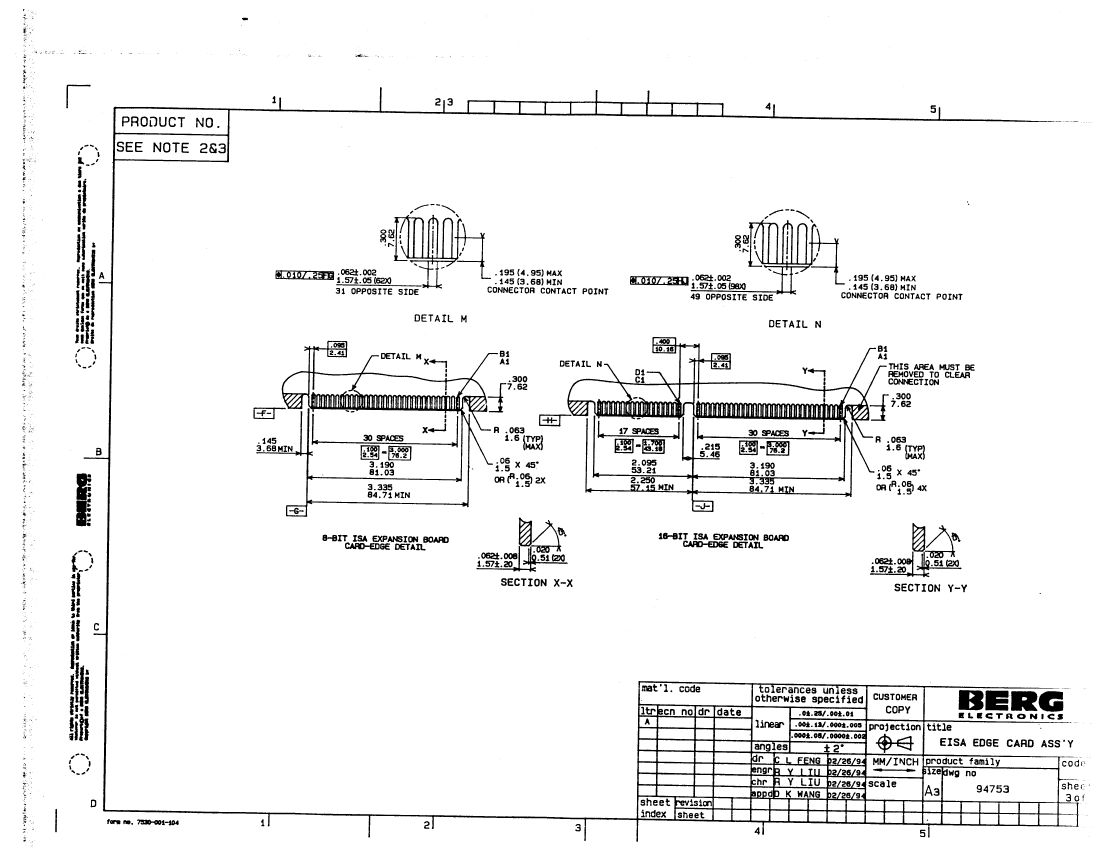

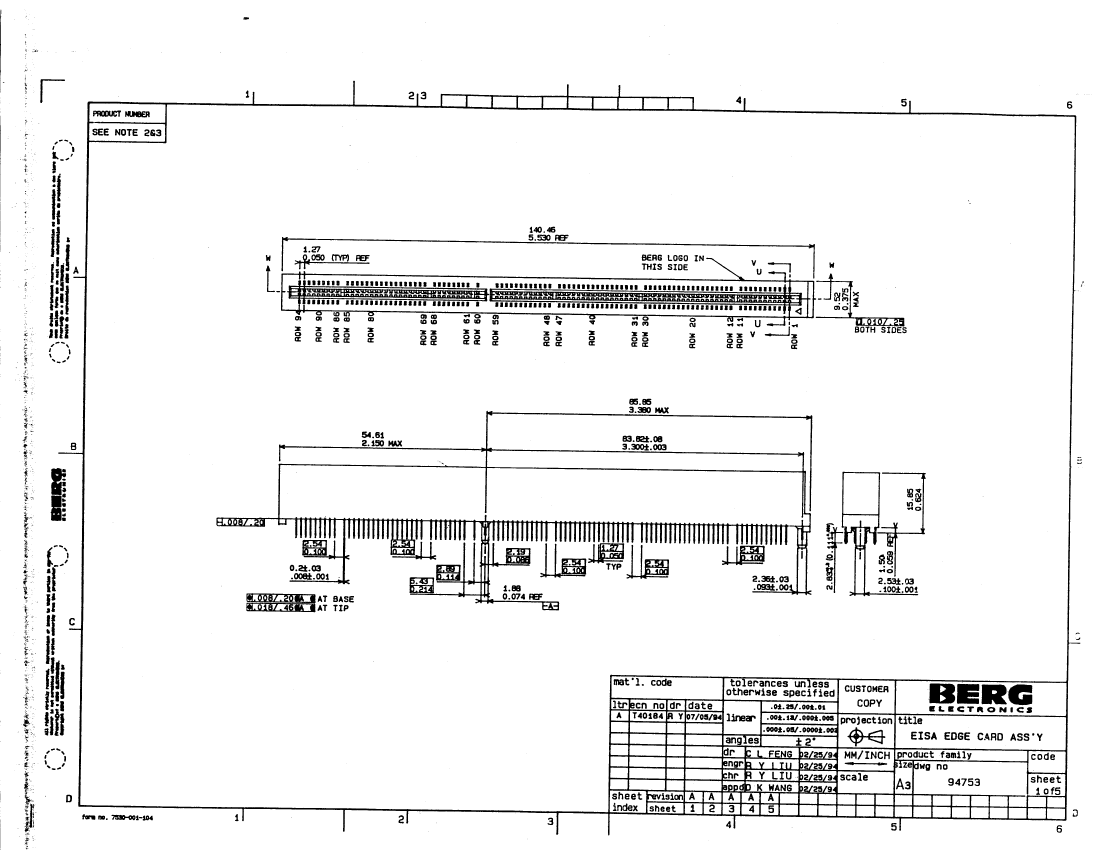

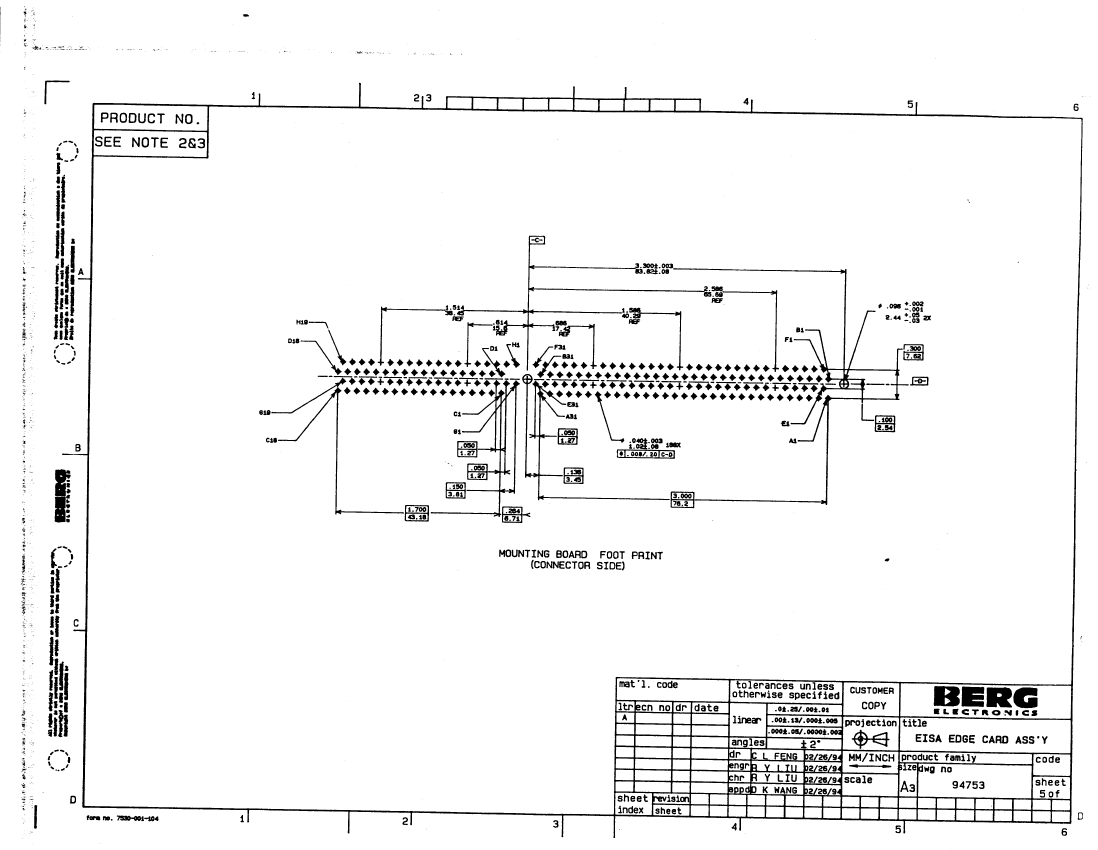

Preview

Download Datasheet

View All

94753-0011 Related Products

	94753-0011	94753-0032	94753-0022	94753-0031	94753-0021	94753-0012
Description	Card Edge Connector, 188 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,	Card Edge Connector, 188 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,	Card Edge Connector, 188 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,	Card Edge Connector, 188 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,	Card Edge Connector, 188 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,	Card Edge Connector, 188 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	NICKEL PALLADIUM GOLD (40) OVER NICKEL	GOLD (3) OVER NICKEL	NICKEL PALLADIUM GOLD (18) OVER NICKEL	GOLD (3) OVER NICKEL	NICKEL PALLADIUM GOLD (18) OVER NICKEL	NICKEL PALLADIUM GOLD (40) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	94753	94753	94753	94753	94753	94753
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	188	188	188	188	188	188
Base Number Matches	1	1	1	1	1	-
