92265-304 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 92265-304

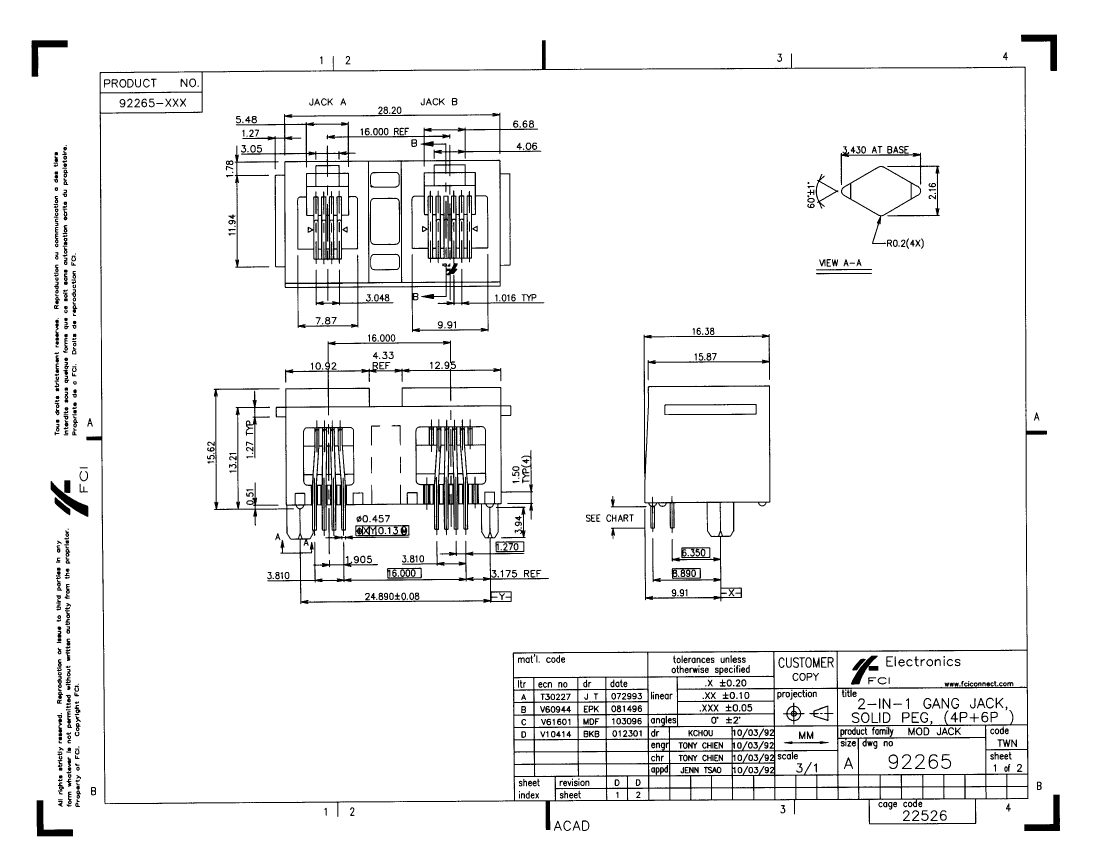

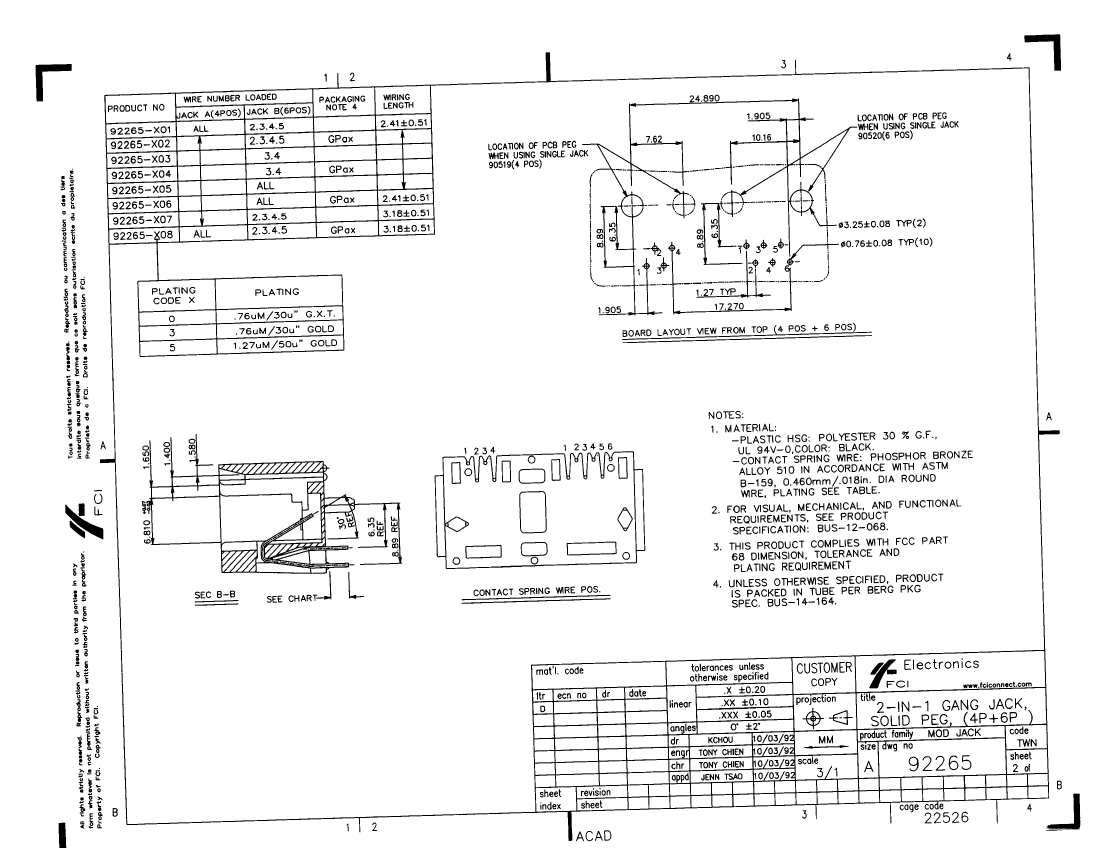

92265-304: DescriptionTelecom and Datacom Connector, 6 Contact(s), Female, Straight, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size176KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

92265-304 Overview

Telecom and Datacom Connector, 6 Contact(s), Female, Straight, Solder Terminal, Locking, Jack

92265-304 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	1 PORT, 4-POSITION EACH; 1 PORT, 2-POSITION EACH
Board mount options	PEG
body width	0.645 inch
subject depth	0.615 inch
body length	1.21 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Durability	250 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	92265
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	2
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	GLASS FILLED POLYESTER
Terminal length	0.095 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

92265-304 Related Products

	92265-304	92265-002	92265-004	92265-008	92265-306	92265-307	92265-302	92265-303	92265-305	92265-501
Description	Telecom and Datacom Connector, 6 Contact(s), Female, Straight, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 8 Contact(s), Female, Straight, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 6 Contact(s), Female, Straight, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 8 Contact(s), Female, Straight, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 10 Contact(s), Female, Straight, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 8 Contact(s), Female, Straight, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 8 Contact(s), Female, Straight, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 6 Contact(s), Female, Straight, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 10 Contact(s), Female, Straight, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 8 Contact(s), Female, Straight, Solder Terminal, Locking, Jack
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	1 PORT, 4-POSITION EACH; 1 PORT, 2-POSITION EACH	1 PORT, 4-POSITION EACH	1 PORT, 4-POSITION EACH; 1 PORT, 2-POSITION EACH	1 PORT, 4-POSITION EACH	1 PORT, 4-POSITION EACH; 1 PORT, 6-POSITION EACH	1 PORT, 4-POSITION EACH	1 PORT, 4-POSITION EACH	1 PORT, 4-POSITION EACH; 1 PORT, 2-POSITION EACH	1 PORT, 4-POSITION EACH; 1 PORT, 6-POSITION EACH	1 PORT, 4-POSITION EACH
Board mount options	PEG	PEG	PEG	PEG	PEG	PEG	PEG	PEG	PEG	PEG
body width	0.645 inch	0.645 inch	0.645 inch	0.645 inch	0.645 inch	0.645 inch	0.645 inch	0.645 inch	0.645 inch	0.645 inch
subject depth	0.615 inch	0.615 inch	0.615 inch	0.615 inch	0.615 inch	0.615 inch	0.615 inch	0.615 inch	0.615 inch	0.615 inch
body length	1.21 inch	1.21 inch	1.21 inch	1.21 inch	1.21 inch	1.21 inch	1.21 inch	1.21 inch	1.21 inch	1.21 inch
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU-PD-NI ON NI	AU-PD-NI ON NI	AU-PD-NI ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	GOLD (50)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Durability	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of ports	2	2	2	2	2	2	2	2	2	1
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	50u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	CSA, UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Terminal length	0.095 inch	0.095 inch	0.095 inch	0.125 inch	0.095 inch	0.125 inch	0.095 inch	0.095 inch	0.095 inch	0.095 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	6	8	6	8	10	8	8	6	10	8
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Manufacturer's serial number	92265	92265	92265	92265	92265	92265	92265	92265	92265	-
Base Number Matches	1	1	1	1	1	1	1	1	1	-
