Totalizers mechanic
Stroke, meter and revolution counters
Display 5 digits, manual reset by lever
H 410, M 410, U 410, M 411, U 411
Features
– Stroke, meter and revolution counters
– Adding
– Display 5-digits
– Reset by lever

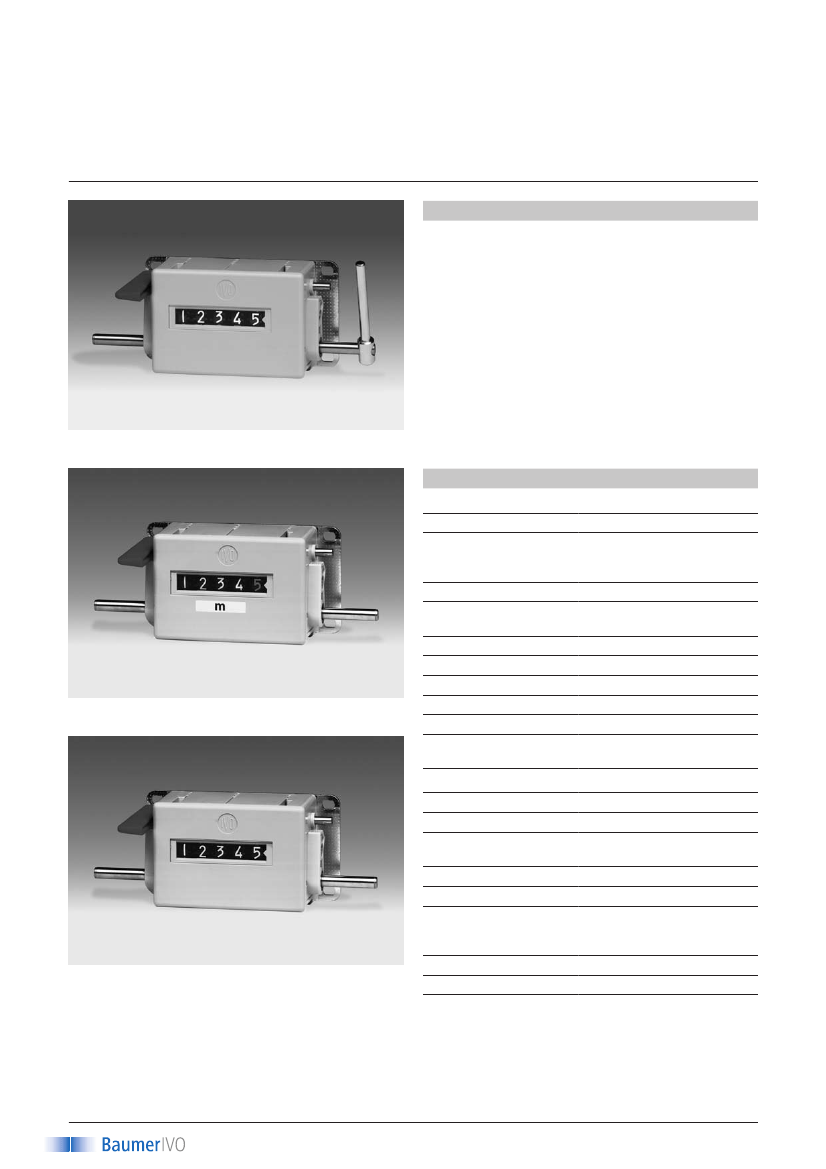

H 410 - Stroke counter
Technical data - mechanical design
Number of digits
Digit height
Reset
5-digits
7 mm
Manual by reset lever.
Do not let snap or make jerky
movements.
0...+60 °C
Surface mount housing with
mounting plate
Grey
106 x 64 x 45 mm
Base plate, 4 mounting holes
380 g
Subject to modification in technic and design. Errors and omissions excepted.
2/12/2008
Operating temperature
Housing type
Housing colour
Dimensions W x H x L
M 410 - Meter counter
Mounting
Weight approx.
Materials
H 410
Function
Display
Count mode
Drive shaft
Stroke
Stroke lever
Dimensions mounting plate 120 x 64 mm
Housing: Hostaform POM, grey
Base blate: Steel zinc-coated
Stroke counter
White numbers on black
Adding in a stroke direction to
be indicated. 1 stroke = 1 count
Both sides, ø7 mm
>38° to <60°
To be positioned on shaft at
will. Stroke lever relocates
automatically to start position.
≤500 strokes/min
99 999
U 410 - Revolution counter
Stroke frequency
Measuring range
1
www.baumerivo.com
Stroke, meter and revolution counters
Display 5 digits, manual reset by lever
Totalizers mechanic
H 410, M 410, U 410, M 411, U 411
Technical data - mechanical design
M 410
Function
Display
Count mode
Meter counter
White numbers on black
Decimal digits in red
Adding in a rotational direction
to be indicated, subtracing in
reverse direction.
See part number key
Both sides, ø7 mm
<200 m/min (measuring wheel)
1 dm, 1 cm
9999.9 m
Sense of rotation I
Meter counter
White numbers on black
Decimal digits in red
Adding in a rotational direction
to be indicated, subtracing in
reverse direction.
See part number key
Centered below, ø7 mm
<60 m/min
1 dm
9999.9 m
Revolution counter
White numbers on black
Subject to modification in technic and design. Errors and omissions excepted.
Direction of strokes and rotation
H 410, M 410, U 410
Away from user
Sense of rotation or
stroke direction I
M 411, U 411
Towards user
Sense of rotation or
stroke direction II
Drive shaft
Measuring speed
Measuring precision
Measuring range
M 411
Function
Display
Count mode
Sense of rotation II
Accessories
Measuring wheels for M 410, M 411
MR512.07A Circumf. 50 cm, knurled aluminium
MR542.07D Circumf. 50 cm, smooth Hytrel TPE-E
MR552.07A Circumf. 50 cm, smooth Vulkollan PUR
MR562.07A Circumf. 50 cm, knopped rubber NBR Nitril
MR592.07D Circumf. 50 cm, grooved Hytrel TPE-E
Drive shaft
Measuring speed
Measuring precision
Measuring range
U 410
Function
Display
Count mode
Adding in a rotational direction
to be indicated, subtracting in
reverse direction. 1 rev. = 1
count
Both sides, ø7 mm
≤3000 rpm
99 999
Revolution counter
White numbers on black
Adding in a rotational direction
to be indicated, subtracting in
reverse direction. 1 rev. = 1
count
Centered below, ø7 mm
≤1000 rpm
99 999
Drive shaft
Operating speed
Measuring range
U 411
Function
Display
Count mode
Drive shaft
Operating speed
Measuring range
2
www.baumerivo.com
2/12/2008
Totalizers mechanic
Stroke, meter and revolution counters
Display 5 digits, manual reset by lever
H 410, M 410, U 410, M 411, U 411
Part number
Stroke counter
H 410. 010
A
02
Display / direction of stroke
A
5-digits 99 999 / I
B
5-digits 99 999 / II
Count mode / drive
02
1 stroke = 1 digit / drive shaft on
both sides
Housing
A
Surface mount housing, grey
Reset
010
With reset lever
Meter counter
M 411. 010
A
03
Display / direction of rotation
C 5-digits 9999.9 / I
D
5-digits 9999.9 / II
Count mode / drive
03
2 revolutions = 10 digits
= 1.0 m / drive shaft at bottom
Housing
A
Surface mount housing, grey
Reset
010
With reset lever
Revolution counter
U 411. 010
A
01
Display / direction of rotation
A
5-digits 99 999 / I
B
5-digits 99 999 / II
Count mode / drive
01
1 revolution = 1 digit / drive shaft at
bottom
Housing
A
Surface mount housing, grey
Reset
010
With reset lever
Meter counter
M 410. 010
Display / direction of rotation
5-digits 9999.9 / I
5-digits 9999.9 / II
5-digits 999,99 / I
5-digits 999,99 / II
5-digits 9999.95 / I
5-digits 9999.95 / II
C
D
E
F
G
H
02
03
04
06
07
Count mode / drive
1 revolution = 10 digits =
1.0 m / drive shaft on both sides
2 revolutions = 10 digits =
1.0 m / drive shaft on both sides
5 revolutions = 10 digits =
1.0 m / drive shaft on both sides
5 revolutions = 100 digits =
1.0 m / drive shaft on both sides
2 revolutions = 100 digits =
1.0 m / drive shaft on both sides
Housing
A
Surface mount housing, grey
B
Surface mount housing with hinge plate
Reset
010
With reset lever
Revolution counter
Subject to modification in technic and design. Errors and omissions excepted.
2/12/2008
U 410. 010
A
Display / direction of rotation
A
5-digits 99 999 / I
B
5-digits 99 999 / II
Count mode / drive
01
1 revolution = 1 digit / drive shaft on
both sides
02
1 revolution = 10 digits / drive shaft
on both sides
Housing
A
Surface mount housing, grey
Reset
010
With reset lever
3
www.baumerivo.com
Stroke, meter and revolution counters
Display 5 digits, manual reset by lever
Totalizers mechanic
H 410, M 410, U 410, M 411, U 411

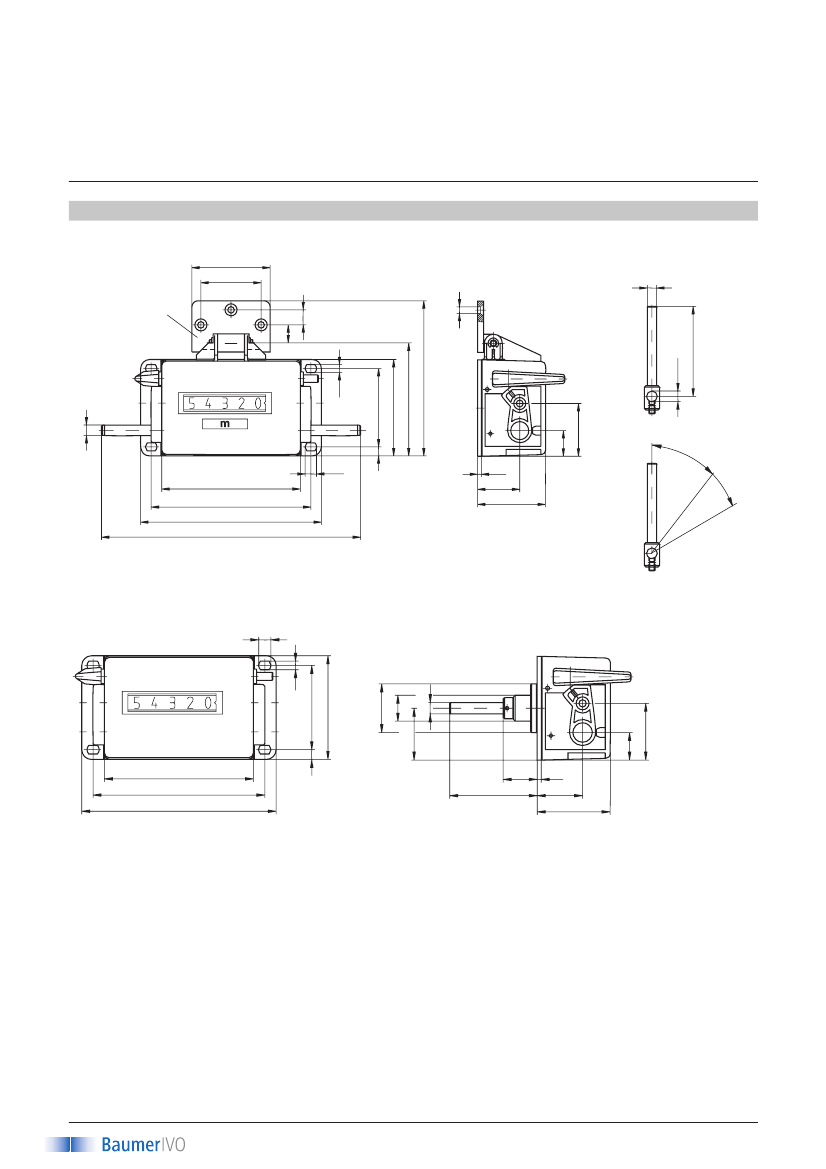

Dimensions
H 410, M 410, U 410
52
40
10
Hinged plate
12
ø4.3
Stroke lever
ø6
5.3
ø7h8
52
64
75
103
35
Stroke
min. 38°
max.
60°
7.5
92
106
120
172
6
2.5
28
45
M 411, U 411
7.5
5.3
ø30
ø16
ø7h8
52
64
17
32
6
17
35
7H11
59
92
106
120
21
54
2.5
28
45
4
www.baumerivo.com
2/12/2008
Subject to modification in technic and design. Errors and omissions excepted.
