RF Components
CU4S0506 Series (Under 1GHz)

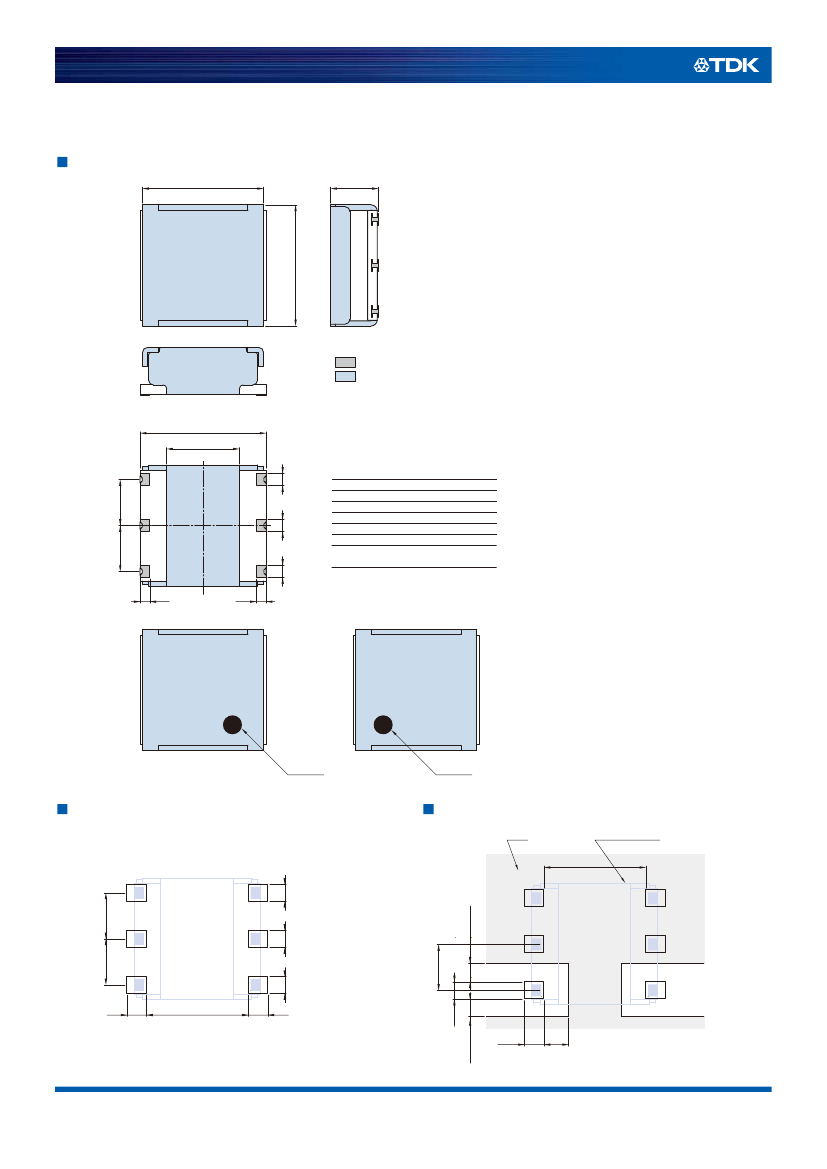

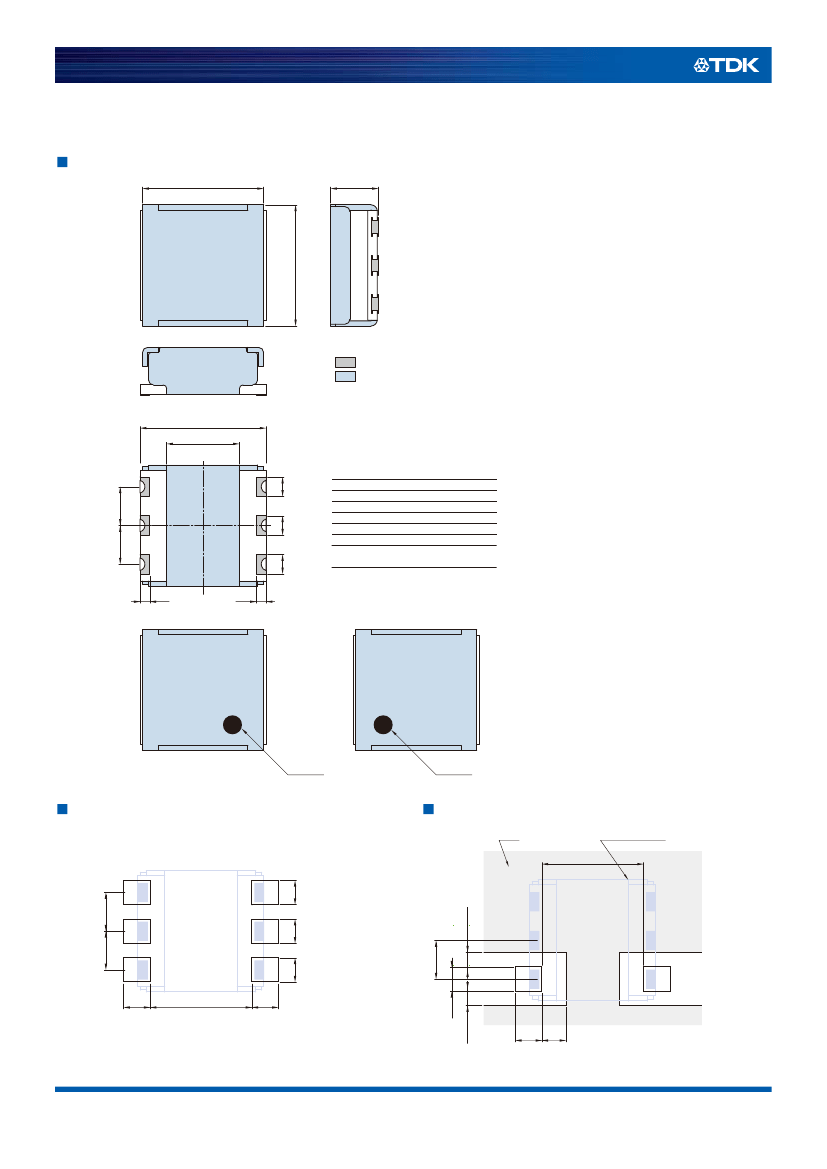

SHAPES AND DIMENSIONS
[Top view]
5.0±0.3
2.0±0.2
(3)
(4)
5.0±0.3
(2)
(5)
(1)
(6)
Terminal (Au plating)
Metal parts other than a terminal.
(GND electric potential)
Tolerance unless otherwise specified: ±0.2
Coplanarity : 0.1max.
5.2±0.3
3.0
Terminal functions
1
OUT
2
GROUND
GROUND
3
GROUND
4
5
GROUND
6
IN
Rotation Clockwise
0.5
[Bottom view]
0.5
IN
GROUND
GROUND
GROUND
GROUND
OUT
Counter
Clockwise
1.9
1.9
0.5
Dimensions in mm
0.4
[Marking]
ClockWise(CW): A
(3)
(4)
0.4
CounterClockWise(CCW): B
(3)
(4)
(2)
(5)
(2)
(5)
(1)
(6)
(1)
(6)
Marking
Marking
RECOMMENDED LAND PATTERN
RECOMMENDED PC BOARD PATTERN
GND
Isolator Outline
4.2
0.7
1.9
0.7
0.7
1.9
0.75min.
1.9
0.8
4.2
0.8
Dimensions in mm
(0.7)
Connect to
50Ω Stripline
With I/O land.
I/O
0.75min.
(0.8)
1min.
Dimensions in mm
I/O
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20151001 / rf_isolator_cu4s0506_en.fm
RF Components
CU4S0506 Series (Under 1GHz)
ELECTRICAL CHARACTERISTICS
Frequency
range
(MHz)
699 to 716
704 to 716
716 to 728
703 to 748
718 to 748
729 to 746
734 to 746
746 to 756
758 to 768
758 to 803
777 to 787
773 to 803
788 to 798
791 to 821
807 to 824
815 to 830
815 to 845
814 to 849
824 to 849
830 to 845
832 to 862
852 to 869
860 to 875
860 to 890
859 to 894
869 to 894
875 to 890
880 to 915
900 to 915
925 to 960
945 to 960
Center
frequency
(MHz)
707.5
710
722
725.5
733
737.5
740
751
763
780.5
782
788
793
806
815.5
822.5
830
831.5
836.5
837.5
847
860.5
867.5
875
876.5
881.5
882.5
897.5
907.5
942.5
952.5
Isolation
(dB)
min.
13
14
14
10
12
13
14
15
15
10
15
12
15
12
14
14
13
12
13
14
13
14
14
13
12
13
14
12
14
12
14
Insertion
loss
(dB)
max.
0.90
0.90
0.90
1.20
0.90
0.80
0.80
0.80
0.80
1.20
0.80
0.90
0.80
0.85
0.75
0.75
0.80
0.90
0.80
0.75
0.80
0.75
0.75
0.75
0.85
0.75
0.75
0.85
0.70
0.80
0.70
V.S.W.R.
Zo=50:
max.
1.6
1.6
1.6
1.8
1.7
1.6
1.5
1.5
1.5
1.8
1.5
1.7
1.5
1.7
1.6
1.6
1.6
1.7
1.6
1.6
1.6
1.6
1.6
1.6
1.7
1.6
1.6
1.7
1.5
1.7
1.5
Handling
power
(W)
max.
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Reflection
power
(W)
4
max.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Part Number
ClockWise
CU4S0506AT-707-00
CU4S0506AT-710-00
CU4S0506AT-722-00
CU4S0506AT-725-00
CU4S0506AT-733-00
CU4S0506AT-737-00
CU4S0506AT-740-00
CU4S0506AT-751-00
CU4S0506AT-763-00
CU4S0506AT-780-00
CU4S0506AT-782-00
CU4S0506AT-788-00
CU4S0506AT-793-00
CU4S0506AT-806-00
CU4S0506AT-815-00
CU4S0506AT-822-00
CU4S0506AT-830-00
CU4S0506AT-831-00
CU4S0506AT-836-00
CU4S0506AT-837-00
CU4S0506AT-847-00
CU4S0506AT-860-00
CU4S0506AT-867-00
CU4S0506AT-875-00
CU4S0506AT-876-00
CU4S0506AT-881-00
CU4S0506AT-882-00
CU4S0506AT-897-00
CU4S0506AT-907-00
CU4S0506AT-942-00
CU4S0506AT-952-00
CounterClockWise
CU4S0506BT-707-00
CU4S0506BT-710-00
CU4S0506BT-722-00
CU4S0506BT-725-00
CU4S0506BT-733-00
CU4S0506BT-737-00
CU4S0506BT-740-00
CU4S0506BT-751-00
CU4S0506BT-763-00
CU4S0506BT-780-00
CU4S0506BT-782-00
CU4S0506BT-788-00
CU4S0506BT-793-00
CU4S0506BT-806-00
CU4S0506BT-815-00
CU4S0506BT-822-00
CU4S0506BT-830-00
CU4S0506BT-831-00
CU4S0506BT-836-00
CU4S0506BT-837-00
CU4S0506BT-847-00
CU4S0506BT-860-00
CU4S0506BT-867-00
CU4S0506BT-875-00
CU4S0506BT-876-00
CU4S0506BT-881-00
CU4S0506BT-882-00
CU4S0506BT-897-00
CU4S0506BT-907-00
CU4S0506BT-942-00
CU4S0506BT-952-00
Characteristic Impedance (:) : 50(Nominal)
4
To be kept below +85deg.C at the bottom surface
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20151001 / rf_isolator_cu4s0506_en.fm
RF Components
CU4S0506 Series (Over 1GHz)
SHAPES AND DIMENSIONS
