AS7M64P3512-15C datasheet, PDF

Datasheet> All Categories > storage> storage> AS7M64P3512-15C

AS7M64P3512-15C: DescriptionCache SRAM Module, 64KX64, 15ns, PDMA160; Categorystorage storage; File Size422KB，4 Pages; ManufacturerALSC [Alliance Semiconductor Corporation]

Download Datasheet Parametric Compare View All

AS7M64P3512-15C Overview

Cache SRAM Module, 64KX64, 15ns, PDMA160

AS7M64P3512-15C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIMM, DIMM160
Reach Compliance Code	unknown
Maximum access time	15 ns
I/O type	COMMON
JESD-30 code	R-PDMA-N160
memory density	4194304 bit
Memory IC Type	CACHE SRAM MODULE
memory width	64
Number of terminals	160
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX64
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIMM
Encapsulate equivalent code	DIMM160
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
power supply	3.3 V
Certification status	Not Qualified
Maximum standby current	0.02 A
Minimum standby current	3.15 V
Maximum slew rate	0.52 mA
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

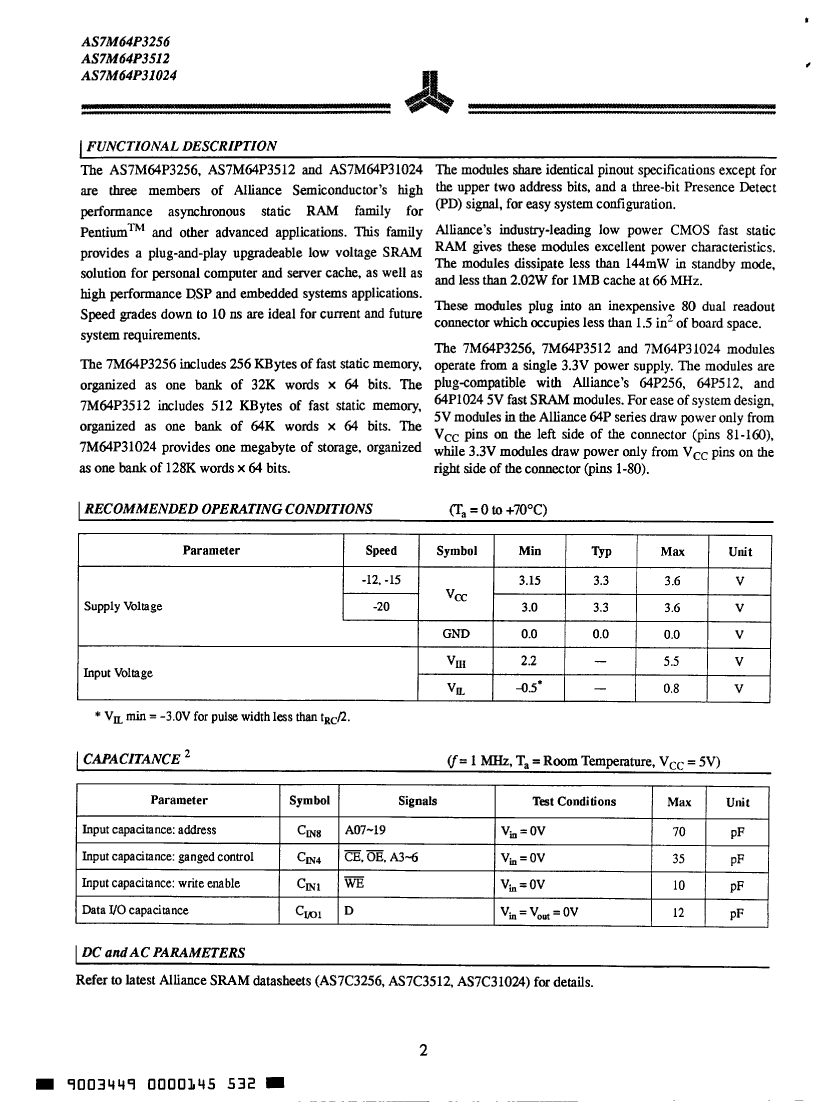

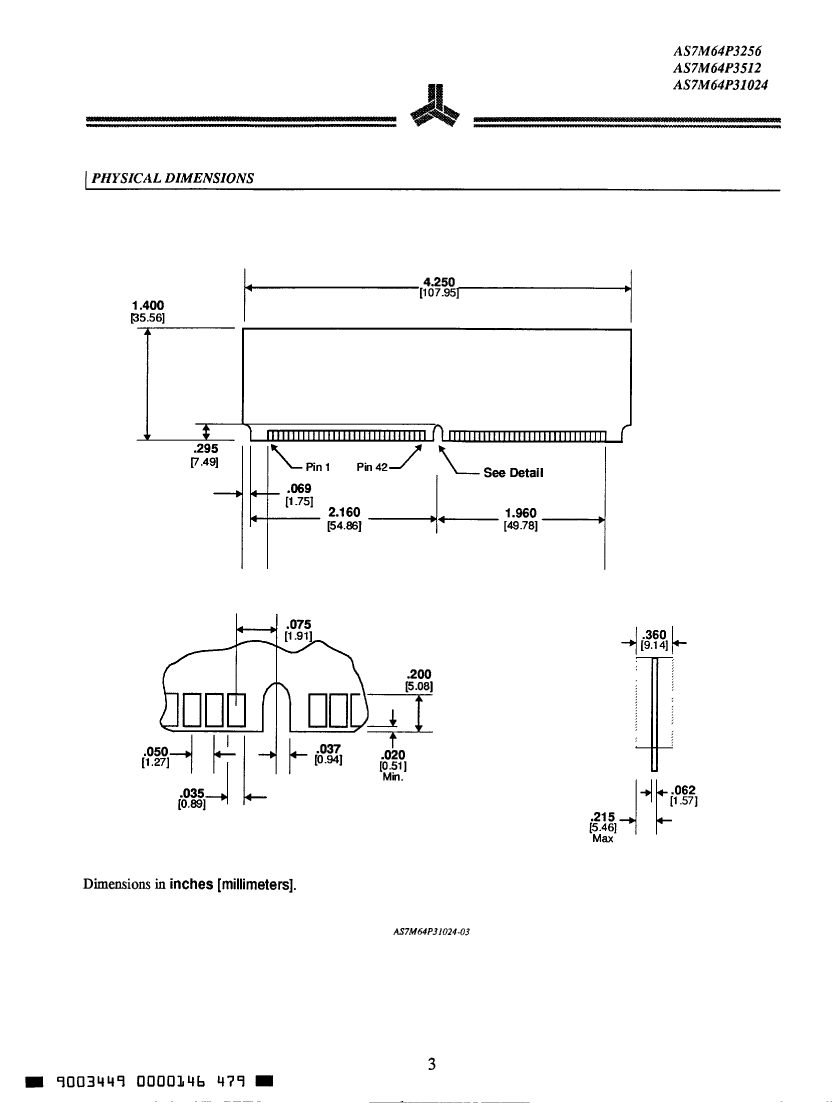

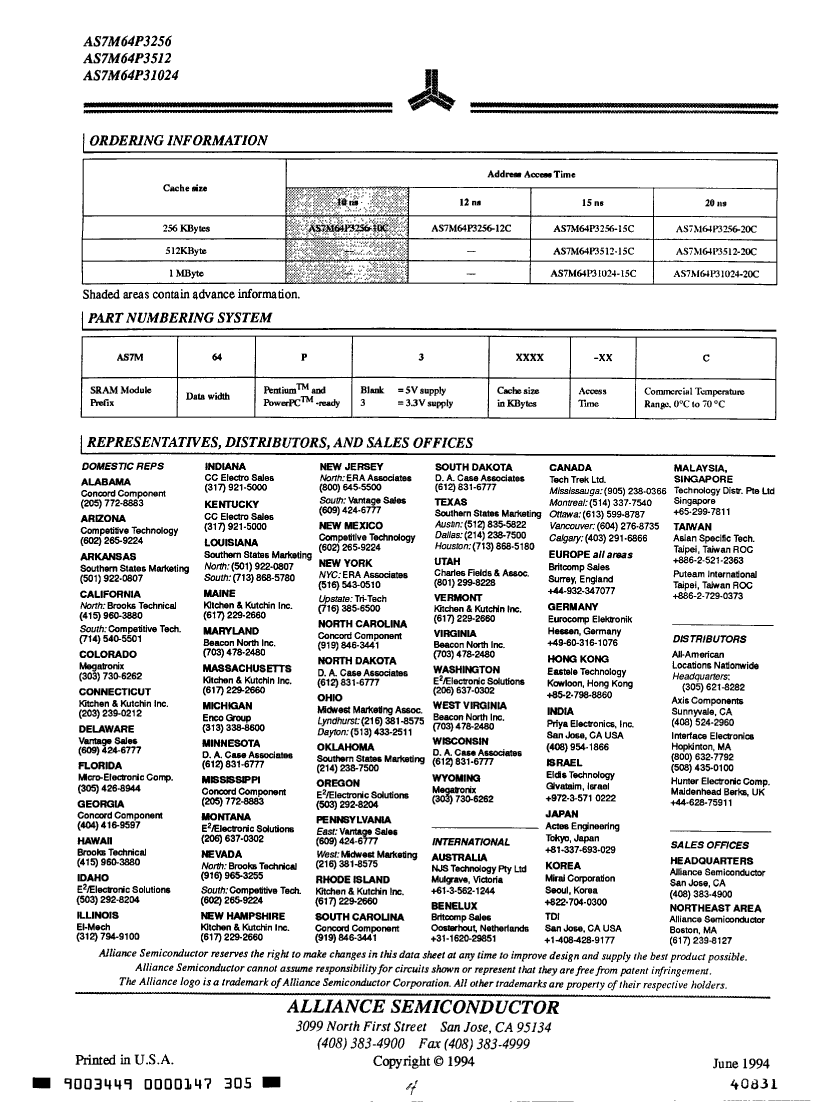

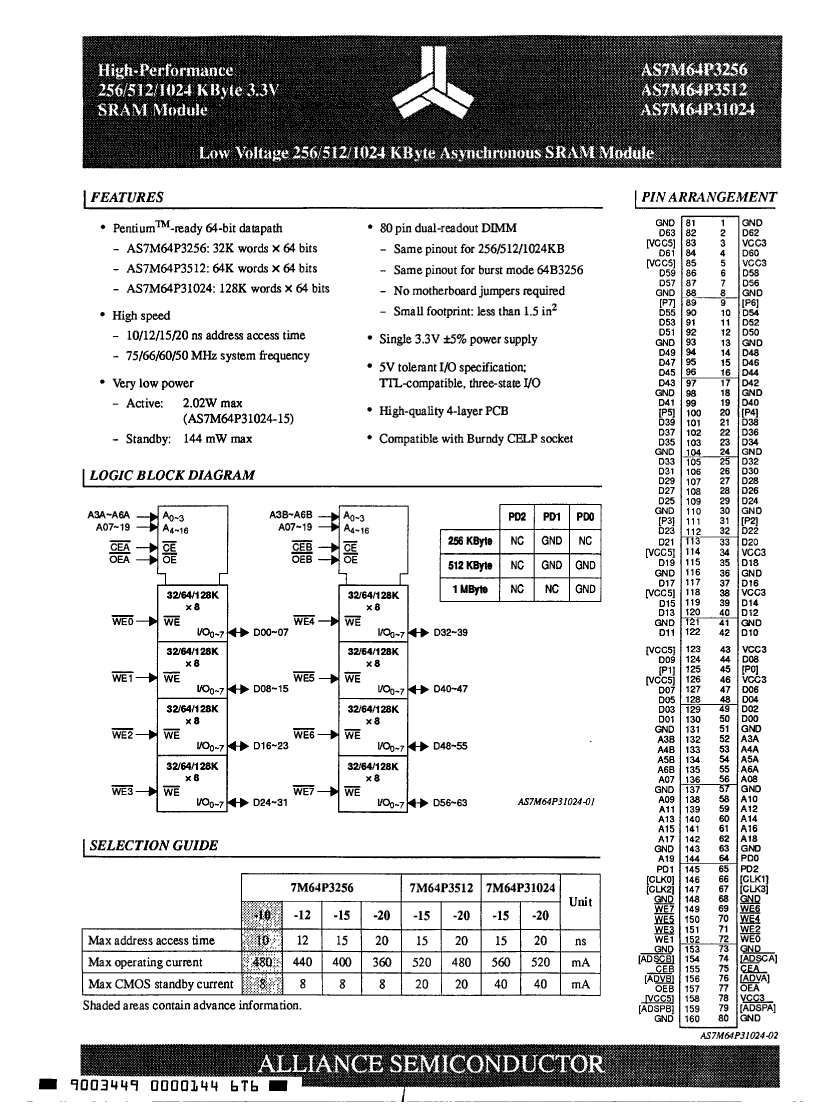

Preview

Download Datasheet

View All

AS7M64P3512-15C Related Products

	AS7M64P3512-15C	AS7M64P3256-12C	AS7M64P3512-20C	AS7M64P31024-15C	AS7M64P3256-20C
Description	Cache SRAM Module, 64KX64, 15ns, PDMA160	Cache SRAM Module, 32KX64, 12ns, PDMA160	Cache SRAM Module, 64KX64, 20ns, PDMA160	Cache SRAM Module, 128KX64, 15ns, PDMA160	Cache SRAM Module, 32KX64, 20ns, PDMA160
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIMM, DIMM160	DIMM, DIMM160	DIMM, DIMM160	DIMM, DIMM160	DIMM, DIMM160
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Maximum access time	15 ns	12 ns	20 ns	15 ns	20 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDMA-N160	R-PDMA-N160	R-PDMA-N160	R-PDMA-N160	R-PDMA-N160
memory density	4194304 bit	2097152 bit	4194304 bit	8388608 bit	2097152 bit
Memory IC Type	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE
memory width	64	64	64	64	64
Number of terminals	160	160	160	160	160
word count	65536 words	32768 words	65536 words	131072 words	32768 words
character code	64000	32000	64000	128000	32000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	64KX64	32KX64	64KX64	128KX64	32KX64
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIMM	DIMM	DIMM	DIMM	DIMM
Encapsulate equivalent code	DIMM160	DIMM160	DIMM160	DIMM160	DIMM160
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	3.3 V	3.3 V	3.3 V	5 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.02 A	0.008 A	0.02 A	0.08 A	0.008 A
Minimum standby current	3.15 V	3.15 V	3 V	3.15 V	3 V
Maximum slew rate	0.52 mA	0.44 mA	0.48 mA	0.56 mA	0.36 mA
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	5 V	3.3 V
surface mount	NO	NO	NO	NO	NO
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	-	-
Maker	-	ALSC [Alliance Semiconductor Corporation]	-	ALSC [Alliance Semiconductor Corporation]	ALSC [Alliance Semiconductor Corporation]
