AM-450-2M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> AM-450-2M

AM-450-2M: DescriptionOperational Amplifier, 1 Func, BIPolar, MBCY8,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size334KB，4 Pages; ManufacturerDATEL Inc.

Download Datasheet Parametric Compare View All

AM-450-2M Overview

Operational Amplifier, 1 Func, BIPolar, MBCY8,

AM-450-2M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.25 µA
frequency compensation	YES
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
power supply	+-15 V
Certification status	Not Qualified
Maximum slew rate	6 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Base Number Matches	1

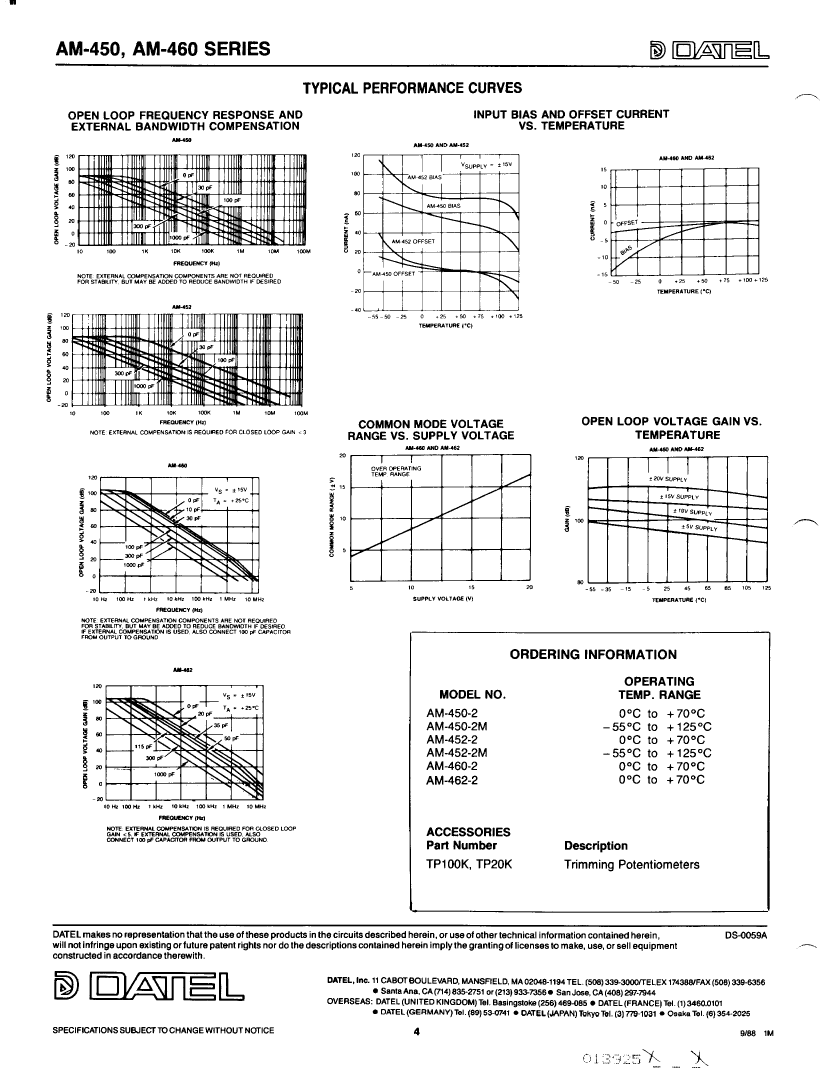

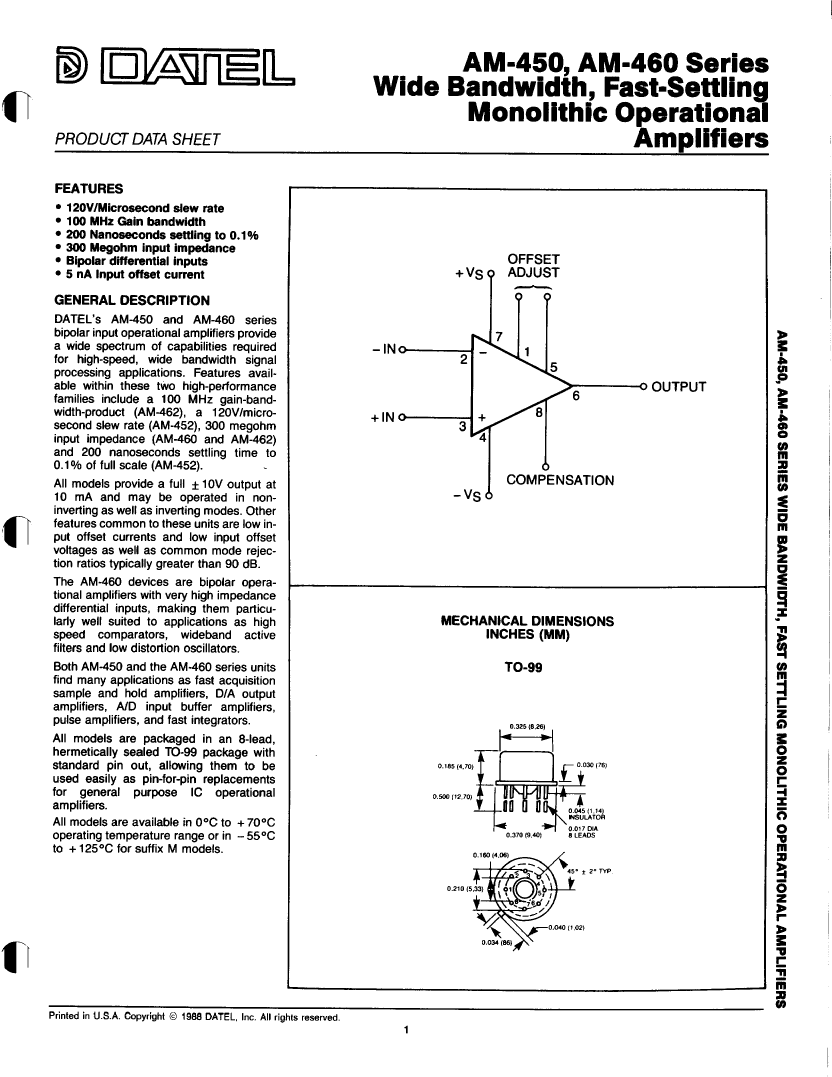

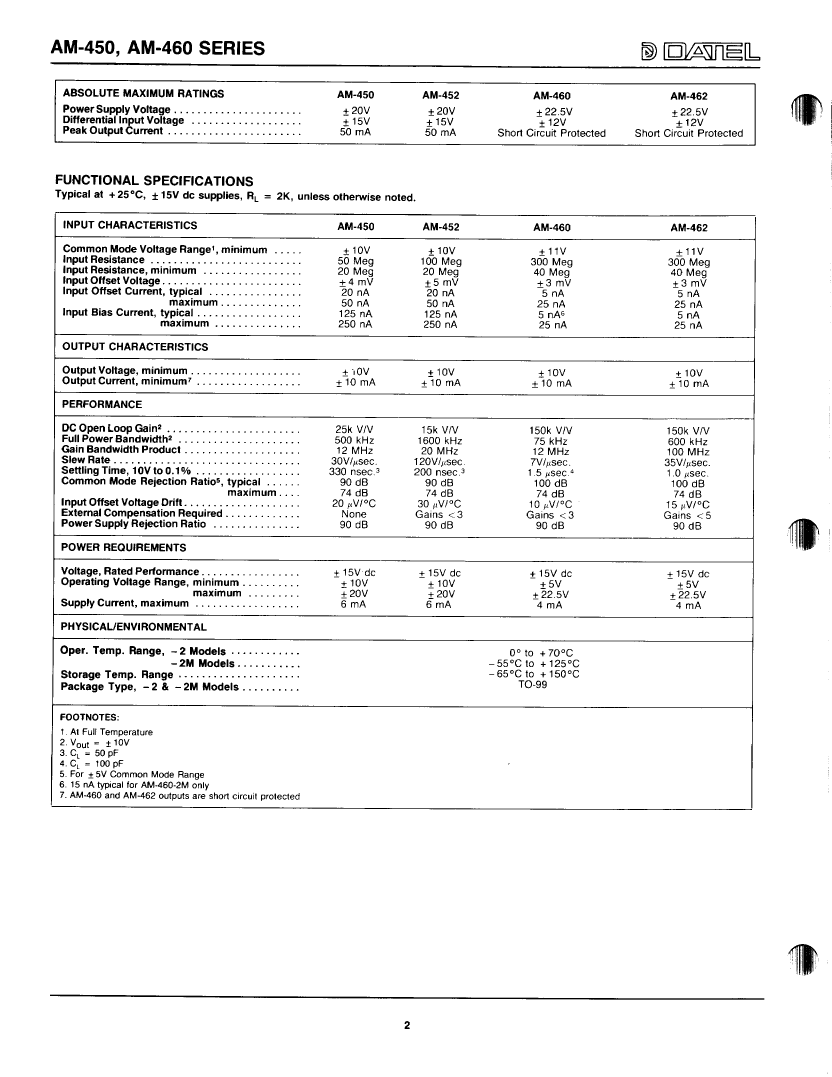

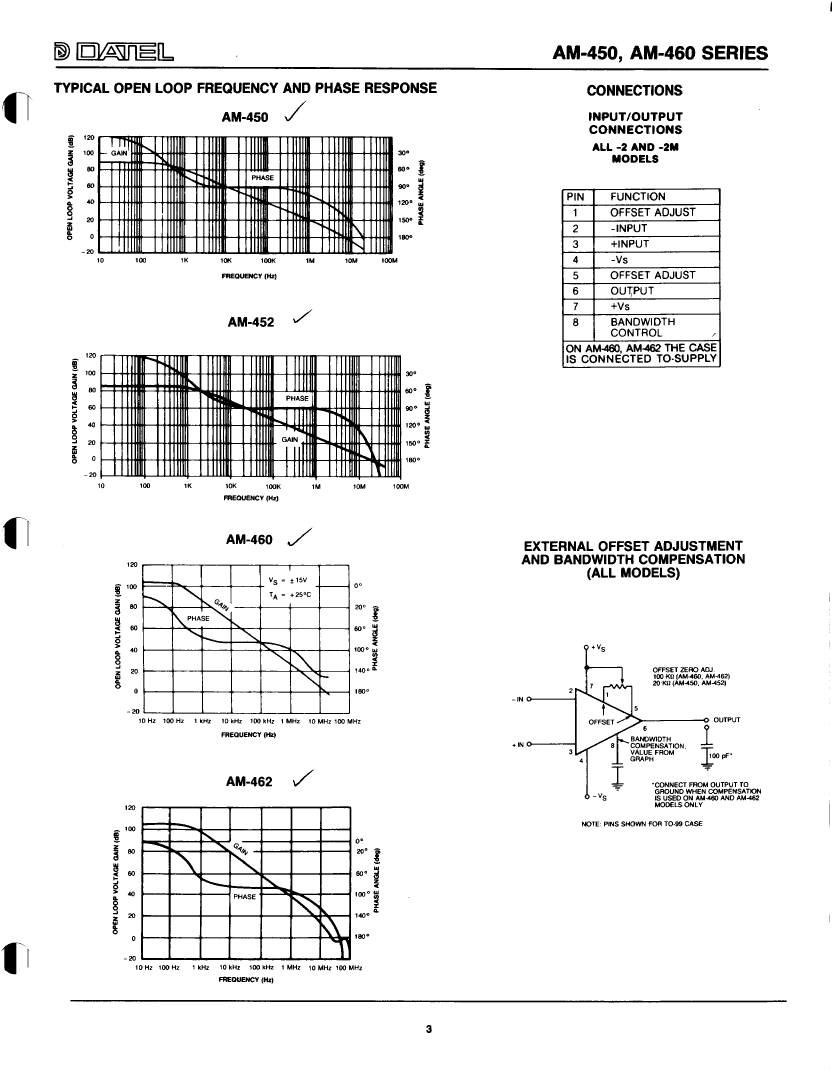

Preview

Download Datasheet

View All

AM-450-2M Related Products

	AM-450-2M	AM-460-2	AM-462-2	AM-450-2	AM-462-1M
Description	Operational Amplifier, 1 Func, BIPolar, MBCY8,	Operational Amplifier, 1 Func, BIPolar, MBCY8,	Operational Amplifier, 1 Func, BIPolar, MBCY8,	Operational Amplifier, 1 Func, BIPolar, MBCY8,	Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, CDIP14,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.25 µA	0.025 µA	0.025 µA	0.25 µA	0.005 µA
frequency compensation	YES	YES	YES (AVCL>=5)	YES	YES (AVCL>=5)
JESD-30 code	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	R-XDIP-T14
JESD-609 code	e0	e0	e0	e0	e0
low-dissonance	NO	NO	NO	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1
Number of terminals	8	8	8	8	14
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C	125 °C
Package body material	METAL	METAL	METAL	METAL	CERAMIC
Encapsulate equivalent code	CAN8,.2	CAN8,.2	CAN8,.2	CAN8,.2	DIP14,.3
Package shape	ROUND	ROUND	ROUND	ROUND	RECTANGULAR
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	IN-LINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	6 mA	4 mA	4 mA	6 mA	4 mA
Supply voltage upper limit	20 V	22.5 V	22.5 V	20 V	22 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	WIRE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	DUAL
Base Number Matches	1	1	1	1	-
Maker	-	DATEL Inc.	DATEL Inc.	-	DATEL Inc.
Nominal slew rate	-	7 V/us	35 V/us	-	35 V/us
