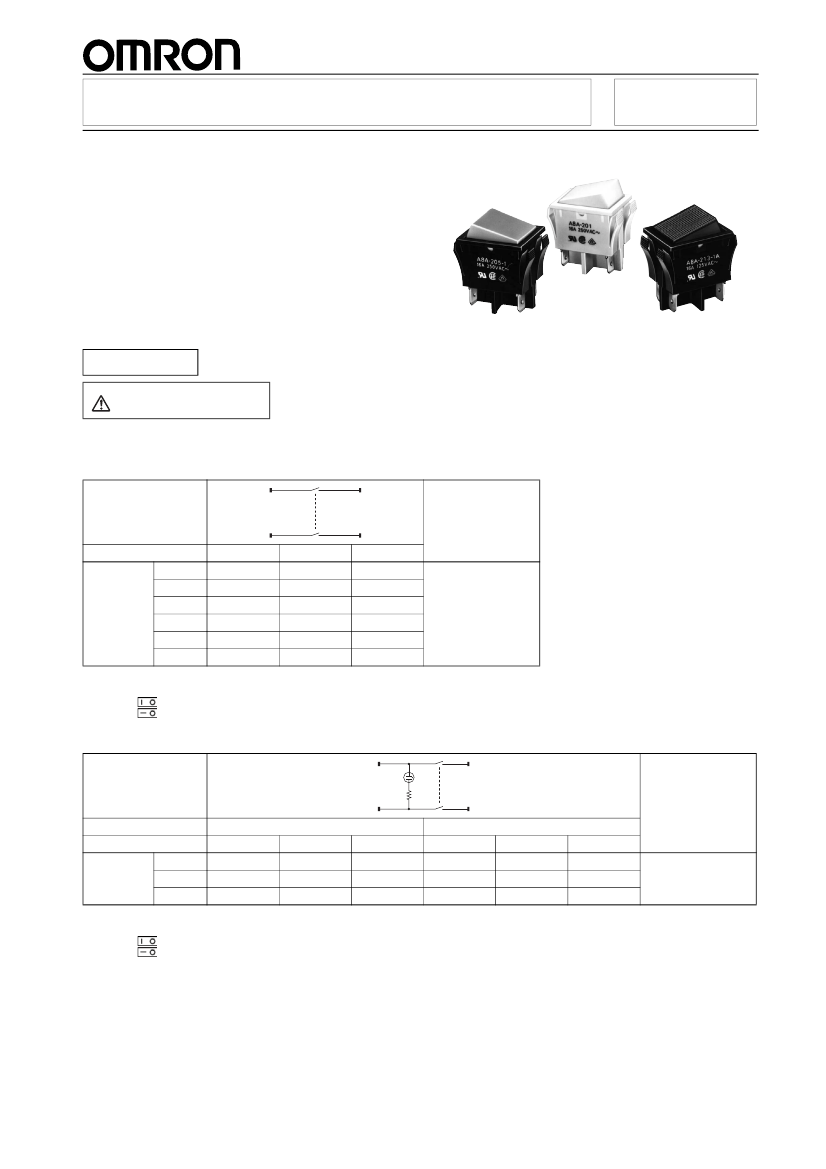

For the condition in individual standard, contact your OMRON sales representative.
*
Condition in the Neon lamp illuminated models are excluded.
2
A8A

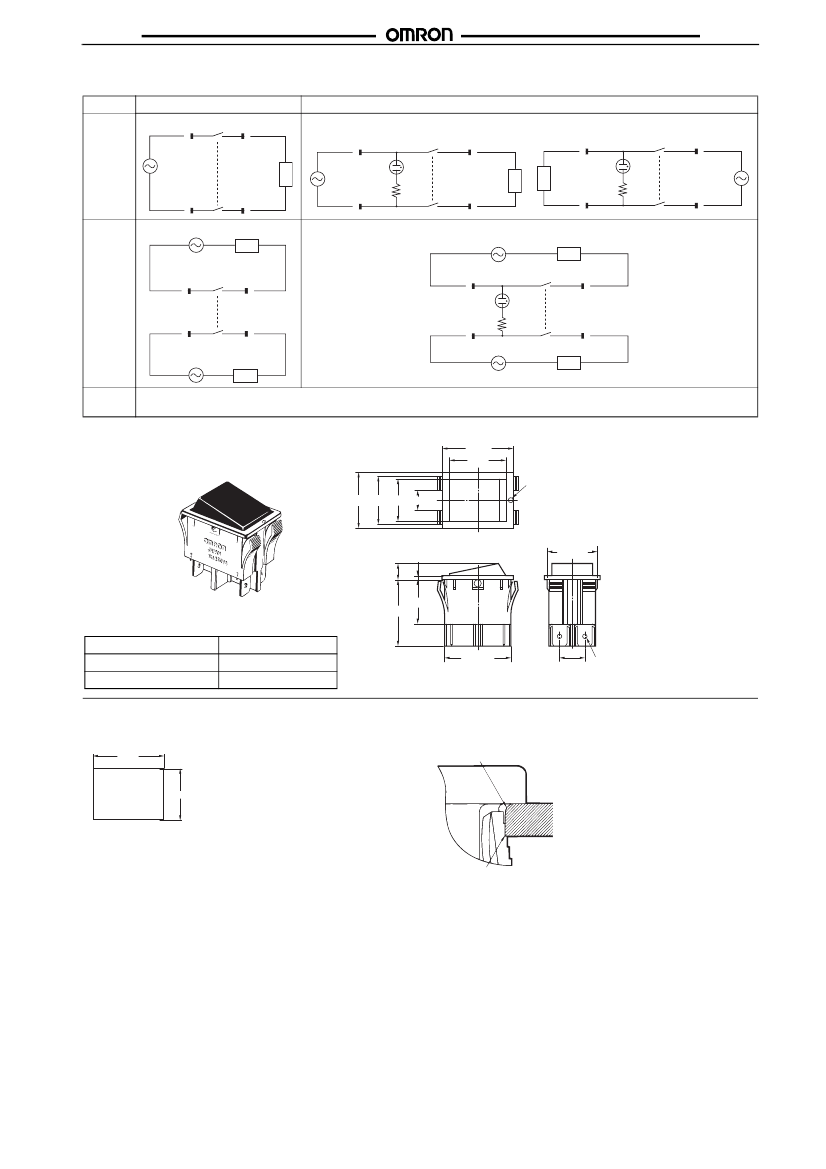

■Operating
Circuit
Non-illuminated Models
Fig. A
2
1
A8A
Neon lamp illuminated Models
Fig. C
Illuminated in accordance with power source
2
Load
1
Load
Load
Fig. D
Illuminated in accordance with switch-on
2
1
Correct
wiring
4
3
4
3
4
3
Fig. B
Load
Fig. E
250 VAC
Load
Incorrect
wiring
2
1
2
1
4
3
4
3
Load
Load
125 VAC
Note
1.
Do not apply any different voltage between the couple of terminals 1- 2, and 3- 4.
2.
Safety standards approved for the figures A, C, and D.
■Dimensions
(Unit: mm)
32
±0.5
25.2
OFF mark
1.6 dia.
sink
25
±0.5
21.2 19.2 9.2
A8A
1.7
±0.2
8
±1
FP
32
±0.5
25.2
21.8
±0.2
20
■Operating
Characteristics
Operating force (OF) max.
Free Position (FP)
Operating Position (OF)
19.6 N {2,000 gf}
8±1 mm
5±1 mm
30
±1
29.6
±0.3
10.8
#250 Quick connect
terminal (t=0.8)
Note:
Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
■Panel
Cutout
30
+0.4
0
Play R
22
+0.4
0
Note:
Recommended panel thickness:
1.0 to 3.0 mm.
Edge
When processing the panel, be sure
that the Play R is on the switch
operation side.
Be sure that the Edge is on the
reverse side of panel when
processing.
3
A8A
■Optional
Accessories (Sold separately)
Rubber cap for high dustproof.
A8A
A8A RUBBER CAP
0.5
10.5
0.5
2.2
37.2
29.2
21.8
30
Cendition the cap on Switch
■Precautions
Be sure to read the Safety precautions of A8A Rocker Switches for correct use.
•
Application examples provided in this document are for reference only. In actual applications, confirm equipment functions and safety before using the product.
•
Consult your OMRON representative before using the product under conditions which are not described in the manual or applying the product to nuclear control systems, railroad
systems, aviation systems, vehicles, combustion systems, medical equipment, amusement machines, safety equipment, and other systems or equipment that may have a serious
influence on lives and property if used improperly. Make sure that the ratings and performance characteristics of the product provide a margin of safety for the system or
equipment, and be sure to provide the system or equipment with double safety mechanisms.
Note: Do not use this document to operate the Unit.
