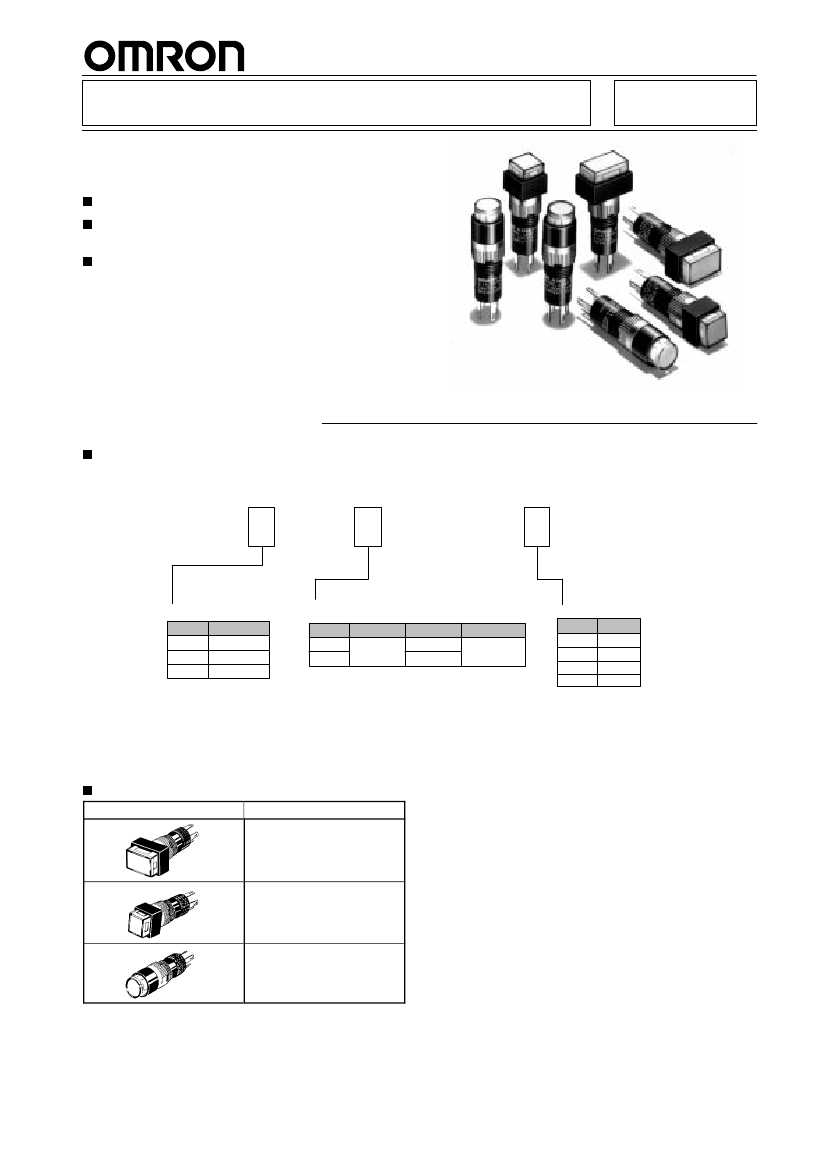

Lighted Pushbutton Switch
Lighted Pushbutton Switch with
Cylindrical 18-mm
×
8-dia. Body
Good illumination with even surface brightness.
Cylindrical body means panel cutouts can be made
easily.
Combines miniature design with excellent operat-
ing sensitivity.
A3D
Ordering Information
Model Number Legend:
The model numbers used to order sets of Units are illustrated below. One set comprises the Pushbutton (LED lamp built-in) and Switch.
(1)
(2)
(3)
A3DJ-90A1-00ER
(1) Shape of Pushbutton
Symbol
J
A
T
Shape
Rectangular
Square
Round
(2) Switch Specifications
Microload (30 VDC, 0.1 A)
Symbol
A
B
Solder
Terminals
Operation
Momentary
Alternate
SPST-NO
Contact
(3) Color of Pushbutton
Symbol
R
Y
G
Minimum applicable load: 1 mA at 5 VDC
Standard load models are not available.
If PCB terminals are required, use the Socket
given under
Accessories
on page 19.
Momentary operation: Self-resetting
Alternate operation: Self-holding
Color
Red
Yellow
Green
W
White
All models are illumination-
only. Colored-illumination mod-
els are not available.
Non-lighted models are not
available.
An external resistor is
required. (Refer to page 25.)
List of Models
Appearance
Rectangular
A3DJ
Model
Square
A3DA
Round
A3DT
17
A3D
Ordering as a Set
A3D

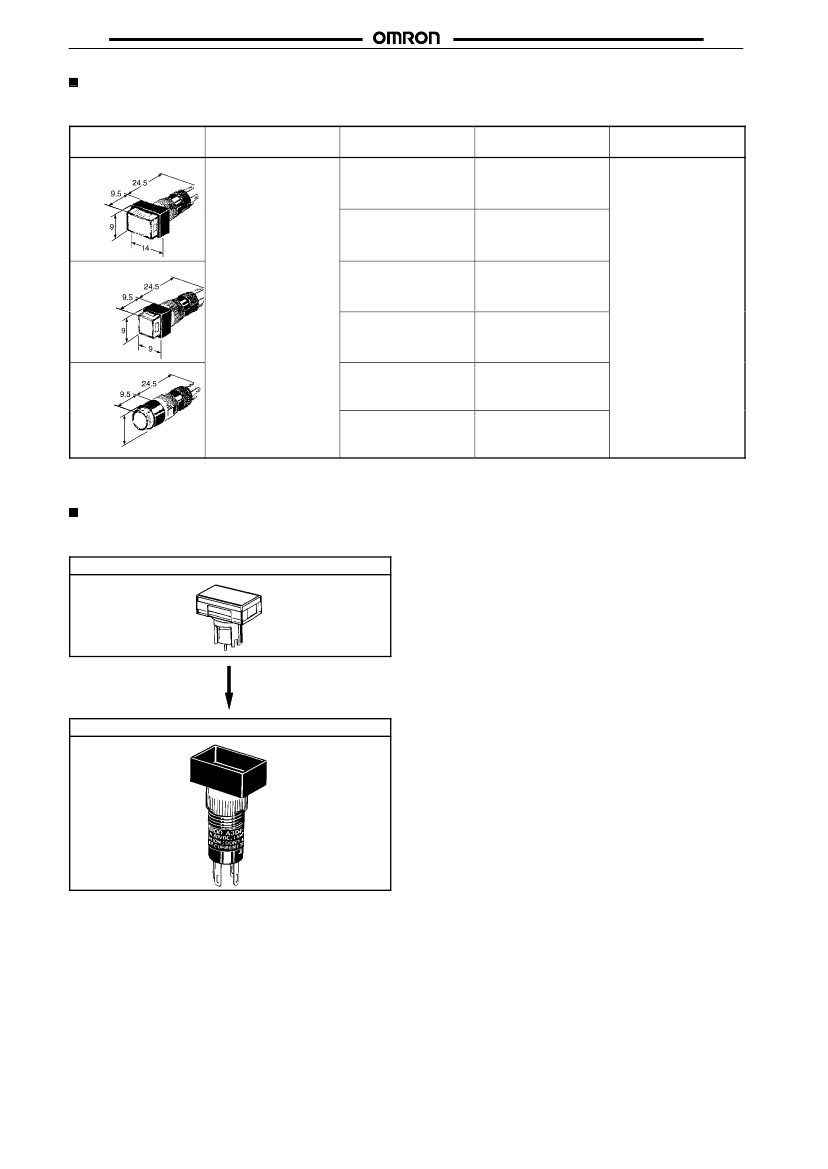

The model numbers used to order sets of Units are given in the following table. One set comprises the Pushbutton (LED lamp built-in), and
Switch.
Appearance
A3DJ (Rectangular)
Degree of protection
IP40
Operation
Momentary
Model number
A3DJ-90A1-00Ej
Color symbol for
Pushbutton
R, Y, G, W
Alternate
A3DJ-90B1-00Ej
A3DA (Square)
Momentary
A3DA-90A1-00Ej
Alternate
A3DA-90B1-00Ej
A3DT (Round)
Momentary
A3DT-90A1-00Ej
Alternate
9 dia.
A3DT-90B1-00Ej
Note:
1. Enter the desired color symbol for the Pushbutton in
j.
2. All the above are solder-terminal, microload, SPST-NO, LED lamp-lighted models.
Ordering Individually
Pushbuttons and Switches can be ordered separately. Combinations that are not available as sets can be created using individual Units. Also,
store the parts as spares for maintenance and repairs.
Pushbutton (LED built-in)
Switch
18
A3D
A3D
Specifications
Ratings
Contact Rating: 30 VDC, 0.1 A (Minimum Appli-
cable Load: 5 VDC, 1 mA)
The above ratings conform to JIS C4505, for testing under the fol-
lowing conditions.
1.
2.
3.
4.
Load: Resistive load
Mounting conditions: No vibration or shock
Ambient temperature: 20
$2_C.
Operating frequency: 20 times/min.
Built-in LED Lamp
Item
e
Red
Forward voltage, V
F
o a d o age,
Forward cu e , I
F
o a d current,
Permissible dissipation, PD
Reverse voltage, V
R
Note:
Reference value (See note 3.)
Maximum value
Reference value
Absolute maximum value
Absolute maximum value
Absolute maximum value
1.7 V
2.0 V
20 mA
50 mA
100 mW
4 mW
Color
Yellow (White)
(See note 4.)
2.2 V
2.5 V
20 mA
50 mA
125 mW
4 mW
1.7 V
2.0 V
20 mA
50 mA
122 mW
4 mW
Green
1. The above ratings are for an ambient temperature of 25°C.
2. The built-in LED lamp has no limiting resistor and so it is necessary to connect an external resistor within the range shown in the
above table. (For details of calculation formulas, refer to page 25.)

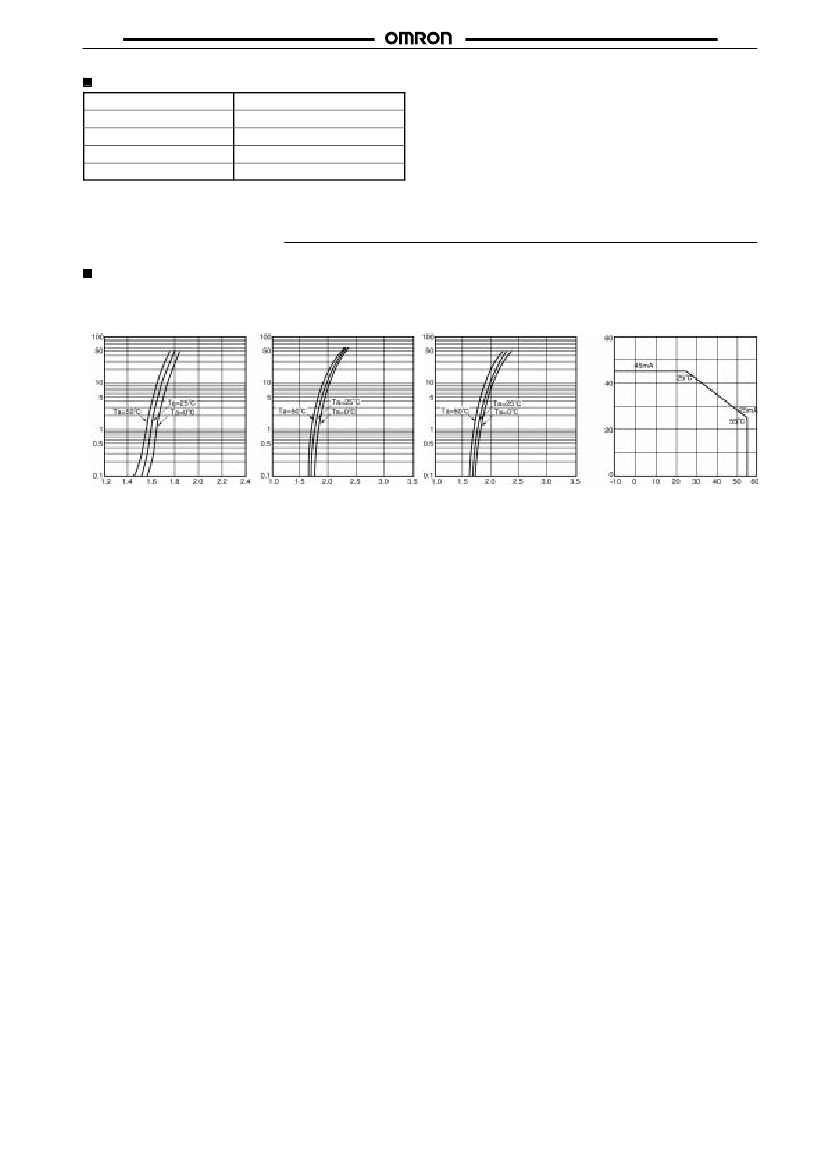

3. Refer to the characteristic graphs of V
F
– I
F
on page 21.
4. The same LED lamp is used for both yellow illumination and white illumination and so the ratings are the same.
Characteristics
Operating frequency
Insulation resistance
Dielectric s e g
e ec c strength
Mechanical: 120 operations/minute max. (See note 1.)
Electrical: 20 operations/minute max.
100 MΩ min. (at 500 VDC)
1,000 VAC, 50/60 Hz for 1 minute between terminals of same polarity
2,000 VAC, 50/60 Hz for 1 minute between terminals of different polarity, and between each
terminal and ground
1,000 VAC, 50/60 Hz for 1 minute between lamp terminals (See note 2.)
Vibration resistance
Shock resistance
Life expectancy
Malfunction: 10 to 55 Hz, 1.5 mm double amplitude (See note 3.)
Destruction: 500 m/s
2
Malfunction: 150 m/s
2
(See note 3.)
Mechanical:
Momentary operation models: 1,000,000 operations min.
Alternate operation models: 100,000 operations min.
(One operation consists of set and reset operations.)
Electrical: 100,000 operations min.
Weight
Ambient operating temperature
Ambient operating humidity
Ambient storage temperature
Degree of protection
Electric shock protection class
PTI (proof tracking index)
Pollution degree
Note:
Approx. 3 g
–10_C to 55_C (with no icing or condensation)
35% to 85%
–25_C to 65_C
IP40
Class II
175
3 (IEC947-5-1)
1. With alternate operation models, 60 operations/minute max. One operation cycle consists of set and reset operations.
2. The figure for dielectric strength between lamp terminals is for when the LED lamp is not mounted.
3. “Malfunction” in the above table indicates malfunctions of less than 1 ms.
20
