DATA SHEET
PART NO. : A-244CE G/W
REV :
A/0
CUSTOMER’S APPROVAL : _______________
DRAWING NO. : DS-14-08-0042
DCC : ____________
Page : 1
HD-R/RD012
DATE : 2008-04-03
0.24
INCH
FOUR
DIGITS
DISPLAY
REV:A / 0
A-244CE G/W

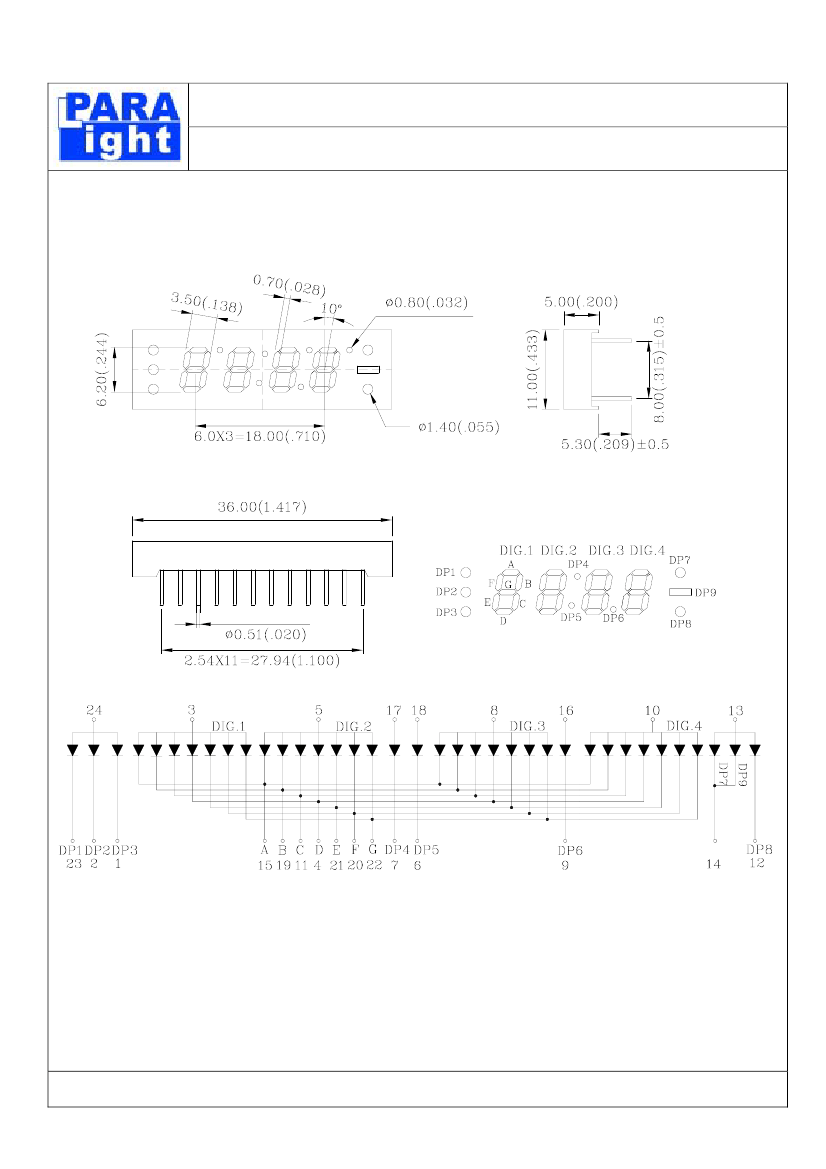

PACKAGE DIMENSIONS
NOTES : 1. All dimensions are in millimeters. (inches)
2. Tolerance is
±
0.25(0.010") unless otherwise specified.
DRAWING NO. : DS-14-08-0042
DATE : 2008-04-03
Page : 2
HD-R/RD013
0.24
INCH
FOUR
DIGITS
DISPLAY
REV:A / 0
A-244CE G/W
FEATURES
6.20mm (0.24 inch ) DIGIH HEIGHT
COMMON ANODE
I.C. COMPATIBLE
LOW POWER CONSUMPTION
Pb FREE PRODUCTS.
ROHS COMPLIANCE
GRAY FACE, WHITE SEGMENTS
Raw Material : GaAsP/GaP
ABSOLUTE MAXIMUM RATING : ( Ta = 25°C )
SYMBOL
P
D
V
R
I
AF
I
PF
-
Topr
Tstg
PARAMETER
Power Dissipation Per Segment
Reverse Voltage Per Segment
Continuous Forward Current Per Segment
Peak Forward Current Per Segment
(1/10 Duty Cycle,0.1ms Pulse Width)
Derating Linear From 25°C Per Segment
Operating Temperature Range
Storage Temperature Range
HI.EFFI.RED
75
5
25
100
0.33
UNIT
mW
V
mA
mA
mA/°C
-35°C
to 85°C
-35°C
to 85°C
ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25°C )
SYMBOL
V
F
I
R
λ
P
λ
D
∆
λ
I
V
PARAMETER
Forward Voltage , Per Segment
Reverse Current , Per Segment
Peak Emission Wavelength
Dominant Wavelength
Spectral Line Half-Width
Luminous Intensity Per Segment
TEST CONDITION MIN.
I
F
= 20mA
V
R
= 5V
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
I
F
= 10mA
0.61
632
622
35
1.8
TYP.
2.1
MAX. UNIT
2.8
100
V
µA
nm
nm
nm
mcd
DRAWING NO. : DS-14-08-0042
DATE : 2008-04-03
Page : 3
HD-R/RD014

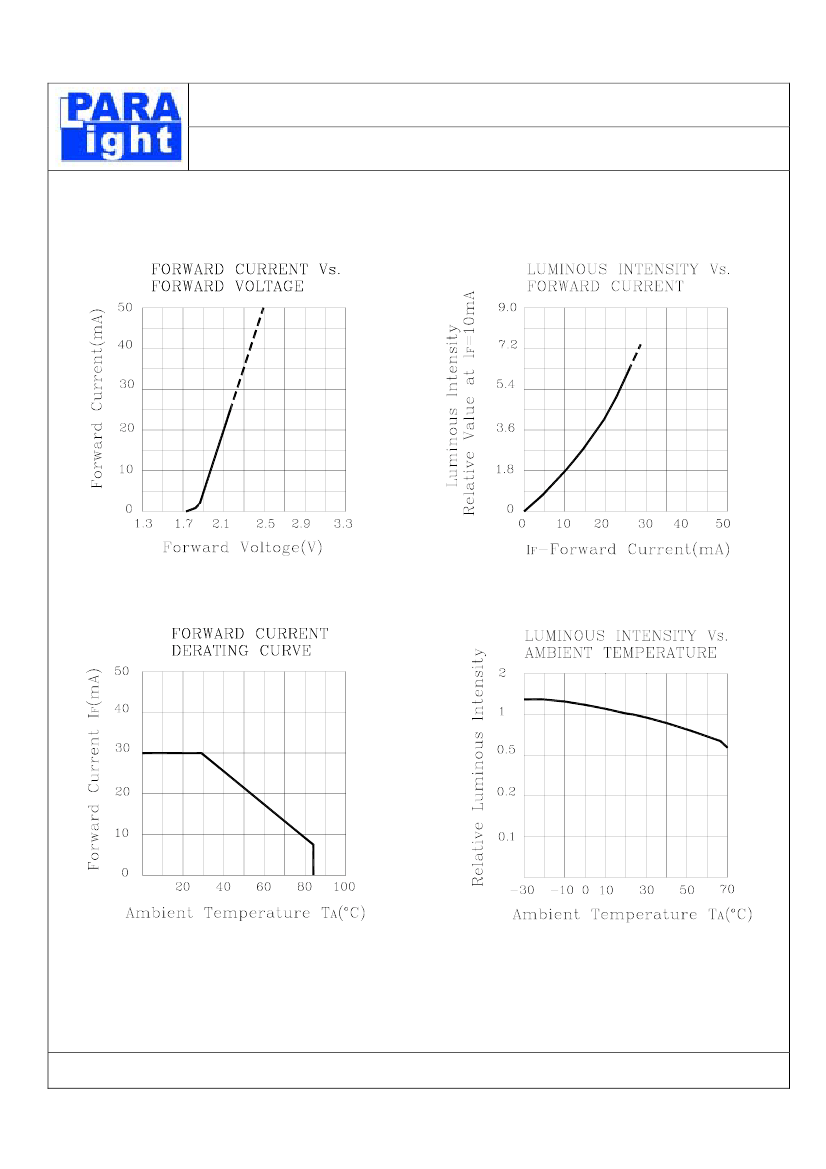

0.24
INCH
FOUR
DIGITS
DISPLAY
REV:A / 0
A-244CE G/W
DRAWING NO. : DS-14-08-0042
DATE : 2008-04-03
Page : 4
0.24
SOLDERING
METHOD
INCH
FOUR
DIGITS
DISPLAY
REV:A / 0
A-244CE G/W
SOLDERING CONDITIONS
REMARK
DIP
SOLDERING
Bath temperature: 260 max
Immersion time: within 5 sec
Solder no closer than 2mm from
the base of the package
Using soldering flux,” RESIN FLUX”
is recommended.
During soldering, take care not to
Soldering iron: 30W or smaller
press the tip of iron against the
SOLDERING
Temperature at tip of iron: 350
℃
or lower PIN.
IRON
Soldering time: within 3 sec.
(To prevent heat from being
transferred directly to the PIN.)
1) When soldering the PIN of Display in a jig that the package is fixed with a panel (See fIg.1), be
careful not to stress the PIN with iron tip. When soldering Display in a condition that the package
is fixed with a panel, be careful not to cling and stress the surface of Display on the panel to avoid
damaging the Display.

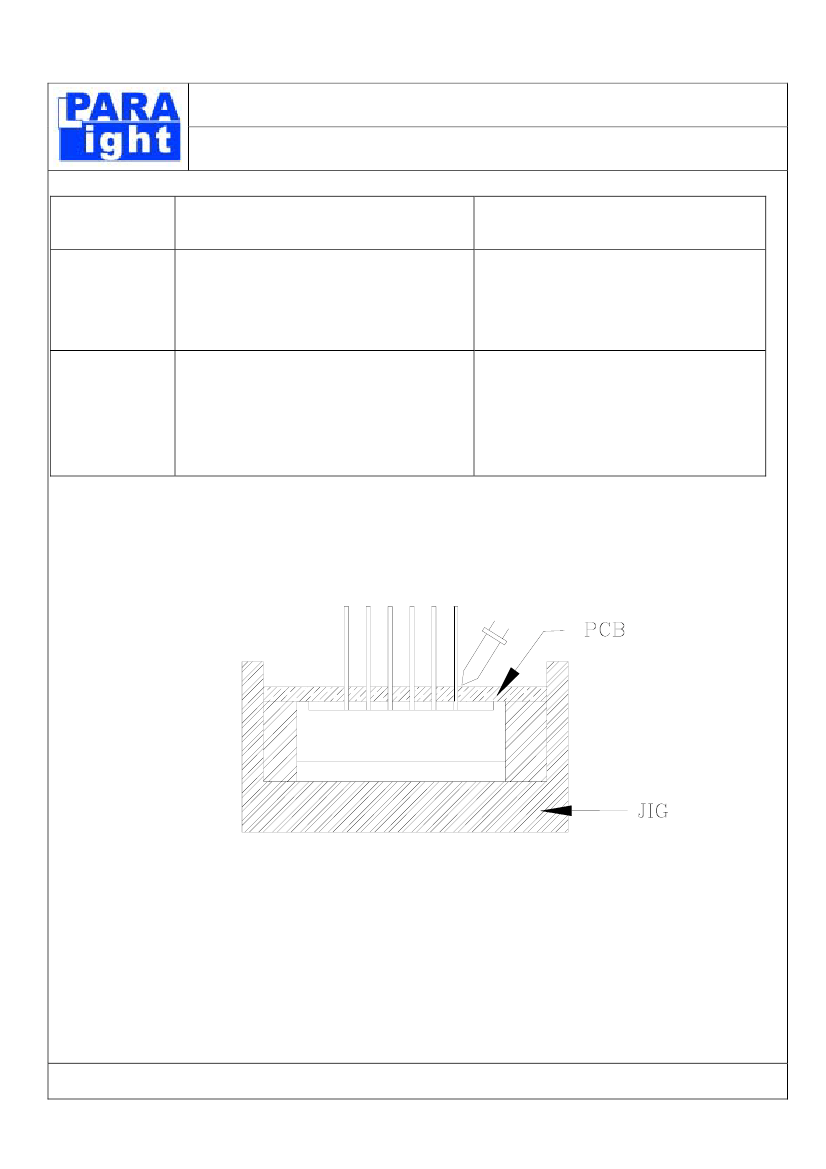

Fig.1
Regarding solution in the tinning oven for product-tinning, compound sub-solution made of tin &
copper and silver is proposed with the temperature of Celsius 260. The proportion of the
alloyed solution is tin 95.5: copper 3.5: silver 0.5 by percentage. The time of tinning is constantly
3 seconds.
