UA79M20CKC: DescriptionFixed Negative Standard Regulator, 20V, BIPolar, PSFM3, PACKAGE-3; CategoryPower/power management The power supply circuit; File Size989KB，15 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

UA79M20CKC Overview

Fixed Negative Standard Regulator, 20V, BIPolar, PSFM3, PACKAGE-3

UA79M20CKC Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum input voltage	35 V
Minimum input voltage	23 V
JESD-30 code	R-PSFM-T3
Number of functions	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum output current 1	0.5 A
Maximum output voltage 1	21 V
Minimum output voltage 1	19 V
Nominal output voltage 1	20 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Regulator type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

REI Datasheet

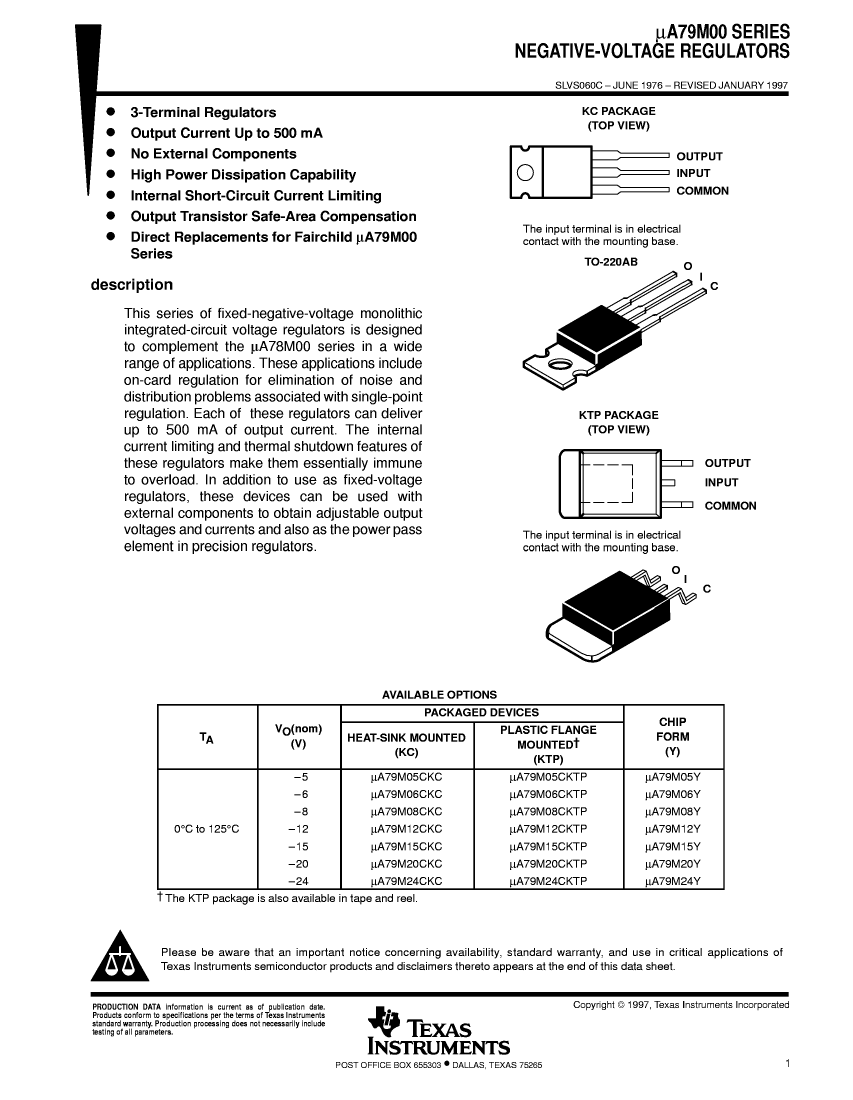

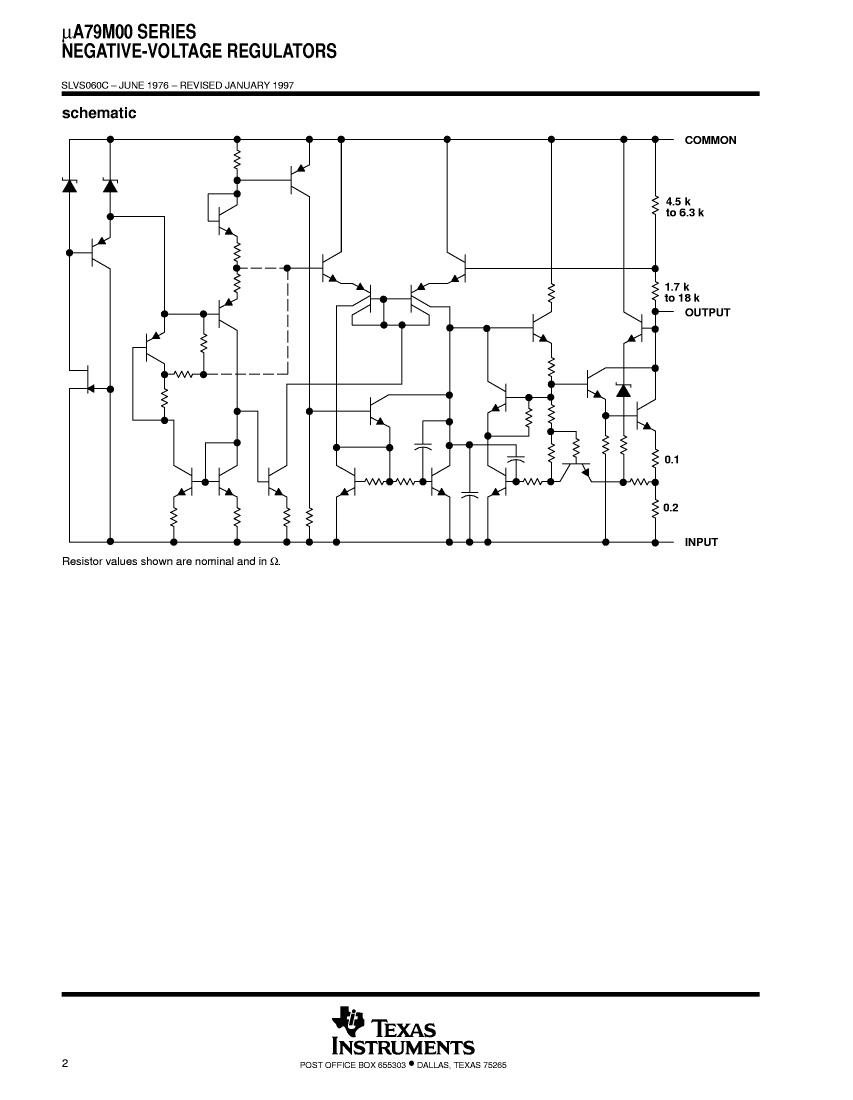

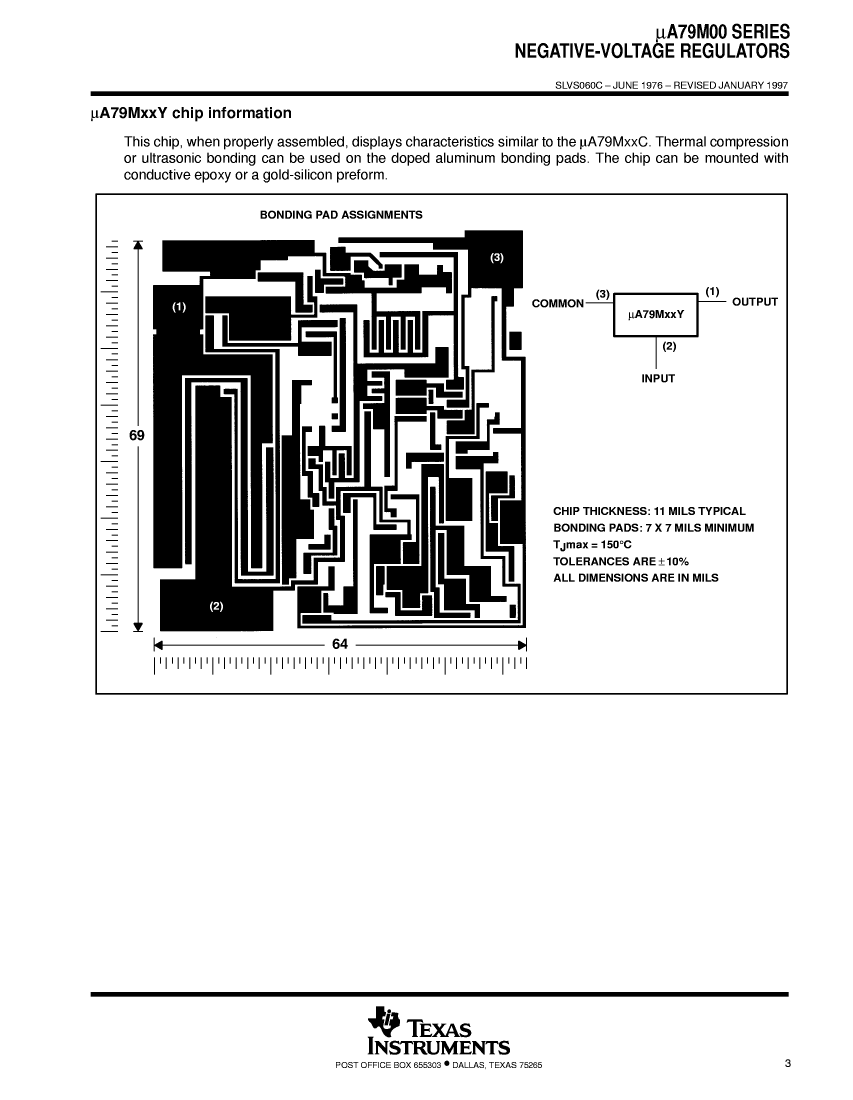

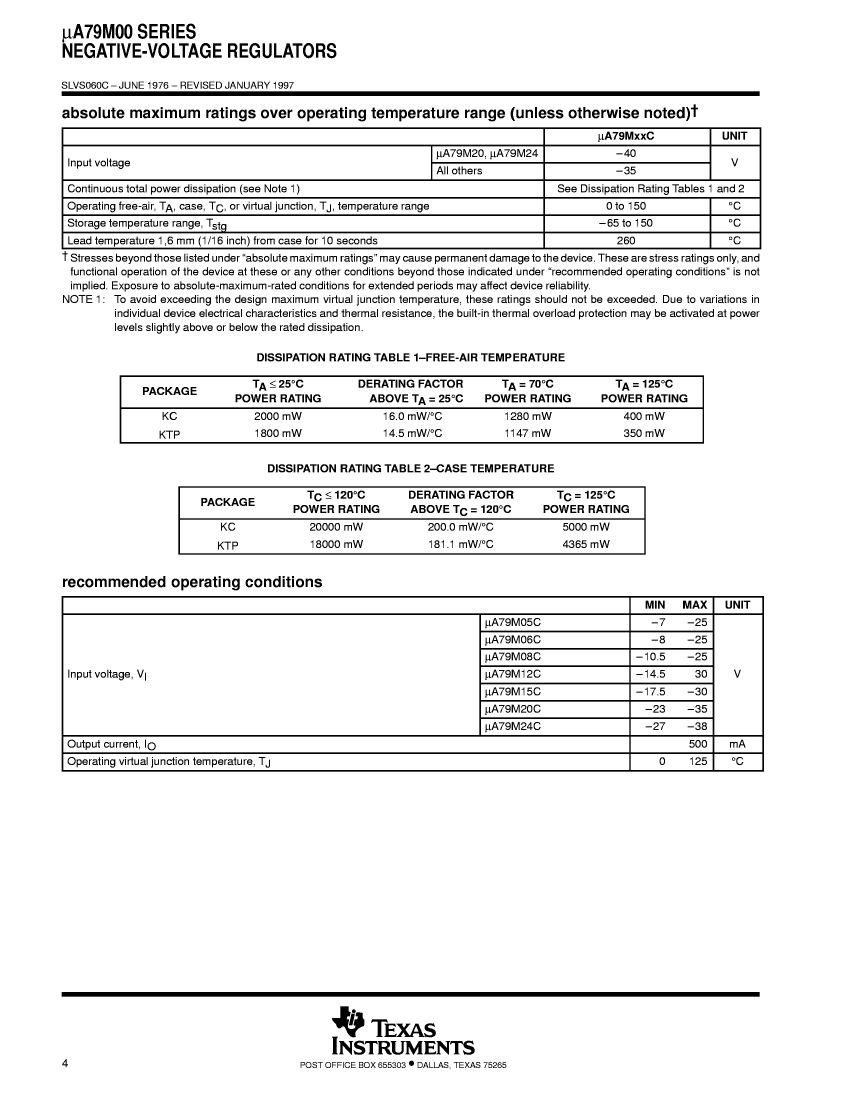

µA79M00

Series

Negative-Voltage Regulators

This series of fixed-negative-voltage monolithic integrated-circuit voltage regulators is designed to

complement the µA78M00 series in a wide range of applications. These applications include on-card

regulation for elimination of noise and distribution problems associated with single-point regulation.

Each of these regulators can deliver up to 500 mA of output current. The internal current limiting and

thermal shutdown features of these regulators make them essentially immune to overload. In addition

to use as fixed-voltage regulators, these devices can be used with external components to obtain

adjustable output voltages and currents and also as the power pass element in precision regulators.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

• ISO-9001

• AS9120 certification

• Qualified Manufacturers List (QML) MIL-PRF-38535

• Class Q Military

• Class V Space Level

• Qualified Suppliers List of Distributors (QSLD)

• Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

UA79M20CKC Related Products

	UA79M20CKC	UA79M06CKC	UA79M05CKTPRG3	UA79M12MJG	UA79M05CKC	UA79M05MJG	UA79M06CKTP	UA79M05CKCE3	UA79M05CKCS
Description	Fixed Negative Standard Regulator, 20V, BIPolar, PSFM3, PACKAGE-3	Fixed Negative Standard Regulator, 6V, BIPolar, PSFM3, PACKAGE-3	Fixed Negative Standard Regulator, 5V, BIPolar, PSSO2, PLASTIC, FM-2	Fixed Negative Standard Regulator, 12V, BIPolar, CDIP8, PACKAGE-8	Fixed Negative Standard Regulator, 5V, BIPolar, PSFM3, PLASTIC, TO-220, 3 PIN	Fixed Negative Standard Regulator, 5V, BIPolar, CDIP8, PACKAGE-8	Fixed Negative Standard Regulator, 6V, BIPolar, PSSO2, PLASTIC, FM-2	Fixed Negative Standard Regulator, 5V, BIPolar, PSFM3, PLASTIC, TO-220, 3 PIN	Fixed Negative Standard Regulator, 5V, BIPolar, PSFM3, ROHS COMPLIANT, PLASTIC, TO-220, 3 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum input voltage	35 V	25 V	25 V	30 V	25 V	25 V	25 V	25 V	25 V
Minimum input voltage	23 V	8 V	7 V	14.5 V	7 V	7 V	8 V	7 V	7 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSSO-G2	R-GDIP-T8	R-PSFM-T3	R-GDIP-T8	R-PSSO-G2	R-PSFM-T3	R-PSFM-T3
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	2	8	3	8	2	3	3
Working temperatureTJ-Max	125 °C	125 °C	125 °C	150 °C	125 °C	150 °C	125 °C	125 °C	125 °C
Maximum output current 1	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Maximum output voltage 1	21 V	6.3 V	5.25 V	12.5 V	5.25 V	5.2 V	6.3 V	5.25 V	5.25 V
Minimum output voltage 1	19 V	5.7 V	4.75 V	11.5 V	4.75 V	4.8 V	5.7 V	4.75 V	4.75 V
Nominal output voltage 1	20 V	6 V	5 V	12 V	5 V	5 V	6 V	5 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	SMALL OUTLINE	IN-LINE	FLANGE MOUNT	IN-LINE	SMALL OUTLINE	FLANGE MOUNT	FLANGE MOUNT
Regulator type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO	NO	YES	NO	NO	NO	YES	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	DUAL	SINGLE	DUAL	SINGLE	SINGLE	SINGLE
Maker	-	-	-	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
