ADC0802LD datasheet, PDF - EEWORLD Datasheet

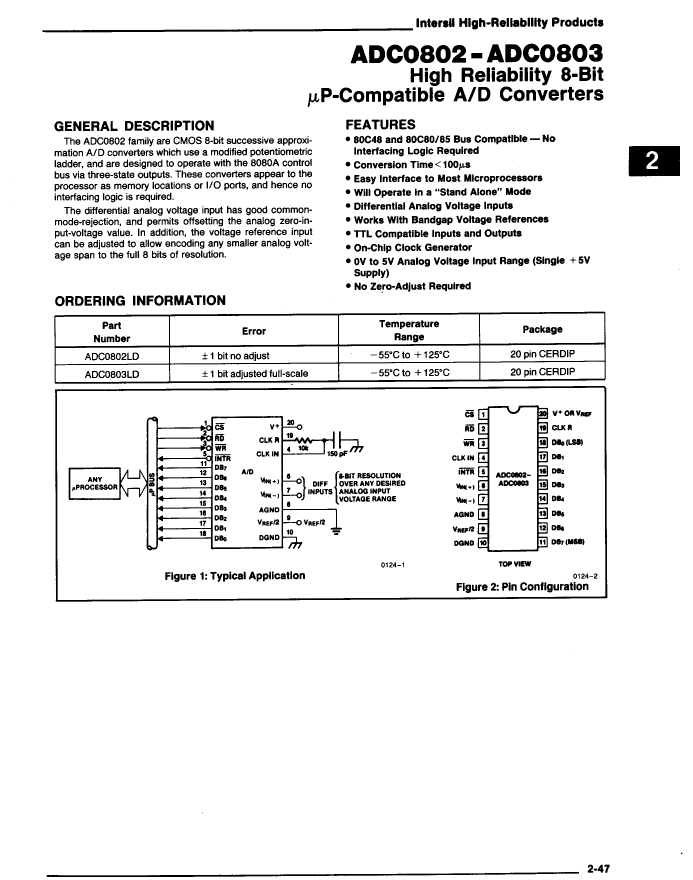

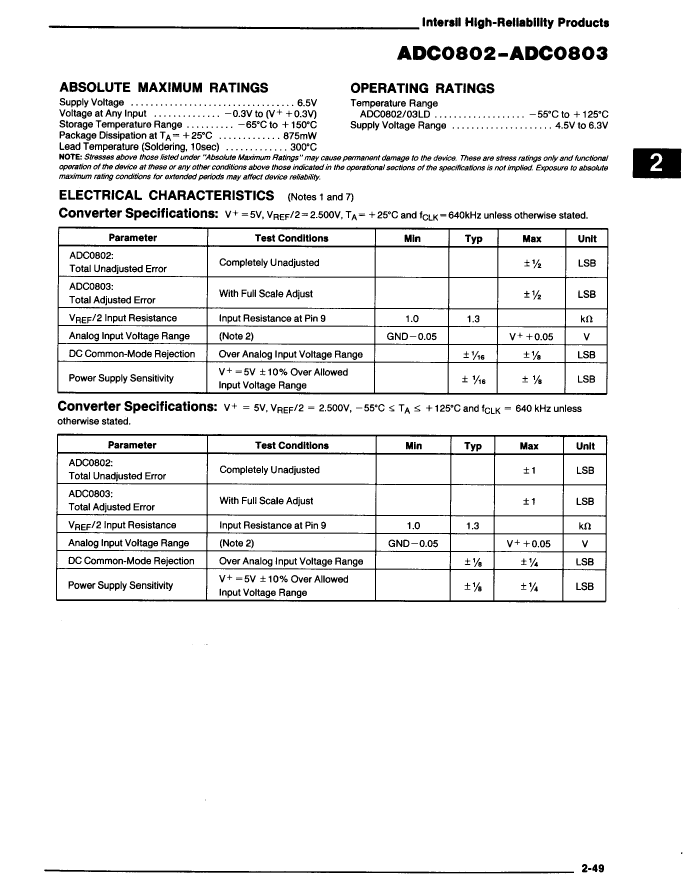

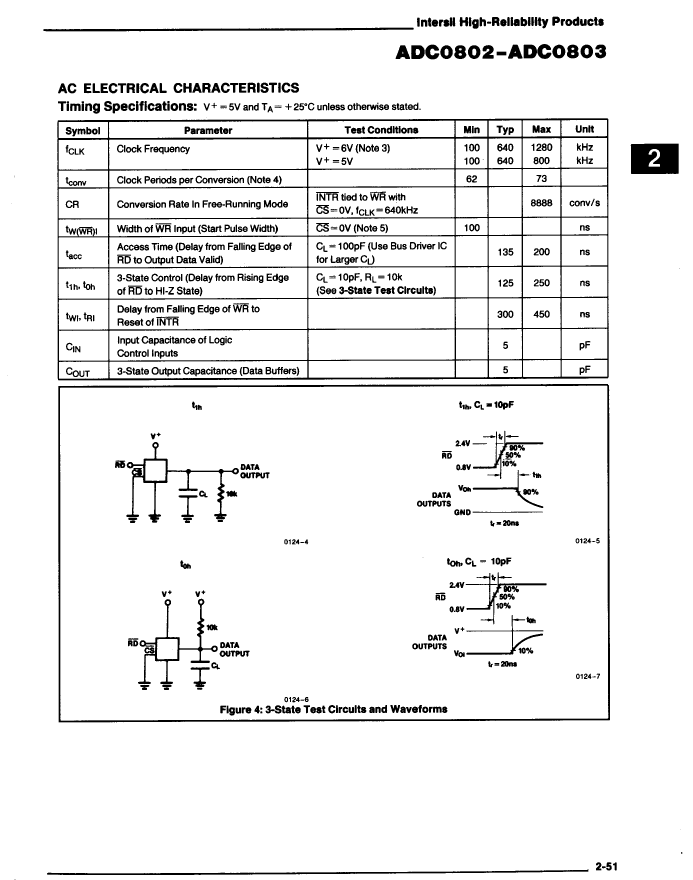

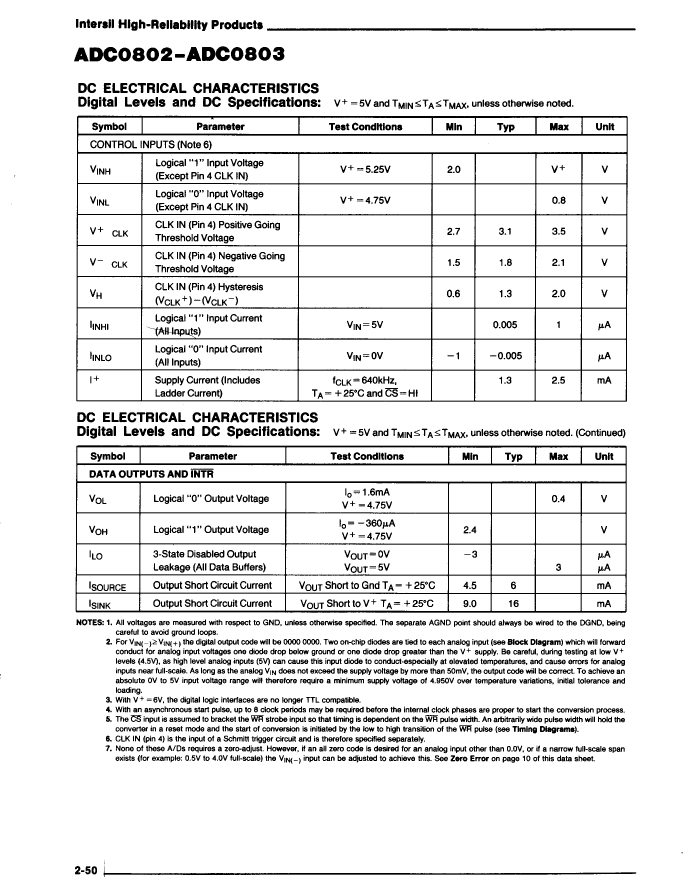

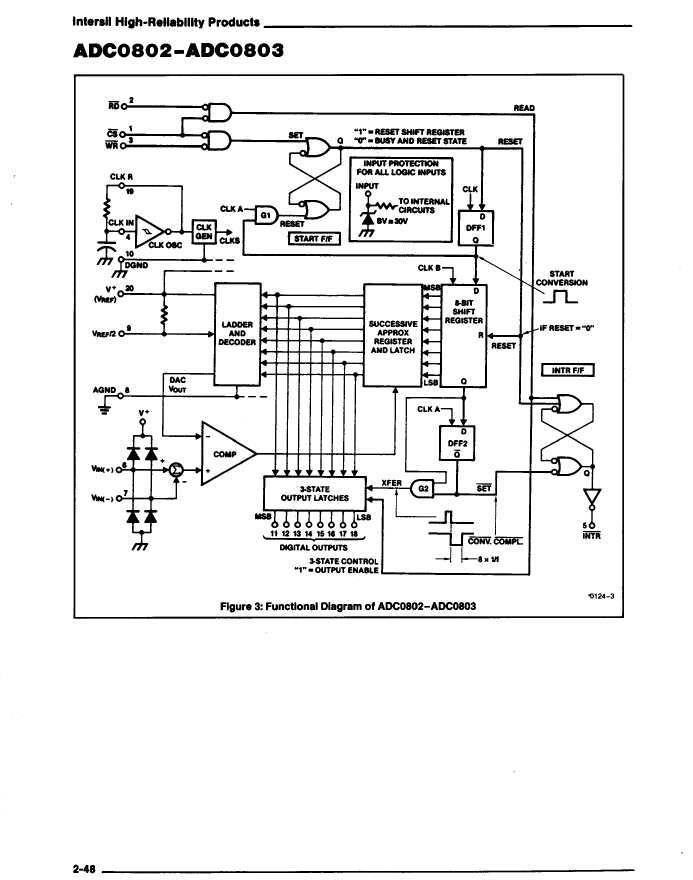

ADC0802LD: DescriptionA/D Converter, 8-Bit, 1 Func, CMOS, CDIP20,; CategoryAnalog mixed-signal IC converter; File Size1MB，17 Pages; ManufacturerGeneral Electric Solid State

Download Datasheet Parametric Compare View All

ADC0802LD Overview

A/D Converter, 8-Bit, 1 Func, CMOS, CDIP20,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
Maximum analog input voltage	5 V
Converter type	A/D CONVERTER
JESD-30 code	R-XDIP-T20
JESD-609 code	e0
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	BINARY
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	ADC0802LD	ADC0802LCD	ADC0802LCN
Description	A/D Converter, 8-Bit, 1 Func, CMOS, CDIP20,	A/D Converter, 8-Bit, 1 Func, CMOS, CDIP20,	A/D Converter, 8-Bit, 1 Func, CMOS, PDIP20,
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown	unknown
Maximum analog input voltage	5 V	5 V	5 V
Converter type	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER
JESD-30 code	R-XDIP-T20	R-XDIP-T20	R-PDIP-T20
JESD-609 code	e0	e0	e0
Number of digits	8	8	8
Number of functions	1	1	1
Number of terminals	20	20	20
Maximum operating temperature	125 °C	85 °C	70 °C
Minimum operating temperature	-55 °C	-40 °C	-
Output bit code	BINARY	BINARY	BINARY
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP20,.3	DIP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	INDUSTRIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	-
