AZ769-1A-12D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> AZ769-1A-12D

AZ769-1A-12D: DescriptionPower/Signal Relay, 1 Form A, SPST, Latched, 19VDC (Coil), 25A (Contact), 150VDC (Contact), DC Input, Random, AC/DC Output,; CategoryMechanical and electronic products relay; File Size84KB，2 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/

Download Datasheet Parametric Compare View All

AZ769-1A-12D Overview

Power/Signal Relay, 1 Form A, SPST, Latched, 19VDC (Coil), 25A (Contact), 150VDC (Contact), DC Input, Random, AC/DC Output,

AZ769-1A-12D Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
body width	16 mm
body height	23.5 mm
Body length or diameter	30.5 mm
Coil operating voltage (DC)	8.4 V
Coil resistance	160 Ω
Maximum coil voltage (DC)	19 V
Nominal coil voltage	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	6925VA@400VAC
Contact (AC) maximum rated R load	25A@400VAC
Maximum contact current (AC)	25 A
Maximum contact current (DC)	25 A
Contact (DC) maximum rated power R load	600W@150VDC
Contact (DC) maximum rated R load	25A@150VDC
Contact resistance	50 mΩ
Maximum contact voltage (AC)	400 V
Maximum contact voltage (DC)	150 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	4500 Vrms
Dielectric strength between breaking contacts	1500 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Cadmium Oxide
Input switching control type	Random
Insulation resistance	1000000000 Ω
JESD-609 code	e3
Number of terminals	4
operating hours	20 ms
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
physical size	30.5mm x 16mm x 23.5mm
Guideline	CUR; UL
Relay action	LATCHED
Relay style	1 FORM A
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	10 ms
Terminal surface	Tin
Terminal length	0.0035 inch
Termination type	QUICK CONNECT
weight	23 g
Base Number Matches	1

Preview

Download Datasheet

View All

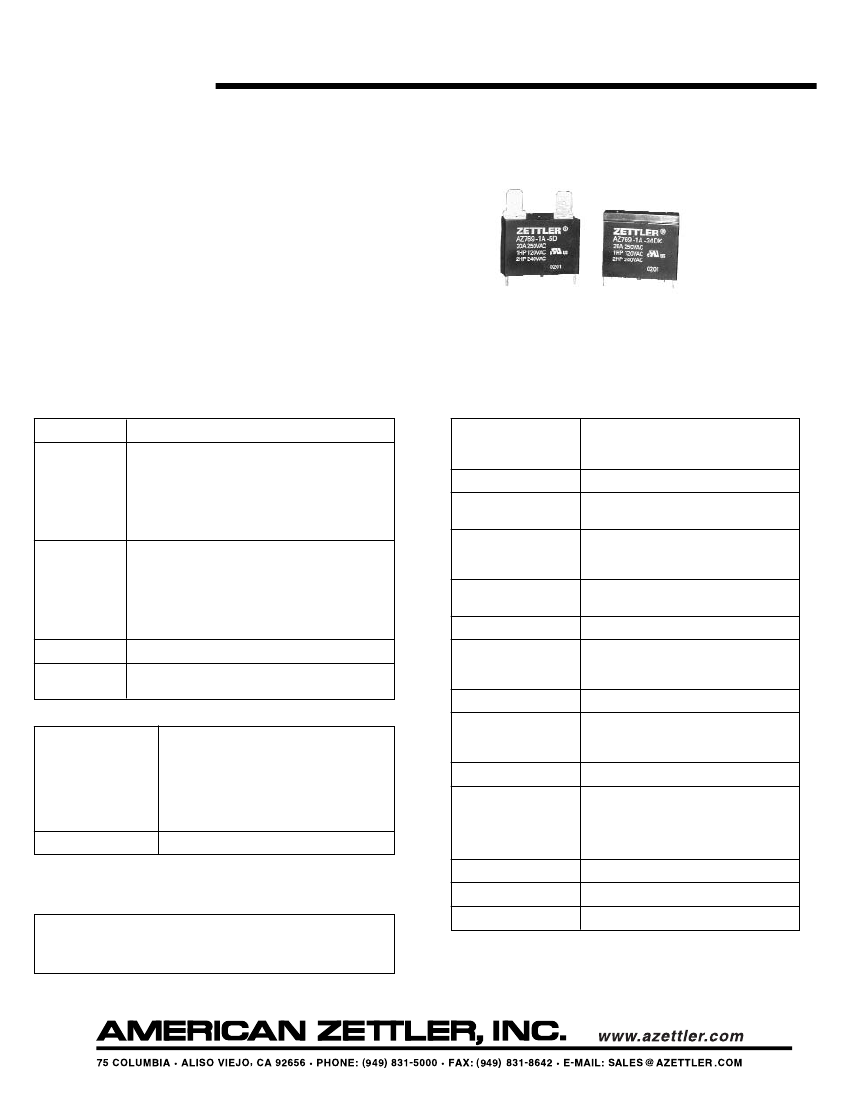

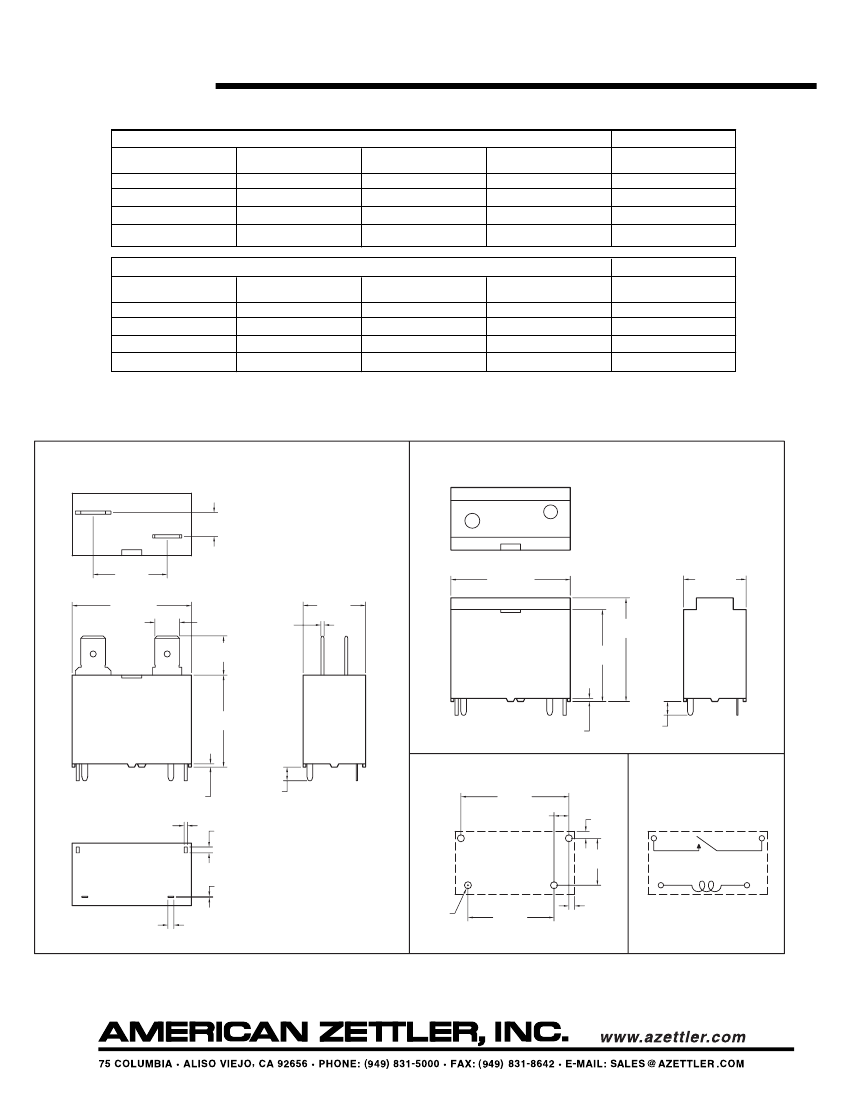

AZ769

25 AMP MINIATURE

POWER RELAY

FEATURES

•

Low cost

25 Amp switching

80 Amp inrush current

Quick connect and PCB terminals

Flux tight construction

Class F

insulation system

standard

UL, CUR file E44211

CONTACTS

Arrangement

Ratings

SPST (1 Form A)

Resistive load:

Max. switched power: 600W or 6250VA

Max. switched current: 25A

Max. switched voltage: 150VDC* or

250VAC

Note: If switching voltage is greater than 30 VDC, special

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time (max)

Release Time (max)

Minimum operations

2 x 10

1 x 10

at 20A 250VAC Res.

20 ms at nominal coil voltage

10 ms at nominal coil voltage

(with no coil suppression)

precautions must be taken. Please contact the factory.

Rated Load

UL, CUR

25A at 277VAC resistive (100k cycles)

85°C(1]

[2]

1HP at 120VAC (100k cycles)

85°C

[1] [2]

2HP at 240VAC (100k cycles)

85°C

[2]

2HP at 240VAC (30k cycles)

85°C

[1]

Dielectric Strength

4500Vrms coil to contact

(at sea level for 1 min.)

1000Vrms between open contacts

10,000V surge contact to coil

Insulation

Resistance

Dropout

1000 megohms min. at 20°C, 500 VDC,

50% RH

Greater than 10% of nominal coil voltage

At nominal coil voltage

-40°C (-40°F) to 85°C (185°F)

-40°C (-40°F) to 130°C (266°F)

0.062" DA at 10–55 Hz

Material

Resistance

silver cadmium oxide [1], silver tin oxide [2]

100

milliohms initially

(6V, 1A voltage drop method)

Ambient Temperature

Operating

Storage

Vibration

COIL

Shock

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature Rise

Temperature

441mW

Operating

20 g, 11 ms,

sine (no false operation)

Non-Operating

100 g, 11 ms,

sine (no damage)

Enclosure

2.25W at 20°C (68°F) ambient

45°C (81°F) at nominal coil voltage

Max. 155°C (311°F)

Max. Solder Temp.

Terminals

P.B.T. polyester

Tinned copper alloy

P. C. & quick connect

Note: Allow suitable slack on leads when wiring,

and do not subject the terminals to excessive

force.

270°C (518°F)

5 seconds

Approx.

23 grams

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Specifications subject to change without notice.

Max. Solder Time

Weight

12/05/17

AZ769-1A-12D Related Products

	AZ769-1A-12D	AZ769-1A-24D	AZ769-1A-5D
Description	Power/Signal Relay, 1 Form A, SPST, Latched, 19VDC (Coil), 25A (Contact), 150VDC (Contact), DC Input, Random, AC/DC Output,	Power/Signal Relay, 1 Form A, SPST, Latched, 37.9VDC (Coil), 25A (Contact), 150VDC (Contact), DC Input, Random, AC/DC Output,	Power/Signal Relay, 1 Form A, SPST, Latched, 7.9VDC (Coil), 25A (Contact), 150VDC (Contact), DC Input, Random, AC/DC Output,
Reach Compliance Code	compliant	compliant	compliant
body width	16 mm	16 mm	16 mm
body height	23.5 mm	23.5 mm	23.5 mm
Body length or diameter	30.5 mm	30.5 mm	30.5 mm
Coil operating voltage (DC)	8.4 V	16.8 V	3.5 V
Coil resistance	160 Ω	640 Ω	27.8 Ω
Maximum coil voltage (DC)	19 V	37.9 V	7.9 V
Nominal coil voltage	12 V	24 V	5 V
Coil/Input Power Type	DC	DC	DC
Contact (AC) maximum rated power R load	6925VA@400VAC	6925VA@400VAC	6925VA@400VAC
Contact (AC) maximum rated R load	25A@400VAC	25A@400VAC	25A@400VAC
Maximum contact current (AC)	25 A	25 A	25 A
Maximum contact current (DC)	25 A	25 A	25 A
Contact (DC) maximum rated power R load	600W@150VDC	600W@150VDC	600W@150VDC
Contact (DC) maximum rated R load	25A@150VDC	25A@150VDC	25A@150VDC
Contact resistance	50 mΩ	50 mΩ	50 mΩ
Maximum contact voltage (AC)	400 V	400 V	400 V
Maximum contact voltage (DC)	150 V	150 V	150 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC
Dielectric strength between coil and contacts	4500 Vrms	4500 Vrms	4500 Vrms
Dielectric strength between breaking contacts	1500 Vrms	1500 Vrms	1500 Vrms
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
End contact material	Silver Cadmium Oxide	Silver Cadmium Oxide	Silver Cadmium Oxide
Input switching control type	Random	Random	Random
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
JESD-609 code	e3	e3	e3
Number of terminals	4	4	4
operating hours	20 ms	20 ms	20 ms
Maximum operating temperature	80 °C	80 °C	80 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
physical size	30.5mm x 16mm x 23.5mm	30.5mm x 16mm x 23.5mm	30.5mm x 16mm x 23.5mm
Guideline	CUR; UL	CUR; UL	CUR; UL
Relay action	LATCHED	LATCHED	LATCHED
Relay style	1 FORM A	1 FORM A	1 FORM A
Relay function	SPST	SPST	SPST
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	10 ms	10 ms	10 ms
Terminal surface	Tin	Tin	Tin
Terminal length	0.0035 inch	0.0035 inch	0.0035 inch
Termination type	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT
weight	23 g	23 g	23 g
Base Number Matches	1	1	1
