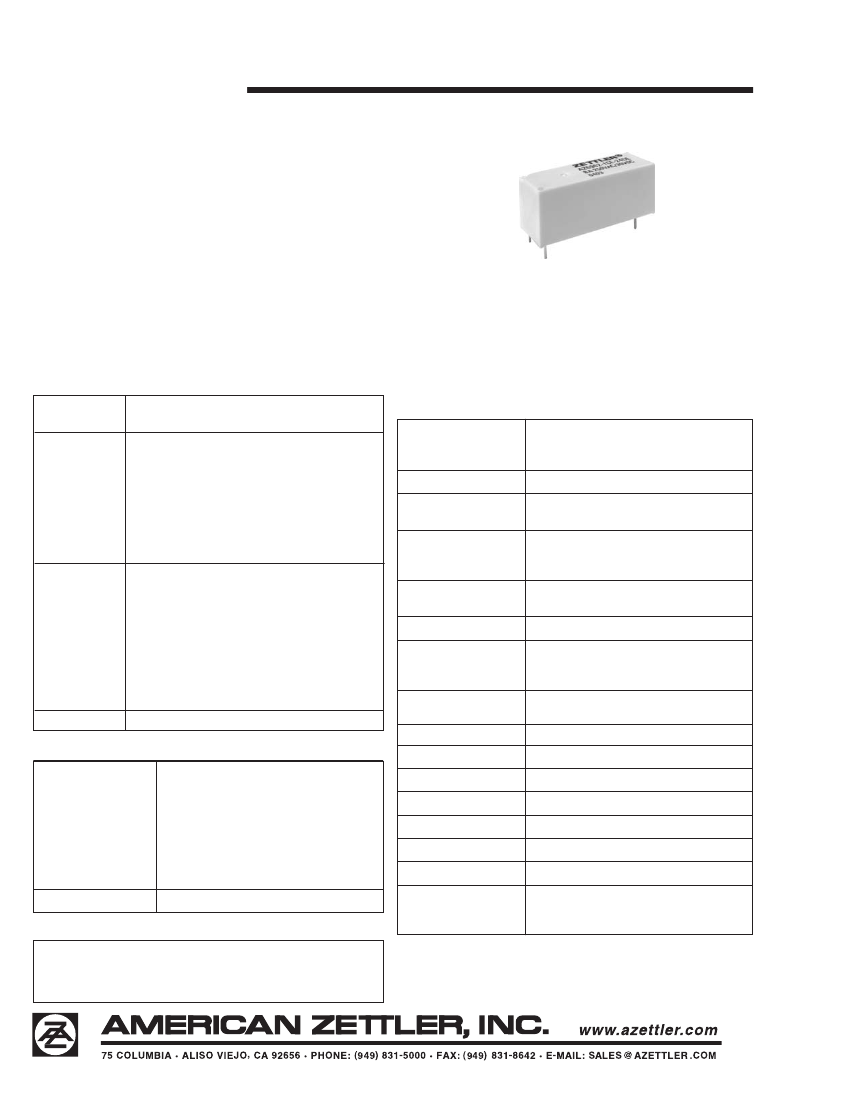

AZ6962
10 AMP SUBMINIATURE
POWER RELAY
FEATURES
•
High sensitivity, 120 mW pickup
•
Dielectric strength 5000 Vrms
•
Isolation spacing greater than 10 mm
•
10kV surge voltage
•
Proof tracking index (PTI/CTI) 250
•
Class F insulation system standard
•
10 Amp switching capability
•
Epoxy sealed
•
UL, CUR file E44211
•
VDE file 40025524
CONTACTS
Arrangement
Ratings
SPDT (1 Form C), SPST (1 Form A)
Resistive load:
Max. switched power:
300
W or 2500 VA
Max. switched current: 10 A
Max. switched voltage:
125
VDC* or 440 VAC
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
3 x 10
7
1 x 10
5
at 8 A 250 VAC res.
7 ms at nominal coil voltage
3 ms at nominal coil voltage
(with no coil suppression)
*
Note: If switching voltage is greater than 30 VDC,
special precautions must be taken.
Please contact the factory.
Rated Load
UL, CUR
Dielectric Strength
5000 Vrms coil to contact
(at sea level for 1 min.)
2500 Vrms between contact sets
1500 Vrms between open contacts
Insulation
Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
Shock
Enclosure
Terminals
1000 megohms min. at 20°C, 500 VDC,
50% RH
Greater than 10% of nominal coil voltage
At nominal coil voltage
-40°C (-40°F) to 100°C (185°F)
-40°C (-40°F) to 155°C (221°F)
Break Contact: 0.8mm DA 10 …55 Hz
Make Contact: 1.65mm DA 10…55 Hz
NO: 10 g NC:5 g
P.B.T. polyester, UL94 V-O
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
8 grams
10 A at 250 VAC resistive, 30k cycles (1 Form C)
10 A at 30 VDC resistive, 30k cycles (1 Form C)
B300, R300 Pilot Duty (1 Form C)
1/2 HP at 240 VAC, 30k cycles (N.O.)
1/3 HP at 120 VAC, 30k cycles (N.O.)
VDE
Material
8 A at 250 VAC resistive, 100k cycles
(1 Form A, and 1 Form C)
Silver tin oxide
COIL
Power
At Pickup Voltage
(typical)
120 mW (up to 24 VDC coil) (1 pole)
140 mW (48 VDC and 60 VDC coil)
(1 pole)
1.2 W at 20°C (68°F) ambient
20°C (36°F) at nominal coil voltage
Max. 155°C (311°F)
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Immersion Time
Weight
Max. Continuous
Dissipation
Temperature Rise
Temperature
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.

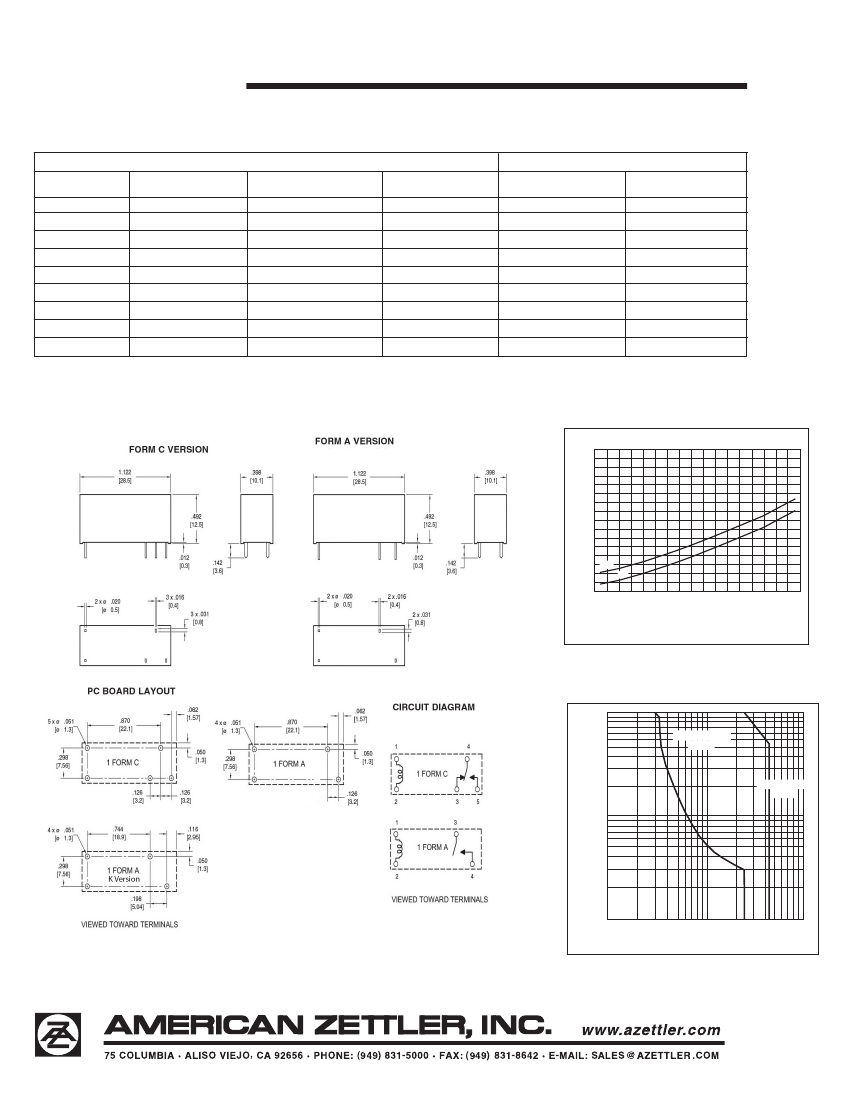

6/2/14
